4K 18Gbps HDMI Video Splitter: 4-Port

Simultaneously display the same Ultra-HD 4Kx2K 60Hz 4:4:4 image from one 18Gbps HDMI video source to four displays

4K 60Hz 4:4:4 HDMI Splitter/Extender via CAT5e/6

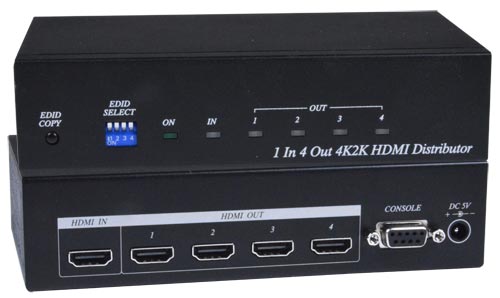

VOPEX-4K18GB-4 (Front & Back)

Product Highlights

  • Resolutions to Ultra-HD 4Kx2K 60Hz 4:4:4
  • 18Gbps bandwidth
  • HDMI 2.0
  • Digital Signage

The VOPEX® 4K 18Gbps HDMI Splitter simultaneously displays the same Ultra-HD 4Kx2K 60Hz 4:4:4 image from one 18Gbps HDMI video source to four displays.

The VOPEX® 4K 18Gbps HDMI Splitter simultaneously displays the same Ultra-HD 4Kx2K 60Hz 4:4:4 image from one 18Gbps HDMI video source to four displays.

  • Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @60Hz YUV 4:4:4) and HDTV resolutions to 1080p.
  • HDMI features supported:
    • HDMI 2.0
    • RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
    • Dolby TrueHD, LPCM 7.1, and DTS-HD Master Audio
    • Up to 48-bit Deep Color
    • Bandwidth up to 600 MHz (18Gbps)
    • 3D
    • HDR
  • HDCP 2.2 compliant.
  • Built-in EDID learning for the support of any HDMI display device.
  • Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple displays is needed.
Video Input
  • One female HDMI Type A connector for video source.
  • Supports HDCP 2.2
Video Output
  • Four female HDMI Type A connectors for displays.
  • Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @60Hz YUV 4:4:4) and HDTV resolutions to 1080p.
  • DIP switch on front panel for EDID learning.
  • Supports HDCP 2.2
RS232
  • Female DB9 RS232 port for firmware updates.
Power
  • Input: 100 to 240 VAC at 50 or 60Hz via AC adapter (included).
  • Output: 5 VDC, 2A
  • Power consumption: 5W
Dimensions
  • WxDxH (in):6.57x3.96x1.57 (167x101x40 mm)
Environmental
  • Operating temperature: 32 to 140°F (0 to 60°C).
  • Storage temperature: -4 to 185°F (-20 to 85°C).
  • Operating and storage relative humidity: up to 95% non-condensing RH.
Regulatory Approval
  • CE, RoHS
Warranty
  • Two years
Cables
  • Interface cables between the video source/displays and the splitter are required for proper operation.
    • Supports cable lengths to 20 feet for 4K@60Hz resolutions, and lengths to 50 feet for 1080p@60Hz using passive HDMI cables.
      • Longer cables can be used provided they have a built-in video equalizer (also known as "active HDMI cables").
  • Use HD-xx-MM cable to connect an HDMI source or display.
    • HD-3/6/10/15/20-MM supports resolutions to 4K@60Hz.
    • HD-30/50-MM supports resolutions to 1080p@60Hz.
  • Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display (not included).
    • HD-ACT-20/25/30/40/50/60-MM supports resolutions to 4K@60Hz.
    • HD-ACT-75/100-MM supports resolutions to 1080p@60Hz.
  • Use DVI-HD-xM-MM to connect a DVI source or display.
    • Supports resolutions to 1080p@60Hz.
  • Cables not included.

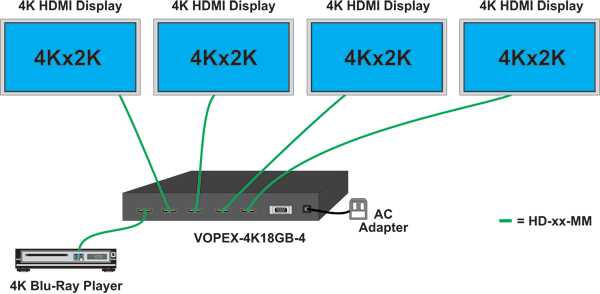

Application Drawings

  • 4K 18Gbps HDMI Video Splitter: 4-Port
    4K 18Gbps HDMI Video Splitter: 4-Port

4K 18Gbps HDMI Video Splitter: 4-Port

NTI Part # Description Price Quote Buy
VOPEX-4K18GB-4 4K 60Hz 4:4:4 18Gbps HDMI Splitter: 4-Port $225.00

HDMI Male-Male Cables

NTI Part # Length Max Resolution Price Quote Buy
HD-3-MM 3 feet 4K@60Hz $3.25
HD-6-MM 6 feet 4K@60Hz $3.45
HD-10-MM 10 feet 4K@60Hz $5.00
HD-15-MM 15 feet 4K@60Hz $7.50
HD-20-MM 20 feet 4K@60Hz $9.75
HD-30-MM 30 feet 1080p@60Hz $22.00
HD-50-MM 50 feet 1080p@60Hz $35.75
HD-75-MM 75 feet 1080p@60Hz $68.30
HD-100-MM 100 feet 1080p@60Hz $97.00

4K HDMI Active Cable, Male to Male, Built-In Signal Booster

NTI Part # Length Max Resolution Price Quote Buy
HD-ACT-20-MM 20 feet 4K@60Hz $47.00
HD-ACT-25-MM 25 feet 4K@60Hz $52.00
HD-ACT-30-MM 30 feet 4K@60Hz $55.00
HD-ACT-40-MM 40 feet 4K@60Hz $70.00
HD-ACT-50-MM 50 feet 4K@60Hz $92.50
HD-ACT-60-MM 60 feet 4K@60Hz $110.50
HD-ACT-75-MM 75 feet 1080p@60Hz $122.00
HD-ACT-100-MM 100 feet 1080p@60Hz $145.00

4K HDMI Active Optical Cables

NTI Part # Length Max Resolution Price Quote Buy
HD4K18GB-FO-10M-MM 10 meters 4K@60Hz $174.00
HD4K18GB-FO-15M-MM 15 meters 4K@60Hz $186.00
HD4K18GB-FO-20M-MM 20 meters 4K@60Hz $198.00
HD4K18GB-FO-25M-MM 25 meters 4K@60Hz $210.00
HD4K18GB-FO-30M-MM 30 meters 4K@60Hz $222.00
HD4K18GB-FO-50M-MM 50 meters 4K@60Hz $270.00
HD4K18GB-FO-70M-MM 70 meters 4K@60Hz $318.00
HD4K18GB-FO-100M-MM 100 meters 4K@60Hz $390.00

DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Max Resolution Price Quote Buy
DVI-HD-1M-MM 1 meter 1080p@60Hz $4.30
DVI-HD-2M-MM 2 meter 1080p@60Hz $8.00
DVI-HD-3M-MM 3 meter 1080p@60Hz $10.00
DVI-HD-5M-MM 5 meter 1080p@60Hz $11.00
