HDMI Over Gigabit IP Extender: Extend up to 333 feet

Extend an HDMI Plasma/LCD display monitor up to 333 feet away from the source using gigabit ethernet.

Also known as: HDMI extender, Media center extender, cat5 HDMI monitor extender, remote digital HDMI monitor, HDMI transmitter/receiver, high definition extender, extend video, HDMI range extender, HDMI over IP extender, gigabit HDMI extender.

HDMI Over Gigabit IP Extender: Extend up to 333 feet
ST-IPHDMI-R-2G (Front & Back)

Product Highlights

  • Visually Lossless 1080p
  • No Image Scaling or JPEG Compression
  • Supports 2-way RS232 Commands
  • No Duplicate IP Addresses on 1000BASE-T Network
  • LAN Bandwidth: 150Mbps
  • Supports video wall installations from 1x2 to 8x8 screens.
  • HDMI Extender for use with Digital Signage

The XTENDEX® HDMI Over Gigabit IP Extender multicasts digital video and audio signals to one or more receivers up to 333 feet away over a Second-Generation (2G) 1000BASE-T Gigabit Network connected with CAT5e/6/7 cable.


Each HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.

The XTENDEX® HDMI Over Gigabit IP Extender multicasts digital video and audio signals to one or more receivers up to 333 feet away over a Second-Generation (2G) 1000BASE-T Gigabit Network connected with CAT5e/6/7 cable.


Each HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.

  • Supports HDTV resolutions to 1080p.
  • Ideal solution for digital signage applications.
  • Optional Transmitter and/or Receiver with Power over Ethernet (PoE) - power supply not required at the local and/or remote unit.
  • Broadcast real-time HDMI video/audio to multiple display locations.
  • Transmits an HDMI signal over one CAT5e/6/7 cable.
  • Supports video wall installations from 1x2 to 8x8 screens.
  • Plug-and-Play installation allows receivers to find the transmitter automatically on the same network. (Network configuration may be required for Managed network switch.)
  • Easily expandable. Add remote units as you add monitors.
  • No image scaling, the original video signal that is input will be output at the source resolution.
  • Supports 2-way RS232 commands (control software on a PC, or other automated control system hardware such as Control4 or Crestron) to control any devices attached to the matrix using RS232.
  • Integrated mounting wings for ease of installation.
  • Inexpensive CAT5e/6/7 cable replaces bulky video cables.
  • Support for multiple transmitters requires a Managed network switch with VLAN/IGMP support. Standard LAN switches can only support one transmitter.
    • Each VLAN acts as a separate HDMI Over IP Channel on the network.
    • One transmitter can connect up to 200 receivers using cascaded managed network switches.
    • Cascade managed switches up to 3 levels, allowing the farthest display to be located up to 1,000 feet away from the source device. Each receiver can be located up to 333 feet from the managed switch.
  • If a non-managed network switch is used for a point-to-many connection, it is not recommended to use other network devices on the same switch as it may cause a degradation in performance.
  • Use a PC to access the built-in HTTP Interface of the managed network switch to control what signal is being watched at each location.
  • Use a Telnet client to access any receiver on the VLAN or network.
  • Customizable EDID table on local unit.
  • HDCP compliant.
  • Local and remote units must be in the same LAN. The units do not support WAN connections.
  • LAN Bandwidth: 150Mbps for 1080p
  • Protocol: IP, UDP, TCP, ICMP, and IGMP
  • Supports video wall installations from 1x2 to 8x8 screens. (See Control Methods for details.)
Local Unit
  • One female HDMI-A port for source connection.
  • One female 1000Mbps RJ45 port for sending high definition video/audio signals and DDC signal.
  • One female DB9 connector for RS232.
Local Unit with Power over Ethernet
  • One female HDMI-A port for source connection.
  • One female 1000Mbps RJ45 port for sending high definition video/audio signals and DDC signal.
  • One female DB9 connector for RS232.
  • Class 2 PoE Compatible (6 watts).
Remote Unit
  • One female HDMI-A port for HDTV or computer display.
  • One female 1000Mbps RJ45 port for receiving high definition video/audio signals and DDC signal.
  • Signal type: HDMI, HDCP compliant.
  • Supports HDTV resolutions to 1080p.
  • Supports multichannel compressed audio (Dolby Digital, DTS, THX) through HDMI compatible TVs or audio receivers.
  • One female DB9 connector for RS232.
Remote Unit with Power over Ethernet
  • One female HDMI-A port for HDTV or computer display.
  • One female 1000Mbps RJ45 port for receiving high definition video/audio signals and DDC signal.
  • Signal type: HDMI, HDCP compliant.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
  • Supports multichannel compressed audio (Dolby Digital, DTS, THX) through HDMI compatible TVs or audio receivers.
  • One female DB9 connector for RS232.
  • Class 2 PoE Compatible (6 watts).
Power
  • Local and remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter.
  • Power over Ethernet local unit (ST-IPHDMI-L-2GPOE) and remote unit (ST-IPHDMI-R-2GPOE): With a switch that supports Power over Ethernet, a power supply is not required at the local and/or remote unit.
Cables
  • Use HD-xx-MM cable to connect an HDMI source or display (not included).
  • Use DVI-HD-xx-MM cable to connect a DVI source or display (not included).
  • Use CAT5e/6/7 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Dimensions WxDxH (in):
  • ST-IPHDMI-L-2G: 5.88x5.00x1.25
  • ST-IPHDMI-L-2GPOE: 7.88x5.00x1.25
  • ST-IPHDMI-R-2G: 5.88x5.00x1.25
  • ST-IPHDMI-R-2GPOE: 7.50x5.00x1.25
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years.
Video Wall App
  • Firmware provides video wall applications in sizes ranging from 1x2 to 8x8.
    • Any combination is possible within those limitations (e.g. 2x4, 1x8, 5x5, 6x2).
  • The video wall set-up software is built into the units and can be programmed through any web browser by entering the IP address of the transmitter.
  • With IP-based control systems, the screens can change modes dynamically from video wall modes to standard modes.
  • Works best with progressive video signals such as 480p, 720p and 1080p.
  • Dual mode capability enables higher display quality.
    • Use one transmitter for each row of the video wall to boost picture quality.
  • Ideal digital signage solution for sports bars, emergency response centers, etc.
Managed Ethernet Switch
  • Compatible Managed Ethernet Switches (requires Gigabit for best results)
    • Cisco SG300 Gigabit Series (no stacking)
    • Cisco Catalyst 2960 Gigabit
    • Dell PowerConnect 5400 Series (5424, 5448)
    • Dell PowerConnect 5500 Series (5524, 5524P, 5548, 5548P)
    • Dell PowerConnect 6200 Series (6224, 6224P, 6248, 6248P)
    • Netgear 7000 Series V2 (GSM7224, GSM7228PS, GSM7248, GSM7252PS)
    • Pakedge SW24-GBM, S24P
Matrix Software
  • Provides fast and easy switching of video sources.
  • Supports 50 sources, 50 screens and multiple switches.
  • Includes presets, sequence and screen groups function.
  • Customizable main screen layouts and icons for each video source.
  • Works as a standalone system or can supplement any RS232-based integrated control system.
  • TCP/IP control offers speed and convenience over any wired or wireless network connection.
  • Runs on Windows, Mac and Linux.
    • Mac platform requires OS X 10.4 or newer – Power PC or Intel supported.
    • Windows platform requires Windows 2000 or newer.
    Video Wall Add-On for Matrix Software
    • Enables Matrix Software to switch between multiple sources and displays on a fixed video wall size.
    • Supports single video wall application in sizes up to 7x7 (49 screens).
    • Matrix Software with Add-On provides fast switching through drag and drop function.
    • Video wall display size (not physical size) and active screens can be adjusted.
      • Remaining non-video wall screens can display identical or different sources.
    • Requires Matrix Software to operate.
Video Wall App Web Browser Configuration Screen Shot
Video Wall App Web Browser Configuration Screen Shot

Application Drawings

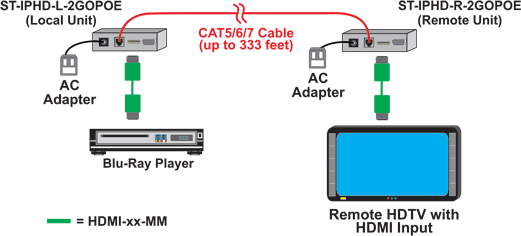

  •  How to Configure Point-to-Point Connections
    How to Configure Point-to-Point Connections

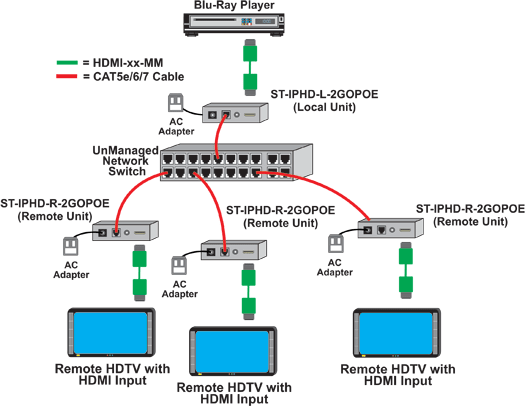

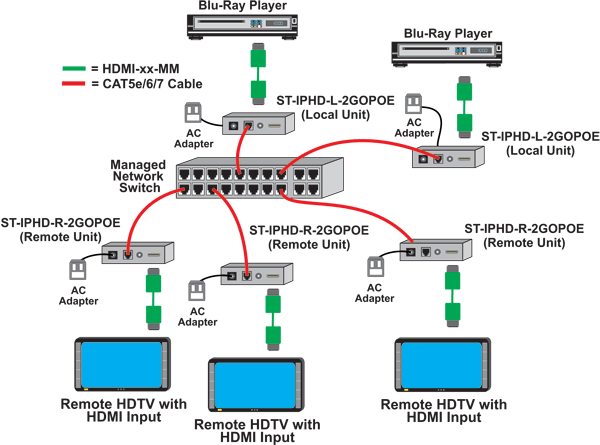

  •  How to Configure Point-to-Many Connections
    How to Configure Point-to-Point Connections

Application Notes

  • How to Set-up a Matrix Switch Configuration Using Multiple Transmitters and Receivers and a Managed Network Switch.

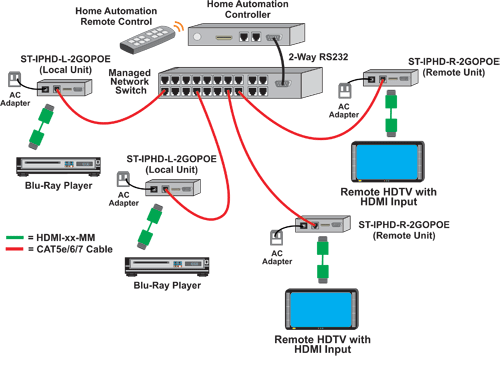

    How to Set-up a Matrix Switch Configuration Using Multiple Transmitters and Receivers and a Managed Network Switch
    A managed network switch with VLAN/IGMP support is required to set-up a matrix switch configuration using multiple transmitters and receivers. Each VLAN configuration acts as a separate HDMI Over IP channel on the network. Display receivers attached to a port on the managed network switch can be connected to any chosen VLAN to display that particular HDMI channel. Configuration settings can be controlled via a managed switch's own web interface (where applicable), with IP commands, or the switch's RS232 control port. Control software on a PC or other other home automation controller hardware, such as Control4 or Creston, can be used to simplify the process of commanding the managed network switch.

HDMI Over Gigabit IP Extender via CAT5e/6/7

NTI Part # Local or Remote Unit Price Quote Buy
ST-IPHDMI-L-2G Local $595.00
ST-IPHDMI-L-2GPOE Local with Power over Ethernet $695.00
ST-IPHDMI-R-2G Remote $595.00
ST-IPHDMI-R-2GPOE Remote with Power over Ethernet $695.00

Matrix Software for HDMI Over Gigabit IP Extender

NTI Part # Description Price Quote Buy
MTXSW-IPHD2G-P Supports 50 sources, 50 screens and presets/sequence/screen groups functions $1040.00
MTXSW-IPHD2G-W Video Wall Add-On $280.00

HDMI Male-Male Cable

NTI Part # Length Price Quote Buy
HD-3-MM 3 feet $2.70
HD-6-MM 6 feet $3.45
HD-10-MM 10 feet $5.00
HD-14-MM 14 feet $7.50

DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Price Quote Buy
DVI-HD-1M-MM 1 meter $4.30
DVI-HD-2M-MM 2 meter $8.00
DVI-HD-3M-MM 3 meter $10.00
DVI-HD-5M-MM 5 meter $11.00
