HDMI HDBase-T Splitter/Extender via CAT5e/6

Distribute HD 1080p, Multi-channel Audio, Ethernet, and IR to eight displays up to 328 feet using CAT6 cable

Also known as: HDMI Splitter over HDBase-T, HDMI Splitter/Extender, 4/8-way HDTV distribution amplifier, HDMI hub, extend HD 1080p, Multi-channel Audio, Ethernet, IR to numerous displays speakers

HDMI HDBase-T Splitter/Extender via CAT5e/6

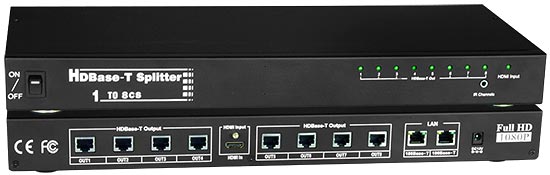

VOPEX-C6HD-4HDBT-328 Local Unit (Front & Back)

Additional Images

  • 8-Port HDMI HDBase-T Splitter/Extender via CAT5e/6

Product Highlights

  • Extend 1080p video & IR control to 328 ft via One CATx Cable
  • Integrates 2 Ethernet ports for network devices
  • Digital Signage

The VOPEX® HDMI HDBase-T Splitter/Extender simultaneously distributes uncompressed HD 1080p, multi-channel audio, Ethernet, and IR from one video source to up to eight displays and speakers, each located up to 328 feet away via CAT5e/6 cable using HDBase-T technology.


The VOPEX system consists of two components: the HDMI HDBase-T broadcast unit, which connects to the HDMI source, and a remote unit for each remote HDMI display and speakers.

The VOPEX® HDMI HDBase-T Splitter/Extender simultaneously distributes uncompressed HD 1080p, multi-channel audio, Ethernet, and IR from one video source to up to eight displays and speakers, each located up to 328 feet away via CAT5e/6 cable using HDBase-T technology.


The VOPEX system consists of two components: the HDMI HDBase-T broadcast unit, which connects to the HDMI source, and a remote unit for each remote HDMI display and speakers.


  • Transmits an uncompressed high speed HDMI signal over one CAT5e/6 cable to multiple display locations.
    • Choose between models that extend to 230 feet or 328 feet.
  • Features two Ethernet ports on the transmitter and receiver for connecting standard network devices such as 100Base-T routers and hubs.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1080 and 1920x1200.
  • HDMI features supported:
    • 36-bit Deep Color
    • x.v.Color
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM.
    • 3D - Bandwidth up to 225 MHz (6.75 Gbps)
    • Support for CEC (consumer electronic control) compatible devices.
    • Lip Sync
  • HDCP compliant.
  • Supports the DDC2B protocol.
  • Full Infrared Remote (IR) control of HDMI source or display. IR transport channel can be forward or backward per your installation.
  • Cascade multiple units for more numerous display configurations.
  • Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple monitors is needed.
Local Unit
  • Compatible with a computer or HDTV video source with HDMI output.
  • One female HDMI connector.
  • Two female 3.5mm ports for IR transmitter/receiver (included).
    • IR transport channel can be forward or backward per your installation.
  • Two female RJ45 100BaseT Ethernet ports for connecting standard network devices such as 100Base-T routers and hubs
  • Female RJ45 ports for sending/receiving high definition video, audio, IR, DDC and Ethernet signals.
Remote Unit
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
  • One female HDMI connector.
  • Two female 3.5mm ports for IR transmitter/receiver (included).
    • IR transport channel can be forward or backward per your installation
  • Two female RJ45 100BaseT Ethernet ports for connecting standard network devices such as 100Base-T routers and hubs
  • One female RJ45 port for sending/receiving high definition video, audio, IR, DDC and Ethernet signals.
Power
  • Local and remote units: 100 to 240 VAC at 50 or 60 Hz via AC adapter.
Dimensions
  • Local unit WxDxH (in):
    • 4-Port: 13.82x6.10x1.10
    • 8-Port: 17.32x7.87x1.75
  • Remote unit WxDxH (in): 4.31x2.94x0.90
Environmental
  • Operating temperature: 5 to 131°F (-15 to 55°C).
  • Operating relative humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years
Cables
  • Use HD-xx-MM cable to connect an HDMI source or display.
    • Maximum HDMI cable length: 65 feet
  • Use CAT5e/6 solid straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors.
  • Cables not included.
Package Includes
  • HDMI HDBase-T Splitter/Extender
  • HDBase-T remote units - four with 4-port, eight with 8-port
  • IR transmitters - four with 4-port, eight with 8-port
  • IR receivers - four with 4-port, eight with 8-port
  • One 9V power supply with 4-port; one 12V power supply with 8-port
  • 5V power supplies - four with 4-port, eight with 8-port
  • User manual

Application Drawings

  • How to distribute HD 1080p, multi-channel audio, ethernet, and IR to four displays up to 328 feet using CAT6 cable with the VOPEX-C6HD-4HDBT-328
    Configuration and cable illustration of the HDMI HDBase-T Splitter/Extender via CAT5e/6
    Configuration and cable illustration of the HDMI HDBase-T Splitter/Extender via CAT5e/6.
  • "I am writing to express my appreciation for the quality NTI products, service, and competitive pricing.

    I am impressed with the way NTI does business. Professional, knowledgeable, and great products.

    I purchased the VOPEX-C6HD-4HDBT-230 for a commercial installation needing to connect 4 monitors over cat5 from a single laptop, and it proved to be an outstanding solution for the distance, function, price and installation ease. The VOPEX system worked without any issues. Excellent packaging, easy to use, and clear.

    I have since purchased other baluns and switcher products and am impressed with speed of process and delivery, communication and follow up.

    There are few companies in this industry that have as much good going on as NTI."

    Mark Baitinger
    Sound Lab, Inc.
    Lafayette, IN

HDMI HDBase-T Splitter/Extender via CAT5e/6

NTI Part # # of Ports Maximum Extension Price Quote Buy
VOPEX-C6HD-4HDBT-230 4 230 feet $1,360.00
VOPEX-C6HD-4HDBT-328 4 328 feet $1,980.00
VOPEX-C6HD-8HDBT-230 8 230 feet $2,960.00
VOPEX-C6HD-8HDBT-328 8 328 feet $4,500.00

HDMI Male-Male Cables

NTI Part # Length Price Quote Buy
HD-3-MM 3 feet $2.70
HD-6-MM 6 feet $3.45
HD-10-MM 10 feet $5.00
HD-15-MM 15 feet $7.50
HD-20-MM 20 feet $9.75
HD-30-MM 30 feet $22.00
HD-50-MM 50 feet $35.75
