Industrial USB 2.0 Hub, 7 Port

Connect up to seven USB 2.0 high-speed peripheral devices to a PC/MAC in a harsh environment. Features 7 female USB 2.0 Type A connectors & operating temperature to 70°C.

Also known as: 7-port USB HUB, USB splitter, self-powered USB hub, bus-powered USB port expander.

Industrial USB 2.0 Bus-Powered Hub, 7 Port
USB2-HUB-IND-7

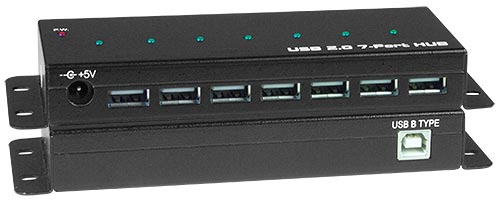

The Industrial USB 2.0 7-Port Hub connects up to seven USB 2.0 high-speed peripheral devices to a PC or MAC computer in a harsh environment.

The Industrial USB 2.0 7-Port Hub connects up to seven USB 2.0 high-speed peripheral devices to a PC or MAC computer in a harsh environment.

  • Connect up to seven USB 2.0 self-powered and/or bus-powered USB peripheral devices (security cameras, printers, scanners, touch screen monitors, game controllers, flash drives, keyboards, mice, etc.)
  • Ideal for industrial applications in harsh environments at high temperatures up to 158°F (70°C).
  • Compliant with USB 2.0 high-speed specifications.
    • Backwards compatible with USB 1.1/1.0
    • Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • Each port supports full 500mA current.
  • Supports Plug-n-Play specification.
  • Hot-swappable.
  • Cascade hubs to connect up to 127 devices.
  • No drivers required.
  • Integrated mounting brackets for easy surface/wall mounting.
  • High quality, rugged steel construction with durable powder coat finish.
Connectors
  • Seven female USB Type A connectors.
    • Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • One female USB Type B connector.
    • Supports USB-enabled computers (PC and MAC).
Power
  • Input: 100 to 240 VAC at 50 or 60Hz via AC adapter (included).
  • Output: 5VDC, 8A
  • Each port supports full 500mA current
    • Overcurrent protection for each downstream port.
Dimensions
  • WxDxH (in): 6.50x2.09 x0.88 (165x53x22 mm).
Environmental
  • Operating temperature: 32°F to 158°F (0°C to 70°C).
  • Storage temperature: -22°F to 185°F (-30°C to 85°C).
  • Operating/storage relative humidity: 10 to 90% non-condensing RH.
MTBF
  • 354,359 hours
Regulatory Approvals
  • CE, FCC, RoHS
  • TAA compliant
Package Includes
  • 7-Port USB Hub
  • Power adapter
  • 1 ft (305 mm) USB 2.0 male Type A to male Type B male cable.

CAD Drawings

  • Industrial USB 2.0 Bus-Powered Hub, 7 Port (USB2-HUB-IND-7)

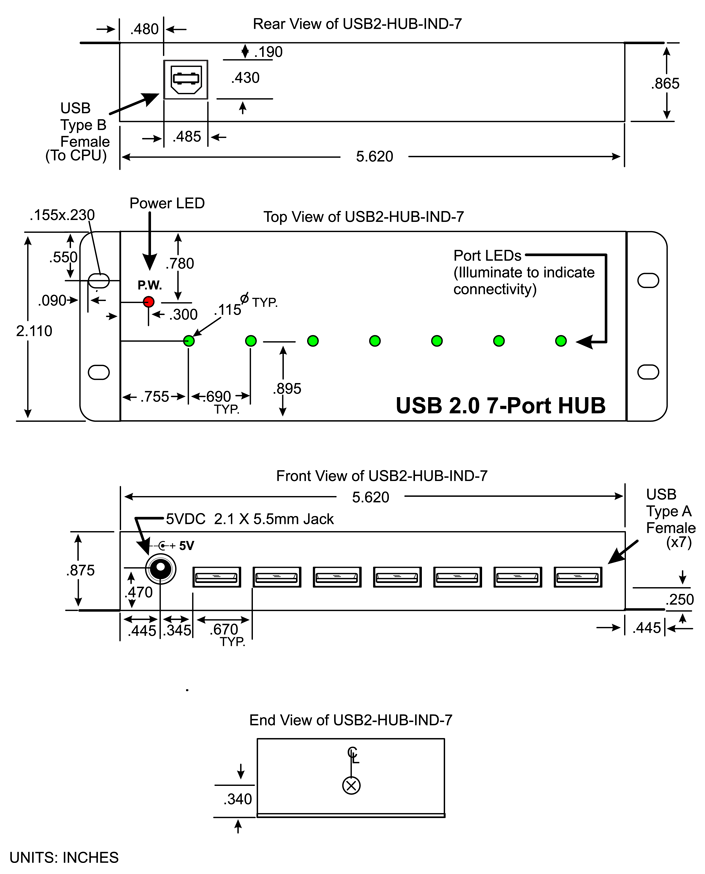

    CAD Drawing - Industrial USB 2.0 Bus-Powered Hub, 7 Port (USB2-HUB-IND-7)

7 Port USB 2.0 Hub

NTI Part # Description Price Quote Buy
USB2-HUB-IND-7 USB 2.0 Industrial Hub, 7 Port $73.00
