20" 1RU Rackmount USB + PS/2 KVM Drawer, 1600x1200 resolution

VGA/DVI USB + PS/2 KVM Drawer provides space-saving convenient control.

Also known as: usb kvm drawer, rack mount PS/2 keyboard drawer, rack mount kvm drawer, USB console drawer, keyboard monitor touchpad mouse drawer, DVI KVM drawers, keyboard LCD drawer, folding VGA monitor.

20 inch rackmount USB KVM Drawer combining a LCD monitor, keyboard, and touchpad mouse
RACKMUX-V20-N (Front & Back)

Product Highlights

  • VGA or DVI LCD
  • Space-Saving 1RU
  • 1600x1200 Resolution
  • Single-Person Installation
  • Designed and Manufactured in the U.S.A.

The RACKMUX® VGA/DVI USB + PS/2 KVM Drawer combines a rackmount 20" LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial strength drawer.

The RACKMUX® VGA/DVI USB + PS/2 KVM Drawer combines a rackmount 20" LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial strength drawer.

  • Available with 20" (508 mm) Active Matrix LCD flat panel VGA or DVI monitor.
    • Tilt LCD up and back to adjust to any comfortable viewing angle to 105°
  • Compatible with USB and PS/2 computers.
  • Torque-friction hinges – monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • Rugged steel construction with durable powder coat finish.
  • Equipped with On Screen Display (OSD).
  • Designed to be a one-person job when installing the drawer.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
    • Front quick-release latches for pushing the drawer back into the rack.
  • LCD auto-shutoff in closed position.
  • Internal cable arm provides proper cable management for sliding the drawer open and closed.
  • Front panel security lock.
  • Front panel USB port to connect an external USB device, such as a flash drive.
Host Interface
  • Compatible with PS/2, UNIX and USB computers.
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • One female 15-pin HD connector for VGA models and one female DVI-I connector for DVI models.
  • One female USB Type B and two female 6-pin minDIN connectors.
  • Use with NTI Multi-Platform KVM Switches to control multiple PC, SUN and MAC computers.
Monitor
  • Forward-folding anti-glare 20.1" (511 mm) Active Matrix LCD flat panel VGA or DVI monitor.
  • 1600x1200 video resolution.
  • Tilt: up to 105°.
  • Frequency:
    • Horizontal: 40 to 80 KHz.
    • Vertical: 59 to 61 Hz.
  • Brightness: 300 nits
  • Contrast Ratio: 800:1
  • Supports DDC2B protocol.
  • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
Cables
  • 6-foot (1.8-meter) 15-pin HD VGA male to male cable included with VGA models and 6.5-foot (2-meter) DVI-D male to male single link cable included with DVI models.
  • 6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
  • 6-foot (1.8-meter) dual 6-pin miniDIN male to male keyboard/mouse cable included.
  • 6-foot (1.8-meter) power supply cable included.
Devices
  • Keyboard available in: English (US).
    • RACKMUX-V20/D20-N: 100-key (US) keyboard with numeric keypad.
  • Three button touchpad mouse.
  • Front mount USB 1.1 port to connect external USB devices.
    • Female USB Type A connector.
    • KVM drawer must be connected to a USB-enabled computer.
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
  • Available power cord lengths: 1/1.5/3/6 feet.
MTBF
  • 39,307 hrs.
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Dimensions
  • WxDxH: 19x30.10x1.75 in (483x765x44 mm)
    • Handle adds an additional 1.5" (38 mm) to the depth when monitor is in closed position.
  • Weight: 38.4 lbs. (17 kg)
  • Drawer is adjustable to various rack depths from 30" (762 mm) deep to 40" (1,016 mm) deep.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Application Drawings

  • 20" 1RU Rackmount USB + PS/2 KVM Drawer, 1600x1200 resolution

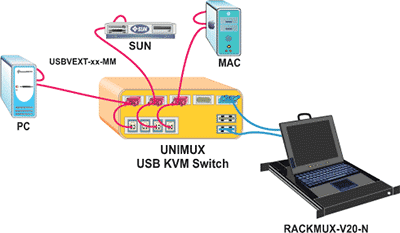

    Rackmount USB KVM Drawer Application with Unimux USB KVM Switch
    VGA/DVI USB + PS/2 KVM Drawer how to provide space-saving convenient control.

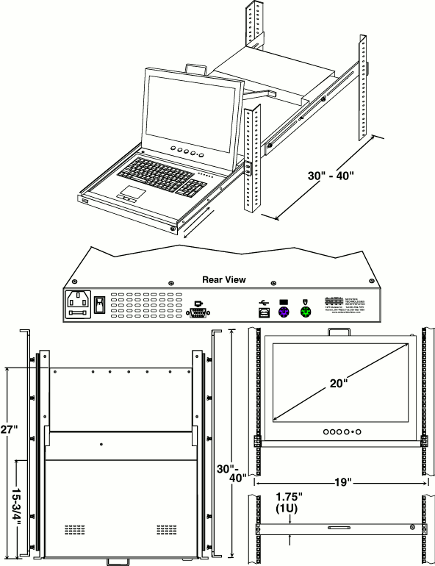

CAD Drawings

  • RACKMUX-V20-N, RACKMUX-D20-N
    Rackmount USB + PS/2 KVM Drawer with 20 inch Monitor
    Rackmount USB + PS/2 KVM Drawer with 20" Monitor

Keyboard Layouts

  • RACKMUX-V20-N, RACKMUX-D20-N
    20 inch Rackmount VGA/DVI USB + PS/2 KVM Drawer with Numeric Keypad
    20" Rackmount VGA/DVI USB + PS/2 KVM Drawer with Numeric Keypad

USB + PS/2 KVM Drawer with 20" Monitor

NTI Part # Monitor Power Cord Length Price Quote Buy
RACKMUX-V20-N VGA $1,350.00
RACKMUX-D20-N DVI $1,350.00
