Rackmount LCD Monitor Keyboard Drawer
with Real Mouse

1RU PS/2 and USB KVM drawers provide space-saving, convenient control with a real mouse.

Also known as: rack mount KVM drawer, keyboard monitor drawer with mouse pocket, LCD monitor keyboard mouse drawer, rackmount KVM drawer for mouse,
rack mount monitor keyboard, rackmounted keyboard tray, keyboard shelf, folding monitor.

Additional Product Information

View Application Note Application Note: Control Multiple Computers Connected to a USB KVM Switch Using a USB KVM Drawer with Real Mouse.
View Application Note Application Note: Control Multiple Computers Connected to a SUN PC KVM Switch Using a PS/2 KVM Drawer with Real Mouse.
View Customer Testimonial Customer Testimonial
View Data Sheet Data Sheet (PDF)

View CAD Drawings CAD Drawings:
RACKMUX-P15-MP RACKMUX-UW15-MP
RACKMUX-P17-MP RACKMUX-UW17-MP
KVM Drawer with Mouse Pocket
(Rollover image)
RACKMUX® Rack Mount KVM Drawer with Real Mouse
Available models:
· USB or PS/2
  Keyboard & Mouse
· 15" and 17" LCD




RoHS Compliant Rackmount LCD Monitor Keyboard Drawer with Real Mouse

Features & Applications

The RACKMUX® USB or PS/2 KVM Drawer with Real Mouse combines an LCD monitor, keyboard, and real mouse with mouse pocket. This KVM drawer is ideal for anyone who prefers using a real mouse to touchpads or trackballs. The low, 1RU (1.75") profile saves space in crammed server racks. Connect this compact data entry device to a KVM switch for convenient control of all attached computers.
  • Available in both PS/2 and USB models.
  • Allows users to store and use a real mouse.
  • 15" or 17" TFT panel active matrix LCD display monitor.
  • Wide 160 degree horizontal and vertical viewing angles.
  • LCD auto-shutoff in the closed position.
  • Easy to install.
  • Lexan™ shield protects the TFT
  • High-quality metal construction.
  • Features smooth-action ball bearing rackmount slides.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.

Specifications

Hosts
  • PS/2 model is compatible with all PS/2 and UNIX computers. Use with a NODEMUX™ Universal Multi-Platform KVM Switch to control multiple computers.
  • USB model is compatible with all USB-enabled PC, SUN or MAC computers. Use with a UNIMUX™ USB KVM Switch to control multiple USB computers.
Monitor
  • Backward-folding 15" or 17" TFT/LCD monitor.
  • 1024x768 video resolution for the 15" monitor.
  • 1280x1024 video resolution for the 17" monitor.
  • On Screen Display (OSD) controls for brightness, contrast and position (vertical and horizontal).
  • Frequency:
    • Horizontal: 31.5 to 68 kHz for 15" drawers, and 31.5 to 80 kHz for 17" drawers.
    • Vertical: 60 to 85 Hz for both drawers.
  • Viewing angle:
    • 15": Horizontal: 130°, Vertical: 100°
    • 17": Horizontal: 178°, Vertical: 178°
  • Sync: H/V Separate (TTL).
  • 250 nits brightness and 400:1 contrast ratio typical.
  • Supports the DDC2B protocol.
  • 5-foot attached cable with male 15-pin HD connector for connecting to host.
Devices
  • Compact, full-function US-layout keyboard with 89-key Windows layout.
  • PS/2 model keyboard has 4-foot attached cable with 2 male 6-pin miniDIN keyboard connectors for connecting to host.
  • USB model keyboard has 4-foot attached cable with 2 male USB Type A connectors for connecting to host.
  • Two-button optical mouse included.
Dimensions
  • 15" drawer, WxDxH (in): 19x27.3x1.75
  • 17" drawer, WxDxH (in): 19x28.8x1.75
  • Drawer is adjustable to various rack depths.
    • 15" drawers range from 27.3" to 31".
    • 17" drawers range from 28.8" to 35".
Power
  • 110 to 220 VAC at 50 or 60 Hz via AC adapter.
  • Power consumption:
    • RACKMUX-P15-MP: 35W
    • RACKMUX-P17-MP: 35W
    • RACKMUX-UW15-MP: 30W
    • RACKMUX-UW17-MP: 35W
  • Maximum Inrush Current:
    • RACKMUX-P15-MP: 20A
    • RACKMUX-P17-MP: 21A
    • RACKMUX-UW15-MP: 24A
    • RACKMUX-UW17-MP: 26A
MTBF
  • 49,990 hrs
Environmental
  • Operating temperature: 32°F to 122°F (0°C to 50°C).
  • Storage temperature: -4°F to 140°F (-20°C to 60°C).
  • Operating Relative Humidity: 10% to 85% RH.
Regulatory Approvals
  • RoHS

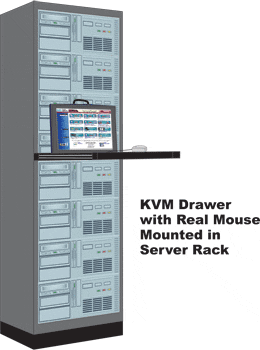

KVM Drawer with Real Mouse Mounted in Server Rack

KVM Drawers with Real Mouse
NTI Part # Screen Size Model Weight (lbs) Price $ # to Buy
RACKMUX-P15-MP 15 PS/2 28 1,290
RACKMUX-P17-MP 17 PS/2 31 1,390
RACKMUX-UW15-MP 15 USB 27 1,290
RACKMUX-UW17-MP 17 USB 30 1,390
