Rackmount Terminal Drawer with SSH Secure Console Switch

How to securely control up to 32 RS232 serial devices from 1RU of rack space

Also known as: rackmount console terminal, RS232 terminal, TELNET integrated rackmount console terminal and SSH serial console switch, terminal LCD monitor keyboard drawer with built-in secure console switch, telnet terminal emulation, rack mount console drawer

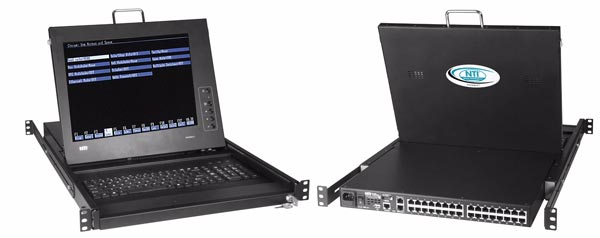

Terminal Drawer with Integrated Secure SSH Console Switch

RACKMUX-T15-N-S16 (Front & Back)

Product Highlights

  • Single-Person Installation
  • Designed and Manufactured in the U.S.A.

Additional Images

  • DB9F-RJ45F - Adapt DB-9M serial ports to the SERIMUX
  • DB25M-RJ45F-C - Adapt a modem to the SERIMUX

The RACKMUX™ Terminal Drawer with Secure SSH Console Switch combines a Terminal Drawer and an integrated SSH Console Switch delivering secure management of up to 32 serial devices via the Internet, TCP/IP network, or dial-up modem connections in only 1RU of space.

The RACKMUX™ Terminal Drawer with Secure SSH Console Switch combines a Terminal Drawer and an integrated SSH Console Switch delivering secure management of up to 32 serial devices via the Internet, TCP/IP network, or dial-up modem connections in only 1RU of space.

  • Available with built-in 4, 8, 16, 24, or 32-port Secure SSH Console Switch
  • Forward-folding 15" (381 mm) LCD with 800x600 resolution.
  • Torque-friction hinges-monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with large padded wrist-rest and 17-key numeric keypad.
  • High quality, rugged steel construction with durable powder coat finish.
  • Front panel security lock.
  • Emulates many terminal types.
  • Select from 16 foreground and 16 background colors.
  • Available with optional anti-glare protective glass for the LCD.
  • Available with optional mounting bracket for two-post style telco rack.
Compatibility
  • Compatible with any SUN, HP or PC-based headless server.
  • Supports most devices with an RS232 serial port such as routers, bridges, firewalls, and hubs.
Keyboard
  • Keyboard available in: English(US).
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 95% non-condensing RH.
Dimensions
  • WxDxH: 19x21.9x1.75 Inches (483x556x44 millimeters).
  • Weight: 26 lbs (12 kg).
  • Drawer is adjustable to various rack depths from 22" (559 mm) deep to 39" (991 mm) deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Rackmount Console Terminal Drawer Specifications
SSH Secure Console Switch Specifications

Keyboard Layouts

  • RACKMUX-T15-N-Sx
    Rackmount Terminal Drawer with SSH Secure Console Switch
    Rackmount Terminal Drawer with SSH Secure Console Switch

Terminal Drawer

NTI Part # Description Power Cord Length Price Quote Buy
RACKMUX-T15-N-S4 Terminal drawer with 4-port SSH console serial switch $2,740.00
RACKMUX-T15-N-S8 Terminal drawer with 8-port SSH console serial switch $2,865.00
RACKMUX-T15-N-S16 Terminal drawer with 16-port SSH console serial switch $3,110.00
RACKMUX-T15-N-S24 Terminal drawer with 24-port SSH console serial switch $3,425.00
RACKMUX-T15-N-S32 Terminal drawer with 32-port SSH console serial switch $3,635.00

Mounting Bracket for two-post style telco rack

NTI Part # Description Price Quote Buy
RL-T15-TEL Mounting Bracket for two-post style telco rack $25.00

Compatible Adapters

NTI Part # Description Price Quote Buy
DB25M-RJ45F-C Adapt a modem to the SERIMUX $5.00
DB9F-RJ45F Adapt DB-9M serial ports to the SERIMUX $5.00
DB25M-RJ45F-T Adapt DB-25F serial ports to the SERIMUX $5.00
DB25F-RJ45F Adapt DB-25M serial ports to the SERIMUX $5.00
