Hi-Res PS/2 KVM Extender via CAT5: Extend to 1,000 Feet

Extend control up to 1000 feet away from computers or NTI KVM Switches

Also known as: KVM extender, cat5 kvm extension, keyboard monitor mouse extend, remote kvm cat 5, kvm balun, kvm range extender.

Available options:

· Two-way audio
· RS232
· Two-way audio + RS232

Additional Product Information

Data Sheet (PDF)

XTENDEX, Extend control up to 1000 feet away from computers or NTI KVM Switches

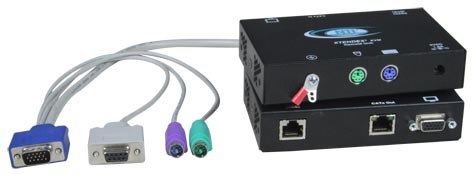

XTENDEX® ST-C5KVM2ARS Remote and Local Units

Features & Applications

The XTENDEX® KVM Extender provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC or NTI KVM switch up to 1,000 feet using CAT5/5e/6 UTP cable. The extender consists of a local unit that connects to a computer and a desktop remote unit (connects to a keyboard, monitor and mouse or the inputs of an NTI switch).

Industry-leading ultra high resolutions up to 2048x1536.

High quality, rugged steel construction with durable powder coat finish.
Automatically adjust video quality and color skew for crystal clear video with longer cables.
Available options: two-way audio (support for speakers and microphone), RS232, two-way audio + RS232.
DDC2B support for local or remote monitor (user selectable).
Built-in surge protection.

Specifications

Local Unit

Host Connection
- Supports a PS/2 PC.
- Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Linux, Solaris x86 and FreeBSD.
- One male 15-pin HD connector.
- Two male 6-pin miniDIN connectors.
- Two-way audio option: two 3.5mm stereo plugs (audio in/mic out).
- RS232 option: female 9-pin D connector.
- Two-way audio + RS232 option: two 3.5mm stereo plugs (audio in/mic out), female 9-pin D connector.
Local Access
- Crisp and clear 2048x1536 video resolution.
- One female 15-pin HD connector.
- Two female 6-pin miniDIN connectors.
  - NTI recommends using identical keyboards and mice at local and remote units.
- Two-way audio option: two 3.5mm stereo jacks (audio out/mic in).
- RS232 option: female RJ45 connector.
- Two-way audio + RS232 option: two 3.5mm stereo jacks (audio out/mic in), female RJ45 connector.

Remote Unit

Supports resolutions up to 2048x1536.
One female 15-pin HD connector.
Two female 6-pin miniDIN connectors.
Two-way audio option: two 3.5mm stereo jacks (audio out/mic in).
RS232 option: female RJ45 connector.
Two-way audio + RS232 option: two 3.5mm stereo jacks (audio out/mic in), female RJ45 connector.

Video Quality Adjustment

Automatically adjusts the video quality and color skew to compensate for varying lengths of CAT5/5e/6 cable.
- Maximum delay: 62ns in 2ns steps.
Fine adjustment available via push buttons on the remote unit.
Settings are automatically stored in the unit. The next time the unit is powered on, the adjustment will be recalled.
Test Pattern for Cable Length and Skew

Environmental

Operating temperature: 32°F to 100°F (0°C to 38°C)
Storage temperature: -20°F to 140°F (-30°C to 60°C)
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Dimensions

WxDxH (in): 5.1x3.1x1.2

Power

Local and remote unit: 120 VAC at 60 Hz 9 VDC/1.0A via AC adapters or 230 VAC at 50 Hz 9 VDC/1.5A via AC adapters.
Power Consumption: 10W (each - local and remote unit).

Cables

CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

Regulatory Approvals

CE, RoHS

Warranty

Two years

Options

Choose between two-way audio, RS232, or two-way audio + RS232

Two-way Audio

Stereo Audio:
- Stereo audio can be heard both locally and remotely.
- Frequency response: 20 Hz to 20 kHz, +/- 1 dB.
- Signal-to-Noise Ratio (SNR): >76 dBA.
- Total Harmonic Distortion and Noise (THD+N): 0.017%.
- Stereo crosstalk: -70 dB.
- Input impedance: 10k Ohms.
- Line level output; supports multimedia speakers.
- Maximum I/O levels: 3.1Vp-p (line level).
- CD quality audio output.
Microphone:
- Microphone can be used locally and remotely, user selectable.
- Supports electret microphones.
- Input impedance: 10k Ohms.
- Maximum I/O levels: 1V, unbalanced

RS232

Supports TXD, RXD, DTR, DSR, DCD, CTS and RTS.
Baud rate up to 57.6K.
Support for a touch screen monitor.

Distances and Resolutions for CAT5/CAT5e and CAT6 Cables
Cable	Distance (feet)	Maximum Resolution
CAT5/5e (UTP)	1000	1920x1200 at 60Hz
	800	1920x1440 at 60Hz
	600	2048x1536 at 60Hz
CAT6 (UTP)	800	1920x1440 at 60Hz
CAT6 (UTP)	600	2048x1536 at 60Hz
CAT5/5E (STP)	800	1920x1200 at 60Hz
	600	1920x1440 at 60Hz
	400	2048x1536 at 60Hz
CAT6 (STP)	400	1280x1024 at 60Hz
	300	1600x1200 at 60Hz
	200	2048x1536 at 60Hz
