VGA USB KVM Extender via One LC Singlemode/Multimode Fiber Optic Cable

Extend two VGA displays, USB keyboard/mouse, stereo audio speakers/microphone, and RS232 up to 12.4 miles (20 km)

VGA USB KVM Extender via One LC Singlemode/Multimode Fiber Optic Cable
XTENDEX® ST-FOUSBVARS-LC

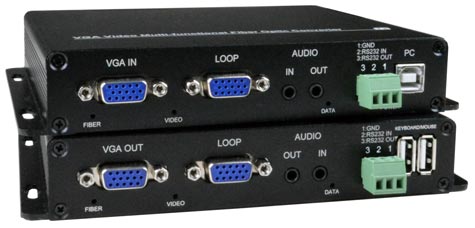

(Local & Remote Units)

Additional Images

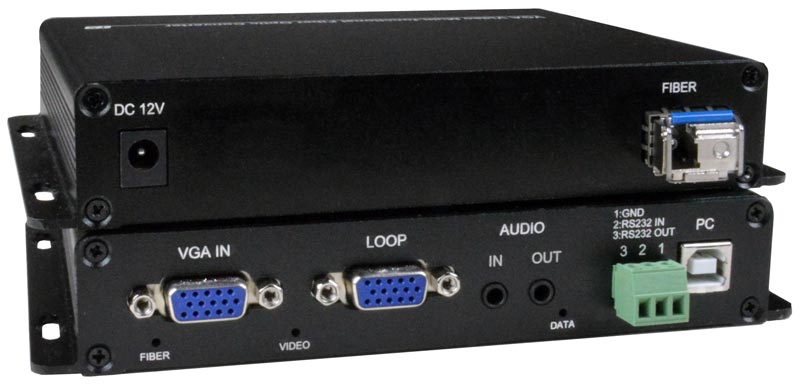

  • ST-FOUSBVARS-LC – Local Unit

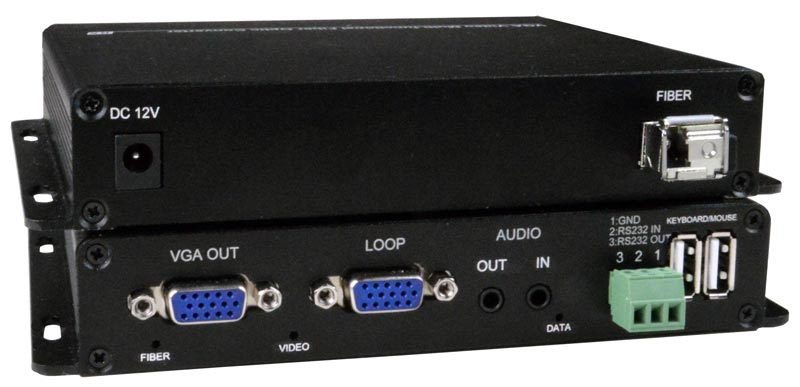

  • ST-FOUSBVARS-LC – Remote Unit

Product Highlights

  • Supports 1 local and 2 remote VGA monitors
  • Extend to 12.4 miles using singlemode cable
  • Extend to 1,640 feet using multimode cable
  • HDMI Extender for use with Digital Signage

The XTENDEX® VGA USB KVM Extender via Fiber Optic Cable provides remote KVM (USB keyboard, USB mouse and VGA monitors) access to a USB computer up to 12.4 miles (20 kilometers) away from a computer using a single LC singlemode fiber optic strand and 1,640 feet (500 meters) using multimode fiber optic cable. Each extender consists of a transmitter that connects to a computer and also supplies video to a local monitor, and a receiver that connects to two VGA monitors, USB keyboard, USB mouse, 3.5mm stereo audio speakers and microphone, and RS232.

The XTENDEX® VGA USB KVM Extender via Fiber Optic Cable provides remote KVM (USB keyboard, USB mouse and VGA monitors) access to a USB computer up to 12.4 miles (20 kilometers) away from a computer using a single LC singlemode fiber optic strand and 1,640 feet (500 meters) using multimode fiber optic cable. Each extender consists of a transmitter that connects to a computer and also supplies video to a local monitor, and a receiver that connects to two VGA monitors, USB keyboard, USB mouse, 3.5mm stereo audio speakers and microphone, and RS232.

  • Signal transmission via single-strand LC fiber optic cable – no RF interference.
    • Using singlemode 9-micron cable, extend to 12.4 miles (20 kilometers).
    • Using multimode 50-micron or 62.5-micron cable, extend to 1,640 feet (500 meters).
  • Supports one local and two remote VGA monitors.
  • Supports computer resolutions to 1920x1080.
  • Two USB ports for keyboard and mouse
    • Keyboard and mouse are hot-pluggable.
  • Supports stereo audio speakers and microphone.
  • Plug and play functionality – no software needed.
  • Low RFI/EMI for sensitive applications.
  • Supports full-duplex RS232 up to 57600 baud.
  • Built-in default EDID table.
  • Supports the DDC2B protocol.
  • Cables can be installed in conduit prior to extender installation.
  • Integrated mounting brackets for easy surface/wall mounting.
Local Unit
  • Supports a PC, SUN, or MAC with VGA video.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Supports resolutions to 1920x1080.
  • One female 15-pin HD connector for computer connection.
  • One female 15-pin HD connector for local VGA monitor.
  • Once female USB Type B connector.
  • Two 3.5 mm stereo audio jacks (audio in/out).
  • 3-pin screw terminal for RS232.
  • One simplex LC fiber optic port for sending/receiving video/audio, USB, and RS232 signals.
Remote Unit
  • Two female 15-pin HD connectors for VGA displays.
  • Two female USB Type A connectors for connecting USB keyboard and mouse.
    • No other types of USB devices are supported.
  • Two 3.5 mm stereo audio jacks (audio in/out).
  • 3-pin screw terminal for RS232.
    • Supports full-duplex RS232 up to 57600 baud.
  • One simplex LC fiber optic port for sending/receiving video/audio, USB, and RS232 signals.
  • Supports resolutions to 1920x1080.
Power
  • Local and remote unit:
    • Input: 100 to 240 VAC at 50 or 60Hz via AC adapter.
    • Output: 5VDC, 2A
    • Power consumption: 5.2W max.
Environmental
  • Operating temperature: 23 to 95°F (-5 to 35°C).
  • Operating and storage relative humidity: 5 to 90% non-condensing RH.
Dimensions
  • WxDxH (in): 6.57x5.79x1.11(167x147x28 mm)
Warranty
  • Two years
Max Distance
  • 12.4 miles (20 km) over 9µm singlemode LC fiber optic cable.
  • 1,640 feet (500 meters) over 50µm or 62.5µm multimode LC fiber optic cable.
Cables
  • Interface cables between the source/display and the transmitter/receiver are required for proper operation.
  • Use VEXT-xx-MM VGA Male-to-Male Cable without Ferrites to connect to a VGA source or display up to 25 feet.
  • Use VEXT-F-xx-MM VGA Male-to-Male Cable with Ferrites to connect to a VGA source or display.
  • Use SA-xx-MM male to male 3.5mm stereo audio cables to connect speakers.
  • Use USB2-AB-x-5T male USB Type A to male USB Type B cable to connect source.
  • Use a simplex LC singlemode 9-micron fiber optic cable to extend the receiver from the transmitter up to 12.4 miles (20 km).
  • Use a simplex multimode LC 50-micron or 62.5-micron fiber optic cable to extend the receiver from the transmitter up to 1,640 feet (500 meters).
  • Cables not included.

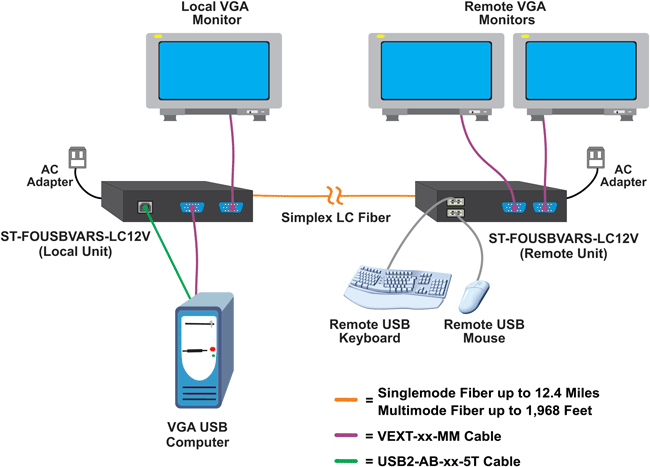

Application Drawings

  • VGA USB KVM Extender via One LC Singlemode/Multimode Fiber Optic Cable
    VGA USB KVM Extender via One LC Singlemode/Multimode Fiber Optic Cable

VGA USB KVM Extender via One LC Singlemode/Multimode Fiber Optic Cable

NTI Part # Description Price Quote Buy
ST-FOUSBVARS-LC VGA USB KVM Extender via One LC Singlemode/Multimode Fiber Optic Cable $930.00

VGA Monitor Cable without Ferrites, Male to Female

NTI Part # Length Color Price Quote Buy
VEXT-6 6 feet Black $7.25

VGA Monitor Cable with Ferrites, Male to Female

NTI Part # Length Color Price Quote Buy
VEXT-F-3 3 feet Black $5.40
VEXT-F-6 6 feet Black $7.25
VEXT-F-10 10 feet Black $9.75
VEXT-F-15 15 feet Black $11.85
VEXT-F-25 25 feet Black $16.50
VEXT-F-50 50 feet Black $18.60
VEXT-F-75 75 feet Black $39.00
VEXT-F-100 100 feet Black $59.00

VGA Monitor Cable without Ferrites, Male to Male

NTI Part # Length Color Price Quote Buy
VEXT-1-5-MM 1.5 feet Black $2.30
VEXT-3-MM 3 feet Black $4.90
VEXT-6-MM 6 feet Black $6.10
VEXT-10-MM 10 feet Black $7.95
VEXT-15-MM 15 feet Black $11.25
VEXT-25-MM 25 feet Black $16.50

VGA Monitor Cable with Ferrites, Male to Male

NTI Part # Length Color Price Quote Buy
VEXT-F-1-5-MM 1.5 feet Black $2.30
VEXT-F-6-MM 6 feet Black $6.25
VEXT-F-10-MM 10 feet Black $7.95
VEXT-F-15-MM 15 feet Black $11.25
VEXT-F-25-MM 25 feet Black $16.50
VEXT-F-35-MM 35 feet Black $21.30
VEXT-F-50-MM 50 feet Black $28.05
VEXT-F-75-MM 75 feet Black $38.10
VEXT-F-100-MM 100 feet Black $49.20

Stereo Audio Cables – Male to Male

NTI Part # Length Price Quote Buy
SA-3-MM 3 ft $0.85
SA-6-MM 6 ft $1.10
SA-10-MM 10 ft $1.25
SA-15-MM 15 ft $2.25
SA-25-MM 25 ft $2.50
SA-35-MM 35 ft $4.70
SA-50-MM 50 ft $5.00
SA-100-MM 100 ft $12.00

USB 2.0 A-B Cables

NTI Part # Length Price Quote Buy
USB2-AB-0-5M-5T 0.5 meters (1.64 ft) $1.50
USB2-AB-3-5T 3 feet $2.25
USB2-AB-6-5T 6 feet $3.00
USB2-AB-10-5T 10 feet $3.75
USB2-AB-5M-5T 5 meters (16.4 ft) $4.75
