Environment Monitoring System Voice Dialer System & USB Modems

Alert & Communications Accessories compatible with ENVIROMUX® E-MINI-LXO

Automatic Voice/Pager Dialer Systems

Low-Cost Automatic Voice Dialer System, CE, Calls 20 Phone Numbers, Powered

Low-Cost Automatic Voice Dialer System, CE, Calls 20 Phone Numbers, Powered
E-AVDS-CELC-PV2
  • Calls up to 20 telephones or cell phones when a sensor goes out of a configurable threshold.
    • In single message mode, all phone numbers will be dialed when either input is triggered.
      • Record a single voice message up to 20 seconds.
    • In double message mode, phone numbers 1-10 will be dialed when Input 1 is triggered, and phone numbers 11-20 will be dialed when Input 2 is triggered.
      • Create two recorded voice messages of up to 10 seconds each.
  • Two input channels.
    • E-MINI-LXO: supports one input channel.
  • Interfaces with the E-MINI-LXO via the Output Relay connection.
  • Includes 12V/1A country-specific power supply.
    • Current consumption: 100mA @ 12VDC.
  • For normally open circuit connections.
  • Dimensions WxDxH: 3.94x5.51x1.38 in (100x140x35 mm)
  • Regulatory approvals: CE, RoHS
Downloads & References
NTI Part # Price Quote Buy
E-AVDS-CELC-PV2 $105.00

Low-Cost Automatic Voice Dialer System, Powered

Low-Cost Automatic Voice Dialer System
E-AVDS-LC1P
  • Calls up to 5 telephones or cell phones when a sensor goes out of a configurable threshold.
  • Program 1 input channel with individual activation options and entry/exit delay features.
  • Create a recorded voice message of up to 20 seconds.
  • Programmable 105 dB siren for audible alarm when triggered.
    • Built-in AUX port for additional beacon or siren.
  • Call to remotely listen in on the area being monitored, broadcast messages to the room, or arm and disarm the dialer.
  • Interfaces with the E-MINI-LXO via the Output Relay connections.
  • Optional 9VDC standby battery provides up to 20 hours of backup if power is lost (not included).
  • Dimensions WxDxH: 6.69x1.50x4.69 (170x38x119 mm)
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • For normally closed or normally open circuit connections.
  • Includes 12V/1A country-specific power supply.
  • Max power consumption: 12VDC @ 480mA.
  • Regulatory approvals: FCC.
Downloads & References
NTI Part # Price Quote Buy
E-AVDS-LC1P $195.00

4G Automatic Voice Dialer, Powered

GSM Automatic Voice Dialer
AVDS-4Gx-P
  • Ideal for remote places without conventional phone lines.
  • Calls or sends SMS to up to 8 telephone or cell phone numbers when a sensor goes out of range of a configurable threshold.
    • Mini SIM card supporting SMS messaging required (not included).
  • Stores one outgoing voice message of up to 20 seconds and sends one SMS message of up to 70 bytes.
  • E-AVDS-4G1-P
    • 4G LTE network band: FDD B2/4/12
    • 3G network band: WCDMA B2/5
  • E-AVDS-4G3-P
    • 4G LTE network band: FDD B1/3/5/7/8/20, TDD B38/40/41
    • 3G network band: WCDMA B1/5/8
    • 2G network band: GSM 900/1800MHz
  • E-AVDS-4G4-P
    • 4G LTE network band: FDD B1/2/3/4/5/7/8/28, TDD B40
    • 3G network band: WCDMA B1/2/5/8
    • 2G network band: GSM 850/900/1800/1900MHz
  • Interfaces with the E-MINI-LXO via the Output Relay connections.
  • Includes a 12V/1A country-specific power supply.
  • Maximum current: 350mA @ 12VDC
  • Operating temperature: 39 to 140°F (4 to 60°C)
  • Dimensions WxDxH: 5.87x3.54x1.25 in (149x90x31.7 mm)
    • Included Antenna dimensions WxDxH: 1.18x1.18x3.9 in (30x30x99 mm)
  • Operating temperature: 39 to 140°F (4 to 60°C)
  • For normally closed or normally open circuit connections.

NTI Part # Country 4G LTE Bands Supported Price Quote Buy
E-AVDS-4G1-P North America (AT&T) FDD B2/B4/B12 $250.00
E-AVDS-4G3-P Europe / Middle East / Africa / South Korea / Thailand FDD B1/3/5/7/8/20 $250.00
E-AVDS-4G4-P New Zealand / Australia / South America FDD B1/3/4/5/7/8/28 $250.00

Back to Top

Modems

USB 4G Modem

USB 4G Modem
E-4GU-x

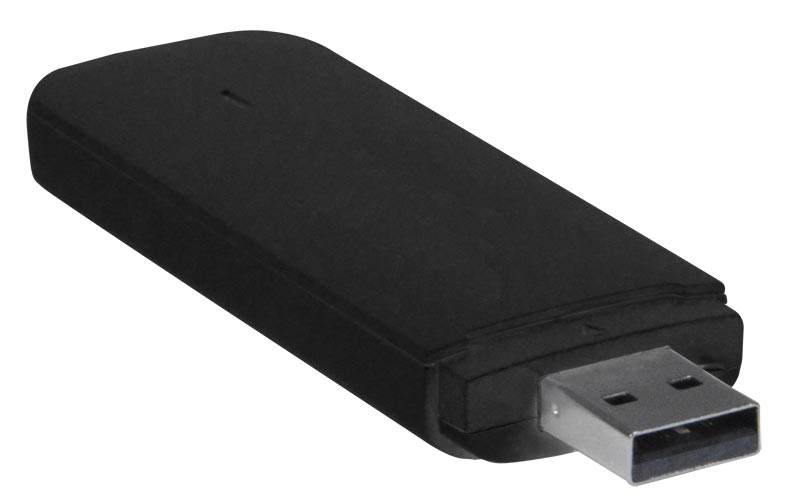

  • USB 4G Modem - Black Case

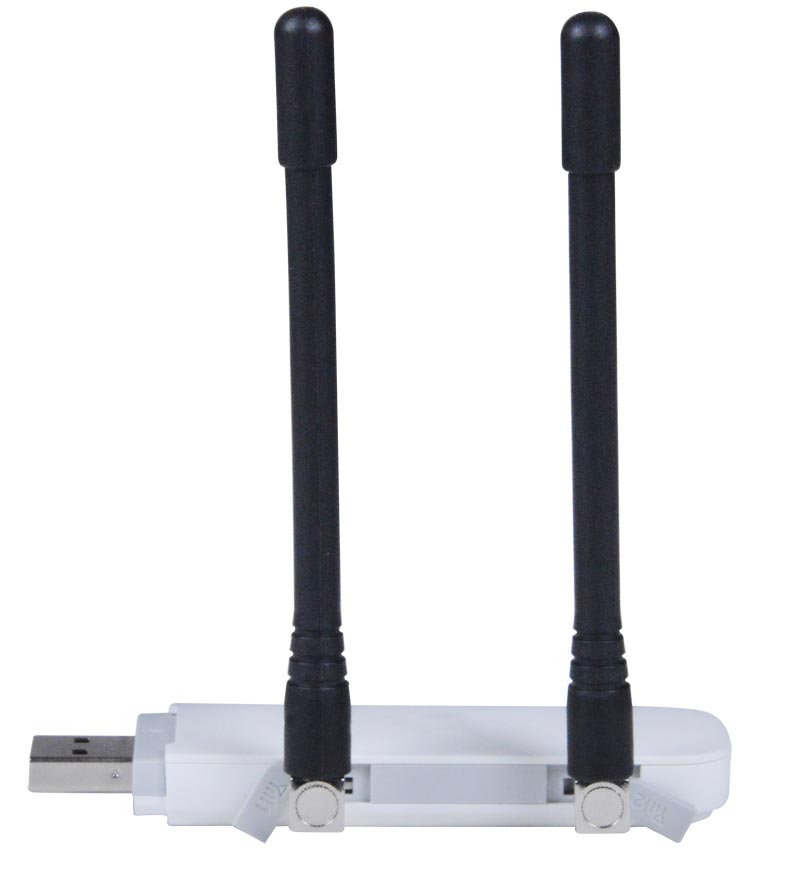

  • E-ANT2-4GU – Two External Antennas for 4GU Modem (sold separately)
  • Sends SMS text messages to a pager or cell phone when a sensor goes out of range of a configurable threshold.
  • SIM card supporting SMS messaging required (not included).
  • Supports fourth generation (4G) digital cellular standards.
  • USB 2.0 stick with Male USB Type A connector
  • Two CRC-9 ports for external antennas (sold separately, part # E-ANT2-4GU).
    • Use E-ANT2-4GU to increase the signal strength of the 4G network.
  • E-4GU-1
    • 4G LTE network band: 1/2/4/5/7/28
    • 4G frequencies: FDD 700/850/1700/1900/2100/2600 MHz
    • 3G network band: WCDMA(UMTS) DC-HSPA+/HSPA+/HSPA/UMTS 850/1700/1900/2100MHz
    • 2G network band: GSM/GPRS/EDGE 850/900/1800/1900 MHz
  • E-4GU-2
    • 4G LTE network band: 1/3/7/8/20
    • 4G frequencies: FDD 800/900/1800/2100/2600 MHz
    • 3G network band: UMTS: 900/2100 MHz
    • 2G network band: GSM:850/800/1800/1900 MHz
  • E-4GU-3
    • 4G LTE network band: 1/3/7/8/28/40
    • 4G frequencies: FDD 700/900/1800/2100/2600 MHz, TDD 2300 MHz
    • 3G network band: WCDMA(UMTS) DC-HSPA+/HSPA+/HSPA/UMTS 900/2100MHz
    • 2G network band: GSM/GPRS/EDGE 850/900/1800/1900 MHz
  • When connected to the ENVIROMUX system, protrudes 2.88" from the edge of the case.
  • Compatible with E-MINI-LXO operating firmware revision 3.1 or newer.
  • Regulatory approvals: CE, RoHS,
    • E-4GU-1: FCC
  • Will ship with either a white or black case.
Downloads & References

To select the correct model, contact your mobile carrier BEFORE ORDERING to determine what band(s) must be supported by the modem for your area.

NTI Part # 4G LTE Bands Supported 4G Frequencies Supported Price Quote Buy
E-4GU-1 1/2/4/5/7/28 FDD 700/850/1700/1900/2100/2600 MHz $170.00
E-4GU-2 1/3/7/8/20 FDD 800/900/1800/2100/2600 MHz $180.00
E-4GU-3 1/3/7/8/28/40 FDD 700/900/1800/2100/2600 Mhz, TDD 2300 MHz $215.00

NTI Part # Description Price Quote Buy
E-ANT2-4GU Two External Antennas for 4GU Modem $14.00
