Rackmount KVM Drawer with SUN PC KVM Switch

How to Control up to 8 computers from 1RU of rack space.

Also known as: rackmount kvm drawer with SUN PC KVM switch, rack mount keyboard drawer, rack mount kvm drawer with SUN PC switch, console drawer, keyboard monitor drawer, KVM drawers, keyboard LCD drawer, rackmount keyboard drawer.

Rackmount KVM Drawer with SUN PC KVM Switch

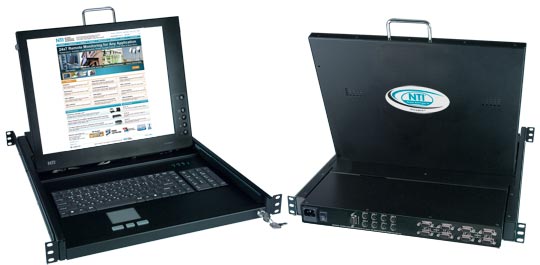

RACKMUX-V17-N-8UNV (Front & Back)

Product Highlights

  • High Density KVM Drawer with Switch – Fits in 24" Rack
  • Single-Person Installation
  • Designed and Manufactured in the U.S.A.

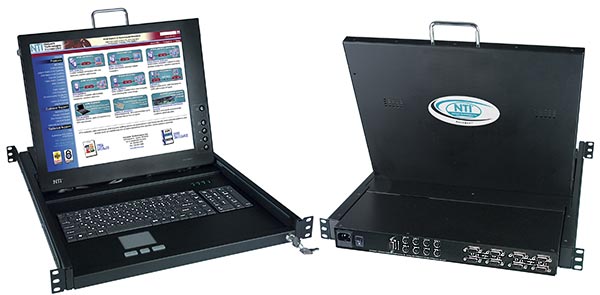

The RACKMUX® KVM Drawer with Built-In SUN PC KVM Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a 4- or 8-port SUN PC KVM switch in a space-saving 1RU industrial strength drawer.

The RACKMUX® KVM Drawer with Built-In SUN PC KVM Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a 4- or 8-port SUN PC KVM switch in a space-saving 1RU industrial strength drawer.

  • Available with forward-folding 17" (432 mm) TFT/LCD VGA monitor.
    • 1280x1024 video resolution for 17" (432 mm) monitor.
  • Control up to eight PC or SUN computers.
  • Torque-friction hinges-monitor does not wobble, spring, or slam shut.
  • Designed to be a one-person job when installing the drawer.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
  • Keyboard available in: English(US).
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
MTBF
  • RACKMUX-V17-N-4UNV: 32,976 hrs
  • RACKMUX-V17-N-8UNV: 31,739 hrs
Dimensions
  • 17" (432 mm) Models WxDxH: 19x23.9x1.75 in. (483x607x44 mm)
    • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
Environmental
  • Operating temperature: 32° to 104°F (0° to 40°C).
  • Storage temperature: -4° to 140°F (-20° to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Warranty
  • Two years

17" Rackmount USB + PS2 KVM Drawer Specifications
NODEMUX® Universal KVM Switch Specifications

Application Drawings

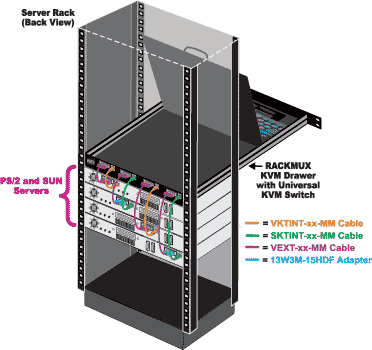

  • Rackmount KVM Drawer with SUN PC KVM Switch
    How to Control up to 8 computers from 1RU of rack space.

CAD Drawings

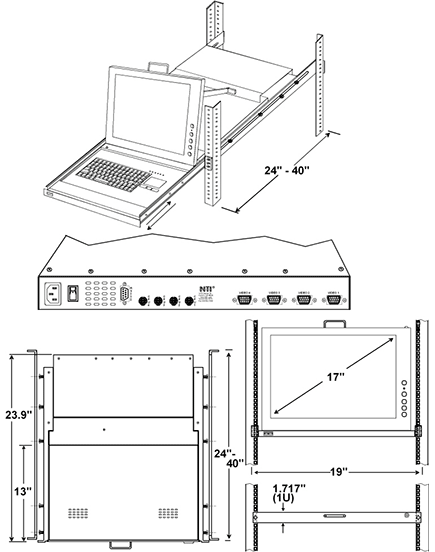

  • RACKMUX-V17-4UNV
    Rackmount KVM Drawer with 4-port SUN PC KVM Switch
    Rackmount KVM Drawer with 4-port SUN PC KVM Switch

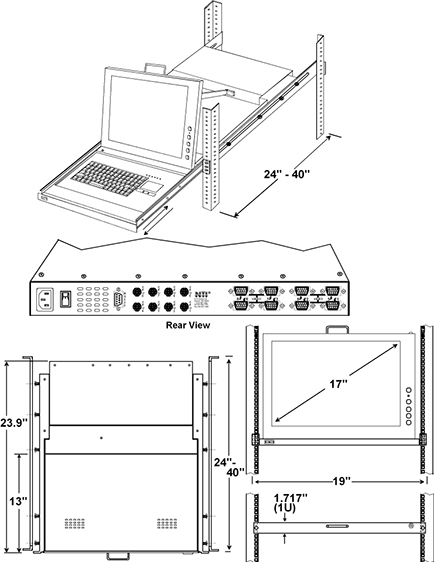

  • RACKMUX-V17-8UNV
    Rackmount KVM Drawer with 8-port SUN PC KVM Switch
    Rackmount KVM Drawer with 8-port SUN PC KVM Switch

Keyboard Layouts

  • RACKMUX-V17-N-xUNV
    Rackmount KVM Drawer with SUN PC KVM Switch and Numeric Keypad
    Rackmount KVM Drawer with SUN PC KVM Switch and Numeric Keypad

KVM Drawers with High Density USB KVM Switch

NTI Part # Screen Size Keyboard Features # of CPUs Power Cord Length Price Quote Buy
RACKMUX-V17-N-4UNV 17" Numeric keypad 4 $1,750.00
RACKMUX-V17-N-8UNV 17" Numeric keypad 8 $1,880.00

Mounting Bracket for two-post style tele rack

NTI Part # Description Price Quote Buy
RL-T15-TEL Mounting Bracket for two-post style tele rack $25.00

13W3 SUN Video Port to VGA Port Adapter

Larger Image NTI Part # Price Quote Buy
  • Compatible 13W3 SUN Video Port to VGA Port Adapter
13W3M-15HDF $17.00

Connects PS/2 Computers to an NTI SUN PC Switch (Male to Male)

Larger Image NTI Part # Length Price Quote Buy
  • Compatible cable connects PS/2 Computers to an NTI SUN PC Switch (Male to Male)<br />Available in 3, 6, 10, 15, 25, 35, 50 feet
VKTINT-3-MM 3 ft $5.00
VKTINT-6-MM 6 ft $6.00
VKTINT-10-MM 10 ft $7.00
VKTINT-15-MM 15 ft $8.00
VKTINT-25-MM 25 ft $10.00
VKTINT-35-MM 35 ft $23.00
VKTINT-50-MM 50 ft $30.00

Connects SUN Computers to an NTI SUN PC Switch (Male to Male)

Larger Image NTI Part # Length Price Quote Buy
  • Compatible cable SUN Computers to an NTI SUN PC Switch (Male to Male)<br />Available in 3, 6, 10, 15, 25, 35, 50 feet
SKTINT-3-MM 3 ft $4.00
SKTINT-6-MM 6 ft $6.00
SKTINT-10-MM 10 ft $7.00
SKTINT-15-MM 15 ft $8.00
SKTINT-25-MM 25 ft $10.00
SKTINT-35-MM 35 ft $21.00
SKTINT-50-MM 50 ft $29.00

VGA Monitor Cable, Male to Male

Larger Image NTI Part # Length Price Quote Buy
  • Compatible cable SUN Computers to an NTI SUN PC Switch (Male to Male)<br />Available in 1.5, 3, 6, 10, 15, 25, 35, 50, 75, 100 feet
VEXT-1-5-MM 1.5 feet $2.30
VEXT-3-MM 3 feet $2.70
VEXT-6-MM 6 feet $3.50
VEXT-10-MM 10 feet $4.40
VEXT-15-MM 15 feet $5.80
VEXT-25-MM 25 feet $8.40
VEXT-35-MM 35 feet $11.00
VEXT-50-MM 50 feet $15.00
VEXT-75-MM 75 feet $21.40
VEXT-100-MM 100 feet $28.40
