Multiple Extender Modules in a Rack: USB KVM, PS2 KVM, VGA

Mount up to 12 USB KVM extender modules into a single 2RU rack tray

Also known as: Multiple KVM extender, USB KVM extender, kvm extension, pc extender, Rackmount KVM Extender, Rack mount USB KVM Extension, CAT5 KVM Extender Shelf, balun, KVM range extender, USB KVM Range Extender, USB KVM + Audio Range Extender, PS2 KVM Range Extender, PS2 KVM + Audio Range Extender, PS2 KVM + RS232 Range Extender, VGA Range Extender, VGA + Audio Range Extender, VGA + RS232 Range Extender.

Multiple Extender Modules in a Rack: USB KVM, PS2 KVM, VGA
XTENDEX® ST-C6RCK-12A with ST-C5USBVA-300M Extender Modules (Front)

Additional Images

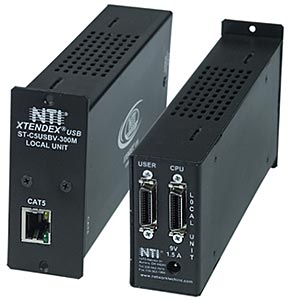

  • ST-C5USBV-L-300M (Front & Back) - USB KVM Extender Modules to 300 Feet
  • 2RU Rackmount Extender Module Tray with Included Cable/Power Supply Management Shelf (Back)
  • 2RU Rackmount Extender Module Tray with Optional Power Distribution Module (Back)
  • Designed and Manufactured in the U.S.A.

The XTENDEX® Rackmount Extender Module Tray allows you to mount up to 12 extender modules in a space-saving 2RU shelf. The local and remote extender modules are interconnected via CAT5/5e/6 cable.

The XTENDEX® Rackmount Extender Module Tray allows you to mount up to 12 extender modules in a space-saving 2RU shelf. The local and remote extender modules are interconnected via CAT5/5e/6 cable.

  • Designed for use with NTI's rackmount transmitter / receiver modules.
    • Rackmount local module compatible with rackmount remote module or desktop remote unit.
  • Mount up to 12 modules in a single 2RU tray.
    • Decreased downtime due to easy replacement of extender modules.
    • Single point of failure does not require sending all units back with the ST-C6RCK-12A Rackmount Module Tray.
    • Separate single unit (local and remote) pricing allows for affordable replacements to be kept on site in case of failure.
  • Cable/power supply management shelf included.
  • Ideal solution for fast-growing installations.
  • Includes eleven blank front panel covers.
    • Hides open slots on the tray.
    • Prevents change in airflow through rack cabinets.
  • Available extender modules:
    • USB KVM extender to 300 feet (91 meters) with optional audio.
    • PS2 KVM extender to 600 feet (183 meters) with optional audio or RS232.
    • VGA extender to 600 feet (183 meters) with optional audio or RS232.
  • High quality, rugged steel construction with durable powder coat finish.

Rackmount Extender Module Tray

Dimensions
  • Rack shelf WxDxH (in): 19x14.71x3.5
  • Blank panel cover WxH (in): 1.38x3.5
Warranty
  • Two years
Cables
  • NTI High Density cables between user devices and the XTENDEX Extender Modules are required for proper operation.
  • NTI High Density cables between the CPUs and the XTENDEX Extender Modules are required for proper operation.
  • Use CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors between the local and remote units.
  • Cables not included.

Resolutions for ST-C5USBV-300
Cable Distance Maximum Resolution
CAT5/CAT5e/CAT6 (UTP) 300 (91 meters) 1024x768 at 60 Hz
150 feet (46 meters) 1600x1200 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz
CAT5/5e (STP) 300 (91 meters) 1024x768 at 60 Hz
150 feet (46 meters) 1280x1024 at 60 Hz
100 feet (30 meters) 1600x1200 at 60 Hz

Resolutions for ST-C5KVM-600 and ST-C5V-600
Cable Distance Maximum Resolution
CAT5/CAT5e
(UTP)
600 (183 meters) 1024x768 at 60 Hz
400 feet (122 meters) 1280x1024 at 60 Hz
300 feet (91 meters) 1600x1200 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz
CAT5/CAT5e(STP), CAT6 (UTP) 300 (91 meters) 1024x768 at 60 Hz
200 feet (61 meters) 1280x1024 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz

Rackmount Extender Modules

USB KVM Extender to 300 Feet (91 meters)
PS2 KVM Extender to 600 Feet (183 meters)
VGA Extender to 600 Feet (183 meters)
Connectors
  • Local unit:
    • One female 26-pin SCSI II connector for computer connection.
    • One female 26-pin SCSI II connector for local KVM access (for KVM models) or local display (for video-only models).
    • One female RJ45 connector for CAT5/5e/6 cable to remote unit.
  • Remote unit:
    • One female 26-pin SCSI II connector for remote KVM access (for KVM models) or remote display (for video-only models).
    • One female RJ45 connector for CAT5/5e/6 cable from local unit.
Dimensions
  • WxDxH: 1.4x6.8x3.5 in (36x173x89 mm)
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Optional Power Distribution Module
  • Power up to 12 Rackmount Extender Modules.
  • Outputs +24VDC.

Application Drawings

  • Multiple HDMI Extender Modules in a Rack

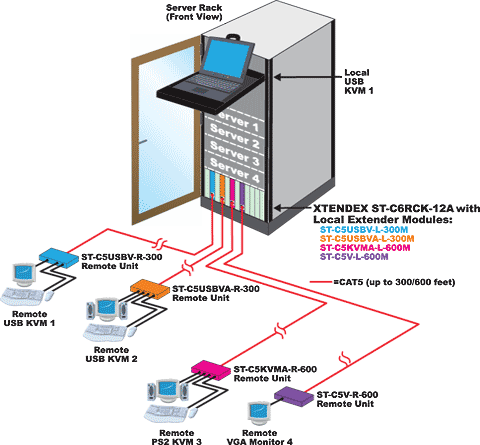

    How to mount up to 12 USB KVM extender modules into a single 2RU rack tray
    How to mount up to 12 USB KVM extender modules into a single 2RU rack tray

CAD Drawings

  • ST-C5USBV-R-300M
    CAD Drawing - ST-C5USBV-R-300M
  • "Glad to say we are now done with MPT's DP/ECDIS lab! Thanks to your help, we were able to get it together quickly and make it work. They are very happy with the turnout of the lab itself, and how much neater the cabling is using the Rackmount USB KVM extender module (ST-C5USBVA-L-300M) and desktop remote units (ST-C5USBVA-R-300). Thanks again for all your help!"

    Christopher Vogel
    NavSim Services Inc.
    Buffalo, NY
  • "We like the ST-C5KVMRS-L-600M Rackmounted Extender products and found them to be extremely space efficient and easy to keep organized. They also worked with our hardware. I know that NTI's rack mount solution would fit very well with future projects and I have placed documentation on the network for the guys here to reference when making quotes"

    Drew Tappert
    Ezsoft Inc
    Malvern, PA

2RU Rackmount Extender Module Tray

NTI Part # Description Price Quote Buy
ST-C6RCK-12A 2RU Rackmount Extender Module Tray $210.00
ST-C5PWR-RCK12 Power Distribution Module $415.00

USB KVM Extender Modules to 300 Feet

NTI Part # Local or Remote Rackmount or Desktop Dimensions WxDxH (in) Price Quote Buy
ST-C5USBV-L-300M Local Rackmount module 1.4x6.8x3.5 $215.00
ST-C5USBV-R-300M Remote Rackmount module 1.4x6.8x3.5 $235.00
ST-C5USBV-R-300 Remote Desktop unit 3.5x3.1x1.2 $200.00

Male 26-PIN SCSI II to Female 15-pin HD, Two Female USB Type A

NTI Part # Length Price Quote Buy
UMTINT-3 3 feet $11.00
UMTINT-6 6 feet $15.00
UMTINT-10 10 feet $20.00

Male 26-PIN SCSI II to Male 15-pin HD, Male USB Type A

NTI Part # Length Price Quote Buy
UMTINT-3-MM 3 feet $11.00
UMTINT-6-MM 6 feet $15.00
UMTINT-10-MM 10 feet $20.00
UMTINT-15-MM 15 feet $26.00

USB KVM + Audio Extender Modules to 300 Feet

NTI Part # Local or Remote Rackmount or Desktop Dimensions WxDxH (in) Price Quote Buy
ST-C5USBVA-L-300M Local Rackmount module 1.4x6.8x3.5 $275.00
ST-C5USBVA-R-300M Remote Rackmount module 1.4x6.8x3.5 $285.00
ST-C5USBVA-R-300 Remote Desktop unit 3.5x3.1x1.2 $235.00

Male 26-PIN SCSI II to Female 15-pin HD, Two Female USB Type A, Female 3.5mm

NTI Part # Length Price Quote Buy
UMATINT-3 3 feet $13.00
UMATINT-6 6 feet $18.00
UMATINT-10 10 feet $24.00

Male 26-PIN SCSI II to Male 15-pin HD, Male USB Type A, Male 3.5mm

NTI Part # Length Price Quote Buy
UMATINT-3-MM 3 feet $13.00
UMATINT-6-MM 6 feet $18.00
UMATINT-10-MM 10 feet $24.00
UMATINT-15-MM 15 feet $29.00

PS2 KVM Extender Modules to 600 Feet

NTI Part # Local or Remote Rackmount or Desktop Dimensions WxDxH (in) Price Quote Buy
ST-C5KVM-L-600M Local Rackmount module 1.4x6.8x3.5 $240.00
ST-C5KVM-R-600M Remote Rackmount module 1.4x6.8x3.5 $220.00
ST-C5KVM-R-600 Remote Desktop unit 3.5x3.1x1.2 $175.00

Male 26-PIN SCSI II to Female 15-pin HD, two Female 6-pin miniDIN

NTI Part # Length Price Quote Buy
VMCTINT-3 3 feet $22.00
VMCTINT-6 6 feet $26.00
VMCTINT-10 10 feet $34.00
VMCTINT-15 15 feet $41.00
VMCTINT-25 25 feet $56.00

Male 26-PIN SCSI II to Male 15-pin HD, two Male 6-pin miniDIN

NTI Part # Length Price Quote Buy
VMCTINT-3-MM 3 feet $22.00
VMCTINT-6-MM 6 feet $26.00
VMCTINT-10-MM 10 feet $34.00
VMCTINT-15-MM 15 feet $41.00
VMCTINT-25-MM 25 feet $56.00

PS2 KVM + Audio Extender Modules to 600 Feet

NTI Part # Local or Remote Rackmount or Desktop Dimensions WxDxH (in) Price Quote Buy
ST-C5KVMA-L-600M Local Rackmount module 1.4x6.8x3.5 $245.00
ST-C5KVMA-R-600M Remote Rackmount module 1.4x6.8x3.5 $235.00
ST-C5KVMA-R-600 Remote Desktop unit 3.5x3.1x1.2 $185.00

Male 26-PIN SCSI II to Female 15-pin HD, two Female 6-pin miniDIN, Female 3.5mm

NTI Part # Length Price Quote Buy
VMATINT-3 3 feet $27.00
VMATINT-6 6 feet $32.00
VMATINT-10 10 feet $42.00
VMATINT-15 15 feet $51.00
VMATINT-25 25 feet $69.00

Male 26-PIN SCSI II to Male 15-pin HD, two Male 6-pin miniDIN, Male 3.5mm

NTI Part # Length Price Quote Buy
VMATINT-3-MM 3 feet $27.00
VMATINT-6-MM 6 feet $32.00
VMATINT-10-MM 10 feet $42.00
VMATINT-15-MM 15 feet $51.00
VMATINT-25-MM 25 feet $69.00

PS2 KVM + RS232 Extender Modules to 600 Feet

NTI Part # Local or Remote Rackmount or Desktop Dimensions WxDxH (in) Price Quote Buy
ST-C5KVMRS-L-600M Local Rackmount module 1.4x6.8x3.5 $245.00
ST-C5KVMRS-R-600M Remote Rackmount module 1.4x6.8x3.5 $225.00
ST-C5KVMRS-R-600 Remote Desktop unit 3.5x3.1x1.2 $180.00

Male 26-PIN SCSI II to Female 15-pin HD, two Female 6-pin miniDIN, Female 9-pin miniDIN

NTI Part # Length Price Quote Buy
VMRSTINT-3 3 feet $26.00
VMRSTINT-6 6 feet $30.00
VMRSTINT-10 10 feet $38.00
VMRSTINT-15 15 feet $45.00

Male 26-PIN SCSI II to Male 15-pin HD, two Male 6-pin miniDIN, Male 9-pin miniDIN

NTI Part # Length Price Quote Buy
VMRSTINT-3-MM 3 feet $26.00
VMRSTINT-6-MM 6 feet $30.00
VMRSTINT-10-MM 10 feet $38.00
VMRSTINT-15-MM 15 feet $45.00

VGA Extender Modules to 600 Feet

NTI Part # Local or Remote Rackmount or Desktop Dimensions WxDxH (in) Price Quote Buy
ST-C5V-L-600M Local Rackmount module 1.4x6.8x3.5 $180.00
ST-C5V-R-600M Remote Rackmount module 1.4x6.8x3.5 $190.00
ST-C5V-R-600 Remote Desktop unit 3.5x3.1x1.2 $135.00

Male 26-PIN SCSI II to Female 15-pin HD

NTI Part # Length Price Quote Buy
VTINT-3 3 feet $15.00
VTINT-6 6 feet $20.00
VTINT-10 10 feet $25.00
VTINT-15 15 feet $32.00
VTINT-25 25 feet $46.00

Male 26-PIN SCSI II to Male 15-pin HD

NTI Part # Length Price Quote Buy
VTINT-3-MM 3 feet $15.00
VTINT-6-MM 6 feet $20.00
VTINT-10-MM 10 feet $25.00
VTINT-15-MM 15 feet $32.00
VTINT-25-MM 25 feet $46.00

VGA + Audio Extender Modules to 600 Feet

NTI Part # Local or Remote Rackmount or Desktop Dimensions WxDxH (in) Price Quote Buy
ST-C5VA-L-600M Local Rackmount module 1.4x6.8x3.5 $225.00
ST-C5VA-R-600M Remote Rackmount module 1.4x6.8x3.5 $225.00
ST-C5VA-R-600 Remote Desktop unit 3.5x3.1x1.2 $165.00

Male 26-PIN SCSI II to Female 15-pin HD, Female 3.5mm

NTI Part # Length Price Quote Buy
VATINT-3 3 feet $22.00
VATINT-6 6 feet $27.00
VATINT-10 10 feet $37.00
VATINT-15 15 feet $46.00
VATINT-25 25 feet $64.00

Male 26-PIN SCSI II to Male 15-pin HD, Male 3.5mm

NTI Part # Length Price Quote Buy
VATINT-3-MM 3 feet $22.00
VATINT-6-MM 6 feet $27.00
VATINT-10-MM 10 feet $37.00
VATINT-15-MM 15 feet $46.00
VATINT-25-MM 25 feet $64.00

VGA + RS232 Extender Modules to 600 Feet

NTI Part # Local or Remote Rackmount or Desktop Dimensions WxDxH (in) Price Quote Buy
ST-C5VRS-L-600M Local Rackmount module 1.4x6.8x3.5 $220.00
ST-C5VRS-R-600M Remote Rackmount module 1.4x6.8x3.5 $215.00
ST-C5VRS-R-600 Remote Desktop unit 3.5x3.1x1.2 $165.00

Male 26-PIN SCSI II to Female 15-pin HD, Female 9-pin miniDIN

NTI Part # Length Price Quote Buy
VRSTINT-3 3 feet $21.00
VRSTINT-6 6 feet $26.00
VRSTINT-10 10 feet $33.00
VRSTINT-15 15 feet $40.00

Male 26-PIN SCSI II to Male 15-pin HD, Male 9-pin miniDIN

NTI Part # Length Price Quote Buy
VRSTINT-3-MM 3 feet $21.00
VRSTINT-6-MM 6 feet $26.00
VRSTINT-10-MM 10 feet $33.00
VRSTINT-15-MM 15 feet $40.00
