Legacy SUN PC KVM Matrix Switch

multiple users multiple computers, How to

Discontinued. No longer available

Legacy SUN PC KVM Matrix Switch

Up to eight users can control 32 PC and SUN computers.

Also known as: KVM matrix switch, SUN PC matrix switch, SUN PC kvm matrix switches, multiple platform cpu switch, multi-user multi-platform switch, kvm matrices, High Density KVM Switch.

Legacy SUN PC KVM Matrix Switch

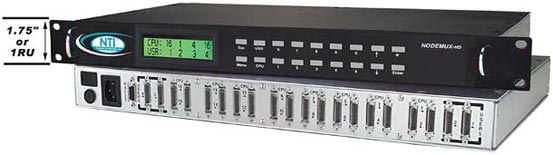

NODEMUX® ST-4X16-UHD Matrix High Density KVM Switch (Front & Back)
  • Designed and Manufactured in the U.S.A.

Additional Images

  • High Density KVM Matrix Switch with Cable Management Shelf (Standard feature for -UHD switches)

The NODEMUX® SUN PC Multi-Platform KVM Matrix Switch enables up to eight users to individually command or simultaneously share up to 32 computers.

This low-cost switch accesses PC and SUN computers (and USB computers with NTI adapters). PC or SUN keyboards and mice can be connected by using adapter cables.

The NODEMUX® SUN PC Multi-Platform KVM Matrix Switch enables up to eight users to individually command or simultaneously share up to 32 computers.

This low-cost switch accesses PC and SUN computers (and USB computers with NTI adapters). PC or SUN keyboards and mice can be connected by using adapter cables.


  • Equipped with On Screen Display (OSD), Liquid Crystal Display (LCD) and RS232 control.
  • Rackmount is standard on all NODEMUX ST-nXm-U models. The smaller models are also available in a desktop case (denoted by a "DT" in part number).
  • Users can power-down the switch without rebooting attached computers.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
  • The advanced OSD user interface with password security makes the NODEMUX Matrix switch simple and reliable to use in Enterprise data centers.
  • Use as a single or multi-platform switch.
  • Users can work individually or share one computer.
  • The High Density Switches save you rack space (look for "HD" at the end of the part number.) Cabling runs are simplified with NTI's high density KVM switch cables.

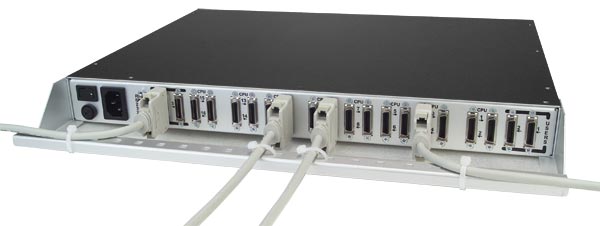

    • Includes cable management shelf.
Hosts
  • Supports PS/2 computers, including laptops, HP 9000, Silicon Graphics Octane and Onyx and IBM RS6000.
  • Supports SUN computers, including ULTRAs, SUN Blade 100, SUN Blade 1000, SUN Fire™ V215, SUN Fire V20z and SUN Ray™ (using NTI's USB-SUN adapter).
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Connectors
  • Female 15-pin HD and female 8-pin miniDIN connectors.
Mouse
  • Smooth mouse movement.
  • Compatible with all standard 2-button PS/2 mice as well as the following:
    • Microsoft IntelliMouse®
    • Logitech (and other) 3-button mice.
    • Alps glidepoint touchpad (extended fucntions-i.e. tapping, etc.-are not supported).
    • Cirque Glidepoint touchapd.
    • IBM Scroll Point mouse (extended stick functions are not supported).
    • Kensington Orbit trackball.
    • Logitech 2-button wheel mouse.
    • Microsoft Ballpoint mouse.
  • SUN 3-button mice are supported.
    • Wheel button on IntelliMouse emulates SUN's third mouse button.
Dimensions
SUN PC KVM Matrix Switches
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)

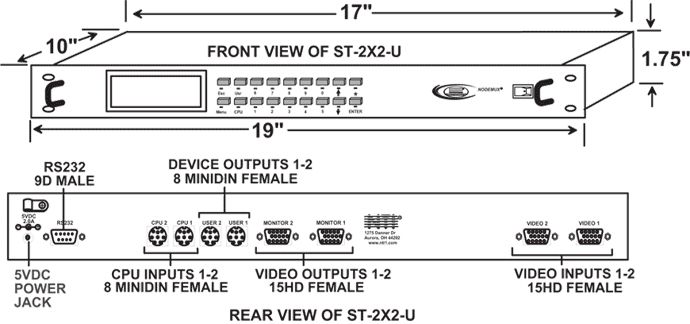

ST-2X2-U NA 1RU 19x10x1.75

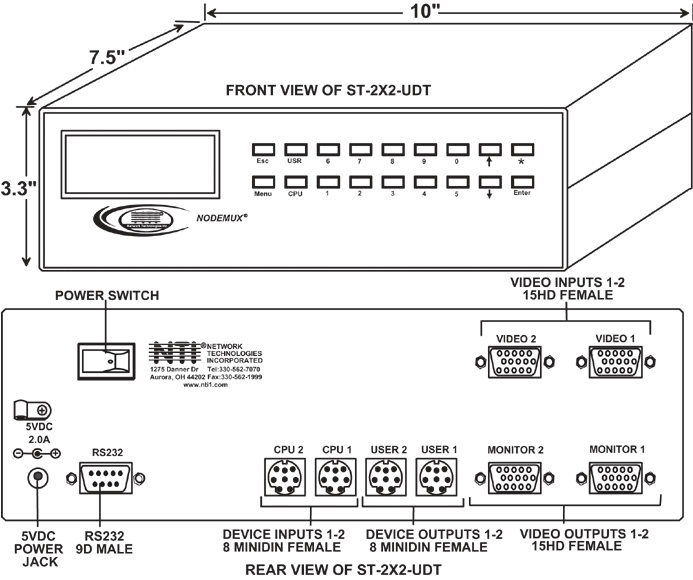

ST-2X2-UDT 10x7.5x3.3 NA NA
Monitor
  • Crisp and clear 1900x1200 video resolution.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 Mhz.
Keyboard
  • User devices can be PS/2 or SUN.
  • SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
  • Keyboard is hot-pluggable.
  • Internet and Windows key supported.
Power
MTBF
  • 63,164 hrs
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
    • CE not available on ST-2X2-UDT.
Warranty
  • Two years
Hosts
  • Supports PS/2 computers, including laptops, HP 9000, Silicon Graphics Octane and Onyx and IBM RS6000.
  • Supports SUN computers, including ULTRAs, SUN Blade 100, SUN Blade 1000, SUN Fire™ V215, SUN Fire V20z and SUN Ray™ (using NTI's USB-SUN adapter).
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Connectors
  • Female 15-pin HD and female 8-pin miniDIN connectors.
Mouse
  • Smooth mouse movement.
  • Compatible with all standard 2-button PS/2 mice as well as the following:
    • Microsoft IntelliMouse®
    • Logitech (and other) 3-button mice.
    • Alps glidepoint touchpad (extended fucntions-i.e. tapping, etc.-are not supported).
    • Cirque Glidepoint touchapd.
    • IBM Scroll Point mouse (extended stick functions are not supported).
    • Kensington Orbit trackball.
    • Logitech 2-button wheel mouse.
    • Microsoft Ballpoint mouse.
  • SUN 3-button mice are supported.
    • Wheel button on IntelliMouse emulates SUN's third mouse button.
Dimensions
SUN PC KVM Matrix Switches
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
ST-2X4-U NA 1RU 19x10x1.75

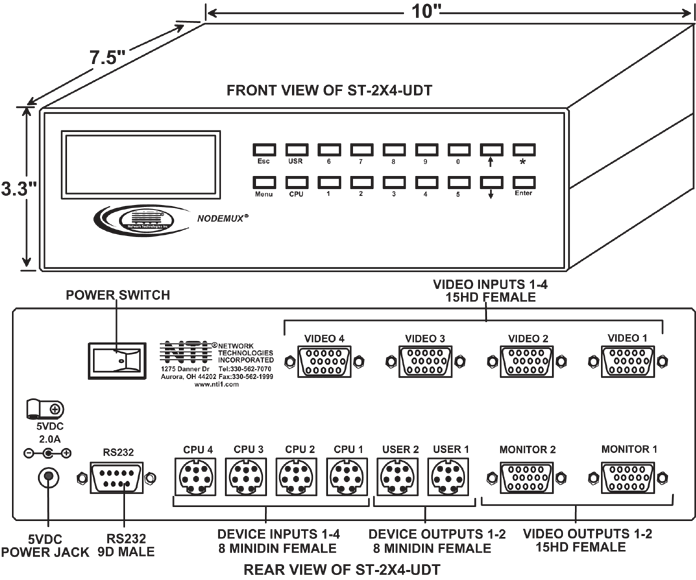

ST-2X4-UDT 10x7.5x3.3 NA NA
Monitor
  • Crisp and clear 1900x1200 video resolution.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 Mhz.
Keyboard
  • User devices can be PS/2 or SUN.
  • SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
  • Keyboard is hot-pluggable.
  • Internet and Windows key supported.
Power
MTBF
  • 63,164 hrs
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
    • CE not available on ST-2X4-UDT.
Warranty
  • Two years
Hosts
  • Supports PS/2 computers, including laptops, HP 9000, Silicon Graphics Octane and Onyx and IBM RS6000.
  • Supports SUN computers, including ULTRAs, SUN Blade 100, SUN Blade 1000, SUN Fire™ V215, SUN Fire V20z and SUN Ray™ (using NTI's USB-SUN adapter).
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Connectors
  • ST-2X8-UDT: female 15-pin HD and female 8-pin miniDIN connectors.
  • ST-2X8-UHD: female 26-pin SCSI II connectors.
Mouse
  • Smooth mouse movement.
  • Compatible with all standard 2-button PS/2 mice as well as the following:
    • Microsoft IntelliMouse®
    • Logitech (and other) 3-button mice.
    • Alps glidepoint touchpad (extended fucntions-i.e. tapping, etc.-are not supported).
    • Cirque Glidepoint touchapd.
    • IBM Scroll Point mouse (extended stick functions are not supported).
    • Kensington Orbit trackball.
    • Logitech 2-button wheel mouse.
    • Microsoft Ballpoint mouse.
  • SUN 3-button mice are supported.
    • Wheel button on IntelliMouse emulates SUN's third mouse button.
Dimensions
SUN PC KVM Matrix Switches
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)

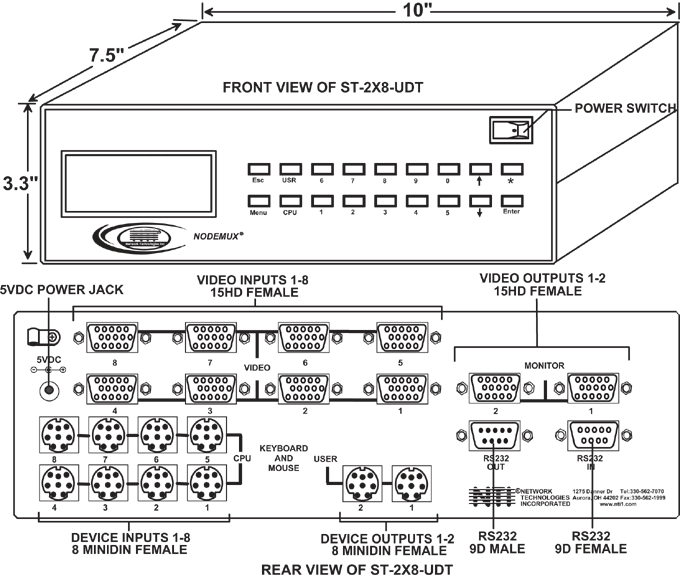

ST-2X8-UDT 10x7.5x3.3 NA NA

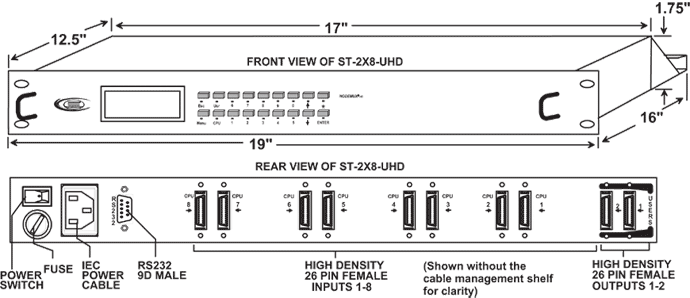

ST-2X8-UHD NA 1RU 19x12.5x1.75
Monitor
  • Crisp and clear 1900x1200 video resolution.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 Mhz.
Keyboard
  • User devices can be PS/2 or SUN.
  • SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
  • Keyboard is hot-pluggable.
  • Internet and Windows key supported.
Power
  • ST-2X8-UDT
MTBF
  • ST-2X8-UDT: 54,639 hrs
  • ST-2X8-UHD: 56,336 hrs
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
    • CE not available on ST-2X8-UDT.
Warranty
  • Two years
Hosts
  • Supports PS/2 computers, including laptops, HP 9000, Silicon Graphics Octane and Onyx and IBM RS6000.
  • Supports SUN computers, including ULTRAs, SUN Blade 100, SUN Blade 1000, SUN Fire™ V215, SUN Fire V20z and SUN Ray™ (using NTI's USB-SUN adapter).
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Connectors
  • ST-2X16-UHD: female 26-pin SCSI II connectors.
Mouse
  • Smooth mouse movement.
  • Compatible with all standard 2-button PS/2 mice as well as the following:
    • Microsoft IntelliMouse®
    • Logitech (and other) 3-button mice.
    • Alps glidepoint touchpad (extended fucntions-i.e. tapping, etc.-are not supported).
    • Cirque Glidepoint touchapd.
    • IBM Scroll Point mouse (extended stick functions are not supported).
    • Kensington Orbit trackball.
    • Logitech 2-button wheel mouse.
    • Microsoft Ballpoint mouse.
  • SUN 3-button mice are supported.
    • Wheel button on IntelliMouse emulates SUN's third mouse button.
Dimensions
SUN PC KVM Matrix Switches
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)

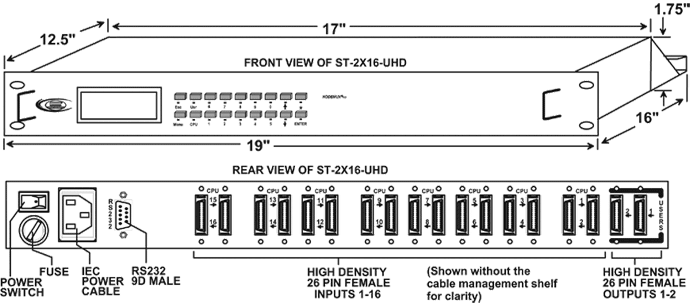

ST-2X16-UHD NA 1RU 19x12.5x1.75
Monitor
  • Crisp and clear 1900x1200 video resolution.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 Mhz.
Keyboard
  • User devices can be PS/2 or SUN.
  • SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
  • Keyboard is hot-pluggable.
  • Internet and Windows key supported.
Power
MTBF
  • ST-2X16-UHD: 43,945 hrs
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years
Hosts
  • Supports PS/2 computers, including laptops, HP 9000, Silicon Graphics Octane and Onyx and IBM RS6000.
  • Supports SUN computers, including ULTRAs, SUN Blade 100, SUN Blade 1000, SUN Fire™ V215, SUN Fire V20z and SUN Ray™ (using NTI's USB-SUN adapter).
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Connectors
  • Female 15-pin HD and female 8-pin miniDIN connectors.
Mouse
  • Smooth mouse movement.
  • Compatible with all standard 2-button PS/2 mice as well as the following:
    • Microsoft IntelliMouse®
    • Logitech (and other) 3-button mice.
    • Alps glidepoint touchpad (extended fucntions-i.e. tapping, etc.-are not supported).
    • Cirque Glidepoint touchapd.
    • IBM Scroll Point mouse (extended stick functions are not supported).
    • Kensington Orbit trackball.
    • Logitech 2-button wheel mouse.
    • Microsoft Ballpoint mouse.
  • SUN 3-button mice are supported.
    • Wheel button on IntelliMouse emulates SUN's third mouse button.
Dimensions
SUN PC KVM Matrix Switches
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
ST-2X32-U NA 3RU 19x12x5.25
Monitor
  • Crisp and clear 1900x1200 video resolution.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 Mhz.
Keyboard
  • User devices can be PS/2 or SUN.
  • SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
  • Keyboard is hot-pluggable.
  • Internet and Windows key supported.
Power
MTBF
  • ST-2X32-U: 34,244 hrs
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years
Hosts
  • Supports PS/2 computers, including laptops, HP 9000, Silicon Graphics Octane and Onyx and IBM RS6000.
  • Supports SUN computers, including ULTRAs, SUN Blade 100, SUN Blade 1000, SUN Fire™ V215, SUN Fire V20z and SUN Ray™ (using NTI's USB-SUN adapter).
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Connectors
  • ST-4X8-UDT: female 15-pin HD and female 8-pin miniDIN connectors.
  • ST-4X8-UHD: female 26-pin SCSI II connectors.
Mouse
  • Smooth mouse movement.
  • Compatible with all standard 2-button PS/2 mice as well as the following:
    • Microsoft IntelliMouse®
    • Logitech (and other) 3-button mice.
    • Alps glidepoint touchpad (extended fucntions-i.e. tapping, etc.-are not supported).
    • Cirque Glidepoint touchapd.
    • IBM Scroll Point mouse (extended stick functions are not supported).
    • Kensington Orbit trackball.
    • Logitech 2-button wheel mouse.
    • Microsoft Ballpoint mouse.
  • SUN 3-button mice are supported.
    • Wheel button on IntelliMouse emulates SUN's third mouse button.
Dimensions
SUN PC KVM Matrix Switches
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)

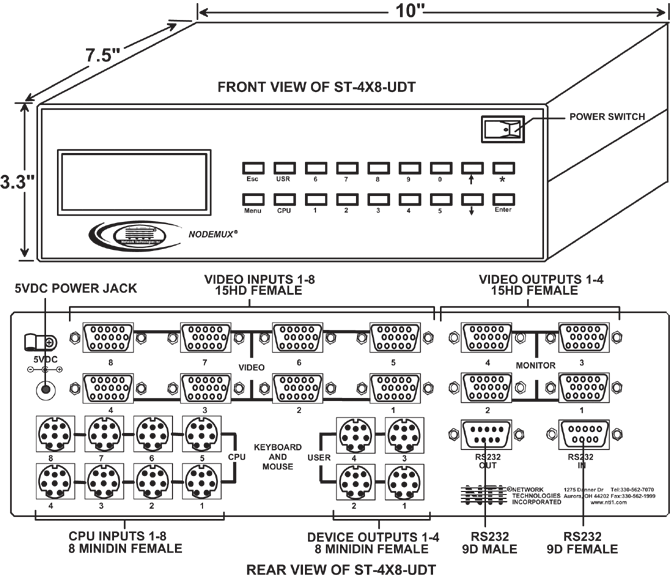

ST-4X8-UDT 10x7.5x3.3 NA NA

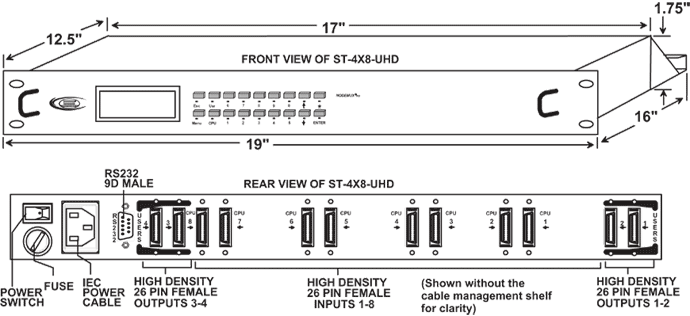

ST-4X8-UHD NA 1RU 19x12.5x1.75
Monitor
  • Crisp and clear 1900x1200 video resolution.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 Mhz.
Keyboard
  • User devices can be PS/2 or SUN.
  • SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
  • Keyboard is hot-pluggable.
  • Internet and Windows key supported.
Power
  • ST-4X8-UDT
MTBF
  • ST-4X8-UDT: 50,006 hrs
  • ST-4X8-UHD: 46,142 hrs
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
    • CE not available on ST-4X8-UDT.
Warranty
  • Two years
Hosts
  • Supports PS/2 computers, including laptops, HP 9000, Silicon Graphics Octane and Onyx and IBM RS6000.
  • Supports SUN computers, including ULTRAs, SUN Blade 100, SUN Blade 1000, SUN Fire™ V215, SUN Fire V20z and SUN Ray™ (using NTI's USB-SUN adapter).
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Connectors
  • ST-4X16-UHD: female 26-pin SCSI II connectors.
Mouse
  • Smooth mouse movement.
  • Compatible with all standard 2-button PS/2 mice as well as the following:
    • Microsoft IntelliMouse®
    • Logitech (and other) 3-button mice.
    • Alps glidepoint touchpad (extended fucntions-i.e. tapping, etc.-are not supported).
    • Cirque Glidepoint touchapd.
    • IBM Scroll Point mouse (extended stick functions are not supported).
    • Kensington Orbit trackball.
    • Logitech 2-button wheel mouse.
    • Microsoft Ballpoint mouse.
  • SUN 3-button mice are supported.
    • Wheel button on IntelliMouse emulates SUN's third mouse button.
Dimensions
SUN PC KVM Matrix Switches
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
ST-4X16-UHD NA 1RU 19x12.5x1.75
Monitor
  • Crisp and clear 1900x1200 video resolution.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 Mhz.
Keyboard
  • User devices can be PS/2 or SUN.
  • SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
  • Keyboard is hot-pluggable.
  • Internet and Windows key supported.
Power
MTBF
  • ST-4X16-UHD: 41,450 hrs
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years
Hosts
  • Supports PS/2 computers, including laptops, HP 9000, Silicon Graphics Octane and Onyx and IBM RS6000.
  • Supports SUN computers, including ULTRAs, SUN Blade 100, SUN Blade 1000, SUN Fire™ V215, SUN Fire V20z and SUN Ray™ (using NTI's USB-SUN adapter).
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Connectors
  • Female 15-pin HD and female 8-pin miniDIN connectors.
Mouse
  • Smooth mouse movement.
  • Compatible with all standard 2-button PS/2 mice as well as the following:
    • Microsoft IntelliMouse®
    • Logitech (and other) 3-button mice.
    • Alps glidepoint touchpad (extended fucntions-i.e. tapping, etc.-are not supported).
    • Cirque Glidepoint touchapd.
    • IBM Scroll Point mouse (extended stick functions are not supported).
    • Kensington Orbit trackball.
    • Logitech 2-button wheel mouse.
    • Microsoft Ballpoint mouse.
  • SUN 3-button mice are supported.
    • Wheel button on IntelliMouse emulates SUN's third mouse button.
Dimensions
SUN PC KVM Matrix Switches
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
ST-4X32-U NA 3RU 19x12x5.25
Monitor
  • Crisp and clear 1900x1200 video resolution.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 Mhz.
Keyboard
  • User devices can be PS/2 or SUN.
  • SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
  • Keyboard is hot-pluggable.
  • Internet and Windows key supported.
Power
MTBF
  • ST-4X32-U: 31,441 hrs
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years
Hosts
  • Supports PS/2 computers, including laptops, HP 9000, Silicon Graphics Octane and Onyx and IBM RS6000.
  • Supports SUN computers, including ULTRAs, SUN Blade 100, SUN Blade 1000, SUN Fire™ V215, SUN Fire V20z and SUN Ray™ (using NTI's USB-SUN adapter).
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Connectors
  • Female 15-pin HD and female 8-pin miniDIN connectors.
Mouse
  • Smooth mouse movement.
  • Compatible with all standard 2-button PS/2 mice as well as the following:
    • Microsoft IntelliMouse®
    • Logitech (and other) 3-button mice.
    • Alps glidepoint touchpad (extended fucntions-i.e. tapping, etc.-are not supported).
    • Cirque Glidepoint touchapd.
    • IBM Scroll Point mouse (extended stick functions are not supported).
    • Kensington Orbit trackball.
    • Logitech 2-button wheel mouse.
    • Microsoft Ballpoint mouse.
  • SUN 3-button mice are supported.
    • Wheel button on IntelliMouse emulates SUN's third mouse button.
Dimensions
SUN PC KVM Matrix Switches
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
ST-8X8-U NA 3RU 19x12x5.25
Monitor
  • Crisp and clear 1900x1200 video resolution.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 Mhz.
Keyboard
  • User devices can be PS/2 or SUN.
  • SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
  • Keyboard is hot-pluggable.
  • Internet and Windows key supported.
Power
MTBF
  • ST-8X8-U: 37,183 hrs
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years
Hosts
  • Supports PS/2 computers, including laptops, HP 9000, Silicon Graphics Octane and Onyx and IBM RS6000.
  • Supports SUN computers, including ULTRAs, SUN Blade 100, SUN Blade 1000, SUN Fire™ V215, SUN Fire V20z and SUN Ray™ (using NTI's USB-SUN adapter).
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Connectors
  • Female 15-pin HD and female 8-pin miniDIN connectors.
Mouse
  • Smooth mouse movement.
  • Compatible with all standard 2-button PS/2 mice as well as the following:
    • Microsoft IntelliMouse®
    • Logitech (and other) 3-button mice.
    • Alps glidepoint touchpad (extended fucntions-i.e. tapping, etc.-are not supported).
    • Cirque Glidepoint touchapd.
    • IBM Scroll Point mouse (extended stick functions are not supported).
    • Kensington Orbit trackball.
    • Logitech 2-button wheel mouse.
    • Microsoft Ballpoint mouse.
  • SUN 3-button mice are supported.
    • Wheel button on IntelliMouse emulates SUN's third mouse button.
Dimensions
SUN PC KVM Matrix Switches
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
ST-8X16-U NA 3RU 19x12x5.25
Monitor
  • Crisp and clear 1900x1200 video resolution.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 Mhz.
Keyboard
  • User devices can be PS/2 or SUN.
  • SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
  • Keyboard is hot-pluggable.
  • Internet and Windows key supported.
Power
MTBF
  • ST-8X16-U: 34,751 hrs
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years
Hosts
  • Supports PS/2 computers, including laptops, HP 9000, Silicon Graphics Octane and Onyx and IBM RS6000.
  • Supports SUN computers, including ULTRAs, SUN Blade 100, SUN Blade 1000, SUN Fire™ V215, SUN Fire V20z and SUN Ray™ (using NTI's USB-SUN adapter).
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Connectors
  • Female 15-pin HD and female 8-pin miniDIN connectors.
Mouse
  • Smooth mouse movement.
  • Compatible with all standard 2-button PS/2 mice as well as the following:
    • Microsoft IntelliMouse®
    • Logitech (and other) 3-button mice.
    • Alps glidepoint touchpad (extended fucntions-i.e. tapping, etc.-are not supported).
    • Cirque Glidepoint touchapd.
    • IBM Scroll Point mouse (extended stick functions are not supported).
    • Kensington Orbit trackball.
    • Logitech 2-button wheel mouse.
    • Microsoft Ballpoint mouse.
  • SUN 3-button mice are supported.
    • Wheel button on IntelliMouse emulates SUN's third mouse button.
Dimensions
SUN PC KVM Matrix Switches
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
ST-8X24-U NA 3RU 19x12x5.25
Monitor
  • Crisp and clear 1900x1200 video resolution.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 Mhz.
Keyboard
  • User devices can be PS/2 or SUN.
  • SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
  • Keyboard is hot-pluggable.
  • Internet and Windows key supported.
Power
MTBF
  • ST-8X24-U: 33,975 hrs
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years
Hosts
  • Supports PS/2 computers, including laptops, HP 9000, Silicon Graphics Octane and Onyx and IBM RS6000.
  • Supports SUN computers, including ULTRAs, SUN Blade 100, SUN Blade 1000, SUN Fire™ V215, SUN Fire V20z and SUN Ray™ (using NTI's USB-SUN adapter).
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Connectors
  • Female 15-pin HD and female 8-pin miniDIN connectors.
Mouse
  • Smooth mouse movement.
  • Compatible with all standard 2-button PS/2 mice as well as the following:
    • Microsoft IntelliMouse®
    • Logitech (and other) 3-button mice.
    • Alps glidepoint touchpad (extended fucntions-i.e. tapping, etc.-are not supported).
    • Cirque Glidepoint touchapd.
    • IBM Scroll Point mouse (extended stick functions are not supported).
    • Kensington Orbit trackball.
    • Logitech 2-button wheel mouse.
    • Microsoft Ballpoint mouse.
  • SUN 3-button mice are supported.
    • Wheel button on IntelliMouse emulates SUN's third mouse button.
Dimensions
SUN PC KVM Matrix Switches
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
ST-8X32-U NA 3RU 19x12x5.25
Monitor
  • Crisp and clear 1900x1200 video resolution.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 Mhz.
Keyboard
  • User devices can be PS/2 or SUN.
  • SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
  • Keyboard is hot-pluggable.
  • Internet and Windows key supported.
Power
MTBF
  • ST-8X32-U: 32,658 hrs
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years
Download Matrix Switcher Control Program
Standard in NODEMUX ® ST-nXm-U ONLY:

Application Drawings

  • Legacy SUN PC KVM Matrix Switch

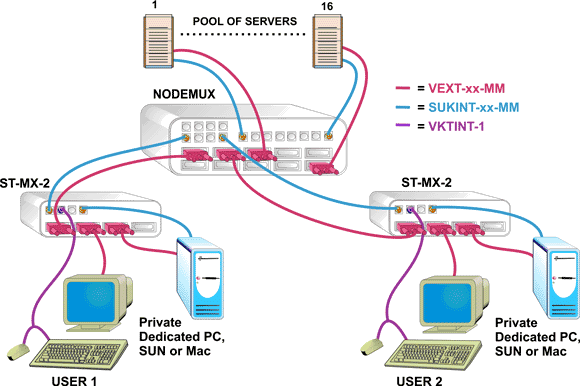

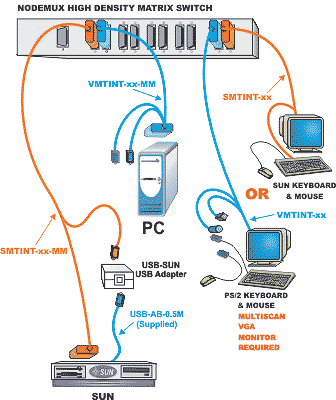

    How to connect up to eight users that can control 32 PC and SUN computers.

Application Notes

  • Access a Pool of Servers and a Private Dedicated Server
    Switched and Local Display of 3 Computers
    Access multiple servers while each user has individual access to his/her own PC, SUN or MAC.

CAD Drawings

  • ST-2X2-U
    SUN PC Matrix KVM Switch - ST-2X2-U
  • ST-2X2-UDT
    SUN PC Matrix KVM Switch - ST-2X2-UDT

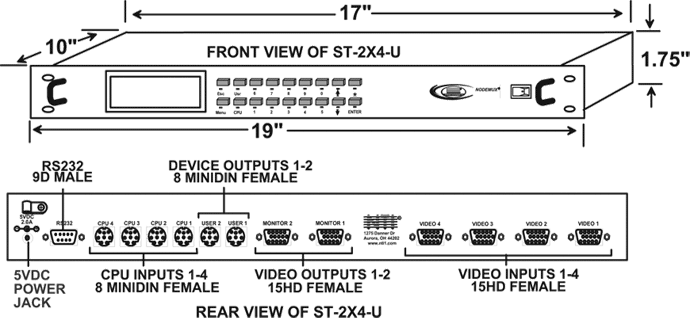

  • ST-2X4-U
    SUN PC Matrix KVM Switch - ST-2X4-U
  • ST-2X4-UDT
    SUN PC Matrix KVM Switch - ST-2X4-UDT
  • ST-2X8-UDT
    SUN PC Matrix KVM Switch - ST-2X8-UDT
  • ST-2X8-UHD
    SUN PC Matrix KVM Switch - ST-2X8-UHD
  • ST-2X16-UHD
    SUN PC Matrix KVM Switch - ST-2X16-UHD
  • ST-2X16-UHD
    SUN PC Matrix KVM Switch - ST-2X16-UHD

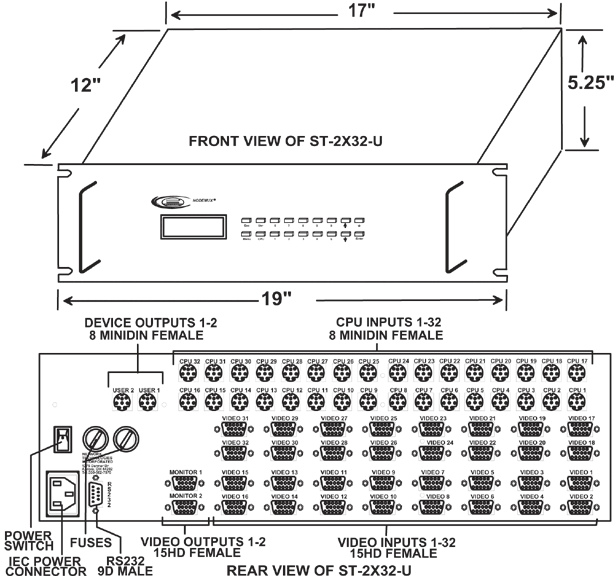

  • ST-2X32-U
    SUN PC Matrix KVM Switch - ST-2X32-U
  • ST-4X8-UDT
    SUN PC Matrix KVM Switch - ST-4X8-UDT
  • ST-4X8-UHD
    SUN PC Matrix KVM Switch - ST-4X8-UHD

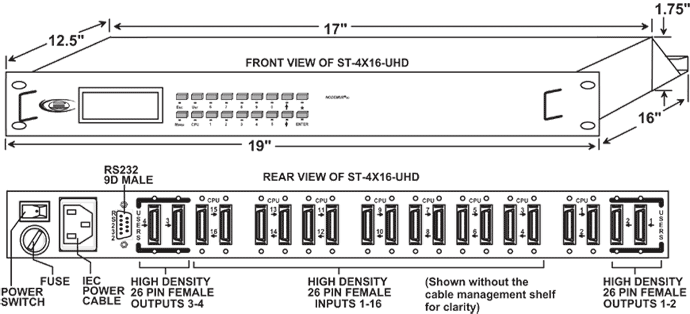

  • ST-4X16-UHD
    SUN PC Matrix KVM Switch - ST-4X16-UHD

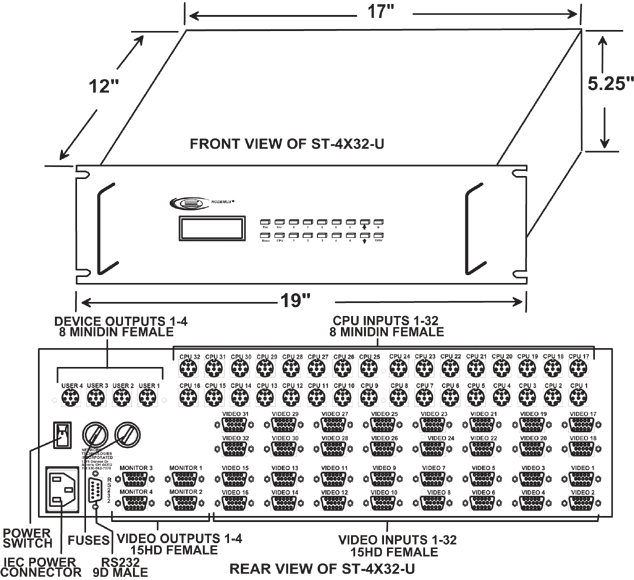

  • ST-4X32-U
    SUN PC Matrix KVM Switch - ST-4X32-U

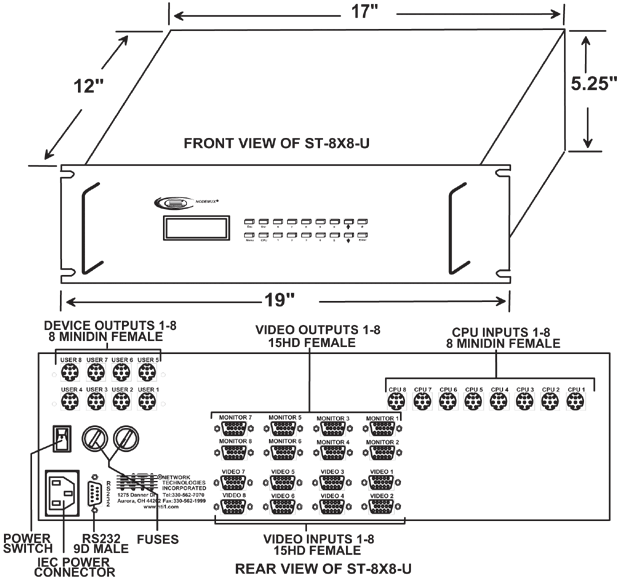

  • ST-8X8-U
    SUN PC Matrix KVM Switch - ST-8X8-U
  • ST-8X16-U

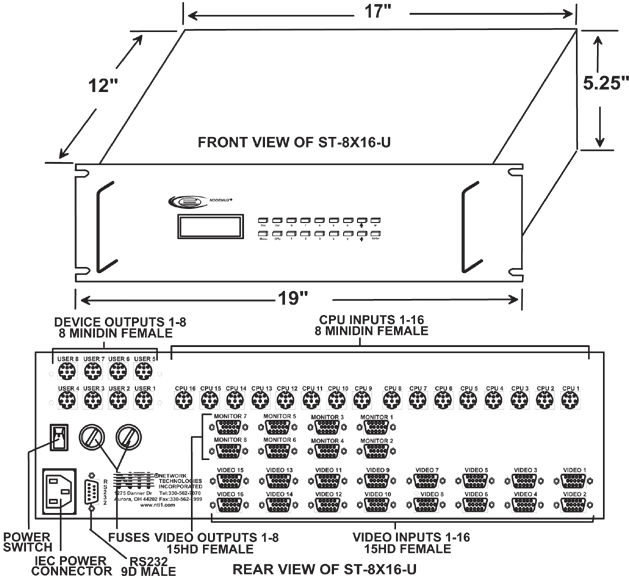

    SUN PC Matrix KVM Switch - ST-8X16-U

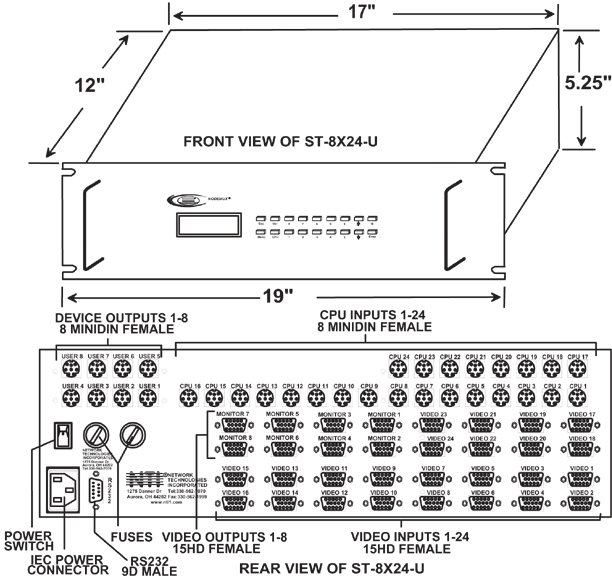

  • ST-8X24-U
    SUN PC Matrix KVM Switch - ST-8X24-U

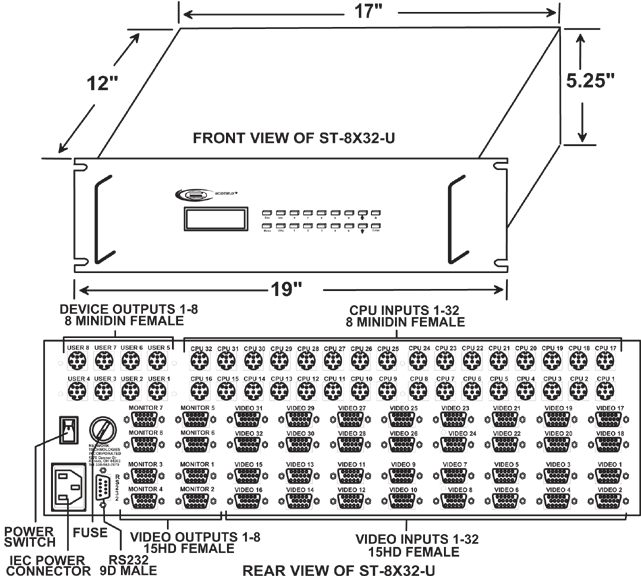

  • ST-8X32-U
    SUN PC Matrix KVM Switch - ST-8X32-U
