USB Extender via CAT5: Extend to 100/150 Feet
Extend 1 USB device up to 150 feet, or 4 devices up to 100 feet
Also known as: USB CAT5 Extender, USB extender system, USB CAT5 UTP cable extension, USB booster, USB active extension cable, extend USB peripheral device 150 feet via RJ45 network cable, USB balun, USB range extender.
(Remote & Local Unit)
Additional Images
Product Highlights

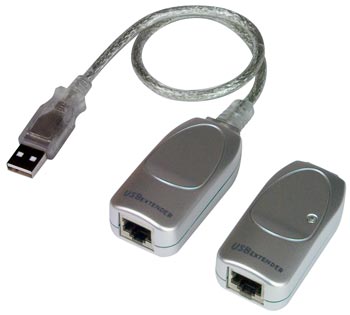

- USB-C5-LC: Extends One Self-Powered or Bus-Powered USB Device up to 150 Feet.

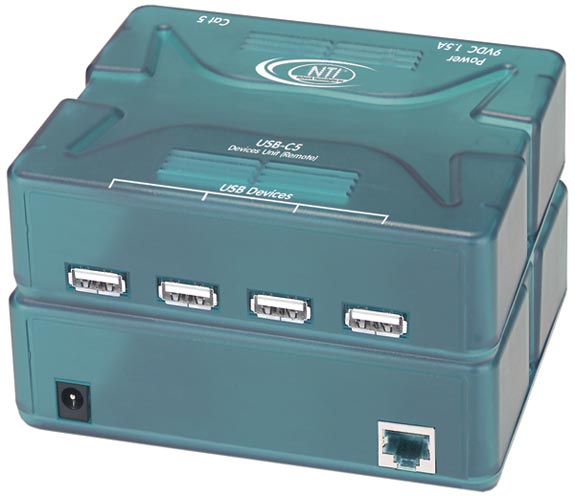

- USB-C5: Extends Four Self-Powered and/or Bus- Powered USB Devices up to 100 Feet.
The USB-C5-LC extends one USB device up to 150 feet, and the USB-C5 extends four USB devices up to 100 feet. The USB extenders consist of two units, the local unit and the remote unit, which are interconnected with CAT5/5e/6 cable.
The USB-C5-LC extends one USB device up to 150 feet, and the USB-C5 extends four USB devices up to 100 feet. The USB extenders consist of two units, the local unit and the remote unit, which are interconnected with CAT5/5e/6 cable.
- Extend self-powered and/or bus-powered USB peripheral devices (security cameras, printer, scanner, keyboard, etc.).
- Transparent data extension.
- Compatible with USB (PC, SUN, MAC) computers.
- Compliant with USB 1.1 (low/full speed) specifications.
- Supports Plug-n-Play specification.
Local Unit
- USB-C5-LC: one male USB Type A connector on attached 10-inch (254-millimeter) cable.
- USB-C5: one female USB Type B connector.
- Supports a USB computer (PC, SUN, MAC).
- When using certain MAC computers with USB-C5, the maximum extension is 75 feet (23 meters).
- Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD and MAC OS 9/10.
Remote Unit
- USB-C5-LC: one female USB Type A connector.
- USB-C5: four female USB Type A connectors.
- Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.
- Supports self-powered and/or bus-powered USB devices.
Environmental
- Operating temperature: 32 to 100°F (0 to 38°C).
- Storage temperature: -20 to 140°F (-30 to 60°C).
- Operating and storage relative humidity: 17 to 90% non-condensing RH.
Power
- USB-C5-LC:
- Local unit: powered from attached computer.
- Remote unit: powered from local unit.
- USB port supports up to 400 mA current.
- USB-C5:
- Local unit: powered by CAT5 cable from remote unit.
- Remote unit: 110 or 220 VAC at 50 or 60 Hz via AC adapter (Country-specific AC adapter included).
- The combined current consumption of the connected devices cannot exceed 1.5A
MTBF
- USB-C5: 83,363 hrs
Regulatory Approvals:
- USB-C5-LC: CE, RoHS
- USB-C5: RoHS
Dimensions WxDxH (in.)
- USB-C5-LC: 1.34x2.28x0.98 (local and remote units).
- USB-C5: 5.19x4.15x1.57 (local and remote units).
Warranty
- Two years
Caution
- Not an Ethernet device. Do not connect to an Ethernet device (card, router, switch, bridge). Permanent damage to the product or Ethernet device may result.
Cables
Interface Cables
- One-meter male USB Type A to male USB Type B interface cable included with USB-C5.
- Existing device cables with male Type A connector required.
Extension Cable
- Use CAT5/5e/6 solid UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Extension Limits
- USB-C5-LC: extend CAT5/5e/6 up to 150 feet (46 meters).
- USB-C5: extend CAT5/5e/6 up to 100 feet. (30 meters)
- When using certain MAC computers with USB-C5, the maximum extension is 75 feet (23 meters).
- Use of CAT6 cable may decrease the maximum length of extension.
White Paper:
User Manual:
Data Sheet:
Application Drawings
-
USB Extender via CAT5 Cable, Extend 1 Device to 150 Feet
How to extend one USB device up to 150 Feet. -
USB Extender via CAT5 Cable, Extend 4 Devices to 100 Feet
How to extend up to four USB devices up to 100 feet
Application Notes
-
Extend a PS/2 Keyboard, PS/2 Mouse, VGA Monitor and USB Device
Use an XTENDEX KVM extender, ST-C5KVM-600, to extend the keyboard, monitor and mouse up to 600 feet, and an XTENDEX ST-C5-LC to extend the self-powered USB device up to 100 feet using CAT5 cable.
CAD Drawings
-
USB Extender via CAT5 (ST-USB-C5-LC)
-
USB Extender via CAT5 (ST-USB-C5)
-
