SDI/HD-SDI/3G-SDI Video Matrix Switch

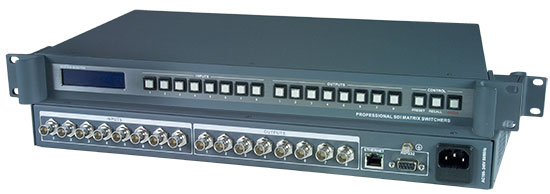

VEEMUX® SM-8X8-SDI (Front & Back)

Product Highlights

  • SDI/HD-SDI/3G-SDI
  • Data Rates: 19 Mbps to 2.97 Gbps
  • 1080p Video Resolution

The VEEMUX® SDI/HD-SDI/3G-SDI Video Matrix Switch routes broadcast quality high definition video from up to 16 SDI digital video sources to up to 16 displays.

The VEEMUX® SDI/HD-SDI/3G-SDI Video Matrix Switch routes broadcast quality high definition video from up to 16 SDI digital video sources to up to 16 displays.

  • Configure and control the switch through Ethernet, serial port, or front panel buttons.
  • Supports SMPTE 259 M (850 feet), SMPTE 292 M (958 feet), SMPTE 424 M (1,391 feet) video interfaces used for broadcast-grade video.
    • SMPTE 259 M (850 feet): SD-SDI (Standard-Definition Serial Digital Interface), supports 480i, 576i resolutions at 270 Mbps bitrate.
    • SMPTE 292 M (958 feet): HD-SDI (High-Definition Serial Digital Interface), supports 720p, 1080i resolutions at 1.485 Gbps bitrate.
    • SMPTE 424 M (1,391 feet): 3G-SDI (3 Gbit/s Serial Digital Interface), supports 1080p resolution at 2.97 Gbps bitrate.
  • Supports SDI/HD-SDI/3G-SDI digital video signals in synchronous or asynchronous switching.
  • Supports HDTV resolutions up to 1080p.
  • Each input can be independently connected to any or all outputs.
  • With professional SDI cabling, extend 3G-SDI to 459 feet (140 meters), HD-SDI to 656 feet (200 meters), and SD-SDI (standard-definition serial digital interface) to 1,312 feet (400 meters).
  • Intelligent power management and internal case temperature detection allow the unit to operate much more reliably.
  • Internal memory allows frequently used matrix switch configurations to be recalled easily.
  • Supports clock recovery and automatic equalization for compatibility with HDTVs.
Video Input
  • Female BNC connectors.
  • Impedance: 75 Ohms
  • Return Loss: <-15 dB, DC @ 1 MHz to 1.5 GHz
  • Video Interfaces: SMPTE 259 M (850 feet), SMPTE 292 M (958 feet) and SMPTE 424 M. (1,391 feet)
  • Video Formats: 270 Mbps SDI, 1.485 Gbps HD-SDI, and 2.97 Gbps 3G-SDI.
Video Output
  • Female BNC connectors.
  • Impedance: 75 Ohms
  • Return Loss: <-15 dB, DC @ 1 MHz to 1.5 GHz
  • Video Interfaces: SMPTE 259 M (850 feet), SMPTE 292 M (958 feet) and SMPTE 424 M. (1,391 feet)
  • Video Formats: 270 Mbps SDI, 1.485 Gbps HD-SDI, and 2.97 Gbps 3G-SDI.
Power
  • 100 to 240 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
Cables
  • Interface cables between the video sources and the switch are required for proper operation.
  • RG-6 18 AWG solid 75 Ohm coaxial cable terminated with BNC connectors are recommended for use (Such as Belden 1694A).
  • Cables not included.
MTBF
  • 30,000 hrs.
Dimensions
  • 8x8 switch WxDxH: 19.01x10.24x1.75 in (483x260x44 mm)
  • 16x16 switch WxDxH: 19.02x10.24x3.5 in (483x260x89 mm)
Environmental
  • Operating and Storage temperature: -4 to 158°F (-20 to 70°C).
  • Operating and Storage Relative Humidity: 10 to 90% non-condensing RH.
Warranty
  • Two years
Ethernet Control
  • Configuration can be done over the Internet via Control Program.
  • Female RJ45 connector.
  • Adaptive 10/100 BaseT Ethernet interface.
Front Panel Interface
  • Configuration and control can be done using the front panel buttons.
  • Liquid Crystal Display (LCD) displays operational information.
RS232 Control
  • Configuration and control can be done through the serial port.
  • Control the switch using the Matrix Control Program via RS232.

SDI/HD-SDI/3G-SDI Video Matrix Switch

NTI Part # Video Inputs Video Outputs Price Quote Buy
SM-8X8-SDI 8 8 $2,700.00
SM-16X16-SDI 16 16 $4,375.00
