HDMI HDBase-T IR Extender CAT5 How To

Remote 1080p HDTV Display Over One CAT6
HDMI transmitter receiver balun TPS

HDMI HDBase-T Extender with IR & Optional RS232/Ethernet via One CAT6a/7

Extend HD 1080p, multi-channel audio, IR, optional RS232/Ethernet up to 600 feet over HDBase-T technology

Also known as: HDBase-T extender, HDMI extender single CAT5, cat6 HDMI monitor extender, remote digital HDMI monitor, HDMI IR RS232 Ethernet transmitter/receiver, high definition 1080p extender over cat5, extend HDTV video, digital video balun.

HDMI HDBase-T Extender with IR via One CAT5e/6/7

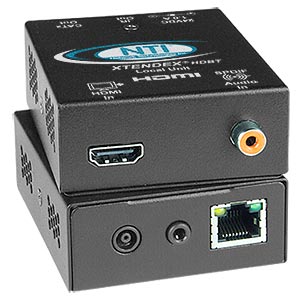

XTENDEX® ST-C6HD-DA-HDBT (Remote & Local Unit)

Product Highlights

  • Extend 1080p video & IR control to 600 ft via One CAT6a/7 Solid Cable
  • Optional RS232, Ethernet, SPDIF Digital Audio, Stereo Audio
  • Only One Power Supply Required
  • HDMI - High-Definition Multimedia Interface
  • HDMI Extender for use with Digital Signage
  • Designed and Manufactured in the U.S.A.

Additional Images

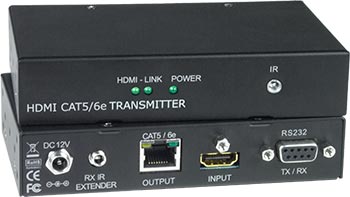

  • ST-C6HDE-HDBT - HDMI HDBase-T Extender with IR, RS232 and Ethernet via one CAT5e/6/7

The XTENDEX® HDMI HDBase-T Extender transmits uncompressed digital HDMI signal, IR, optional RS232, optional Ethernet, optional SPDIF digital audio, and optional stereo audio and optional SPDIF digital audio up to 600 feet over a single CAT6a/7 solid cable using HDBase-T technology. Each video extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.

The XTENDEX® HDMI HDBase-T Extender transmits uncompressed digital HDMI signal, IR, optional RS232, optional Ethernet, and optional SPDIF digital audio up to 600 feet over a single CAT6a/7 solid cable using HDBase-T technology. Each video extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.

  • Transmits an uncompressed high speed HDMI signal over one CAT6a/7 solid cable.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
    • Extend up to 450 feet with solid CAT5e/6 cable.
    • Extend up to 600 feet with solid CAT6a/7 cable (23 AWG).

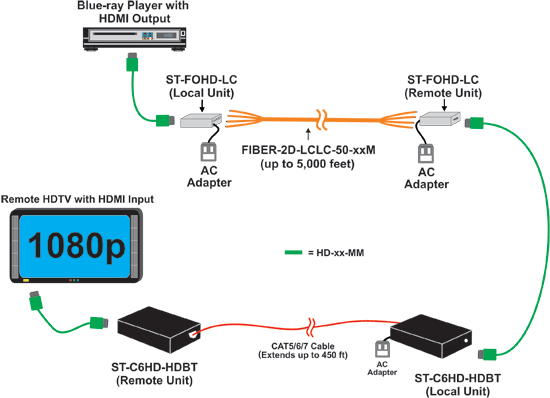

    • Extend up to 5,600 feet when combined with NTI's ST-FOHD-LC HDMI Extender via Fiber Optic Cable.
  • Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control.
  • Only one power supply is necessary to power both the local and remote units.
  • HDMI features supported:
    • x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
    • Bandwidth up to 154 MHz (3.76 Gbps).
    • Support for CEC (consumer electronic control) compatible devices.
    • Lip Sync
  • HDCP compliant.
  • Supports the DDC2B protocol.
  • Available options: SPDIF digital audio, bi-directional RS232 + SPDIF digital audio + stereo audio, bi-directional RS232 + Ethernet, or bi-directional RS232 + Ethernet + SPDIF digital audio + stereo audio.
    • Optional Ethernet port on the transmitter and receiver for connecting network devices such as 100Base-T routers, hubs, smart TVs or smart Blu-Ray players.
  • Integrated mounting brackets for easy surface/wall mounting (ST-C6HDE-HDBT, ST-C6HDA-HDBT, ST-C6HDAE-HDBT only).
  • High quality, rugged steel construction with durable powder coat finish.
Local Unit
  • Compatible with a computer or HDTV video source with HDMI output.
  • ST-C6HD-HDBT: one female HDMI connector; one female 3.5mm port for IR emitter (included); one female RJ45 port for sending/receiving high definition video, audio, IR, and DDC signals.
  • ST-C6HD-DA-HDBT: one female HDMI connector; one female 3.5mm port for IR emitter (included); one RCA jack for SPDIF digital audio; one female RJ45 port for sending/receiving high definition video, audio, IR, and DDC signals.
  • ST-C6HDE-HDBT: one female HDMI connector; one female 3.5mm port for IR emitter (included); one female RJ45 port for RS232; one female RJ45 100BaseT Ethernet port for connecting network device such as a 100Base-T router, hub, or smart Blu-Ray player; one female RJ45 port for sending/receiving HD video, audio, IR, DDC, Ethernet, and RS232 signals.
  • ST-C6HDA-HDBT: one female HDMI connector; one female 3.5mm port for IR emitter (included); one RCA jack for SPDIF digital audio; one 3.5mm port for stereo audio; one female RJ45 port for RS232; one female RJ45 port for sending/receiving high definition video, audio, IR, DDC and RS232 signals.
  • ST-C6HDAE-HDBT: one female HDMI connector; one female 3.5mm port for IR emitter (included); one RCA jack for SPDIF digital audio; one 3.5mm port for stereo audio; one female RJ45 port for RS232; one female RJ45 100BaseT Ethernet port for connecting network device such as a 100Base-T router, hub, or smart Blu-Ray player; one female RJ45 port for sending/receiving HD video, audio, IR, DDC, Ethernet, and RS232 signals.
Remote Unit
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
  • ST-C6HD-HDBT: one female HDMI connector; one female 3.5mm port for IR receiver (included); one female RJ45 port for sending/receiving high definition video, audio, IR, and DDC signals.
  • ST-C6HD-DA-HDBT: one female HDMI connector; one female 3.5mm port for IR receiver (included); one RCA jack for SPDIF digital audio; one female RJ45 port for sending/receiving high definition video, audio, IR, and DDC signals.
  • ST-C6HDE-HDBT: one female HDMI connector; one female 3.5mm port for IR receiver (included); one female RJ45 port for RS232; one female RJ45 100BaseT Ethernet port for connecting network device such as a 100Base-T router, hub, or smart TV; one female RJ45 port for sending/receiving HD video, audio, IR, DDC, Ethernet, and RS232 signals.
  • ST-C6HDA-HDBT: one female HDMI connector; one female 3.5mm port for IR receiver (included); one RCA jack for SPDIF digital audio; one 3.5mm port for stereo audio; one female RJ45 port for RS232; one female RJ45 port for sending/receiving high definition video, audio, IR, DDC, and RS232 signals.
  • ST-C6HDAE-HDBT: one female HDMI connector; one female 3.5mm port for IR receiver (included); one RCA jack for SPDIF digital audio; one 3.5mm port for stereo audio; one female RJ45 port for RS232; one female RJ45 100BaseT Ethernet port for connecting network device such as a 100Base-T router, hub, or smart TV; one female RJ45 port for sending/receiving HD video, audio, IR, DDC, Ethernet, and RS232 signals.
Dimensions
  • ST-C6HD-HDBT and ST-C6HD-DA-HDBT WxDxH (in): 2.54x3.08x1.08
  • ST-C6HDE-HDBT, ST-C6HDA-HDBT, and ST-C6HDAE-HDBT (in): 6.06x3.05x1.08
Power
  • Powered from a single power supply attached to either the local or remote unit.
  • Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating/storage relative humidity: 17 to 90% non-condensing RH.
Cables
  • Use HD-xx-MM cable to connect an HDMI source or display.
  • Use DVI-HD-xx-MM cable to connect a DVI source or display.
  • Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
    • CAT5e/6 solid: up to 450 feet.
    • CAT6a/7 solid (23 AWG): up to 600 feet.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Application Drawings

  • HDMI HDBase-T Extender with IR via One CATx Cable

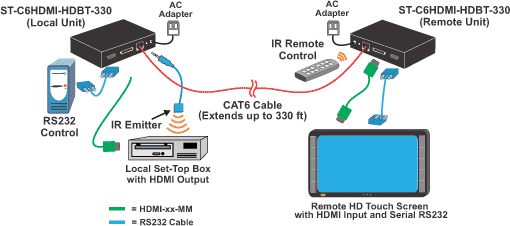

    HDMI HDBase-T Extender with IR via One CATx Cable
    How to extend HDMI video up to 600 ft using the XTENDEX HDMI HDBase-T Extender with IR via One CAT6a/7
  • "We just bought our second pair of ST-C6HD-HDBT extenders from you...The products do a great job at their intended use. We have it installed on the back of a virtual camera... We really want to keep using your products. Thanks!"

    Casey Shatz
    The Third Floor Inc
    Los Angeles, CA
  • "The ST-C6HD-HDBT is great; I have not had any issues with it. The single side power and single cat5e cable are really the reason I bought it. We are using it as a plug in our conference room. The fact that I can keep the power in the server room and not under the conference table is great!"

    Logan Greenlee
    Digital Results Group Inc
    Boston, MA
  • "We installed the ST-C6HD-HDBT in a brand new building that we ran CAT6 throughout. The extender works great! We get 1080i! Thanks!"

    Wayne Koesling
    Interlake Steamship Company
    Middleburgh Heights, OH

HDMI HDBase-T Extender Models

NTI Part # Supported Features Price Quote Buy
ST-C6HD-HDBT HDMI, IR $300.00
ST-C6HD-DA-HDBT HDMI, IR, SPDIF Audio $335.00
ST-C6HDE-HDBT HDMI, IR, RS232, Ethernet $490.00
ST-C6HDA-HDBT HDMI, IR, SPDIF Audio, Stereo Audio, RS232 $410.00
ST-C6HDAE-HDBT HDMI, IR, SPDIF Audio, Stereo Audio, RS232, Ethernet $520.00

HDMI Male-Male Cables

NTI Part # Length Price Quote Buy
HD-3-MM 3 feet $2.70
HD-6-MM 6 feet $3.45
HD-10-MM 10 feet $5.00
HD-14-MM 14 feet $7.50
HD-20-MM 20 feet $9.75
HD-30-MM 30 feet $22.00
HD-50-MM 50 feet $35.75
HD-100-MM 100 feet $97.00

DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Price Quote Buy
DVI-HD-1M-MM 1 meter $4.30
DVI-HD-2M-MM 2 meter $8.00
DVI-HD-3M-MM 3 meter $10.00
DVI-HD-5M-MM 5 meter $11.00

CAT6a Solid Unshielded Cable, 750 MHz

NTI Part # Length Price Quote Buy
CAT6A-BULK23-BLUE-NPC 1000 ft $340.00

CAT6a Shielded Field Assembly RJ45 Connector

NTI Part # Description Price Quote Buy
6A-PLG-SH-BFA CAT6a Shielded Field Assembly RJ45 Connector $30.00
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
