BNC Video Splitter

Drives many monitors from 1 workstation

Up to 100 monitors show the same image

Also known as: Workstation video splitter, workstation splitter, video splitter, multiple monitors, video distribution amplifier, video port expander for Workstations.


VOPEX-4A4H
VOPEX-4A2H BNC Video Splitters (Front & Back)

Features & Applications

The VOPEX-3A2-H through VOPEX-5A8-H are BNC video splitters (video port expanders) for Workstations. With 500 MHz bandwidth, up to 100 of your highest resolution monitors will all display an image as crisp as the original.
  • Ideal for presentations or classrooms.
  • 1900x1200 resolution with no degradation.
  • Drive up to 100 monitors by cascading.
  • Splitters with RGB, RGBS & RGBHV signal formats are all available.
  • A 6-foot multicoax cable is included with each unit.
  • Adapter cables can convert to VGA or SUN video connectors.



Specifications

Input Signals
  • Female BNC connectors.
  • RGB input/impedance: 75 Ohms for RGB.
  • Supports seperate and composite TTL level sync and Sync on Green.
  • Sync input impedance: 2k Ohms
MTBF
  • VOPEX-3A2H: 160,363 hrs
  • VOPEX-3A4H: 156,734 hrs
  • VOPEX-3A8H: 138,208 hrs
  • VOPEX-4A2H: 159,860 hrs
  • VOPEX-4A4H: 156,004 hrs
  • VOPEX-5A2H: 158,480 hrs
  • VOPEX-5A4H: 154,444 hrs
Output Signals
  • Female BNC connectors.
  • One volt into 75 Ohms for RGB.
  • Impedance of 75 Ohms (back terminated) for RGB.
  • Sync is TTL-compatible.
  • Bandwidth is 500 MHz.
Power
  • 110 or 220 VAC at 50 or 60 Hz.
Regulatory Approvals
  • RoHS
Warranty
  • Two years

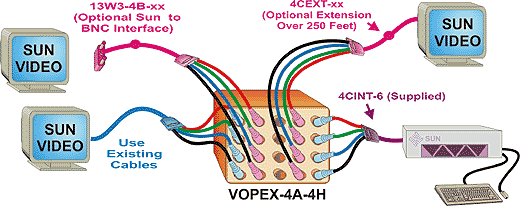

VOPEX-4A-4H
BNC Video Splitters
NTI Part # # of
Ports		 Signal
Format		 Desktop Size
WxDxH (In.)
VOPEX-3A2H 2 RGB 8x6.2x2.6
VOPEX-3A4H 4 RGB 8x6.2x2.6
VOPEX-3A6H 6 RGB 8x6.2x2.6
VOPEX-3A8H 8 RGB 8x6.2x2.6
VOPEX-4A2H 2 RGBS 8x6.2x4
VOPEX-4A4H 4 RGBS 8x6.2x4
VOPEX-4A6H 6 RGBS 8x6.2x4
VOPEX-4A8H 8 RGBS 8x6.2x4
VOPEX-5A2H 2 RGBHV 8x6.2x4
VOPEX-5A4H 4 RGBHV 8x6.2x4
VOPEX-5A6H 6 RGBHV 8x6.2x4
VOPEX-5A8H 8 RGBHV 8x6.2x4
