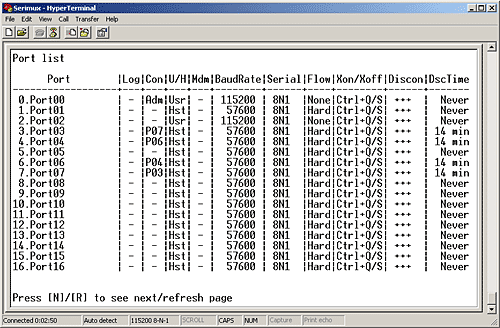

Console Switch Control Menu

Console Switch Control Menu
(Screen shot) Menu-driven integrated software is built into the
SERIMUX Console Serial Port Switch

Adapters
DB-9M serial port to SERIMUX Adapter - DB9F-RJ45F DB9F-RJ45F
  • Adapter to connect DB-9M serial ports to a SERIMUX console switch.
DB-25M serial port to SERIMUX Adapter - DB25F-RJ45F DB25F-RJ45F
  • Adapter to connect DB-25M serial ports to a SERIMUX console switch.
DB-25F serial port to SERIMUX Adapter - DB25M-RJ45F-T DB25M-RJ45F-T
  • Adapter to connect DB-25F serial ports to a SERIMUX console switch.
Modem to SERIMUX Adapter - DB25M-RJ45F-C DB25M-RJ45F-C
  • Adapter to connect a modem to a SERIMUX console switch.
Serial RS232 Crossover using RJ45 connectors (8P8C) RJ45MF-RS232-CO
  • For connecting two like serial devices (DCE or DTE) directly; output of one to input of the other.
  • Connect SUN/Cisco equipment to a SERIMUX console switch.
  • Serial RS232 crossover using a male RJ45 connector on one end and a female RJ45 connector on the other (Male to Female)
  • 8P8C
  • Cable Length: 6"





Signal Flow & Pinout Diagrams

Adapters
NTI Part # Description Price $ # to Quote # to Buy
DB25M-RJ45F-C Adapt a modem to the SERIMUX 5
DB9F-RJ45F Adapt DB-9M serial ports to the SERIMUX 5
DB25M-RJ45F-T Adapt DB-25F serial ports to the SERIMUX 5
DB25F-RJ45F Adapt DB-25M serial ports to the SERIMUX 5
RJ45MF-RS232-CO Adapter to connect SUN/Cisco RJ45 serial ports to the SERIMUX 6
Request Quote
