3G-SDI Splitter: 4-Port

Simultaneously display the same image from one SD/HD/3G-SDI video source onto four monitors

3G-SDI Splitter: 4-Port

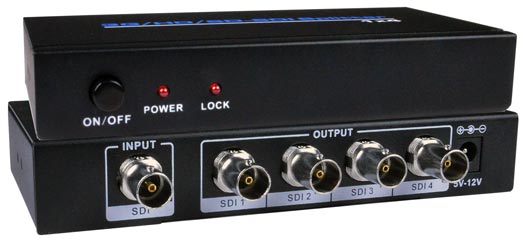

VOPEX-3GSDI-4 (Front & Back)

The VOPEX® 4-Port 3G-SDI Splitter simultaneously displays the same image from one SD/HD/3G-SDI video source onto four SD/HD/3G-SDI monitors.

The VOPEX® 4-Port 3G-SDI Splitter simultaneously displays the same image from one SD/HD/3G-SDI video source onto four SD/HD/3G-SDI monitors.

  • Simultaneously broadcasts 3G-SDI/HD-SDI/SD-SDI signal from one source to four displays using 75 Ohm RG6 BNC cables.
    • Automatic input equalization – compensates for attenuation on the incoming signal and automatically equalizes cables for the following distances:
      • 3G-SDI 1920x1080@60Hz to 328 feet (100 meters).
      • HD-SDI 1280x720@60Hz to 656 feet (200 meters).
      • SD-SDI 525i@60Hz and 625i@50Hz to 984 feet (300 meters).
    • Automatic output reclocking – reshapes and restores timing of digital video signals at output, eliminating high frequency jitter.
  • Supports HDTV resolutions to 1080p @60Hz.
  • Auto-detects 3G-SDI, HD-SDI, or SD-SDI format.
    • Supports SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A, and ITU-R BT.656/BT.601 video interfaces used for broadcast-grade video.
  • Passes embedded audio, ancillary ID and metadata information, and SD/HD/3G-SDI digital video signals
    • Supports 48kHz audio.
  • Plug-and-play functionality – no software needed.
  • Ideal for CCTV surveillance systems, TV broadcast studios, digital cinema, medical imaging facilities, or any AV application where signals need to be split from a camera or other device equipped with 3G/HD/SD-SDI outputs to four SDI-compliant displays or video processors.
Video Input/Output
  • One female BNC connector for SD/HD/3G-SDI video source.
  • Four female BNC connectors for SD/HD/3G-SDI displays.
  • Video bandwidth:
    • 3G-SDI: 2.97 Gbps
    • HD-SDI: 1.485 Gbps
    • SD-SDI: 270 Mbps
  • Impedance: 75 Ohm
  • Protocols supported: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A, and ITU-R BT.656/BT.601
  • Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Color depth: 8-bit, 10-bit, 12-bit
  • Supports HDTV resolutions to 1080p @60Hz.
Power
  • Input: 100 to 240 VAC at 50 or 60Hz via AC adapter (included).
  • Output: 5VDC, 3A
    • Contact an NTI product consultant for 9VDC or 12VDC power supply options.
  • Power consumption: 1.32W
Dimensions
  • WxDxH (in):5.79x3.54x0.99 (147x90x25 mm)
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 158°F (-20 to 70°C).
  • Operating and storage relative humidity: 20 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years
Cables
  • Interface cables between the video source/displays and the splitter are required for proper operation.
  • RG6 75 Ohm coaxial cable terminated with BNC connectors are recommended for use.
  • Cables not included.

Application Drawings

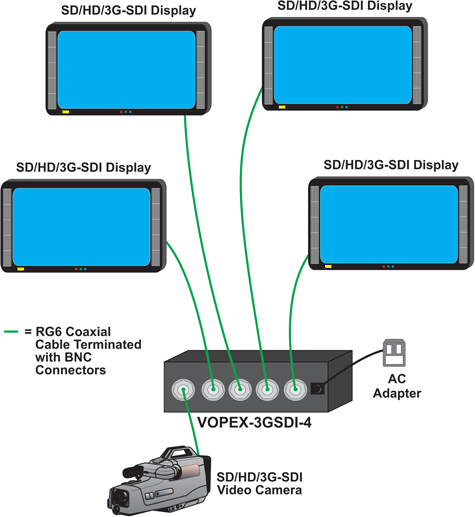

  • 4-Port 3G-SDI Splitter
    4-Port 3G-SDI Splitter

3G-SDI Splitter: 4-Port

NTI Part # Description Price Quote Buy
VOPEX-3GSDI-4 4-Port 3G-SDI Splitter $150.00
