Low-Cost Composite Video + Audio to HDMI Converter

Connects Composite video source to HDMI video monitor/projector.

Also known as: composite video audio to HDMI converter, RCA to HDMI adapter, connect analog video source to digital monitor

Low-Cost Composite Video + Audio to HDMI Converter
CVA-HD-LC

The Low-Cost Composite to HDMI Converter changes your Composite video and audio signals to a single HDMI stream with integrated audio. The converter generates compatible analog to digital conversion signals to make the connection between the Composite video input and the HDMI output work.

The Low-Cost Composite to HDMI Converter changes your Composite video and audio signals to a single HDMI stream with integrated audio. The converter generates compatible analog to digital conversion signals to make the connection between the Composite video input and the HDMI output work.

  • Connects video sources with analog RCA video connectors to HDMI monitors or projectors.
  • Supports 1080p or 720p HDTV output resolutions.
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
  • Plug and play functionality – no new software or drivers required.
Connectors
  • Three female RCA phono jacks (video, R&L) for Composite video and stereo audio input.
    • Supported video formats: PAL, NTSC 3.58, NTSC 4.43, SECAM, PAL/M, PAL/N.
  • One female HDMI connector for HDMI output.
  • One female Mini USB Type A connector for power.
    • Can be powered by a USB port on the display monitor or a USB PC.
Dimensions
  • WxDxH: 2.17x2.60x0.94 in (55x66x24 mm).
Video
  • Supports HDTV resolutions of 1080p and 720p.
  • Select resolution using the switch on the unit.
Package Includes
  • Low-Cost Composite Video + Audio to HDMI Converter
  • USB Mini Type A to USB Type A cable
  • Manual

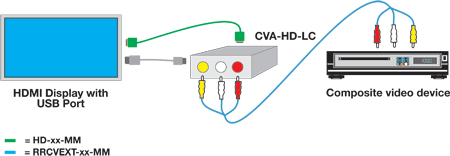

Application Drawings

  • Low-Cost Composite Video + Audio to HDMI Converter
    Low-Cost Composite Video + Audio to HDMI Converter

Low-Cost Composite Video + Audio to HDMI Converter

NTI Part # Description Price Quote Buy
CVA-HD-LC Composite Video + Audio to HDMI Converter $35.00

HDMI Male-Male Cables

NTI Part # Length Price Quote Buy
HD-3-MM 3 feet $4.50
HD-6-MM 6 feet $6.00
HD-10-MM 10 feet $7.10
HD-15-MM 15 feet $10.50

Dual RCA Audio and Composite Video, Male to Male

NTI Part # Length Price Quote Buy
RRCVEXT-3-MM 3 feet $2.30
RRCVEXT-6-MM 6 feet $2.95
RRCVEXT-10-MM 10 feet $3.75
RRCVEXT-15-MM 15 feet $4.80
