Multiple HDMI Extender Over HDBase-T with Power Over Ethernet (PoE)

Extend video and multi-channel audio from 8 HDMI video sources up to 328 feet away - supports 4K, 2K, 1080p, and 1920x1200 resolutions.

Also known as: 8x CAT6 HDMI Extender, Rackmount CAT5 HDMI Extender, Multiple HDBase-T Extender, Power Over Ethernet Extender, high definition 1080p extender over cat5, extend HDTV video, digital video balun, 8-port point to point extender, 1080p transmitters 1RU, 4K HDMI Extender

ST-C64K-HDBT-L8-R

Product Highlights

  • Supports 4K, 2K, 1080p, and 1920x1200 resolutions
  • 8 transmitters grouped together in a single 1RU case
  • Extend up to 328 ft over CATx cable
  • Supports 3D signals
  • No power supply required for remote units
  • HDMI Extender for use with Digital Signage

Additional Images

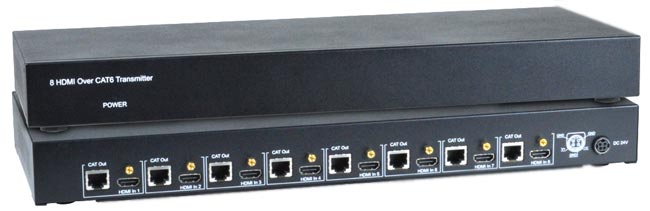

  • Multiple HDMI Extender Over HDBase-T with Power Over Ethernet (PoE) (Front & Back)

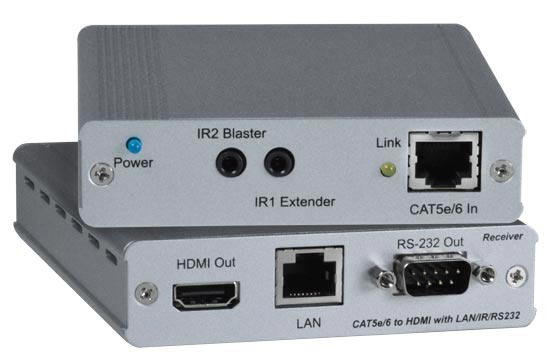

  • ST-C64K9GB-R-HDBT - HDMI HDBase-T POE Receiver (Front & Back)

The XTENDEX® Multiple HDMI Extender Over HDBase-T with Power Over Ethernet transmits uncompressed digital HDMI signals from 8 sources to 8 remote displays and speakers, each located up to 328 feet away via CAT6/6a/7 cable using HDBase-T technology. Each input corresponds to a specific output in a point-to-point connection: input 1 is always connected to output 1, and so on. Power Over Ethernet (PoE) provides power to all connected receivers.

The XTENDEX® Multiple HDMI Extender Over HDBase-T with Power Over Ethernet transmits uncompressed digital HDMI signals from 8 sources to 8 remote displays and speakers, each located up to 328 feet away via CAT6/6a/7 cable using HDBase-T technology. Each input corresponds to a specific output in a point-to-point connection: input 1 is always connected to output 1, and so on. Power Over Ethernet (PoE) provides power to all connected receivers.

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz) and 2096x2160 (30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200.
    • With CAT6/6a/7 (23 AWG): 328 feet.
    • With CAT5e (24 AWG): 250 feet.
  • Each input is directly connected to a corresponding output – point-to-point extension.
    • Input 1 is connected to output 1, input 2 is connected to output 2, etc.
  • HDCP compliant.
  • Supports Power over Ethernet (PoE) – power supply not required at the remote unit.
  • HDMI features supported:
    • 4K x 2K - 3840x2160 and 4096x2160 resolutions
    • 24/36-bit Deep Color
    • x.v.Color
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM
    • 3D
    • Bandwidth up to 300 MHz (10.2 Gbps)
    • Support for CEC (consumer electronic control) compatible devices
    • Lip Sync
  • No loss of audio or video quality between the transmitter and remote units.
  • Reads EDID from the connected display.
  • Compact 1RU design.
    • Rack mount kit included.

ST-C64K-HDBT-L8-R

  • Eight female HDMI input connectors.
  • Eight female RJ45 HDBase-T connectors for sending high definition video, audio, and DDC signals.
  • Supported video resolutions:
    • Ultra-HD 4Kx2K resolutions (3840x2160 @ 30Hz, 4096x2160 @ 30Hz)
    • 2K Cinema (2048x1080 @ 60Hz)
    • HDTV resolutions to 1080p
    • Computer resolutions to 1920x1200
Dimensions
  • WxDxH (in): 17x7.05x1.75 (432x179x44mm)
  • Rack mount kit included
Power
  • 100 to 240 VAC at 50 or 60 Hz via AC adapters (country-specific power cord included).
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and storage relative humidity: 20 to 90% non-condensing RH.
Regulatory Approvals:
  • CE, FCC, RoHS
Warranty
  • Two years
Package Includes
  • One Multiple HDMI Extender
  • One 24V power supply
  • User manual
  • Mounting tabs

Cables

  • Use HD-xx-MM or DVI-HD-xx-MM cable to connect an HDMI or DVI source or display.
    • 8-bit resolution: up to 33 ft (10 m).
    • 12-bit resolution: up to 20 ft (6 m).
  • Use CAT5e/6/6a/7 solid straight through cables for TIA/EIA 568B wiring terminated with standard RJ45 connectors.
    • CAT5e (24 AWG): up to 250 feet.
    • CAT6/6a/7 (23 AWG): up to 328 feet.
  • Cables not included.

Remote Unit (Receiver)

Video Output
  • Supported video resolutions:
    • Ultra-HD 4Kx2K resolutions (3840x2160 @ 30Hz, 4096x2160 @ 30Hz)
    • 2K Cinema (2048x1080 @ 60Hz)
    • HDTV resolutions to 1080p
    • Computer resolutions to 1920x1200
  • One female HDMI output connector.
  • One female RJ45 HDBase-T connector for sending receiving high definition video, audio, and DDC signals.
Dimensions
  • WxDxH (in): 4.02x4.53x0.98 (102x115x25 mm)
Power
  • Powered by the transmitter via Power over Ethernet (PoE).
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C)
  • Storage temperature: -4 to 140°F (-20 to 60°C)
  • Operating/storage relative humidity: 20 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
  • TAA compliant
Max Distance
  • 250 feet (76 meters) over CAT5e cable (24 AWG).
  • 328 feet (100 meters) over CAT6/6a/7 cable (23 AWG).

Compatible NTI Products

  • Combine NTI's video converters and extenders for multiple display signals.
    • HDMI to VGA Converter Cable
      (HD-VGA-CNVTR-2M-MM)
      • Only supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.

Application Drawings

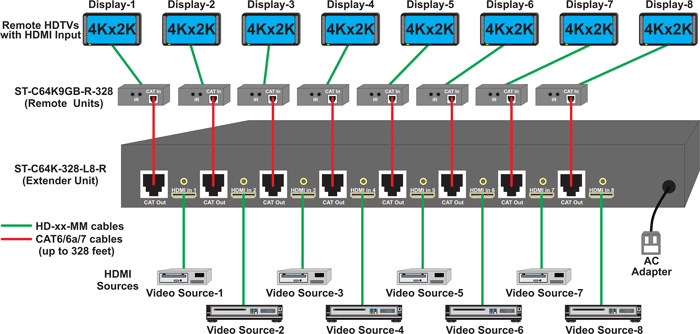

  • Multiple HDMI Extender Over HDBase-T with Power Over Ethernet (PoE)
    Connect a Multiple HDMI Extender Over HDBase-T with Power Over Ethernet (PoE)
    How to extend 8 sources to 8 remote displays
