4K 10.2Gbps HDMI USB KVM Extender Over IP via CATx Cable with Video Wall Support

Extend 4Kx2K 30Hz HDMI monitor, Audio, USB keyboard, and USB mouse up to 400 feet using Gigabit Ethernet. Create video walls up to 8x8 – 64 screens.

Also known as: 4K HDMI USB KVM extender single CAT5, HDMI KVM over IP, remote digital UHD monitor, 4Kx2K transmitter/receiver, extend keyboard monitor mouse, video wall controller.

XTENDEX® ST-IPUSB4K-VW (Local & Remote Unit)

Additional Images

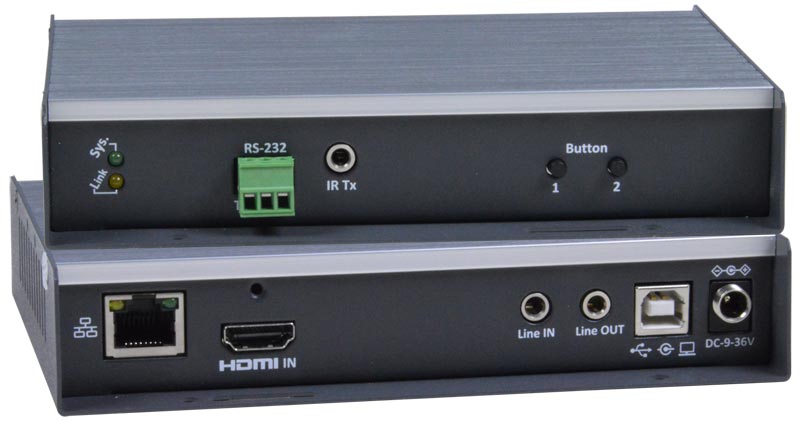

  • ST-IPUSB4K-L-VW – Local Unit (Front & Back)

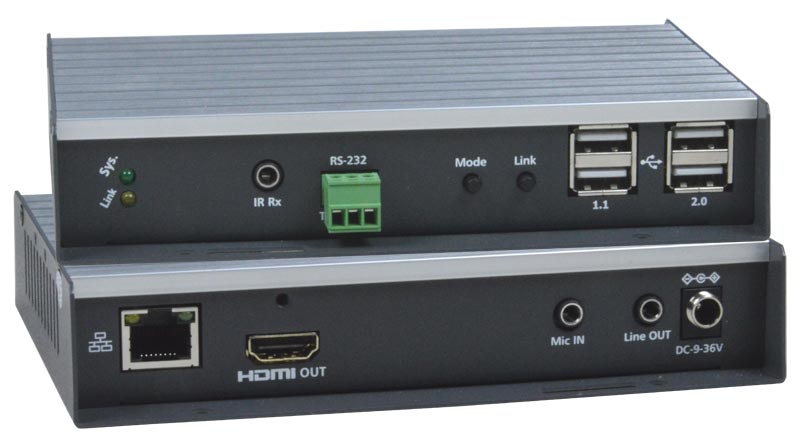

  • ST-IPUSB4K-R-VW – Remote Unit (Front & Back)

Product Highlights

  • Supports Point-to-Point and Point-to-Many connections.
  • 4 USB connectors for keyboard, mouse, flashdrive, HDD, or touchscreen display.
  • Supports video wall installations from 1x2 to 8x8 screens.
  • HDMI Extender for use with Digital Signage

Also Available:

4K HDMI USB KVM Extender Over IP via Two LC Fiber Optic Cables

The XTENDEX® 4K HDMI USB KVM Over IP Extender provides remote KVM (USB keyboard, USB mouse, and 4Kx2K 30Hz HDMI monitor) access to a USB computer up to 400 feet (122 meters) over a Gigabit network using a single CAT5e/6 cable. The extender consists of the ST-IPUSB4K-L-VW local unit that connects to a computer and the ST-IPUSB4K-R-VW remote unit that connects to an HDMI monitor, 3.5mm stereo audio speakers and microphone, and up to four USB devices (keyboard, mouse, flashdrive, HDD, or touchscreen display).

The local and remote units can be connected together for a Point-to-Point connection via CAT5e/6 cable or a Point-to-Many connection via a Gigabit network switch. Support for multiple transmitters requires a managed Gigabit network switch.

The XTENDEX® 4K HDMI USB KVM Over IP Extender provides remote KVM (USB keyboard, USB mouse, and 4Kx2K HDMI monitor) access to a USB computer up to 400 feet (122 meters) over a Gigabit network using a single CAT5e/6 cable. The extender consists of the ST-IPUSB4K-L-VW local unit that connects to a computer and the ST-IPUSB4K-R-VW remote unit that connects to an HDMI monitor, 3.5mm stereo audio speakers and microphone, and up to four USB devices (keyboard, mouse, flashdrive, HDD, or touchscreen display).

The local and remote units can be connected together for a Point-to-Point connection via CAT5e/6 cable or a Point-to-Many connection via a Gigabit network switch. Support for multiple transmitters requires a managed Gigabit network switch.


  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200.
    • Extend 4Kx2K up to 400 feet in a Point-to-Point connection.
    • Extend 4Kx2K up to 1,000 feet in a Point-to-Point or Point-to-Many connection via a Gigabit network switch.
      • The max length between the switch and the local/remote unit is 500 feet.
  • HDMI features supported:
    • HDMI 1.4
    • x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
    • Dolby TrueHD, LPCM 7.1, DTS-HD Master Audio, Dolby Digital, and DTS
    • Bandwidth up to 340 MHz (10.2 Gbps)
    • Lip Sync
  • HDCP 1.4 compliant.
  • Supports USB 2.0 devices.
    • Keyboard and mouse are hot-pluggable.
    • Connect a mouse, keyboard, flashdrive, HDD or touchscreen display.
  • Supports video wall installations from 1x2 to 8x8 screens.
    • Displays can be rotated 90, 180 and 270°.
  • Plug-and-Play installation allows receivers to find the transmitter automatically on the same network. (Network configuration may be required for managed network switch.)
  • Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control.
  • Support for multiple transmitters requires a managed Gigabit network switch with VLAN/IGMP support. Standard LAN switches can only support one transmitter.
    • Each VLAN acts as a separate HDMI Over IP Channel on the network.
  • When using multiple remote units, only one unit can have USB control over the source at any time.
  • Manage transmitter/receiver connections and video wall configuration with built-in software.
  • Supports full-duplex RS232 up to 115200 baud.
  • Customizable EDID table on local unit.
  • Supports the DDC2B protocol.
  • Easily expandable - add receivers as you add control stations.
  • Integrated mounting brackets for easy surface/wall mounting.
Local Unit
  • Compatible with a USB computer (PC, SUN and MAC) with Ultra-HD HDMI output.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • One female HDMI connector.
  • One female USB Type B connector.
  • Two female 3.5mm stereo jacks for audio out and mic in.
    • Microphone only works when in a point-to-point connection.
  • One female 3.5mm port for IR emitter (sold separately).
  • Screw terminal for RS232.
  • One female 1 Gbps RJ45 port for sending/receiving high definition video/audio, USB and IR signals.
Remote Unit
  • One female HDMI connector.
  • Four female USB Type A connectors for keyboard, mouse, flashdrive, HDD, or touchscreen display.
    • Two USB 2.0 and two USB 1.1
  • Two female 3.5mm stereo jacks for audio out and mic in.
    • Microphone only works when in a point-to-point connection.
  • One female 3.5mm port for IR receiver (sold separately).
  • Screw terminal for RS232.
  • One female 1 Gbps RJ45 port for sending/receiving high definition video/audio, USB and IR signals.
  • Supported video resolutions:
    • Ultra-HD 4Kx2K resolutions (3840x2160 @ 30Hz)
    • 2K Cinema (2048x1080 @ 60Hz)
    • HDTV resolutions to 1080p
    • Computer resolutions to 1920x1200
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
RS232
  • Supports TXD and RXD.
  • Baud rate: 9600/14400/19200/38400/57600/115200.
  • Support for a touch screen monitor.
Power
  • Local and remote unit:
    • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
    • Output: 12 VDC, 2A
Dimensions
  • WxDxH (in): 5.91x4.33x1.10 (150x110x28 mm).
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -4 to 185°F (-20 to 85°C).
  • Operating/storage relative humidity: 0 to 80% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
  • TAA compliant
Warranty
  • Two years
Max Distance
  • 400 feet in a Point-to-Point connection.
  • 1,000 feet in a Point-to-Point or Point-to-Many connection via a network switch.
    • The max length between the switch and the local/remote unit is 500 feet.
Cables
  • Cables included with local unit:
    • One 4.25 ft (1.3 m) male to male HDMI cable.
    • One 6 ft (1.8 m) male USB Type A to male USB Type B cable.
    • One 5 ft (1.5 m) male to male 3.5mm stereo audio cable.
    • One 4 ft (1.2 m) 3-pin screw terminal to female DB9 RS232 cable.
  • Cables included with remote unit:
    • One 4 ft (1.2 m) 3-pin screw terminal to female DB9 RS232 cable.
  • Use CAT5e/6 straight through cable with TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included)
  • IR emitter and receiver sold separately.

Application Drawings

  • How to Configure Point-to-Point Connections

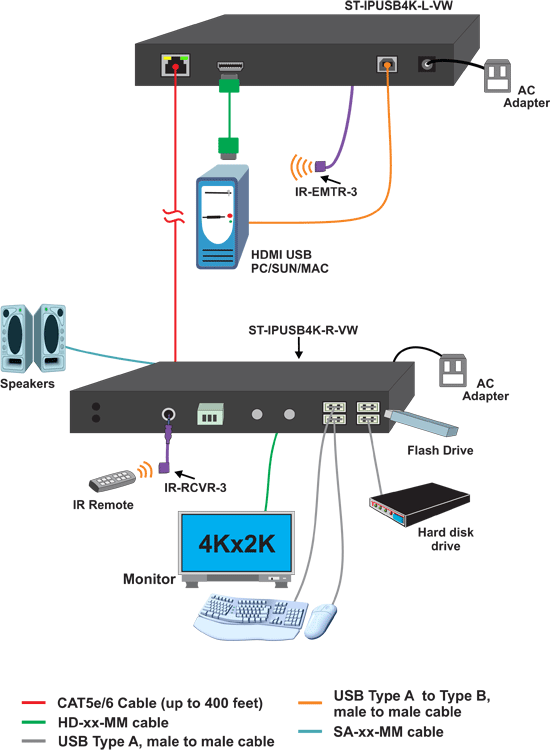

    4K HDMI USB KVM Extender via Fiber
  •  How to Configure Point-to-Many Connections

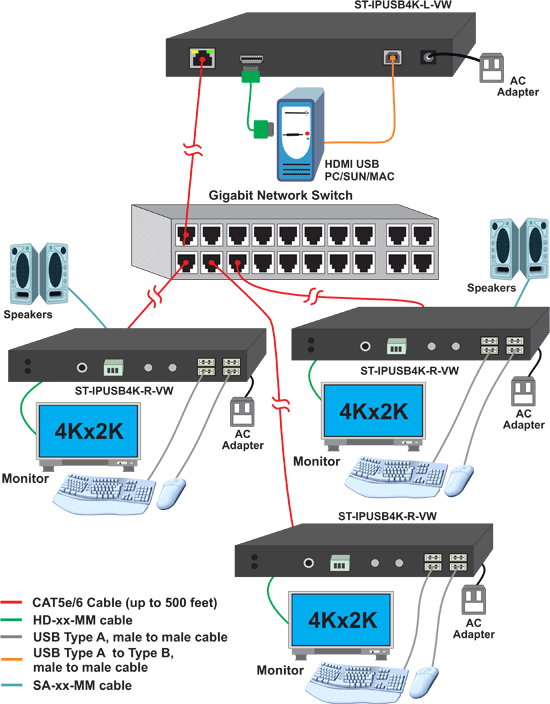

    How to Configure Point-to-Many Connections
  • How to Configure a Video Wall
    How to Configure a Video Wall

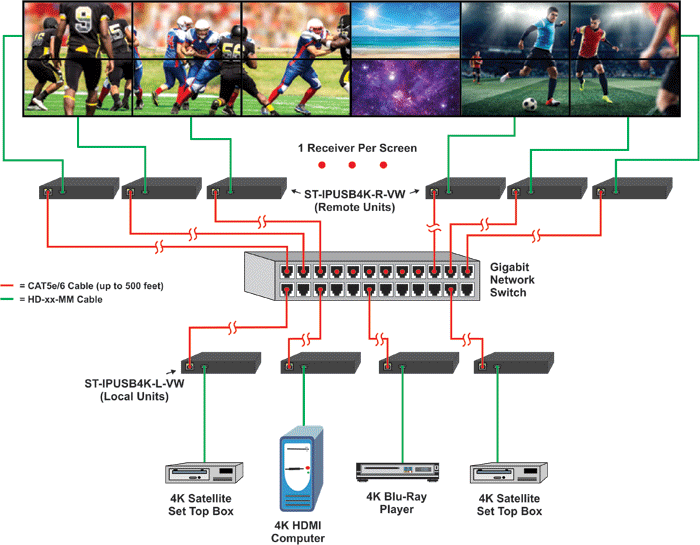

    The XTENDEX® 4K HDMI USB KVM Over IP Extender supports video wall installations from 1x2 to 8x8 screens. For this 2x6 video wall example, there are twelve ST-IPUSB4K-R-VW receivers – one connected to each of the twelve displays; and four ST-IPUSB4K-L-VW transmitters – one connected to each of the four video sources.

4K 10.2Gbps HDMI USB KVM Extender Over IP via CATx Cable with Video Wall Support

NTI Part # Local or Remote Unit Price Quote Buy
ST-IPUSB4K-L-VW Local $570.00
ST-IPUSB4K-R-VW Remote $555.00

IR Emitter & Receiver

NTI Part # Description Price Quote Buy
IR-EMTR-3 IR Emitter, 3 feet $10.00
IR-RCVR-3 IR Receiver, 3 feet $12.00

HDMI Male-Male Cable

NTI Part # Length Price Quote Buy
HD-3-MM 3 feet $4.50
HD-6-MM 6 feet $6.00
HD-10-MM 10 feet $7.10
HD-15-MM 15 feet $10.50

DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Price Quote Buy
DVI-HD-1M-MM 1 meter $4.30
DVI-HD-2M-MM 2 meter $8.00
DVI-HD-3M-MM 3 meter $10.00
DVI-HD-5M-MM 5 meter $11.00

Stereo Audio Cables – Male to Male

NTI Part # Length Price Quote Buy
SA-3-MM 3 ft $0.99
SA-6-MM 6 ft $2.10
SA-10-MM 10 ft $1.25
SA-15-MM 15 ft $2.25
SA-25-MM 25 ft $2.50
SA-35-MM 35 ft $4.70
SA-50-MM 50 ft $5.00
SA-100-MM 100 ft $12.00
