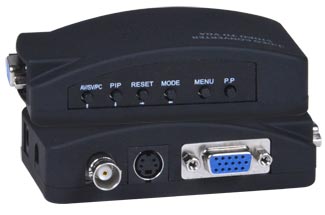

BNC/RCA Composite Video + S-Video to VGA Converter
Converts BNC and S-Video signals into VGA video.
Also known as: BNC to VGA converter, S-Video to VGA converter, BNC composite to VGA converter, BNC composite & S-Video converter, BNC/RCA to VGA converter, Composite BNC/S-Video to VGA converter
Additional Images
The BNC/RCA Composite Video + S-Video to VGA Converter changes Composite video and S-Video signals from surveillance DVRs, security cameras, quad video processors, etc. into a VGA output for computer monitor displays.
The BNC/RCA Composite Video + S-Video to VGA Converter changes Composite video and S-Video signals from surveillance DVRs, security cameras, quad video processors, etc. into a VGA output for computer monitor displays.
- Supports resolutions to 1920x1200 (WUXGA).
- Auto-detects NTSC/PAL inputs.
- Compatible with VGA/SVGA monitors, including LCD flat panel monitors.

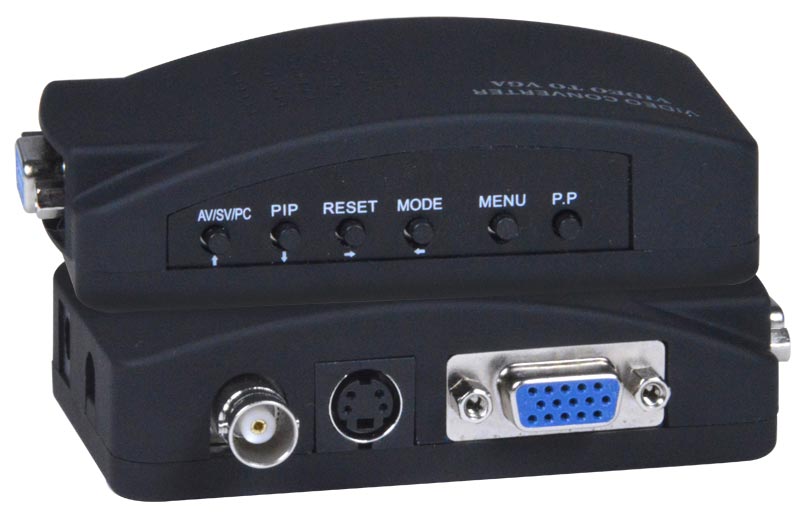

- Use the front panel buttons to switch between video sources and resolutions, control the Picture in Picture (PIP) function, reset the device, and adjust video settings.
- Adjust video brightness, contrast, saturation, and hue.
- Auto-saves settings and working status when powered down.
- Adjust video brightness, contrast, saturation, and hue.
- Includes a male BNC to female RCA adapter for connecting RCA composite video devices.
Video Input
- One female BNC connector.
- One female S-Video connector.
- One female VGA connector.
- Includes a male BNC to female RCA adapter for connecting RCA composite video devices.
- Supports NTSC/PAL.
Video Output

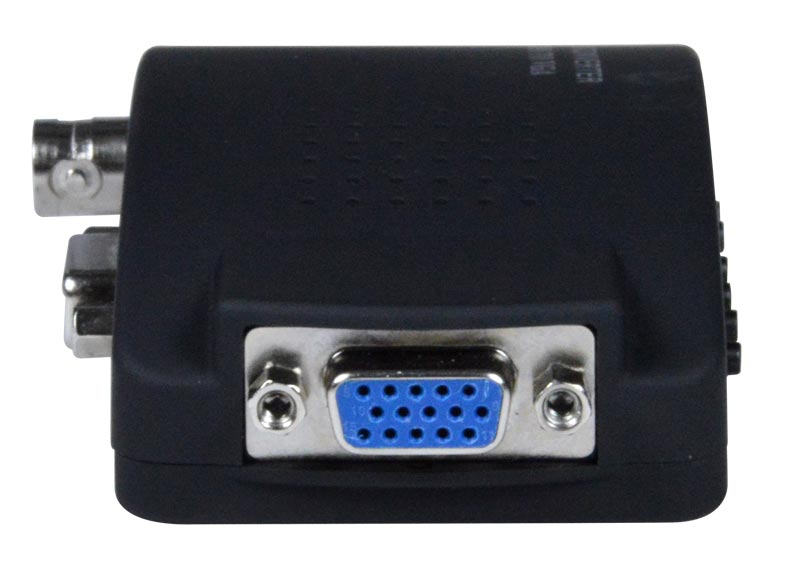

- One female VGA connector.
- Output resolutions:
- 4:3 screen: 800x600@60/75Hz, 1024x768@60/75Hz, 1280x1024@60/75Hz, 1600x1200@60Hz.
- 16:9/16:10 screen: 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60Hz.
Power
- 110 to 220 VAC at 50 or 60 Hz via AC adapter.
- Power consumption: 1.3W
Dimensions
- WxDxH (in): 3.94x2.6x1.08 (100x66x26 mm).
Regulatory Approval
- CE, RoHS
Warranty
- Two years.
Cables
- Male BNC to female RCA adapter included.
Full Screen Mode
- In full screen mode, one of the three video sources is displayed in full screen size and maximum resolution.
Picture in Picture (PIP) Mode
- In PIP mode, the full screen display of the VGA video source is accompanied by one small image (thumbnail) of either the BNC/RCA or S-Video video in the right hand margin of the screen allowing simultaneous monitoring.
- Use the AV/SV/PC front panel button to switch between the BNC/RCA and S-Video.
- Size, position and selection of the thumbnail is customizable.
