4K 18Gbps HDMI Splitter/Extender via CAT6/6a/7: 4-Port
Simultaneously distribute Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI Video, Audio, RS232, and IR to four displays up to 394 feet using CAT6 cable
Also known as: HDMI Splitter, 4Kx2K Splitter/Extender, 4-way UHD distribution amplifier, HDMI hub, extend Ultra-HD 4Kx2K 60Hz 4:4:4 to numerous displays

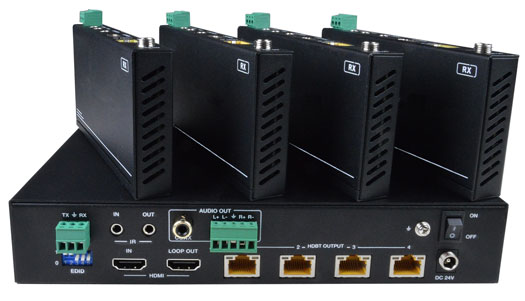

Four Remote Units (Included)
Additional Images
Product Highlights
- Resolutions to Ultra-HD 4Kx2K 60Hz 4:4:4
- 18Gbps Bandwidth
- HDMI 2.0
- Zero Latency
- Four Receivers Included
- No Power Supply Required for Receivers
The VOPEX® 4K 18 Gbps HDMI Splitter/Extender simultaneously distributes uncompressed Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI video, multi-channel audio, RS232, and IR from one video source to up to four displays and speakers, each located up to 394 feet away via CAT6/6a/7 cable.

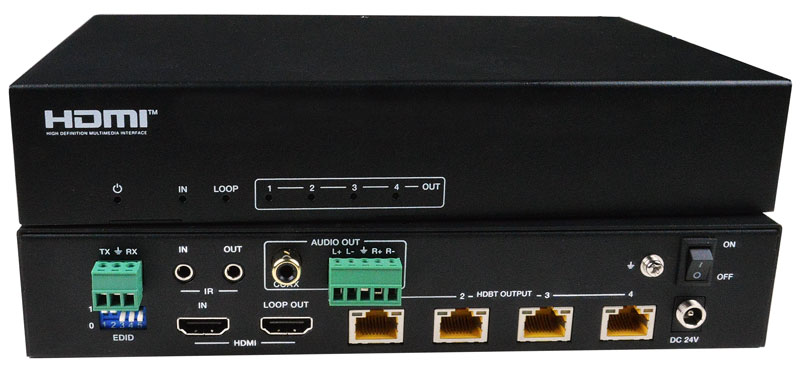

The VOPEX-C64K18GB-4V2 system consists of a 4K HDMI broadcast unit, which connects to the HDMI source and also supplies video to a local display via the HDMI loop output; and four included receivers for each remote 4K HDMI display and speakers. The units are interconnected by CAT6/6a/7 cable.
The VOPEX® 4K 18 Gbps HDMI Splitter/Extender simultaneously distributes uncompressed Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI video, multi-channel audio, RS232, and IR from one video source to up to four displays and speakers, each located up to 394 feet away via CAT6/6a/7 cable.
The VOPEX-C64K18GB-4V2 system consists of a 4K HDMI broadcast unit, which connects to the HDMI source and also supplies video to a local display via the HDMI loop output; and four included receivers for each remote 4K HDMI display and speakers. The units are interconnected by CAT6/6a/7 cable.
- Transmits an uncompressed HDMI signal over one CAT6/6a/7 cable to multiple display locations.
- Extend Ultra-HD 4Kx2K 60Hz 4:4:4 to 394 feet (120 meters).
- Extend 1080p and 1920x1200 to 443 feet (135 meters).
- Zero latency.
- Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @30/60Hz YUV 4:4:4), HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
- HDMI features supported:
- HDMI 2.0 compliant.
- Up to 36-bit Deep Color
- LPCM, Dolby Digital, Dolby TrueHD, DTS-HD, and DTS2
- RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
- Bandwidth up to 18 Gbps
- 3D
- HDR10
- HDCP 2.2/1.4 compliant.
- Supports the DDC2B protocol.
- Includes four receivers.
- The receivers do not require a power supply.
- Full Infrared Remote (IR) control of HDMI source or display. IR transport channel can be forward or backward per the installation.
- RS232 for configuration and control, pass-through, and firmware updates.
- Supports RS232 pass-through from transmitter to receiver or from receiver to transmitter.
- Baud rate: 115200 bps
- Built-in EDID table.
- Cascade units together to send video simultaneously to many receivers.
- Mounting brackets included for easy surface/wall mounting.
- Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple displays is needed.
Local Unit
- Compatible with computers and UHD video sources (satellite receivers, Blu-Ray players, etc) with HDMI video.
- One female HDMI connector for video source.
- One female HDMI connector for local display or for cascading to another VOPEX-C64K18GB-4V2.
- Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @30/60Hz YUV 4:4:4), HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
- Two female 3.5mm ports for connecting an IR emitter and receiver (included).
- Screw terminal for RS232.
- Supports full duplex RS232 at 115200 baud
- One RCA jack for SPDIF digital audio output.
- Screw terminal for analog stereo audio output.
- Four female RJ45 connectors for sending/receiving ultra-high definition video, audio, IR, RS232, and DDC signals.
- Supports HDCP 2.2/1.4
- Video bandwidth: 18 Gbps

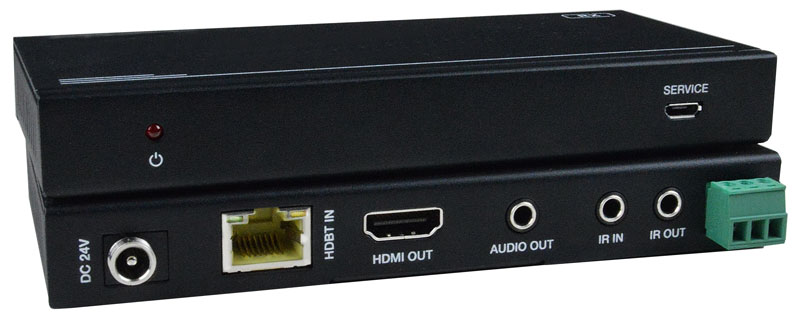

Remote Unit
- One female HDMI connector for display.
- Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @30/60Hz YUV 4:4:4), HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
- Supports embedded digital audio through HDMI compatible TVs or audio receivers.
- Two female 3.5mm ports for connecting an IR emitter and receiver (included).
- Screw terminal for RS232.
Power
- Local unit:
- Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter.
- Output: 24VDC, 2.7A
- Power consumption: 30W max
- Remote units: powered by local unit
Dimensions
- Local unit WxDxH (in): 8.69x5.40x1.62 (221x137x41 mm)
- Remote unit WxDxH (in): 5.53x2.69x0.76 (140x68x19 mm)
Environmental
- Operating temperature: 32 to 104°F (0 to 40°C).
- Storage temperature: Local unit: -4 to 140°F (-20 to 60°C).
- Operating relative humidity: 20 to 90% non-condensing RH.
Regulatory Approvals
- CE, FCC, RoHS
Warranty
- Two years
Max Distance
- 394 feet (120 meters) for Ultra-HD 4Kx2K 60Hz 4:4:4 over CAT6/6a/7 cable.
- 443 feet (135 meters) for 1080p and 1920x1200 over CAT6/6a/7 cable.
Cables
- Interface cables between the video source/display and the transmitter/receiver are required for proper operation.
- Supports cable lengths to 20 feet for 4K resolutions and lengths to 50 feet for 1080p@60Hz using passive HDMI cables.
- Use HD-xx-MM cable to connect an HDMI source or display.
- Use HD-ACT-xx-MM 4K HDMI Active Cables to connect a 4K@60Hz HDMI source and/or display up to 50 feet.
- Use USB3C-HD4K-xx-MM to connect a 4K@60Hz computer with USB Type C connector up to 10 feet.
- Use DVI-HD-xM-MM to connect a DVI computer up to 5 meters.
- Supports resolutions to 1080p.
- Use CAT6/6a/7 solid or stranded straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors.
- Cables not included.
Package Includes
- One 4-port 4K HDMI splitter
- Four 4K HDMI receivers
- Five IR emitters
- Five IR receivers
- Five 3-pin Phoenix connectors for RS232
- One 5-pin Phoenix connector for audio
- One power supply and country-specific line cord
- Mounting brackets
User Manual:
Data Sheet:

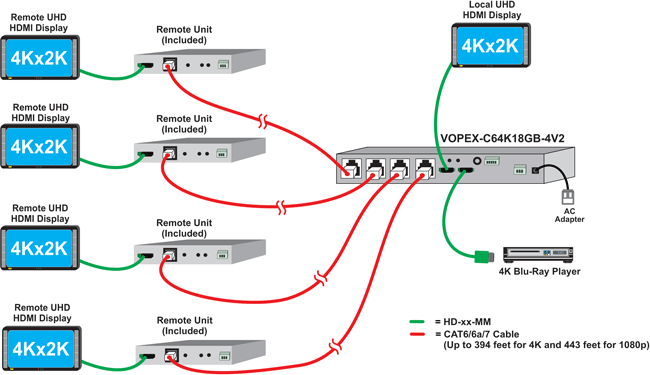

Application Drawings
-
