Low-Cost 2-Port Remote Power Reboot Switch with NEMA 5-15R Outlets

Remotely control power on/off/reboot to up to two servers, routers, web cams, firewalls, or other remote devices over IP.

Low-Cost 2-Port Remote Power Reboot Switch with NEMA 5-15R Outlets
PWR-RMT-RBT2-515R-LCV2

Product Highlights

  • Remotely control power on/off/reboot two remote devices over IP
  • Control via top panel buttons, web interface, Google Hangouts, Skype Message, or Android/iOS apps
  • Sends email notifications

Additional Images

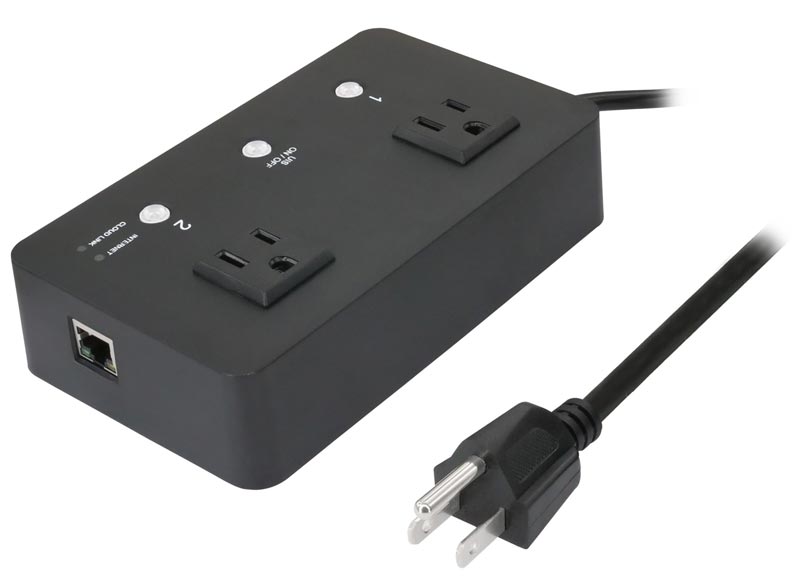

  • PWR-RMT-RBT2-515R-LCV2 – Low-Cost 2-Port Remote Power Reboot Switch with NEMA 5-15R Outlets

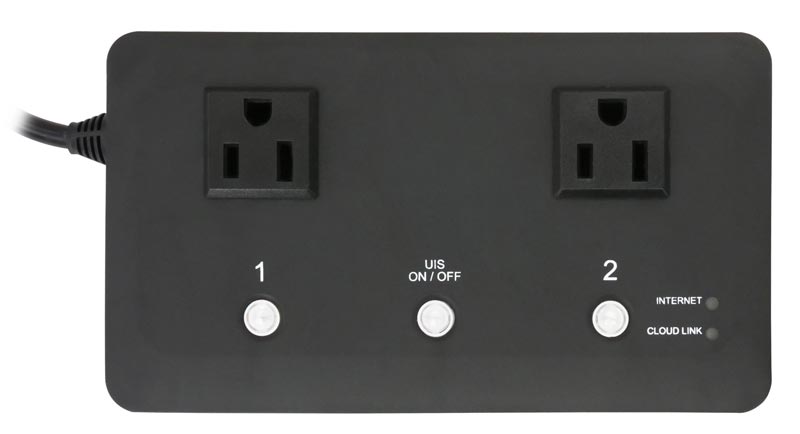

  • PWR-RMT-RBT2-515R-LCV2 – Low-Cost 2-Port Remote Power Reboot Switch with NEMA 5-15R Outlets (Top View)

The ENVIROMUX® 2-Port Remote Power Reboot Switch allows you to remotely reboot and control power (on/off) to up to two servers or other powered devices over IP.

The ENVIROMUX® 2-Port Remote Power Reboot Switch allows you to remotely reboot and control power (on/off) to up to two servers or other powered devices over IP.

  • Auto-scheduler allows for scheduling power on/off/reboot events.
    • A delay can be set between the reboot of both outlets.
    • Up to 20 schedules can be set to power on or off specific ports at certain times.
  • Multiple control options: top panel buttons, Web interface, Google Hangouts, Skype Message, and Android and IOS apps.
  • Control an unlimited number of Remote Power Reboot Switches from one Google Hangouts account.
    • Up to eight Google Hangouts users can control one Remote Power Reboot Switch.
    • Each Remote Power Reboot Switch must have its own Google Hangouts account.
    • Issue identical commands to Remote Power Reboot Switches by creating Group Hangouts.
  • Checks network connection and can automatically reboot device if there is no response.
  • Auto-ping up to 7 IP addresses:
    • Configure to automatically reboot selected port if there is no response, or configure so the selected port has to be manually turned on/off.
  • Sends email notifications to any number of addresses.
  • The Remote Reboot Switch is the ideal solution for many applications, such as:
    • Remote reboot of any device, router, server, kiosk, etc. The device need not be network attached.
    • Secure sensitive devices by keeping them powered off when not in use. This prevents hackers from detecting them at all times.
    • Power down equipment when not needed for power savings and to save on wear and tear.
    • Power up alert devices like sirens, lamps, and messages, or environmental system like heaters, coolers, pumps, etc.
Power
  • 120 to 250 VAC at 50 or 60 Hz.
    • 10A fuse.
  • Power consumption: 1.5W
  • Input connector: one NEMA 5-15P plug on attached 3.28-foot (1 meter) cable.
  • Output connectors: two NEMA 5-15R receptacles.
Network Interface
  • One female RJ45 connector.
  • 10/100 Base-T Ethernet interface.
Protocols
  • HTTP, HTTPS (TLS v1.2), TCP/IP, DHCP, UDP, Dynamic DNS, DNS Client, SMTP, SNTP, BOOTP, FTP.
Dimensions
  • Remote Reboot Switch WxDxH (in):6.24x3.64x1.69 (159x93x43 mm)
  • Attached Power Cord length: 3.28 feet (1 meter).
Environmental
  • Operating temperature: 32 to 140°F (0 to 60°C).
  • Operating and Storage Relative Humidity: 10 to 90% non-condensing RH.
Regulatory Approvals
  • FCC
Warranty
  • Two years
Package Includes
  • Remote Power Reboot Switch
  • One 3.28-foot (1 meter) flat CAT6 cable

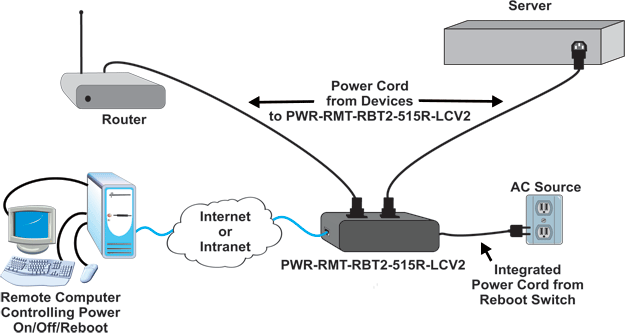

Application Drawings

  • Low-Cost 2-Port Remote Power Reboot Switch with NEMA 5-15R Outlets
    Low-Cost 2-Port Remote Power Reboot Switch with NEMA 5-15R Outlets
    How to Remotely control power on/off/reboot to up to two servers, routers, web cams, firewalls, or other remote devices over IP.

Low-Cost 2-Port Remote Power Reboot Switch with NEMA 5-15R Outlets

NTI Part # Description Country Price Quote Buy
PWR-RMT-RBT2-515R-LCV2 Low-Cost 2-Port Remote Power Reboot Switch with NEMA 5-15R Outlets US/Canada $195.00
