3G-SDI to USB 3.0 Video Capture with HDMI Loopout

Record or stream an SD/HD/3G-SDI signal in full 1080p HD via USB 3.0 at up to 350 MB/s. Supports UVC & UAC capture.

3G-SDI to USB 3.0 Video Capture with HDMI Loopout
3GSDI-USB3-CPTR-HDO (Front & Back)

Product Highlights

  • 3G/HD/SD-SDI Input / USB 3.0 Output
  • HDMI Loop-Through
  • UVC & UAC Compatible
  • No Power Supply
  • Use as a 3G-SDI to HDMI Converter
  • Compatible with OBS, Zoom, Teams, Twitch, YouTube, Facebook, Twitter, etc.

The 3G-SDI to USB 3.0 Video Capture device is used to record or stream an SD/HD/3G-SDI signal via USB 3.0 at up to 350 MB/s. It features an HDMI loop output for local display, as well as separate 3.5mm stereo audio input/output connectors.

The 3G-SDI to USB 3.0 Video Capture device is used to record or stream an SD/HD/3G-SDI signal via USB 3.0 at up to 350 MB/s. It features an HDMI loop output for local display, as well as separate 3.5mm stereo audio input/output connectors.

  • Converts SD/HD/3G-SDI and stereo audio input signals to high quality USB 3.0 output.
    • Automatic input equalization – compensates for attenuation on the incoming signal and automatically equalizes cables for the following distances using 75 Ohm RG6 BNC cables:
      • 3G-SDI 1920x1080 @60Hz to 328 feet (100 meters).
      • HD-SDI 1280x720 @60Hz to 656 feet (200 meters).
      • SD-SDI 525i @60Hz and 625i @50Hz to 984 feet (300 meters).
    • Automatic output reclocking – reshapes and restores timing of digital video signal at output, eliminating high frequency jitter.
  • Compliant with UVC and UAC standards.
    • UVC protocol allows the host computer/laptop to set the parameters for the USB stream such as resolution, frame rate, and aspect ratio.
  • Supports resolutions to 1920x1080 @60Hz.
  • Independent HDMI loop-through allows the original full-quality source to be routed to monitors or other equipment.
    • Fixed resolution: 1920x1080 @60Hz.
  • Auto-detects 3G-SDI, HD-SDI, or SD-SDI format.
    • Supports SMPTE 259M-C, SMPTE 292M, SMPTE 424M, SMPTE 425M Level A and B video interfaces used for broadcast-grade video.
  • 3.5mm stereo audio input for microphone and output for use with headphones, powered speakers, or connection to an amplifier/receiver.
    • 3.5mm audio output only plays the SDI audio.
    • USB audio stream embeds the microphone audio and plays the SDI audio simultaneously.
  • Multiplatform support: Windows 7/8/10/11, Linux, Mac OS 10/11/12.
  • Easily stream content online – compatible with most third party software, such as: OBS, Zoom, Teams, Twitch, YouTube, Facebook, Twitter, etc.
  • Plug-and-play functionality – no software needed.
    • Once plugged in, the device is identified automatically as a webcam.
  • No power supply is necessary – powered from USB port.
  • Compact/portable design – perfect for recording in the field or on the go.
  • Ideal for live broadcast, online meetings/classes, gaming, houses of worship, and other A/V applications.
Input/Output
  • Input connectors:
    • One female BNC connector for SD/HD/3G-SDI.
      • Supports HDTV resolutions up to 1080p @60Hz.
      • Supports 48kHz SDI audio.
    • One female 3.5mm stereo audio jack.
  • Output connectors:
    • One female USB 3.0 connector.
      • Multiplatform support: Windows 7/8/10/11, Linux, Mac OS 10/11/12.
      • UVC/UAC compliant
      • Supports HDTV resolutions up to 1080p @60Hz.
    • One female HDMI connector.
      • Fixed resolution: 1920x1080 @60Hz.
    • One female 3.5mm stereo audio jack.
  • Bandwidth: up to 350Mbps
  • Protocols supported: SMPTE 259M-C, SMPTE 292M, SMPTE 424M, SMPTE 425M Level A and B
Power
  • Powered from attached USB computer.
  • Power consumption: 3W (max)
  • Operating current: 600mA (max)
Dimensions
  • WxDxH (in): 2.81x4.45x0.75 in (72x113x19 mm)
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -4 to 158°F (-20 to 70°C).
  • Operating and storage relative humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years.
Cables
  • RG6 75 Ohm coaxial cable terminated with BNC connectors is recommended for use. (Not included.)
  • 3.48 ft (1.1 m) USB 3.0 Type A male-to-male cable included.
  • 4.79 ft (1.5 m) HDMI male-to-male cable included.
    • Supports HDMI cables (HD-xx-MM) up to 50 feet.
  • Use DVI-HD-xx-MM cable to connect a DVI display up to 5 meters (not included).
  • Use SA-xx-MM male to male 3.5mm stereo audio cables to connect speakers, headphones, microphone up to 50 feet (not included).

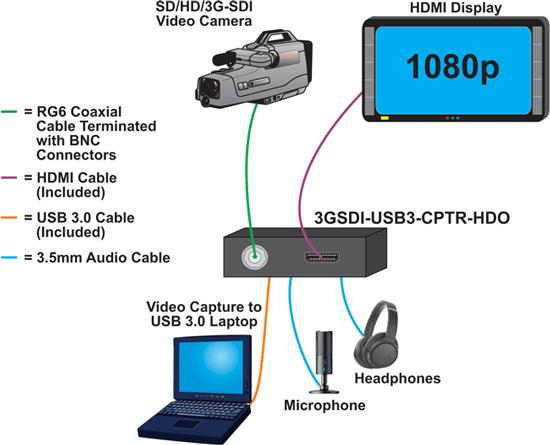

Application Drawings

  • 3G-SDI to USB 3.0 Video Capture with HDMI Loopout
    3G-SDI to USB 3.0 Video Capture with HDMI Loopout

3G-SDI to USB 3.0 Video Capture Device with HDMI Loopout

NTI Part # Description Price Quote Buy
3GSDI-USB3-CPTR-HDO 3G-SDI to USB 3.0 Video Capture Device with HDMI Loopout $195.00

HDMI Male-Male Cables

NTI Part # Length Price Quote Buy
HD-3-MM 3 feet $4.50
HD-6-MM 6 feet $6.00
HD-10-MM 10 feet $7.10
HD-15-MM 15 feet $10.50
HD-25-MM 25 feet $16.50
HD-30-MM 30 feet $31.50
HD-50-MM 50 feet $51.00

DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Price Quote Buy
DVI-HD-1M-MM 1 meter $4.30
DVI-HD-2M-MM 2 meter $8.00
DVI-HD-3M-MM 3 meter $10.00
DVI-HD-5M-MM 5 meter $11.00

Stereo Audio Cables – Male to Male

NTI Part # Length Price Quote Buy
SA-3-MM 3 ft $0.85
SA-6-MM 6 ft $1.10
SA-10-MM 10 ft $1.25
SA-15-MM 15 ft $2.25
SA-25-MM 25 ft $2.50
SA-35-MM 35 ft $4.70
SA-50-MM 50 ft $5.00
