Products » Computer Cable Extensions
Digital Video Adapters & Cables
DVI Adapters & Gender Changers | Digital Video Cables
DVI Adapters & Gender Changers
DVI-I to VGA Adapter, Male-to-Female
DVIM-15HDF
- Connect a VGA monitor to a video card with DVI-I video output.
- Converts a female DVI-I video connector to a female VGA connector.
- Male DVI-I to female 15HD connectors.
HDMI to DVI-D Adapter, Female-to-Male
HDMIF-DVIDM
- Convert an HDMI male port to DVI male (or DVI female to HDMI female).
- Female HDMI to male DVI-D dual link connectors.
HDMI to DVI-D Adapter, Male-to-Female
HDMIM-DVIDF
- Convert an HDMI male port to DVI male (or DVI female to HDMI female).
- Female HDMI to male DVI-D dual link connectors.
DVI-I Gender Changer, Female-to-Female
DVII-FF
- Convert male DVI connector to female.
- Compatible with Single/Dual Link DVI-I, DVI-D, and DVI-A male connectors.
- Two DVI-I female connectors.
DisplayPort to DVI-I Adapter Cable, Male-to-Female
DPM-DVIIF-CBL
- Male DisplayPort to Female DVI-I connectors.
- Connect a DVI video display to a DisplayPort video source.
- This adapter is directional
- Converts a female DisplayPort connector on a video source to a female DVI-I connector.
- Supports resolutions up to 1920x1200 and 1080p.
- Length: 10"
Back to Top
Digital Video Cables
HDMI Interface Cable, Male-to-Male
HD-xx-MM
- HDMI Type A male to male cable.
- Resolutions:
- HD-3/6/10/15/20-MM supports HDTV resolutions to 4K@60Hz.
- HD-30/50-MM supports HDTV resolutions to 1080p
- Wire gauge:
- HD-3/6/10/15/20-MM: 28 AWG.
- HD-30/50-MM: 26 AWG.
- Supports standard, enhanced or high-definition video, multi-channel digital audio, and HDMI Ethernet Channel on a single cable.
- Gold plated contact pins.
- Available in: 3/6/10/15/20/30/50 feet.

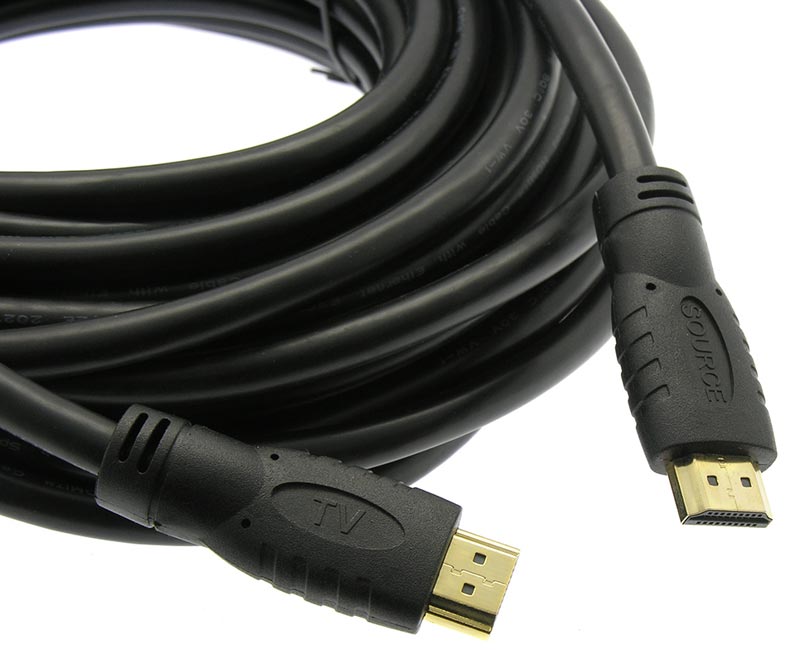

4K HDMI Active Cable, Male to Male, Built-In Signal Booster
HD-ACT-xx-MM
- Use these active cables to extend 4K HDMI signals at a greater distance than with passive cables.
- HDMI Type A male to male cable
- Supported HD resolutions:
- 20/25/30/40/50/60 feet: Ultra-HD 4Kx2K resolutions up to 4096x2160 @60Hz
- 75/100 feet: Ultra-HD 4Kx2K resolutions up to 4096x2160 @30Hz
- Bandwidth:
- 20/25/30/40/50/60 feet: 18 Gbps
- 75/100 feet:10.2 Gbps
- HDMI features supported:
- Up to 48-bit Deep Color
- Color Formats: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Audio Formats: Dolby, DTS, LPCM 2/5.1/7.1CH
- Support for CEC (consumer electronic control) compatible devices.
- 3D
- ARC support
- Available lengths: 20/25/30/40/50/60/75/100 feet.
- These cables are directional. See labeled connector ends.
DisplayPort to HDMI Interface Cables, Male to Male, 4K
DP-HD-xx-MM
- Male DisplayPort to male HDMI cable.
- Use to connect a DisplayPort source to an HDMI monitor.
- These cables are directional.
- Supports resolutions up to Ultra-HD 4Kx2K:
- 3840x2160 and 4096x2160 @30Hz YUV 4:4:4
- 3840x2160 and 4096x2160 @60Hz YUV 4:2:0
- HDCP compliant.
- Supports DisplayPort 1.2a input and HDMI1.4b output.
- Latching DisplayPort connector for secure fit.
- Gold plated connectors for smooth, corrosion-free connections.
- Length: 3/6/10/15 feet.
- Regulatory approvals: RoHS
DVI-D to HDMI-A Interface Cable, Male-to-Male
DVI-HD-xM-MM
- Connect a DVI source to an HDMI display or an HDMI source to a DVI display.
- DVI-D male to HDMI Type-A male single link cable.
- Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
- Supports standard, enhanced or high-definition video on a single cable.
- Gold plated contact pins.
- RoHS compliant.
- Available in: 1/2/3/5 meter.
DVI-I Single Link Interface Cables, Male-to-Male
DVI-IS-xx-MM
- Interface a DVI monitor from the back of a computer up to 15 feet.
- DVI-I male to male single link cable.
- Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
- Gold plated contact pins.
- Available in 3/6/10/15 feet.
DisplayPort to DVI-D Interface Cables, Male to Male
DP-DVID-xx-MM
- Connect a DisplayPort source directly to a DVI display.
- Male DisplayPort to male dual link DVI-D unidirectional cable.
- Supports single link digital signal.
- Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
- Latching DisplayPort connector for secure fit
- Available length: 3/6/10/15 ft.
Back to Top
