VGA PS/2 KVM Splitter

Up to 4 keyboards, mice & monitors can be connected to one PC (including international keyboards). Access one PC from multiple control locations.

Also known as: video splitter, VGA splitter, splitter, keyboard monitor mouse splitter, PS/2 keyboard splitter, VGA video splitter, reverse KVM switch.

VOPEX-2KVIM-A KVM Splitter

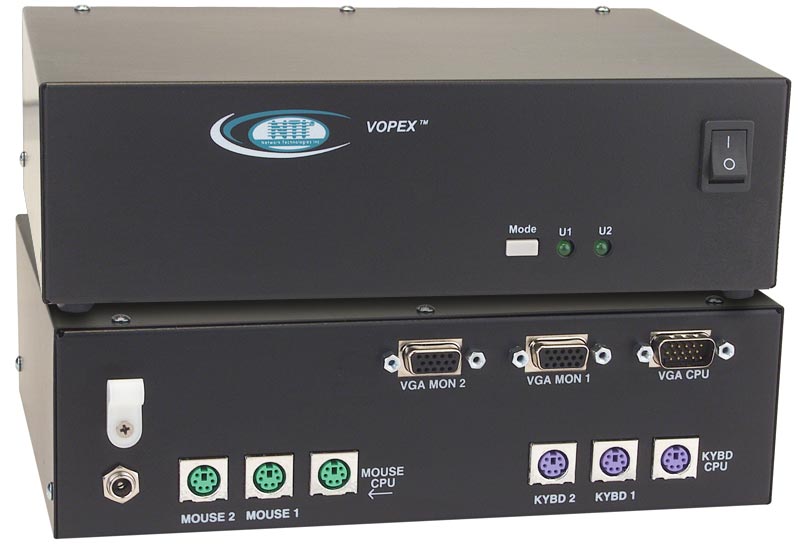

VOPEX-2KVIM-A (Front & Back)
  • Designed and Manufactured in the U.S.A.

Additional Images

  • VOPEX-2KVIM-A

The VOPEX® VGA PS/2 KVM splitter allows up to four users to share the use of one PS/2 computer.

The VOPEX® VGA PS/2 KVM splitter allows up to four users to share the use of one PS/2 computer.

  • Access one computer from multiple locations.
  • Multiple users can enter data into the same program.
  • Interconnect NTI switches and splitters for complex applications.
  • Allows access to a PC from inside and outside of a clean room.
  • Highly reliable solution for semiconductor equipment applications.
Host Connection
  • Male 15-pin HD connector.
  • Female 6-pin miniDIN connectors.
  • Compatible with PS/2 style PCs, RS6000, SGI, and HP9000.
Monitor
  • Female 15-pin HD connectors for VGA monitor.
  • Bandwidth is 150 MHz.
  • Supports 1920x1200 resolution.
Devices
  • Female 6-pin miniDIN connectors.
  • Keyboards and mice are hot-pluggable.
Cables
  • One 3-ft male-to-female VGA cable and two 6-ft male-to-male PS/2 cables are provided to connect your PS/2 keyboard, mouse and video ports.
  • Use VKMEXT 3-in-1 cable to extend keyboard, monitor and mouse to 100 feet (30 meters).
Power
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
  • Power consumption: 10 W
MTBF
  • 2 port: 81,566 hrs
  • 4 port: 79,417 hrs
Dimensions
  • WxDxH: 8.5x6x2.6 in (216x152x66 mm)
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years.
  • Press MODE button to cycle through all 6 modes. LEDs indicate which mode is selected.
  • USER 1 Mode – Only USER 1 can type or move the mouse.
  • USER 2 Mode – Only USER 2 can type or move the mouse.
  • USER 3 Mode – Only USER 3 can type or move the mouse.
  • USER 4 Mode – Only USER 4 can type or move the mouse.
  • INST Mode – All user(s) have immediate access after last keystroke or mouse movement occurs on active user.
  • DELAY Mode – Locked out user(s) must wait five seconds after last keystroke or mouse movement occurs on active user.
  • In Inst or Delay Mode, typing or mouse movement activates user control.


Application Drawings

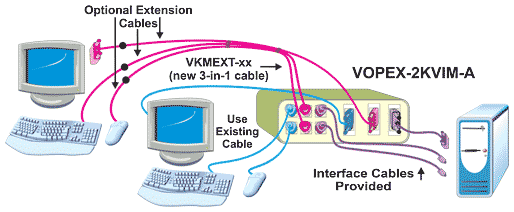

  • VGA PS/2 KVM Splitter
    VGA PS/2 KVM Splitter
    How to access one PC from multiple control locations.

Application Notes

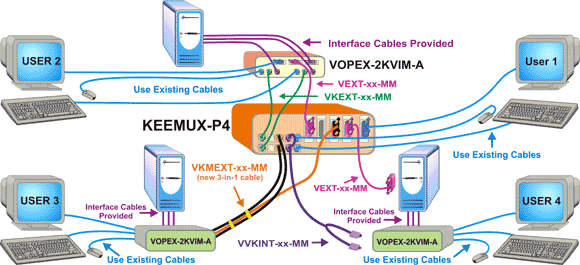

  • Provide Local and Switched Access to Multiple Computers
    Provide Local and Switched Access to Multiple Computers
    A network manager can access multiple computers, while each user has individual access to their own computer.

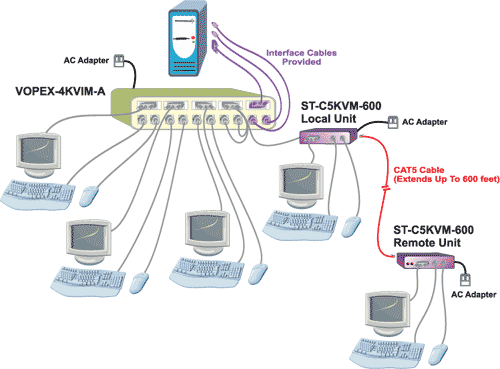

  • Access One PC from Multiple Control Locations up to 600 Feet Away Using CAT5 Cable
    Provide Local and Switched Access to Multiple Computers
    Interconnect the VOPEX® KVM Splitter, VOPEX-xKVIM-A, with XTENDEX™ KVM Extenders via CAT5, ST-C5KVM-600 to access one PC from multiple control locations located up to 600 feet away using CAT5 UTP cable.

CAD Drawings

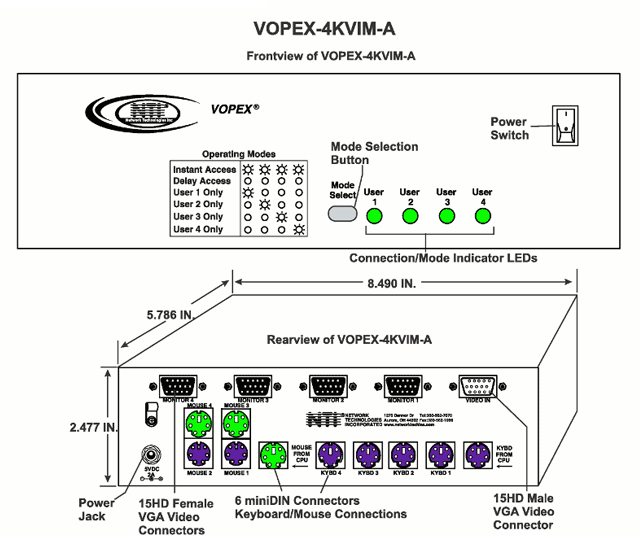

  • VOPEX-4KVIM-A
    VOPEX-4KVIM-A - CAD Drawing
  • "We are using the VOPEX-2KVIM-A splitter in a clean room application for semiconductor equipment. This KVM splitter is reliable with good package design, and is capable of supporting long cable distances up to 100 feet. It also has added features such as user control modes."

    Cong T.
    Onto Innovation
    Milpitas, CA
  • "Thank you for filling a niche at an affordable price. Your KVM Splitter (VOPEX-4KVIM-A) was just what I was looking for- it is a great way to quickly and painlessly share a PC."

    Laura D.
    Headway
    Milpitas, CA
  • "The VOPEX-4KVIM-A 4-port KVM splitter worked great and did exactly what we needed with perfect resolution."

    Fred S.
    Point360
    Burbank, CA
  • "I just wanted to let you know how pleased I am with your VOPEX-4KVIM-A 4-Port KVM Splitter. We have had it in service for almost two years and have had no problems. It works as advertised and is very reliable. Thanks for a great product."

    Richard D.
    Palm Beach County Water Utilities
    West Palm Beach, FL
  • "I want to thank you for sending my order so quickly. I have two dental operatories, which are connected to one CPU. Your splitter allows me to run two keyboards and mice. In addition, I have four monitors in the rooms that allow the patients to view their x-rays and treatment plans easily as well as me having private access to write my notes when needed. The installation was so easy that I completed it in less than one hour. Thank you again for your help and the excellent product that Network Technologies provides."

    Lloyd S.
    Janesville, WI

VGA PS/2 KVM Splitters

NTI Part # # of Ports Price Quote Buy
VOPEX-2KVIM-A 2 $320.00
VOPEX-4KVIM-A 4 $365.00
