4K 18Gbps HDMI Video Matrix Switch: 16x16, 32x32

Route Ultra-HD 4Kx2K 60Hz 4:4:4 18Gbps HDMI video and embedded audio signals from many video sources to multiple displays.


Product Highlights

  • Resolutions to Ultra-HD 4Kx2K 60Hz 4:4:4
  • 18Gbps bandwidth
  • HDMI 2.0, HDCP 2.2
  • Compact case with fixed I/O – 16x16 in 1RU & 32x32 in 2RU
  • IR, RS232, Ethernet control
  • Control4® certified.
  • Designed and Manufactured in the U.S.A.
  • HDMI - High-Definition Multimedia Interface

Additional Images

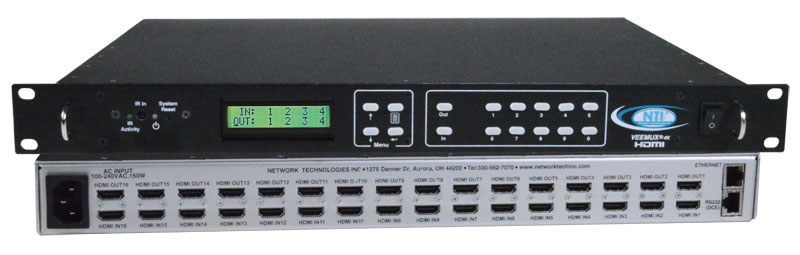

  • SM-16X16-HD4K (Front & Back)

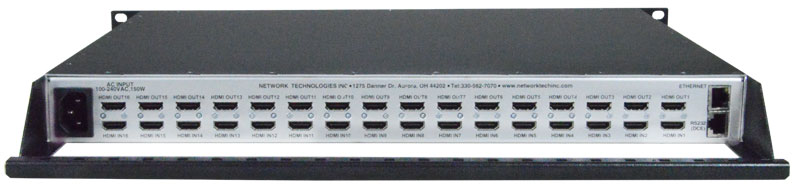

  • SM-16X16-HD4K with included cable management tray

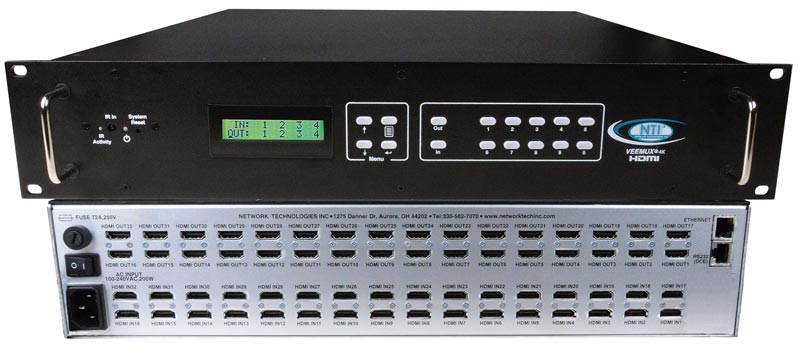

  • SM-32X132-HD4K (Front & Back)

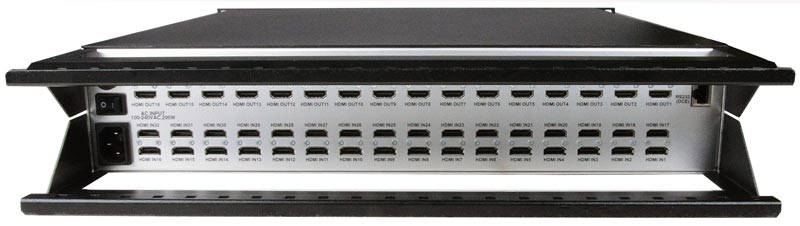

  • SM-32X32-HD4K with included cable management tray

The VEEMUX® 4K HDMI Video Matrix Switch routes digital 4Kx2K HDMI video and embedded audio signals from up to 32 HDMI video sources (computers, Blu-Ray players, satellite receivers, etc) to up to 32 displays (monitors, 4K TV's, projectors, etc).

The VEEMUX® 4K HDMI Video Matrix Switch routes digital 4Kx2K HDMI video and embedded audio signals from up to 32 HDMI video sources (computers, Blu-Ray players, satellite receivers, etc) to up to 32 displays (monitors, 4K TV's, projectors, etc).

  • Configure and control the switch through front panel buttons, Ethernet, RS232, or optional IR remote control.
    • Control4 certified.
      • Module controls routing, reset, and status RS232 functions.
  • Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 @24/30/60Hz RGB/YUV 4:4:4).
  • Each input can be independently connected to any or all outputs.
  • HDCP 2.2 and 1.4 compliant.
  • HDMI features supported:
    • HDMI 2.0
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM audio passthrough
    • RGB, YUV 4:4:4, YUV 4:2:2, and YUV 4:2:0
    • 12-bit Deep Color
    • HDR
    • 3D
    • Bandwidth up to 600 Mhz (18 Gbps)
  • EDID learning for the support of any HDMI display device.
  • Selectable built-in EDID table.
  • Compact case – 16x16 in 1RU and 32x32 in 2RU.
  • Cable management tray included.
Video Input
  • Female HDMI input connectors.
  • Compatible with computers and UHD video sources (satellite receivers, Blu-Ray players, etc) with HDMI video.
  • Supports HDCP 2.2/1.4
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12/13.
Video Output
  • Female HDMI output connectors.
  • Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 @24/30/60Hz RGB/YUV 4:4:4).
  • Supports HDCP 2.2/1.4
  • Max data rate: 18Gbps
Protocols
  • HTTP, HTTPS
  • TCP/IP, DHCP, UDP, ARP, TLS v1.2
  • IPV4
Power
  • Input: 100 to 240 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
  • Power consumption:
    • SM-16X16-HD4K: 150W max
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Dimensions
  • SM-16X16-HD4K WxDxH:
    • Without cable management tray: 19x14.56x1.75 in (483x370x44 mm).
    • With cable management tray: 19x18.36x1.75 in (483x466x44 mm).
  • SM-32X32-HD4K WxDxH:
    • Without cable management tray: 19x18.57x3.5 in (483x472x88 mm).
    • With cable management tray: 19x22.48x3.5 in (483x571x88 mm).
MTBF
  • SM-16X16-HD4K: 25,024 hours.
Cables
  • Interface cables between the video sources/displays and the switch are required for proper operation.
    • Supports cable lengths to 20 feet for 4Kx2K resolutions at 60Hz and lengths to 50 feet for 1080p at 60Hz using passive HDMI cables.
      • Cables longer than 50 feet can be used provided they have a built-in video equalizer (also known as "active HDMI cables").
  • Use HD-xx-MM HDMI cables to connect an HDMI source or display.
    • HD-3/6/10/15-MM supports resolutions to 4K@60Hz.
    • HD-25/30/50-MM supports resolutions to 1080p@60Hz.
  • Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display up to 100 feet.
    • HD-ACT-20/25/30/40/50/60-MM supports resolutions to 4K@60Hz (18 Gbps).
    • HD-ACT-75/100-MM supports resolutions to 4K@30Hz (10.2 Gbps).
  • Use DP-HD-xx-MM cables to connect a DisplayPort source up to 15 feet away from the switch.
    • Supports resolutions up to 4k@30hz 4:4:4 and 4K@60Hz 4:2:0.
  • Cables not included.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Compatible NTI Products
  • Combine NTI's extenders, switches, splitters and cables for complex applications
    • 4K HDMI Extender via One CATx (ST-C64K-300)
      • Supports resolutions up to 4k@30hz
    • 4K HDMI Active Optical Cable
      (HD4K18GB-FO-xxM-MM)
    • 4K@30Hz HDMI Active Cables with Built-In Signal Booster (HD-ACT-xx-MM)
    • DisplayPort to HDMI Interface Cables, Male to Male, 4K (DP-HD-xx-MM)
      • Supports resolutions up to 4k@30hz 4:4:4 and 4K@60Hz 4:2:0.
Ethernet Control
  • Standard control method.
  • Configuration can be done over the Internet via Web server or Telnet.
  • Female RJ45 connector.
  • 10/100 BaseT Ethernet interface.
    • Web Server (view product demo)
      • Security is ensured by password and user configurable timeout.
      • Up to 25 users can access the web page at one time.
      • The user can access the following pages:
        • Switch page: allows the user to connect any input to any output, save and recall up to ten connections.
        • Administration pages: administrator can access pages for system configuration, network configuration, naming video inputs/outputs, scanning sequence, DDC options, changing password, and updating firmware.
        • Standby Mode page: allows the user to quickly place the switch in standby mode.
        • Support page: provides links to the product manual and firmware downloads webpage.
        • Reboot page: allows the user to quickly reboot the switch.
    • Telnet
      • Security is ensured by password.
      • Up to 25 users can access the telnet connection at one time.
      • Commands are similar to RS232 commands.
      • The telnet server listens on ports 2000 and 2005.
        • Port 2000 is for an operator telnet session.
        • Port 2005 is intended for a software control type session using raw TCP communication.
Front Panel Interface
  • Standard control method.
  • Configuration and control can be done using the front panel buttons.
  • Keypad allows selection of the input source to be routed to the desired outputs.
RS232 Control
  • Standard control method.
  • Configuration and control can be done through the serial port.
    • Female RJ45 connector.
  • Control the switch using the NTI Switch Control Program with Graphical User Interface (GUI control) via RS232.
  • Control4 certified module controls routing, reset, and status RS232 functions.
Infrared Remote Control (Optional)
  • Optional control method.
    • IRT-UNV is sold separately.
  • Standard control method
  • Transmitter can be up to 30 feet (9.1 meters) away.
  • Control up to 15 switches with one remote.
  • Power: Two AAA batteries (included).

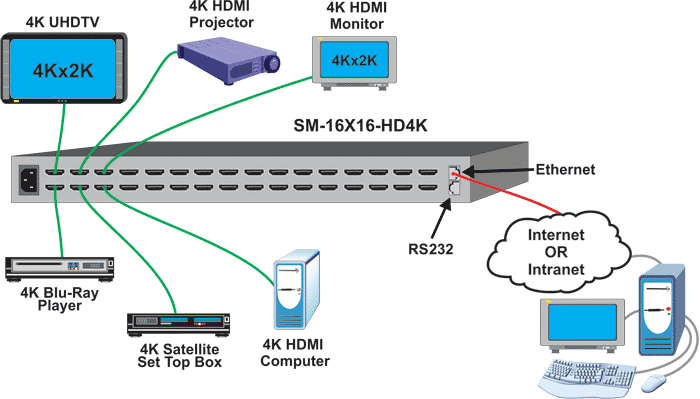

Application Drawings

  • 4K 18Gbps HDMI Video Matrix Switch, 16x16, 1RU
    4K 18Gbps HDMI Video Matrix Switch: 16x16

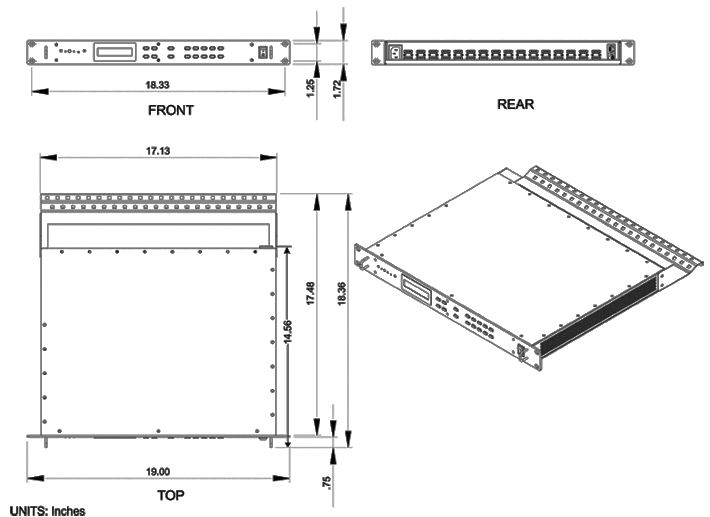

CAD Drawings

  • SM-16X16-HD4K
    4K 18Gbps HDMI Video Matrix Switch: 16x16

4K 18Gbps HDMI Video Matrix Switch: 16x16, 32x32

NTI Part # HDMI Inputs HDMI Outputs Price Quote Buy
SM-16X16-HD4K 16 16 $7,270.00
SM-32X32-HD4K 32 32 $11,850.00

Infrared Remote Control

NTI Part # Description Price Quote Buy
IRT-UNV Infrared Remote Control $25.00

HDMI Male-Male Cables

NTI Part # Length Max Resolution Price Quote Buy
HD-3-MM 3 feet 4K@60Hz $4.50
HD-6-MM 6 feet 4K@60Hz $6.00
HD-10-MM 10 feet 4K@60Hz $7.10
HD-15-MM 15 feet 4K@60Hz $10.50
HD-25-MM 25 feet 1080p@60Hz $16.50
HD-30-MM 30 feet 1080p@60Hz $31.50
HD-50-MM 50 feet 1080p@60Hz $51.00

4K HDMI Active Cable, Male to Male, Built-In Signal Booster

NTI Part # Length Max Resolution Price Quote Buy
HD-ACT-20-MM 20 feet 4K@60Hz $47.00
HD-ACT-25-MM 25 feet 4K@60Hz $57.00
HD-ACT-30-MM 30 feet 4K@60Hz $67.00
HD-ACT-40-MM 40 feet 4K@60Hz $78.00
HD-ACT-50-MM 50 feet 4K@60Hz $103.00
HD-ACT-60-MM 60 feet 4K@60Hz $110.50
HD-ACT-75-MM 75 feet 4K@30Hz $134.00
HD-ACT-100-MM 100 feet 4K@30Hz $159.00

4K HDMI Active Optical Cables

NTI Part # Length Max Resolution Price Quote Buy
HD4K18GB-FO-10M-MM 10 meters 4K@60Hz $174.00
HD4K18GB-FO-15M-MM 15 meters 4K@60Hz $186.00
HD4K18GB-FO-20M-MM 20 meters 4K@60Hz $198.00
HD4K18GB-FO-25M-MM 25 meters 4K@60Hz $210.00
HD4K18GB-FO-30M-MM 30 meters 4K@60Hz $222.00
HD4K18GB-FO-50M-MM 50 meters 4K@60Hz $270.00
HD4K18GB-FO-70M-MM 70 meters 4K@60Hz $318.00
HD4K18GB-FO-100M-MM 100 meters 4K@60Hz $390.00

DisplayPort to HDMI Interface Cables, Male to Male, 4K

NTI Part # Length Price Quote Buy
DP-HD-3-MM 3 feet $14.25
DP-HD-6-MM 6 feet $15.45
DP-HD-10-MM 10 feet $18.00
DP-HD-15-MM 15 feet $20.10
