VGA USB KVM Splitter/Extender with Stereo Audio via CAT5 to 1,000 Feet

Allows up to eight users to control one USB computer located 1,000 feet away

Also known as: cat5 vga usb kvm splitter, usb kvm multi-point extender, computer splitter, extend multiple users, vga usb kvm distribution over cat5 wiring, share computer, computer hub, remote keyboard mouse monitor, reverse KVM switch

VOPEX-C5USBVA-8 Local Unit (Front & Back)

Available Option

  • Optional support for remote USB touch screen monitors, CAC card readers, or interactive whiteboards
  • Designed and Manufactured in the U.S.A.

Additional Images

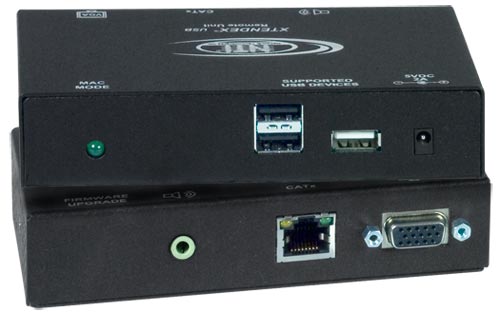

  • ST-C5USBVUA-R-1000S – VGA USB KVM Receiver with Audio and Additional USB Port (Front & Back)

The VOPEX® VGA USB KVM Splitter/Extender allows up to eight remote users (8 USB keyboards, mice, and VGA monitors) to access one USB computer (PC, SUN, MAC) located up to 1,000 feet away using CAT5/5e/6 cable. Audio can be broadcasted to self-powered stereo speakers at the local unit and each remote location.


The VOPEX VGA USB KVM Splitter/Extender system has two components: the VOPEX-C5USBVA-x broadcast unit, which connects to a computer and provides local keyboard, monitor and mouse connections; and an XTENDEX® remote unit (ST-C5USBV(U/A/UA)-R-1000S) for each remote monitor, keyboard, and mouse. The units are interconnected by CAT5/5e/6 cable.

The VOPEX® VGA USB KVM Splitter/Extender allows up to eight remote users (8 USB keyboards, mice, and VGA monitors) to access one USB computer (PC, SUN, MAC) located up to 1,000 feet away using CAT5/5e/6 cable. Audio can be broadcasted to self-powered stereo speakers at the local unit and each remote location.


The VOPEX VGA USB KVM Splitter/Extender system has two components: the VOPEX-C5USBVA-x broadcast unit, which connects to a computer and provides local keyboard, monitor and mouse connections; and an XTENDEX® remote unit (ST-C5USBV(U/A/UA)-R-1000S) for each remote monitor, keyboard, and mouse. The units are interconnected by CAT5/5e/6 cable.

  • Industry-leading ultra-high resolutions up to 2048x1536.
  • Compatible with USB computers (PC, SUN, MAC).
  • Access one computer from multiple locations.
  • Provides local KVM access.
    • The local USB ports can also be used to connect printers, scanners, security cameras, etc
  • Multiple users can enter data into the same program.
  • Easily expandable. Add remote units as you add users.
  • Supports DDC emulation and mixing.
    • DDC mixing provides a table of resolutions that are common to each connected monitor).
  • Compliant with USB 2.0 (low/full speed) standards.
  • Automatically adjust video quality and color skew for crystal clear video with longer cables.
  • Supports Plug-n-Play specifications.
  • Built-in surge protection.
  • Optional support for remote USB touch screen monitors, CAC card readers, or interactive whiteboards.
  • High quality, rugged steel construction with durable powder coat finish.
  • Flash upgradeable.

Local Unit (Splitter)

Host Connection
  • One male 15-pin HD connector.
    • Input impedance: 75 Ohms.
  • One female USB Type B connector.
  • One female 3.5mm stereo audio connector (audio in).
  • Supports a USB computer (PC, SUN, MAC).
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Optional support for remote USB touch screen monitors, CAC card readers, or interactive whiteboards (VOPEX-C5USBVUA-4/8)
    • Must use remote units with additional USB port (ST-C5USBVU-R-1000S or ST-C5USBVUA-R-1000S).
Local Access
  • Crisp and clear 2048x1536 video resolution.
  • One female 15-pin HD connector.
  • One 3.5mm stereo audio plug (audio out).
  • Two female USB Type A connectors.
    • Connect any type of USB device – fully transparent USB connection.
    • USB maximum data rate: 12 Mbps.
Audio
  • Frequency response: 20 Hz to 20 kHz, ±1 dB.
  • Signal-to-Noise Ratio (SNR): 76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%.
  • Stereo crosstalk: -70 dB.
  • Input impedance: 10k Ohms.
  • Line level output; supports multimedia speakers.
  • CD quality output.
  • Maximum I/O levels for audio: 3.1vp-p (line level).
Cables
  • 3-foot VGA cable included.
  • 3-foot audio cable included.
  • 1-meter (3.28 ft) USB Type A male to Type B male cable included.
  • 5-foot CAT5 patch cable and DB9F-RJ45F adapter included for firmware upgrade.
  • Use CAT5/5e/6 solid UTP/STP straight through cable for TIA/EIA-568B wiring terminated with standard Rj45 connectors (not included).
Power
  • 110 to 220 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included).
Dimensions (WxDxH)
  • 4-Port: 7.35x5.0x1.09 in (187x127x28 mm).
  • 8-Port: 7.35x5.0x1.7 in (187x127x43 mm).
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -22 to 140°F (-30 to 60°C)
  • Operating and storage relative humidity: 17 to 90% non-condensing RH.
Regulatory approvals
  • CE, RoHS.
  • TAA compliant
Warranty
  • Two years.

Distances and Resolutions for CAT5/CAT5e and CAT6 Cables
Cable Distance Maximum Resolution
CAT5/5e (UTP) 1000 feet (305 meters) 1920x1200 at
60 Hz
800 feet (244 meters) 1920x1440 at
60 Hz
600 feet (183 meters) 2048x1536 at
60 Hz
CAT6 (UTP) 800 feet (244 meters) 1920x1440 at
60 Hz
600 feet (183 meters) 2048x1536 at
60 Hz
CAT5/5e (STP) 800 feet (244 meters) 1920x1200 at
60 Hz
600 feet (183 meters) 1920x1440 at
60 Hz
400 feet (122 meters) 2048x1536 at
60 Hz
CAT6 (STP) 400 feet (122 meters) 1280x1024 at
60 Hz
300 feet (91 meters) 1600x1200 at
60 Hz
200 feet (61 meters) 2048x1536 at
60 Hz

Remote Unit (Receiver)

  • Female 15-pin HD connector.
  • Two female USB Type A connectors.
  • Supports resolutions to 2048x1536; refer to the resolution chart below for resolutions at different lengths.
  • Output impedance: 75 Ohms.
  • Maximum output level of video: 1.45Vp-p.
  • Available with optional female USB Type A connector for an additional USB 2.0 (low/full speed) device - USB touch screen monitor, CAC card reader, interactive whiteboard, or barcode scanner.
    • Requires VOPEX-C5USBVUA-4/8.
    • USB maximum data rate: 12 Mbps.
    • Supported touch screen monitors: Microtouch 3M, Elo 1529L 3000 Series, Elo 1515L, Smart Podium ID422w, Hope Industrial HIS-RL17, NEC MultiSync E222W, Industrial Electronic Devices Inc IWS-240t-G3, Zytronics CML-170, Pulse IR TSV4001/DT40, HP Compaq, Sharp Aquos Board, Advantech FPM-2150, Touch Screens Inc TWAP-1150ADP/1154ADP-USB and similar monitors that use PenMount 5000/6000/9000 driver.
    • Supported interactive whiteboards: SMART Board™ SB640
    • Supported card readers: Athena, Cherry, Gemalto, Generic USB, and Dell smart card/keyboard combo.
Video Quality Adjustments
  • Automatically adjusts the video quality and color skew to compensate for varying lengths of CAT5/5e/6 cable.
  • Manual fine adjustments are made via keyboard commands.
  • Settings are automatically stored in the unit. The next time the unit is powered on, the adjustment will be recalled.
Optional Audio
  • 3.5mm stereo audio jack.
  • Frequency response: 20 Hz to 20 kHz, ±1dB.
  • Signal-to-Noise Ratio (SNR): 76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%.
  • Stereo crosstalk: -70 dB.
  • Line level output; supports multimedia speakers.
  • CD quality audio output.
  • Maximum output levels: 3.1Vp-p (line level).
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
Dimensions (WxDxH)
  • 5.05x3.1x1.24 in (128x79x32 mm).
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -22 to 140°F (-30 to 60°C)
  • Operating and storage relative humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS.
  • TAA compliant
Warranty
  • Two years.

Application Drawings

  • VGA USB KVM Splitter/Extender with Stereo Audio via CAT5 to 1,000 Feet
    HDMI HDBase-T Extender with IR via One CATx Cable
    Allows up to four users to control one USB computer located 1,000 feet away

VGA USB KVM Splitter/Extender via CAT5

NTI Part # Supported Features # of Ports Price Quote Buy
VOPEX-C5USBVA-4 USB KVM + Audio 4 $450.00
VOPEX-C5USBVA-8 USB KVM + Audio 8 $795.00
VOPEX-C5USBVUA-4 USB KVM + Audio + Additional Remote USB Port Support 4 $625.00
VOPEX-C5USBVUA-8 USB KVM + Audio + Additional Remote USB Port Support 8 $1,130.00

CAT5 VGA USB KVM Receivers to 1,000 feet

NTI Part # Supported Features Price Quote Buy
ST-C5USBV-R-1000S USB KVM $520.00
ST-C5USBVA-R-1000S USB KVM + Audio $530.00
ST-C5USBVU-R-1000S USB KVM + Additional USB Port $560.00
ST-C5USBVUA-R-1000S USB KVM + Audio + Additional USB Port $580.00
