Ultra Low-Cost VGA + Audio to HDMI Converter Cable

Connects VGA computer to HDMI video monitor/projector.

Also known as: VGA + audio to HDMI converter, ultra low cost vga to hdmi, digital video adapter, convert digital video signal to analog monitor

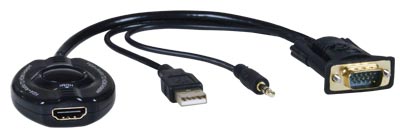

Ultra Low-Cost VGA + Audio to HDMI Converter Cable
VGAA-HD-ULC

The Ultra Low-Cost VGA to HDMI Converter Cable changes your computer's analog VGA and stereo audio signals to a single HDMI stream with integrated audio. The converter generates the compatible analog to digital conversion signals to make the connection between the VGA input and the HDMI output work.

The Ultra Low-Cost VGA to HDMI Converter Cable changes your computer's analog VGA and stereo audio signals to a single HDMI stream with integrated audio. The converter generates the compatible analog to digital conversion signals to make the connection between the VGA input and the HDMI output work.

  • Connects computers with analog VGA connectors to HDMI monitors or projectors.
  • Supports HDTV resolutions of 1080p, 1080i, and 720p.
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
  • Plug and play functionality – no new software or drivers required.
Connectors
  • One male 15-pin HD connector for VGA input.
  • One 3.5 mm stereo audio jack for audio input.
  • One female HDMI port for HDMI output.
  • One male USB Type A connector for 5V, 250mA power.
Video
  • Supports HDTV resolutions of 1080p, 1080i, and 720p.
Dimensions
  • Cable length: 8" (203 mm).
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -4 to 149°F (-20 to 65°C).
Regulatory approvals
  • CE, FCC, RoHS.
Package Includes
  • VGA to HDMI Converter Cable
  • 0.5 ft (0.15 m) 3.5 mm stereo audio to two RCA (R&L) adapter cable

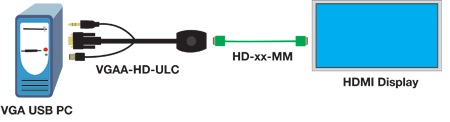

Application Drawings

  • Ultra Low-Cost VGA + Audio to HDMI Converter Cable
    Ultra Low-Cost VGA + Audio to HDMI Converter Cable

Testimonials

  • "This is a great converter. The VGAA-HD-ULC was just what I needed to get my application working. It was easy to install and cost was reasonable. I would recommend this device for an easy way to convert your VGA to HDMI."

    Richard P.
    Ricoh USA Inc
    Cookeville, TN

Ultra Low-Cost VGA + Audio to HDMI Converter Cable

NTI Part # Description Price Quote Buy
VGAA-HD-ULC VGA to HDMI Converter Cable $34.00
