VGA Video Matrix Switch

Switch video from many computers among multiple monitors.

Also known as: Video Matrix Switch, VGA video switcher router 8x8 2x2 4x4 multiple monitors many computers


VGA Video Matrix Switch - How to switch video from many computers among multiple monitors

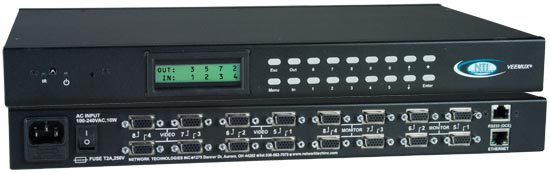

SM-8X8-15V-LC (Front & Back)
  • Designed and Manufactured in the U.S.A.
  • Digital Signage

Additional Images

  • SM-8X8-15V-LC – VGA Video Matrix Switch
  • VGA Video Matrix Switch

The VEEMUX® VGA Video Matrix Switch routes video from many computers to multiple displays (projectors, monitors, etc.) This switch can drive standard VGA cables, thus eliminating the need for external interfaces and coax cable connections via BNC connectors.

Signals from a range of input sources can be distributed to various output devices, in essence creating a "matrix" pattern of interconnection possibilities. A single computer video output can be routed to one or more monitors. Each image will be as crisp and clear as if directly connected to the original source. Each video output is buffered from each input, insuring signal integrity throughout the system.

The VEEMUX® VGA Video Matrix Switch routes video from many computers to multiple displays (projectors, monitors, etc.) This switch can drive standard VGA cables, thus eliminating the need for external interfaces and coax cable connections via BNC connectors.

Signals from a range of input sources can be distributed to various output devices, in essence creating a "matrix" pattern of interconnection possibilities. A single computer video output can be routed to one or more monitors. Each image will be as crisp and clear as if directly connected to the original source. Each video output is buffered from each input, insuring signal integrity throughout the system.

  • Switch VGA video directly.
  • Each output provides one video signal.
  • Each input can be independently connected to any or all outputs.
  • Video bandwidth is 200 MHz or greater.
  • Supports 1920x1200 video resolution at a refresh rate of 85 Hz.
  • Stand-by mode offers reduced power. Available on 8-input models.
  • All units pass vigorous testing with 24 hr minimum burn in, heat testing, and load test of all ports.
The VEEMUX switch is the ideal solution for any application where information from many computers is being presented, such as:
  • Digital Signage
  • Classrooms.
  • Boardrooms.
  • Trade shows.
  • Conference and entertainment facilities.
  • Courtrooms.
  • Command centers.
  • Control rooms.
Video Input
  • Eight female 15-pin HD connectors.
  • Impedance: 75 Ohms.
Video Output
  • Two female 15-pin HD connectors.
  • 1920x1200 video resolution with no degradation.
  • Impedance: 75 Ohms.
  • Bandwidth: 200 Mhz, fully loaded.
Power
  • 100 to 240 VAC at 50 or 60 Hz via IEC connector.
  • Power consumption: 5 W
Cables
  • Interface cables between the computers and the switch are required for proper operation.
  • Recommended NTI video cables:
    • VGA interface cable (VEXT-xx-MM).
    • VGA to BNC cable (VINT).
  • Cables not included.
Package Includes
  • Video Matrix Switch
  • IEC Line Cord, country-specific
  • Infrared Remote Control with 2 AAA batteries
  • DB9 female to RJ45 female adapter
  • 5-ft CAT5e super flat patch cable
  • Mounting hardware
  • CD with manual, NTI Discovery Tool, and NTI Switch Control Program
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Dimensions
VGA Video Matrix Switch
NTI Part # Desktop
Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
SM-8X2-15V-LC 15.3x7.7x1.75 (without supplied rackmount kit) 1RU 19x7.7x1.75

Compatible NTI Products
  • Combine NTI emulators and switches for complex applications.
Video Input
  • Eight female 15-pin HD connectors.
  • Impedance: 75 Ohms.
Video Output
  • Four female 15-pin HD connectors.
  • 1920x1200 video resolution with no degradation.
  • Impedance: 75 Ohms.
  • Bandwidth: 200 Mhz, fully loaded.
Power
  • 100 to 240 VAC at 50 or 60 Hz via IEC connector.
  • Power consumption: 5 W
Cables
  • Interface cables between the computers and the switch are required for proper operation.
  • Recommended NTI video cables:
    • VGA interface cable (VEXT-xx-MM).
    • VGA to BNC cable (VINT).
  • Cables not included.
Package Includes
  • Video Matrix Switch
  • IEC Line Cord, country-specific
  • Infrared Remote Control with 2 AAA batteries
  • DB9 female to RJ45 female adapter
  • 5-ft CAT5e super flat patch cable
  • Mounting hardware
  • CD with manual, NTI Discovery Tool, and NTI Switch Control Program
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Dimensions
VGA Video Matrix Switch
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
SM-8X4-15V-LC 15.3x7.7x1.75 (without supplied rackmount kit) 1RU 19x7.7x1.75

Compatible NTI Products
  • Combine NTI emulators and switches for complex applications.
Video Input
  • Eight female 15-pin HD connectors.
  • Impedance: 75 Ohms.
Video Output
  • Eight female 15-pin HD connectors.
  • 1920x1200 video resolution with no degradation.
  • Impedance: 75 Ohms.
  • Bandwidth: 200 Mhz, fully loaded
Power
  • 100 to 240 VAC at 50 or 60 Hz via IEC connector.
  • Power consumption: 5 W
Cables
  • Interface cables between the computers and the switch are required for proper operation.
  • Recommended NTI video cables:
    • VGA interface cable (VEXT-xx-MM).
    • VGA to BNC cable (VINT).
  • Cables not included.
Package Includes
  • Video Matrix Switch
  • IEC Line Cord, country-specific
  • Infrared Remote Control with 2 AAA batteries
  • DB9 female to RJ45 female adapter
  • 5-ft CAT5e super flat patch cable
  • Mounting hardware
  • CD with manual, NTI Discovery Tool, and NTI Switch Control Program
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Dimensions
VGA Video Matrix Switch
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
SM-8X8-15V-LC 15.3x7.7x1.75 (without supplied rackmount kit) 1RU 19x7.7x1.75

Compatible NTI Products
  • Combine NTI emulators and switches for complex applications.
Video Input
  • Sixteen female 15-pin HD connectors.
  • Impedance: 75 Ohms.
Video Output
  • Four female 15-pin HD connectors.
  • 1920x1200 video resolution with no degradation.
  • Impedance: 75 Ohms.
  • Bandwidth: 200 Mhz, fully loaded.
Power
MTBF
  • SM-16x4-15V-LCD: 66,636 hrs.
Cables
  • Interface cables between the computers and the switch are required for proper operation.
  • Recommended NTI video cables:
    • VGA interface cable (VEXT-xx-MM).
    • VGA to BNC cable (VINT).
  • Cables not included.
Package Includes
  • Video Matrix Switch
  • IEC Line Cord, country-specific
  • Mounting hardware
  • CD with manual, NTI Discovery Tool, and NTI Switch Control Program
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
  • TAA compliant
Warranty
  • Two years
Dimensions
VGA Video Matrix Switch
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
SM-16X4-15V-LCD NA 1RU 19x12x1.75

Compatible NTI Products
  • Combine NTI emulators and switches for complex applications.
Video Input
  • Sixteen female 15-pin HD connectors.
  • Impedance: 75 Ohms.
Video Output
  • Eight female 15-pin HD connectors.
  • 1920x1200 video resolution with no degradation.
  • Impedance: 75 Ohms.
  • Bandwidth: 200 Mhz, fully loaded.
Power
MTBF
  • SM-16x8-15V-LCD: 62,739 hrs.
Cables
  • Interface cables between the computers and the switch are required for proper operation.
  • Recommended NTI video cables:
    • VGA interface cable (VEXT-xx-MM).
    • VGA to BNC cable (VINT).
  • Cables not included.
Package Includes
  • Video Matrix Switch
  • IEC Line Cord, country-specific
  • Mounting hardware
  • CD with manual, NTI Discovery Tool, and NTI Switch Control Program
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
  • TAA compliant
Warranty
  • Two years
Dimensions
VGA Video Matrix Switch
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
SM-16X8-15V-LCD NA 2RU 19x12x3.5

Compatible NTI Products
  • Combine NTI emulators and switches for complex applications.
Video Input
  • Sixteen female 15-pin HD connectors.
  • Impedance: 75 Ohms.
Video Output
  • Twelve female 15-pin HD connectors.
  • 1920x1200 video resolution with no degradation.
  • Impedance: 75 Ohms.
  • Bandwidth: 200 Mhz, fully loaded.
Power
MTBF
  • SM-16x12-15V-LCD: 58,909 hrs.
Cables
  • Interface cables between the computers and the switch are required for proper operation.
  • Recommended NTI video cables:
    • VGA interface cable (VEXT-xx-MM).
    • VGA to BNC cable (VINT).
  • Cables not included.
Package Includes
  • Video Matrix Switch
  • IEC Line Cord, country-specific
  • Mounting hardware
  • CD with manual, NTI Discovery Tool, and NTI Switch Control Program
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
  • TAA compliant
Warranty
  • Two years
Dimensions
VGA Video Matrix Switch
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
SM-16X12-15V-LCD NA 2RU 19x12x3.5

Compatible NTI Products
  • Combine NTI emulators and switches for complex applications.
Video Input
  • Sixteen female 15-pin HD connectors.
  • Impedance: 75 Ohms.
Video Output
  • Sixteen female 15-pin HD connectors.
  • 1920x1200 video resolution with no degradation.
  • Impedance: 75 Ohms.
  • Bandwidth: 200 Mhz, fully loaded.
Power
MTBF
  • SM-16x16-15V-LCD: 56,694 hrs.
Cables
  • Interface cables between the computers and the switch are required for proper operation.
  • Recommended NTI video cables:
    • VGA interface cable (VEXT-xx-MM).
    • VGA to BNC cable (VINT).
  • Cables not included.
Package Includes
  • Video Matrix Switch
  • IEC Line Cord, country-specific
  • Mounting hardware
  • CD with manual, NTI Discovery Tool, and NTI Switch Control Program
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
  • TAA compliant
Warranty
  • Two years
Dimensions
VGA Video Matrix Switch
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
SM-16X16-15V-LCD NA 2RU 19x12x3.5

Compatible NTI Products
  • Combine NTI emulators and switches for complex applications.
Video Input
  • Thirty-two female 15-pin HD connectors.
  • Impedance: 75 Ohms.
Video Output
  • Eight female 15-pin HD connectors.
  • 1920x1200 video resolution with no degradation.
  • Impedance: 75 Ohms.
  • Bandwidth: 200 Mhz, fully loaded.
Power
MTBF
  • SM-32x8-15V-LCD: 56,080 hrs.
Cables
  • Interface cables between the computers and the switch are required for proper operation.
  • Recommended NTI video cables:
    • VGA interface cable (VEXT-xx-MM).
    • VGA to BNC cable (VINT).
  • Cables not included.
Package Includes
  • Video Matrix Switch
  • IEC Line Cord, country-specific
  • Mounting hardware
  • CD with manual, NTI Discovery Tool, and NTI Switch Control Program
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
  • TAA compliant
Warranty
  • Two years
Dimensions
VGA Video Matrix Switch
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
SM-32X8-15V-LCD NA 2RU 19x12x3.5

Compatible NTI Products
  • Combine NTI emulators and switches for complex applications.
Video Input
  • Thirty-two female 15-pin HD connectors.
  • Impedance: 75 Ohms.
Video Output
  • Sixteen female 15-pin HD connectors.
  • 1920x1200 video resolution with no degradation.
  • Impedance: 75 Ohms.
  • Bandwidth: 200 Mhz, fully loaded.
Power
MTBF
  • SM-32x16-15V-LCD: 51,163 hrs.
Cables
  • Interface cables between the computers and the switch are required for proper operation.
  • Recommended NTI video cables:
    • VGA interface cable (VEXT-xx-MM).
    • VGA to BNC cable (VINT).
  • Cables not included.
Package Includes
  • Video Matrix Switch
  • IEC Line Cord, country-specific
  • Mounting hardware
  • CD with manual, NTI Discovery Tool, and NTI Switch Control Program
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
  • TAA compliant
Warranty
  • Two years
Dimensions
VGA Video Matrix Switch
NTI Part # Desktop Size
WxDxH (in)
Rack
Units
Rack Size
WxDxH (in)
SM-32X16-15V-LCD NA 3RU 19x12x5.25

Compatible NTI Products
  • Combine NTI emulators and switches for complex applications.

Application Drawings

  • VGA Video Matrix Switch
    Configuration and cable illustration of a system monitoring room conditions including temperature, humidity, liquid and vibration.

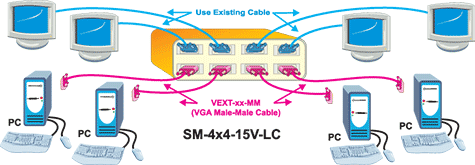

    How to switch video from many computers among multiple monitors.

Application Notes

  • Local and Remote Video Presentation Display
    Local and Remote Video Presentation Display

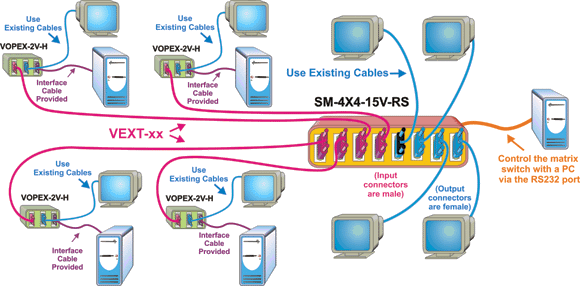

    Four behind-the-scenes technicians can create and update information with a local display while a presenter can display any computer's output to any large screen monitor. Switching is controlled from a PC via the RS232 port.

CAD Drawings

  • SM-16X4-15V-LCD

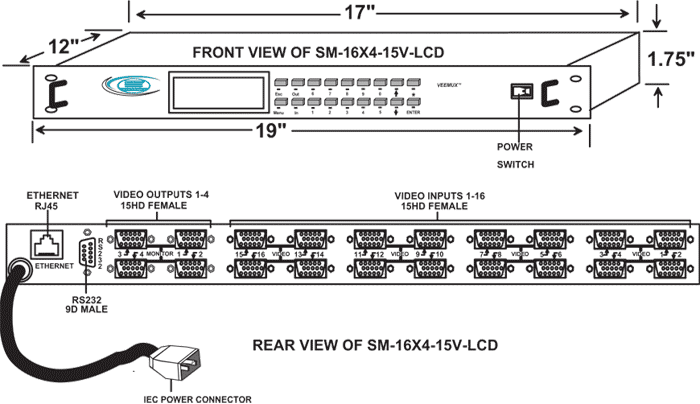

    Video Matrix Switch - SM-16X4-15V-LCD
  • SM-16X8-15V-LCD

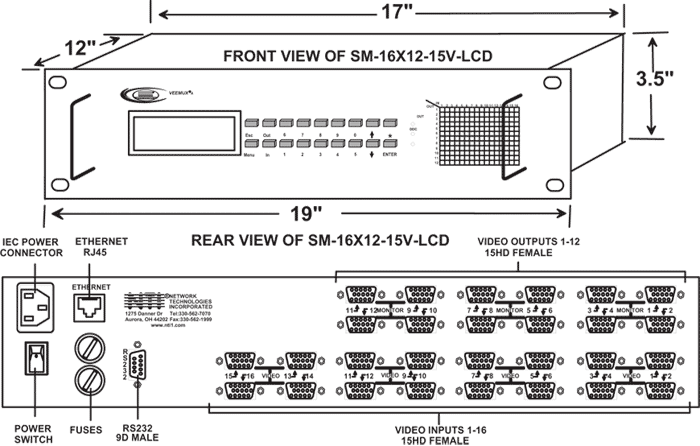

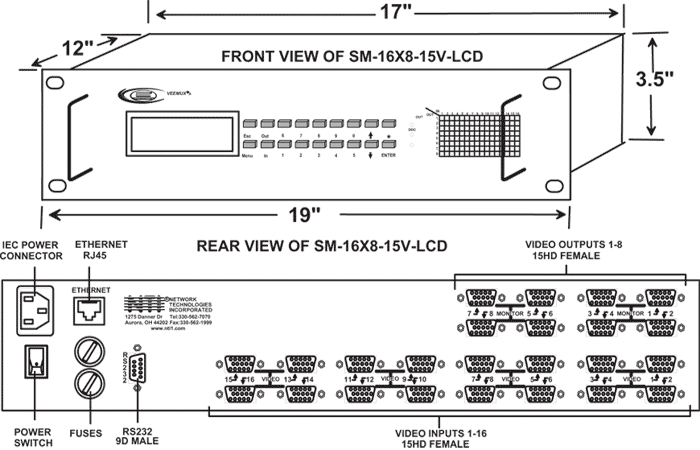

    Video Matrix Switch - SM-16X8-15V-LCD
  • SM-16X12-15V-LCD
    Video Matrix Switch - SM-16X12-15V-LCD
  • SM-16X16-15V-LCD

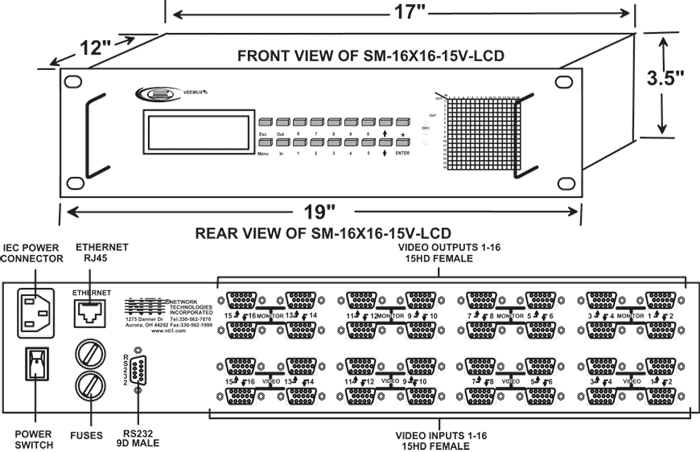

    Video Matrix Switch - SM-16X16-15V-LCD
  • SM-32X8-15V-LCD

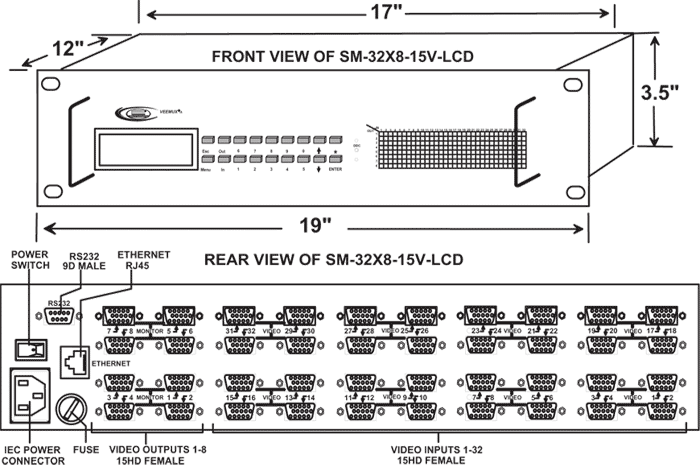

    Video Matrix Switch - SM-32X8-15V-LCD
  • SM-32X16-15V-LCD

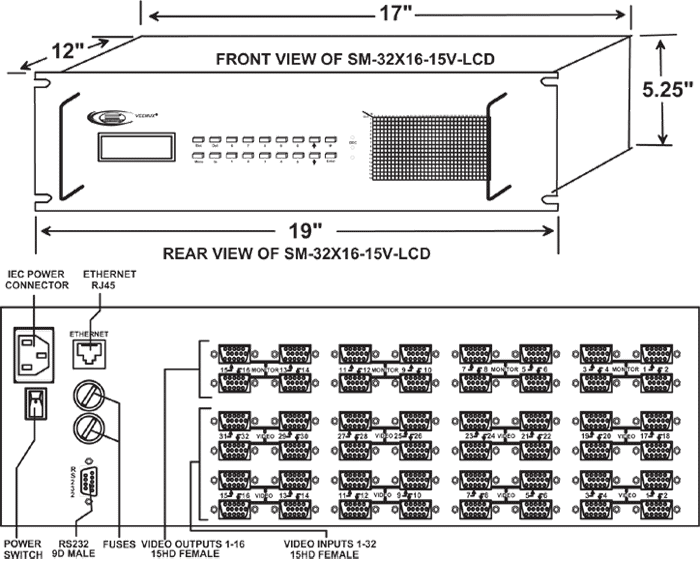

    Video Matrix Switch - SM-32X16-15V-LCD
  • "The NTI VEEMUX SM-32X16-15V-LCD is a very reliable product. We have had this switch installed since 2006 and it has been maintenance free. We just recently had to replace the power supply. I would highly recommend this product to anyone. Thanks for your great support!."

    John Floyd
    US Air Force
    WPAFB, OH
  • "We deployed the SM-8X4-15V-LCD on 12/5/2002, and it has been a very reliable unit. The switch has been running 24/7 for the last 5 years without fail (just now we had to replace the power supply)."

    Eric Bell
    Quality Sound & Video
    Fayetteville, NC
  • "Thanks for the great service!! I didn't expect to have the product shipped the next day. This will help me finish my new installation on time.

    I have installed a few of the matrix switches in bars/clubs in the New York City area. I connect all plasma displays via the matrix switch to HD satellite receivers and other equipment. I set up a place where there are three floors, with a total of six different rooms all video is control by the 16x16 switch.

    I always tell my customers how good a product is by how it holds up (a test of time). After two years, your products are holding up fine.;"

    Joe Mondello
    Wide Area Communications
    Bronx, NY
  • "Raytheon Solipsys Corporation has been working with NTI and using their Video Matrix Switches for many years. NTI's commitment to delivering the latest in state of the art equipment and performance is outmatched by none.

    Raytheon Solipsys works with the US Navy to enhance the Navy's situation awareness capabilities. NTI has played an important role in the success of our technology and our ability to provide support to our military.

    We here at Solipsys are looking forward to many more years of great service from NTI."

    Stephen Ross
    Senior Hardware Engineer
    Raytheon Solipsys Corporation
  • "Summit Solutions is a Small Veteran Owned Company, providing integrated technology solutions throughout the Federal, State and Local Governments; the Educational Community; and Private Businesses.

    In an ever changing digital environment, it is difficult to find companies that produce products that consistently provide quality reliable service meeting the needs of tomorrow's demanding environment. Over the past several years we have been integrating various components from the Network Technologies Inc., product line in our solutions. These products have proven to be a standard above the rest.

    It is with great satisfaction that we endorse Network Technologies and will continue to use their products in our integrated systems."

    Mark W. Olesen
    Summit Solutions, Inc
    Leavenworth, KS
  • "After more than a year of using your SM-4X8-15V-LCD Matrix Switch, we are able to show professional presentations we never thought possible before with such clarity and no signal loss. The simplicity and reliability of your products have made me totally dependent on your switch for all our mission critical presentations. With the added great touch of your professional services, I think going the NTI way is a no brainier decision. I am really grateful for your professional services and the fact that you are always there when needed for any support/purchase issues."

    Mazen Al-Saleh
    Unilever Arabia
    Saudi Arabia
  • "I am happy with what the SM-8X4-15V-LCD-DT does and have found no problems so far. We chose your product over the competitions' due to cost, and we liked the 15 pin HD connections vs. 5 BNC's. Thanks again for all your help."

    Trever S. Anderson
    General Dynamics
    Fort Gordon, GA
  • "We purchase NTI Video Matrix Switches through Dataman B.V., NTI's distributor in the Netherlands, for use on our Jackpot Junction, a promotional system for casinos which can be placed on different PC's. The switch allows us to select and control which information about the Jackpot is being displayed on each LCD or Plasma Screen. We recommend NTI products to our clients because of the quality."

    Ben Riekerk
    Gaming Support
    Netherlands
  • "It's been a long time coming but we are finally on track with our video architecture for the SMMTT system. We've really been pleased with the NTI video matrix switches. NTI is the only company we've found that makes a large variety of video switches without resorting to special (and expensive) configurable units. We currently have 7 NTI video matrix switches in our design. They've proven to be very reliable and the quality is up there with the best of breed. I want to thank you for your continued support in our design process and look forward to a long business relationship."

    Roger Boudreau
    Northrop Grumman MS
    Middletown, RI
  • "We received the SM-16X8-15V-LCD Video Matrix Switcher and already have it installed. It works like a champ. Thank you for the great support and quick turn around."

    S. Calvelage
    NASA
    Huntsville, AL

VGA Video Matrix Switches

NTI Part # Video Inputs Video Outputs Price Quote Buy
SM-8X2-15V-LC 8 2 $1,185.00
SM-8X4-15V-LC 8 4 $1,240.00
SM-8X8-15V-LC 8 8 $1,810.00
SM-16X4-15V-LCD 16 4 $1,950.00
SM-16X8-15V-LCD 16 8 $2,805.00
SM-16X12-15V-LCD 16 12 $4,375.00
SM-16X16-15V-LCD 16 16 $4,625.00
SM-32X8-15V-LCD 32 8 $4,550.00
SM-32X16-15V-LCD 32 16 $7,655.00

Infrared Remote Control

NTI Part # Description Price Quote Buy
IRT-UNV Infrared Remote Control for 4- and 8-Input
SM-nXm-15V-LC Models
$25.00
IRT-64X32 Infrared Remote Control for 16- and 32-Input
SM-nXm-15V-LCD Models & All SM-nXm-AV-LCD Models
$100.00

VGA EDID Emulator

NTI Part # Description Price Quote Buy
VGA-EDID-EMLTR VGA EDID Emulator $50.00

VGA Monitor Cable without Ferrites, Male to Female

NTI Part # Length Color Price Quote Buy
VEXT-6 6 feet Black $7.25
VEXT-100-GRAY 100 feet Gray $71.00

VGA Monitor Cable with Ferrites, Male to Female

NTI Part # Length Color Price Quote Buy
VEXT-F-3 3 feet Black $7.85
VEXT-F-6 6 feet Black $7.25
VEXT-F-10 10 feet Black $11.15
VEXT-F-15 15 feet Black $11.85
VEXT-F-25 25 feet Black $19.65
VEXT-F-50 50 feet Black $18.60
VEXT-F-75 75 feet Black $48.00
VEXT-F-100 100 feet Black $68.00

VGA Monitor Cable without Ferrites, Male to Male

NTI Part # Length Color Price Quote Buy
VEXT-1-5-MM 1.5 feet Black $4.80
VEXT-3-MM 3 feet Black $5.60
VEXT-6-MM 6 feet Black $7.80
VEXT-10-MM 10 feet Black $11.70
VEXT-15-MM 15 feet Black $12.45
VEXT-25-MM 25 feet Black $21.15

VGA Monitor Cable with Ferrites, Male to Male

NTI Part # Length Color Price Quote Buy
VEXT-F-1-5-MM 1.5 feet Black $4.80
VEXT-F-6-MM 6 feet Black $7.75
VEXT-F-10-MM 10 feet Black $8.65
VEXT-F-15-MM 15 feet Black $13.80
VEXT-F-25-MM 25 feet Black $16.50
VEXT-F-35-MM 35 feet Black $21.30
VEXT-F-50-MM 50 feet Black $35.50
VEXT-F-75-MM 75 feet Black $48.00
VEXT-F-100-MM 100 feet Black $68.00

VGA to BNC Cable

NTI Part # Length Price Quote Buy
VINT-5B-6 6 ft $30.00
