H.264 HDMI Video Encoder

Stream 1080p HDMI video from a camera to a media streaming server or internet live broadcast platform (YouTube Live, Facebook Live, etc.) in real time over IP

H.264 HDMI Video Encoder
HD-ENC-H264

Additional Images

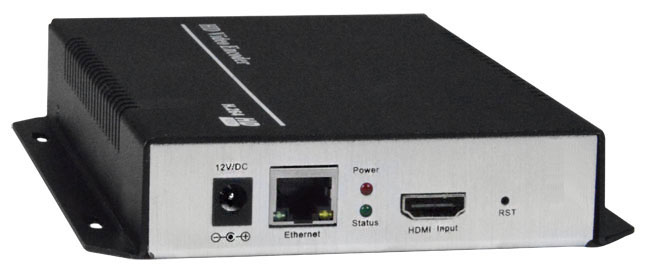

  • HD-ENC-H264 – H.264 HDMI Video Encoder

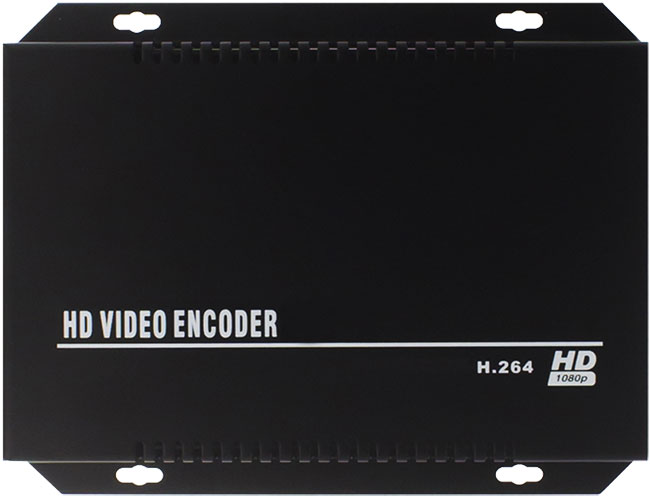

  • HD-ENC-H264 – H.264 HDMI Video Encoder (top view)

Product Highlights

  • H.264/MJPEG Video Encoding & AAC/MP3 Audio Encoding
  • Compatible with YouTube Live, Facebook Live, Twitter Live, Twitch, IBM Ustream, Wowza, Xtreme Codes, Nginx, vMix & more.

The H.264 HDMI Video Encoder streams 1080p video from an HDMI video source to a media streaming server (Wowza, Xtreme Codes, Nginx, etc) or online live broadcast platform (YouTube Live, FaceBook Live, IBM Cloud Video (Ustream), etc) over IP in real time. It encodes video using H.264 compression and AAC/MP3 audio.

The H.264 HDMI Video Encoder streams 1080p video from an HDMI video source to a media streaming server (Wowza, Xtreme Codes, Nginx, etc) or online live broadcast platform (YouTube Live, FaceBook Live, IBM Cloud Video (Ustream), etc) over IP in real time. It encodes video using H.264 compression and AAC/MP3 audio.

  • Accepts 1080p HD video at 60 frames per second and produces IP streams that can be sent on a standard Ethernet cable.
    • Max supported resolution: 1920x1080 @60Hz
  • Encode the same HDMI video source in two different formats and resolutions - unicast and multicast.
  • Supports RTMPS/RTMP, RTSP, UDP, HTTP, HLS, FLV and ONVIF protocols.
  • Compatible with most Internet live broadcast platforms and live streaming software, such as YouTube Live, Facebook Live, Twitter Live, Twitch, IBM Ustream, and vMix.
  • Broadcast to SmartTVs using a media streaming sever, such as Wowza, Xtreme Codes, Nginx, etc.
  • Supports up to 5 devices accessing the same video stream.
  • Easy-to-use HTTP-based web interface.
    • Modify network and video quality settings such as IP address, bit rate, and fps.
  • Add text and logos to the video stream.
  • Supports 100Base-T Ethernet connection.
  • Linux inside.
  • Ideal solution for many applications, including:
    • Digital signage
    • IPTV/SmartTV
    • Hotel TV systems
    • Live broadcast
    • Classrooms - teaching online
    • IP video surveillance
    • Video conference
Video
  • One female HDMI-A port for source connection.
  • Supported resolutions: 720p/1080i/1080p @50/60Hz and below.
  • Codec: H.264/AVC High/Main/Baseline Profile MJPEG/JPEG Baseline
  • Bit rate: 0.1 to 32 Mbps, adjustable
    • Bit rate control: VBR.CBR
  • Frames per second: 5 to 60 FPS
Audio
  • HDMI embedded audio.
  • Sample rates: 44.1 kHz, 48.0 kHz
  • Codec: AAC/AAC+/AAC++/MP3/MP2/AC3 G711
  • Bit rate: 0.1 to 32 Mbps, adjustable
Ethernet Port
  • One female RJ45 connector.
  • 100 Base-T Ethernet interface.
Protocols
  • HTTP, HLS, FLV, RTSP, UDP, RTMPS/RTMP, ONVIF
    • ONVIF: G.711
    • ONVIF Profile S
Dimensions
  • WxDxH: 5.16x6.57x1.14 in (131x167x29
Power
  • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (US AC adapter included).
    • Optional universal power plug adapters available (not included).
  • Output: 12VDC, 1A
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 158°F (-20 to 70°C).
  • Operating and storage relative humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years.
Cables
  • Use HD-xx-MM cable to connect an HDMI video source (not included).
  • Use CAT5e/6 solid or stranded straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Compatible NTI Products
  • Combine NTI's extenders, switches, splitters and cables for complex applications

Application Drawings

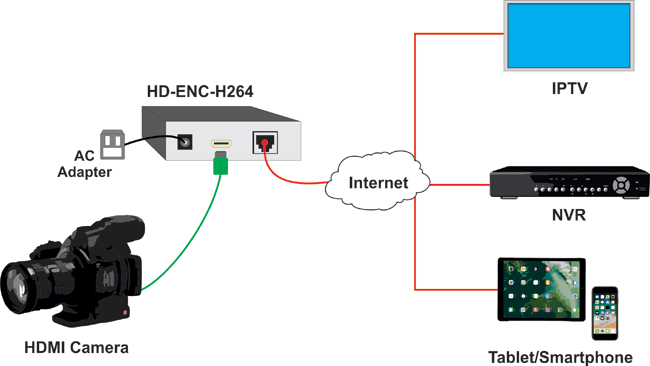

  • H.264 HDMI Video Encoder
    H.264 HDMI Video Encoder

Application Notes

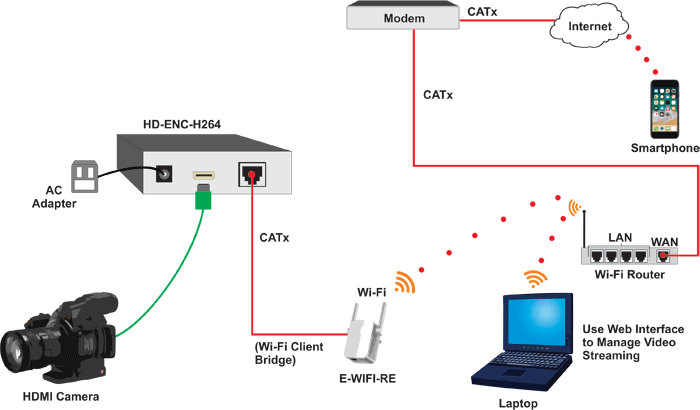

  • How to Manage Video Streaming over WiFi
    How to Manage Video Streaming over WiFi

    To manage video streaming over WiFi, connect E-WIFI-RE WiFi Client Bridge to the Ethernet port on the HD-ENC-H264 H.264 HDMI Video Encoder. The encoder will need to be on the same subnet as the WiFi router.

H.264 HDMI Video Encoder

NTI Part # Description Price Quote Buy
HD-ENC-H264 H.264 HDMI Video Encoder $420.00

Universal Power Plug Adapters

NTI Part # Description Price Quote Buy
PWR-UNVAS3112 Universal AS/NZS 3112 Power Adapter for Australia, New Zealand, China $5.00
PWR-UNVBS1363 Universal BS 1363 Power Adapter for UK, Iraq $5.00
PWR-UNVBS546-D Universal BS 546 Type D Power Adapter for India, Parts of Africa $6.00
PWR-UNVBS546-M Universal BS 546 Type M Power Adapter for South Africa $6.00
PWR-UNVCEI2350 Universal CEI 23-50 Power Adapter for Italy, Uruguay $4.60
PWR-UNVCEE716 Universal Europlug CEE 7/16 Power Adapter for Europe, Russia, UAE $5.00
PWR-UNVCEE77 Universal Schuko CEE 7/7 Power Adapter for Europe $5.50
PWR-UNVSEV1011 Universal SEV 1011 Power Adapter for Switzerland $6.00
PWR-UNVSI32 Universal SI 32 Power Adapter for Israel, Palestine $5.00

HDMI Male-Male Cables

NTI Part # Length Price Quote Buy
HD-3-MM 3 feet $4.50
HD-6-MM 6 feet $6.00
HD-10-MM 10 feet $7.10
HD-15-MM 15 feet $10.50
HD-25-MM 25 feet $16.50
HD-30-MM 30 feet $31.50
HD-50-MM 50 feet $51.00
