Low-Cost 4K 18Gbps HDMI Active Optical Cable – RoHS Compliant

Extend an Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI display up to 100 meters (328 feet)

Low-Cost 4K 18Gbps HDMI Active Optical Cable – RoHS Compliant
XTENDEX® HD4K18GB-FO-xxM-MMLC

Additional Images

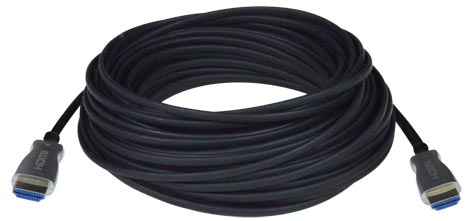

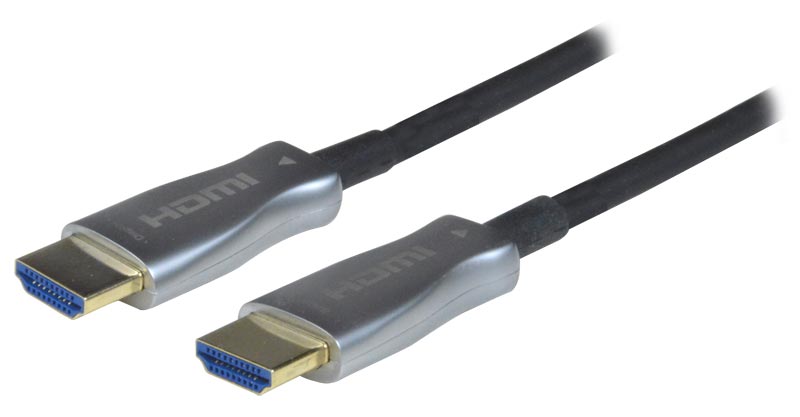

  • HD4K18GB-FO-xxM-MMLC – Low-Cost 4K 18Gbps HDMI Active Optical Cable

Product Highlights

  • Extend Ultra-HD 4Kx2K 60Hz 4:4:4 to 100 meters
  • 18Gbps bandwidth
  • HDCP 2.2
  • No power supply required

Also Available:

CE/FCC/RoHS-Compliant 4K HDMI Active Optical Cable

  • HDMI Extender for use with Digital Signage

The XTENDEX® Low-Cost 4K HDMI Active Optical Cable locates an Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI display up to 100 meters (328 feet) from a video source. Using optical fiber, the HD4K18GB-FO-xxM-MMLC provides high reliability HDMI signal transmission with zero signal loss in high noise environments.

The XTENDEX® Low-Cost 4K HDMI Active Optical Cable locates an Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI display up to 100 meters (328 feet) from a video source. Using optical fiber, the HD4K18GB-FO-xxM-MMLC provides high reliability HDMI signal transmission with zero signal loss in high noise environments.

  • High speed and long distance transmission by optical system up to 100 meters (328 feet).
    • Hybrid cable containing both fiber optic and copper cores.
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @60Hz YUV 4:4:4, and HDTV resolutions to 1080p @144Hz.
  • No loss of signal – delivering crystal clear digital images instantly.
  • No external power required.
  • HDMI features supported:
    • HDMI 2.0
    • Up to 16-bit Color and 48-bit Deep Color
    • YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0, and RGB
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS Dolby, and LPCM 7.1.
    • Bandwidth up to 18Gbps
    • Supports ARC, HDR, and CEC
    • 3D
    • Lip Sync
  • HDCP 2.2 compliant.
  • Optical fibers immune to signal noise.
  • Low RFI/EMI for sensitive applications.
  • Supports Plug-n-Play specification.
  • EDID learning for the support of any HDMI display device.
  • Thin and ultra-lightweight construction.
  • Ideal solution for many applications, including:
    • Digital Signage
    • Medical Imaging Equipment
    • Airplane On-board Video System
    • Home Theater
    • TV Broadcast Station
    • Conference Room Video Equipment
  • These cables are directional. See labeled connector ends.
  • Connectors: Male HDMI Type A connectors.
    • These cables are directional. See labeled connector ends.
  • Resolutions: supports resolutions up to Ultra-HD 4Kx2K 4:4:4 (4096x2160 and 3840x2160) @60Hz, and HDTV to 1080p @144Hz.
  • Supports HDCP 2.2/1.4.
  • Video bandwidth: 18Gbps
  • Cable Diameter: 5.8 mm (0.23 in)
  • Connector Width: 18.7mm (0.74 in)
  • Bend Radius: up to 20mm (0.78 in)
  • Cable construction: 4 fiber cores and 7 copper conductors
  • Cable jacket: PVC
  • Available lengths: 10/15/20/25/30/50/70/100 meters
Environmental
  • Operating temperature: -40 to 158°F (-40 to 70°C).
Regulatory Approvals
  • RoHS
Warranty
  • Two years

Low-Cost 4K 18Gbps HDMI Active Optical Cable – RoHS Compliant

NTI Part # Length Price Quote Buy
HD4K18GB-FO-10M-MMLC 10 meters $100.00
HD4K18GB-FO-15M-MMLC 15 meters $110.00
HD4K18GB-FO-20M-MMLC 20 meters $120.00
HD4K18GB-FO-25M-MMLC 25 meters $125.00
HD4K18GB-FO-30M-MMLC 30 meters $135.00
HD4K18GB-FO-50M-MMLC 50 meters $175.00
HD4K18GB-FO-70M-MMLC 70 meters $215.00
HD4K18GB-FO-100M-MMLC 100 meters $275.00
