4K 18Gbps HDMI Extender via One CAT6/6a/7: Extend up to 197 feet

Extend an Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI display up to 197 feet away from the source.

4K 18Gbps HDMI Extender via One CAT6/6a/7: Extend up to 197 feet
ST-C64K18GB-197 (Remote & Local Unit)

Product Highlights

  • Resolutions to Ultra-HD 4Kx2K 60Hz 4:4:4
  • 18Gbps bandwidth
  • HDMI 2.0
  • Only one power supply required
  • Digital Signage

Additional Images

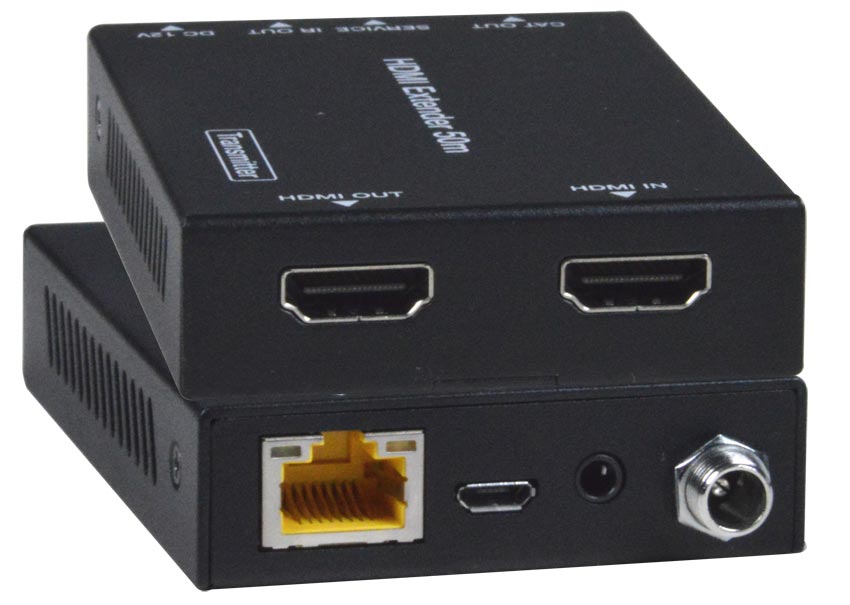

  • ST-C64K18GB-197 – Local Unit

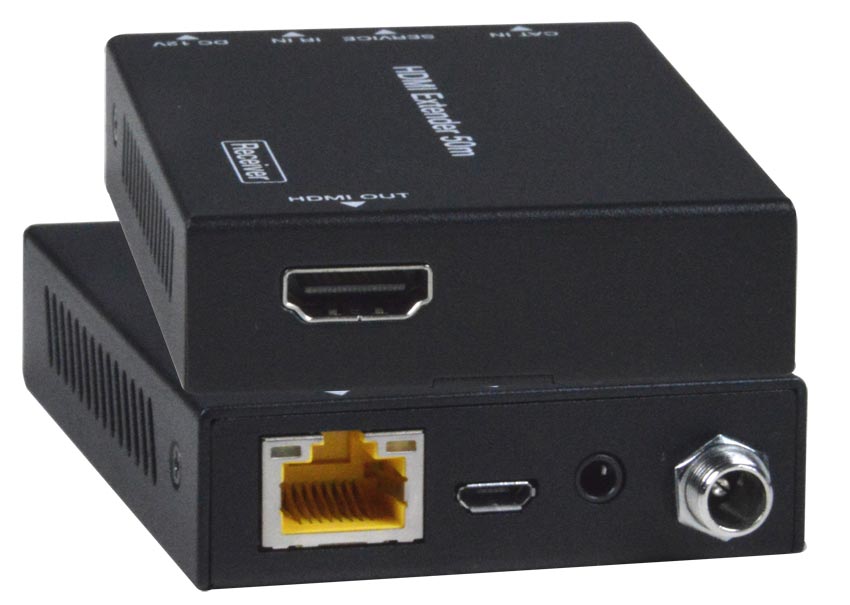

  • ST-C64K18GB-197 – Remote Unit

The XTENDEX® 4K 18Gbps HDMI Extender transmits digital Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI video and audio signals up to 197 feet (60 meters) using one CAT6/6a/7 cable. Each video extender consists of a local unit that connects to an HDMI source and also supplies video to a local HDMI monitor; and a remote unit that connects to an HDMI display.

The XTENDEX® 4K 18Gbps HDMI Extender transmits digital Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI video and audio signals up to 197 feet (60 meters) using one CAT6/6a/7 cable. Each video extender consists of a local unit that connects to an HDMI source and also supplies video to a local HDMI monitor; and a remote unit that connects to an HDMI display.

  • Transmits an HDMI signal over a single CAT6/6a/7 cable.
  • Supports resolutions up to Ultra-HD 4Kx2K 3840x2160 @60Hz YUV 4:4:4.
    • Refer to the resolution chart in the specifications section for resolutions using different CATx cable types and lengths.
  • HDCP 2.2 compliant.
  • HDMI features supported:
    • HDMI 2.0 compliant.
    • Up to 36-bit Deep Color
    • LPCM, Dolby Digital, and DTS
    • RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
    • Bandwidth up to 18 Gbps
    • 3D
    • HDR
  • Supports local and remote HDMI displays.
  • Only one power supply is necessary to power both the local and remote units.
  • Automatic EDID copy function.
  • Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control.
Local Unit
  • Host Connection
    • Compatible with a computer or HDTV video source with HDMI output.
    • One female HDMI connector.
    • One female RJ45 port for sending high definition video/audio signals.
    • One female 3.5mm port for IR emitter (included).
    • Supports HDCP 2.2.
  • Local Access
    • Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 @60Hz 4:4:4).
    • One female HDMI connector for local HDMI display.
Remote Unit
  • One female HDMI connector for display.
  • One female RJ45 port for receiving high definition video/audio signals.
  • Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 @60Hz 4:4:4).
  • One female 3.5mm port for IR receiver (included).
Power
  • Powered from a single power supply attached to either the local or remote unit.
  • Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter.
  • Output: 12 VDC, 1A
  • Power consumption: 4.44W
Dimensions
  • WxDxH (in): 2.4x3.46x0.71 (61x88x18 mm)
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and storage relative humidity: 20 to 90% non-condensing RH.
Max Distance
  • Extend a 4K@60Hz signal up to 197 feet (60 meters) with solid CAT6/6a/7 cable and 100 feet (30 meters) with solid CAT5e cable.
  • Extend a 4K@30Hz and 1080p@60Hz signal up to 230 feet (70 meters) with solid CAT6/6a/7 cable and 164 feet (50 meters) with solid CAT5e cable.

Distances and Resolutions for CAT5e/6/6a/7 Cables
Cable Distance Maximum Resolution
CAT5e 100 feet
(30 meters)
3840x2160 at 60Hz, 4:4:4
164 feet
(50 meters)
3840x2160 at 30Hz. 4:4:4
1080p at 60Hz
CAT6/6a/7 197 feet
(60 meters)
3840x2160 at 60Hz, 4:4:4
230 feet
(70 meters)
3840x2160 at 30Hz, 4:4:4
1080p at 60Hz
Cables
  • Interface cables between the video source/displays and the transmitter/receiver are required for proper operation.
    • Supports cable lengths to 20 feet for 4K@60Hz resolutions, lengths to 30 feet for 4K@30Hz resolutions, and lengths to 50 feet for 1080p@60Hz using passive HDMI cables.
    • Longer input cables can be used provided they have a built-in video equalizer (also known as "active HDMI cables").
  • Use HD-xx-MM cable to connect an HDMI source or display (not included).
  • Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display (not included).
    • HD-ACT-20/25/30/40/50-MM supports resolutions to 4K@60Hz.
    • HD-ACT-60/75/100-MM supports resolutions to 4K@30Hz.
  • DVI-HD-xM-MM to connect a DVI source or display (not included).
    • Supports resolutions to 1080p@60Hz.
  • Use CAT5e/6/6a/7 solid straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Warranty
  • Two years
Package Includes
  • One transmitter unit
  • One receiver unit
  • One IR emitter extension cable
  • One IR receiver extension cable
  • One locking power supply
  • User manual

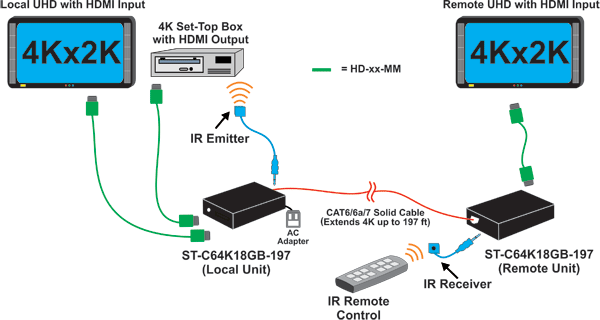

Application Drawings

  • Extend an Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI display up to 197 feet away from the source
    4K 18Gbps HDMI Extender via One CAT6/6a/7, Extend up to 197 feet

4K 18Gbps HDMI Extender via One CAT6/6a/7

NTI Part # Description Price Quote Buy
ST-C64K18GB-197 4K 18Gbps HDMI Extender via One CAT6/6a/7: Extend up to 197 feet $195.00

HDMI Male-Male Cables

NTI Part # Length Max Resolution Price Quote Buy
HD-3-MM 3 feet 4K@60Hz $4.50
HD-6-MM 6 feet 4K@60Hz $6.00
HD-10-MM 10 feet 4K@60Hz $7.10
HD-15-MM 15 feet 4K@60Hz $10.50
HD-25-MM 25 feet 4K@30Hz $16.50
HD-30-MM 30 feet 4K@30Hz $31.50
HD-50-MM 50 feet 1080p@60Hz $51.00

4K HDMI Active Cable, Male to Male, Built-In Signal Booster

NTI Part # Length Max Resolution Price Quote Buy
HD-ACT-20-MM 20 feet 4K@60Hz $47.00
HD-ACT-25-MM 25 feet 4K@60Hz $57.00
HD-ACT-30-MM 30 feet 4K@60Hz $67.00
HD-ACT-40-MM 40 feet 4K@60Hz $78.00
HD-ACT-50-MM 50 feet 4K@60Hz $103.00
HD-ACT-60-MM 60 feet 4K@60Hz $110.50
HD-ACT-75-MM 75 feet 4K@30Hz $134.00
HD-ACT-100-MM 100 feet 4K@30Hz $159.00

DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Max Resolution Price Quote Buy
DVI-HD-1M-MM 1 meter 1080p@60Hz $4.30
DVI-HD-2M-MM 2 meter 1080p@60Hz $8.00
DVI-HD-3M-MM 3 meter 1080p@60Hz $10.00
DVI-HD-5M-MM 5 meter 1080p@60Hz $11.00
