8K DisplayPort 1.4 Plenum Active Optical Cable

Extend an Ultra-HD 8K 4320p 60Hz DisplayPort display up to 100 meters (328 feet)

4K HDMI Active Optical Cable
XTENDEX® DP8K-FOCMP-20M-MM

Additional Images

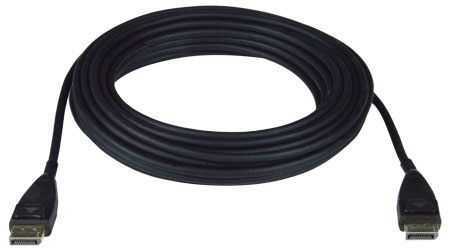

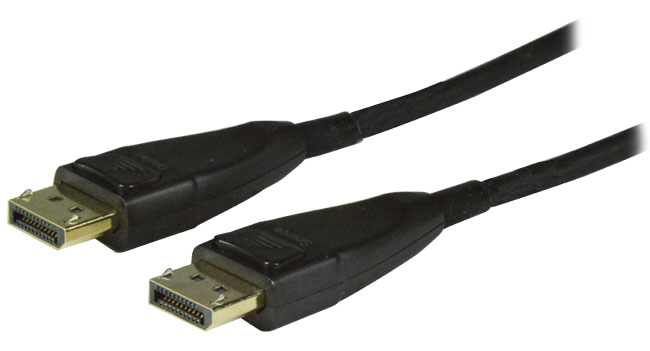

  • DP8K-FOCMP-20M-MM – 8K DisplayPort 1.4 Plenum Active Optical Cable

Product Highlights

  • Extend Ultra-HD 8K 4320p 60Hz to 100 meters
  • 32Gbps bandwidth
  • HDCP 2.2
  • Plenum CMP-rated
  • HDMI Extender for use with Digital Signage

The XTENDEX® 8K DisplayPort Plenum Active Optical Cable locates an Ultra-HD 8K 4320p 60Hz DisplayPort display up to 100 meters (328 feet) from a video source. Using optical fiber, the DP8K-FOCMP-xxM-MM provides high reliability DisplayPort signal transmission with zero signal loss in high noise environments.

The XTENDEX® 8K DisplayPort Plenum Active Optical Cable locates an Ultra-HD 8K 4320p 60Hz DisplayPort display up to 100 meters (328 feet) from a video source. Using optical fiber, the DP8K-FOCMP-xxM-MM provides high reliability DisplayPort signal transmission with zero signal loss in high noise environments.

  • High speed and long distance transmission by optical system up to 100 meters (328 feet).
    • Hybrid cable containing both fiber optic and copper cores.
  • Supports resolutions up to Ultra-HD 8K (7680x4320) @60Hz, 4Kx2K (4096x2160 and 3840x2160) @120Hz, and HDTV 1080p @240Hz.
  • No loss of signal – delivering crystal clear digital images instantly.
  • No external power required.
  • DisplayPort features supported:
    • DisplayPort 1.4
    • Up to 16-bit Color and 48-bit Deep Color
    • BT.2020, YCbCr 4:4:4, and YCbCr 4:2:2
    • High-bandwidth HBR3
      • Bandwidth up to 8.1Gbps per channel (32.4Gbps total)
    • DSC 1.2 display stream compression
    • FEC forward error correction
    • HDR
    • 32 audio channels.
  • HDCP 2.2 compliant.
  • Optical fibers immune to signal noise.
  • Low RFI/EMI for sensitive applications.
  • Supports Plug-n-Play specification.
  • EDID learning for the support of any DisplayPort display device.
  • Thin and ultra-lightweight construction.
  • CMP-rated flame-retardant plenum PVC jacket.
  • Ideal solution for many applications, including:
    • Digital Signage
    • Medical Imaging Equipment
    • Airplane On-board Video System
    • Home Theater
    • TV Broadcast Station
    • Conference Room Video Equipment
  • Connectors: Male DisplayPort connectors.
  • Resolutions: supports resolutions up to Ultra-HD 8K (7680x4320) @60Hz, 4Kx2K (4096x2160 and 3840x2160) @120Hz, and HDTV 1080p @240Hz.
  • Supports HDCP 2.2/1.4
  • Video bandwidth: 8.1Gbps per channel (32.4Gbps total)
  • Cable Diameter: 4.8mm (0.189 in)
  • Connector Width: 21mm (0.827 in)
  • Bend Radius: up to 48mm (1.89 in)
  • CMP-rated flame-retardant plenum PVC jacket.
  • Available lengths: 10/15/20/25/30/50/70/100 meters
  • Use two cables in parallel to support Dell Ultra Sharp UP3218K 8K monitor.
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C)
  • Storage temperature: -4 to 185°F (-20 to 85°C).
  • Operating and storage humidity: 5% to 85% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years

Testimonials

  • "These DisplayPort Plenum Active Optical Cables worked exactly as expected. We will definitely keep NTI in mind for all future applications where we can fully utilize the capability of 8K video."

    Ron L.
    Spitz Inc
    Chadds Ford, PA

8K DisplayPort 1.4 Plenum Active Optical Cable

NTI Part # Length Price Quote Buy
DP8K-FOCMP-10M-MM 10 meters $325.00
DP8K-FOCMP-15M-MM 15 meters $345.00
DP8K-FOCMP-20M-MM 20 meters $360.00
DP8K-FOCMP-25M-MM 25 meters $380.00
DP8K-FOCMP-30M-MM 30 meters $400.00
DP8K-FOCMP-50M-MM 50 meters $495.00
DP8K-FOCMP-70M-MM 70 meters $570.00
DP8K-FOCMP-100M-MM 100 meters $700.00
