Clearance: Environment Monitoring System Access Control

Access Control Systems & Accessories compatible with E-2D, E-5D and E-16D

Limited stock. All sales final on clearance items.

Access Control

RFID Access Control Keypads

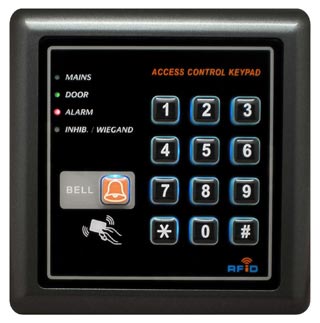

RFID Access Control Keypad
E-ACKR-CLR
  • E-ACKR-WDB-CLR - Weatherproof RFID Access Control Keypad, Dual + Bell Relay Outputs.
  • E-RFID-KYFB10 - Additional RFID EM Keyfobs for E-ACKR or E-ACKR-WDB.

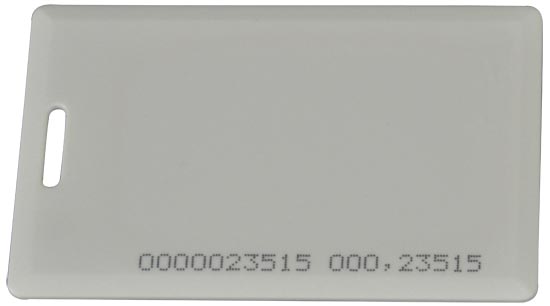

  • E-RFID-CRD10 - Additional RFID EM Cards for E-ACKR or E-ACKR-WDB.
  • Outputs controlled by user codes and/or EM cards.
    • E-ACKR-WDB-CLR:
      • Output 1: 5 Amp relay for door strike.
      • Output 2: 1 Amp relay for other control applications.
      • Output 3: 24VDC/100 mA sink open collector output for other control applications.
    • E-ACKR-CLR:
      • Output 1: 5 Amp relay for door strike.
      • Output 2: 1 Amp relay for other control applications.
  • Normally closed and normally open dry contacts for all output relays.
  • Operate with fail-safe or fail-secure locking device.
  • Open collector outputs for Duress, Alarm/Key Active and Inter-lock functions.
  • Extremely long programmable timers for output relays.
  • 24 bit standard Wiegand data on reading of EM cards/keyfobs.
  • 34 bit Wiegand data output on user code entry.
  • Door open announcer.
  • LED indicators for operation and system statuses.
  • Door automatically re-locks after valid access to prevent "tailgate entry".
  • E-ACKR-WDB-CLR:
    • One Door Bell relay contact (normally open).
    • Weatherproof (IP-55).
  • 50 visitor codes programmable for one time use or a duration of time.
  • User Codes:
    • E-ACKR-WDB-CLR:
      • Output 1: 1,000 user codes and 50 duress codes.
      • Output 2 & 3: 100 user codes and 10 duress codes each.
    • E-ACKR-CLR:
      • Output 1: 1,000 user codes and 50 duress codes.
      • Output 2: 100 user codes and 10 duress codes.
  • Dual brightness back-lit keyboard.
  • Dimensions (WxDxH) in:
    • E-ACKR-WDB: 4.61x1.10x4.61 (117x28x117 mm)
    • E-ACKR: 2.83x1.70x4.61 (72x43x117 mm)
  • Includes two EM cards and is compatible with all standard 125 Khz proximity EM cards and keyfobs.
    • Additional EM cards (E-RFID-CRD10) and keyfobs (E-RFID-KYFB10) are available in packs of ten.
  • Current consumption: 150mA @ 12VDC.
  • Powered by E-2D/5D/16D.
  • Regulatory approvals: CE.
NTI Part # Description Price Quote Buy
E-ACKR-CLR RFID Access Control Keypad $80.00
$48.00
E-ACKR-WDB-CLR Weatherproof RFID Access Control Keypad, Dual + Bell Relay Outputs $93.00
$53.00
E-RFID-CRD10 RFID EM Cards, 10-Pack $12.00
E-RFID-KYFB10 RFID EM Keyfobs, 10-Pack $14.00
Limited stock. All sales final on clearance items.

Key Station

E-RKS - Key Station
E-RKS-CLR
  • Remote key station designed for security system ON-OFF control applications.
  • Built with universal connection terminals; can be used freely with most security systems.
  • Provides momentary contact with spring return.
  • Standard single gang mounting box.
  • Built-in tamper switch.
  • Built-in connection terminals.
  • For security system and door strike applications.
  • Powered by E-2D/5D/16D.
  • Dimensions WxDxH: 1.7x2.9x4.6 in (43x74x117 mm)
  • Regulatory approvals: RoHS
Downloads & References
NTI Part # Description Price Quote Buy
E-RKS-CLR Remote Key Station $40.00
$25.00
Limited stock. All sales final on clearance items.
