Management Software for Low-Cost Environment Monitoring Systems

Monitor and configure up to 3,000 ENVIROMUX-MICRO-T, ENVIROMUX-MICRO-TRHP, and ENVIROMUX-1W (Coming Soon) units and all connected sensors.


Enviromux Management Software Screen Shot
ENVIROMUX-MNG-LC Environment Monitoring System Management Software

Product Highlights

  • Intuitive graphical user interface software
  • Monitor & configure up to 3,000 units and all connected sensors
  • Push changes to all connected units individually or in a group
  • Display values and status for individual or list of sensors
  • Designed and Manufactured in the U.S.A.

Additional Images

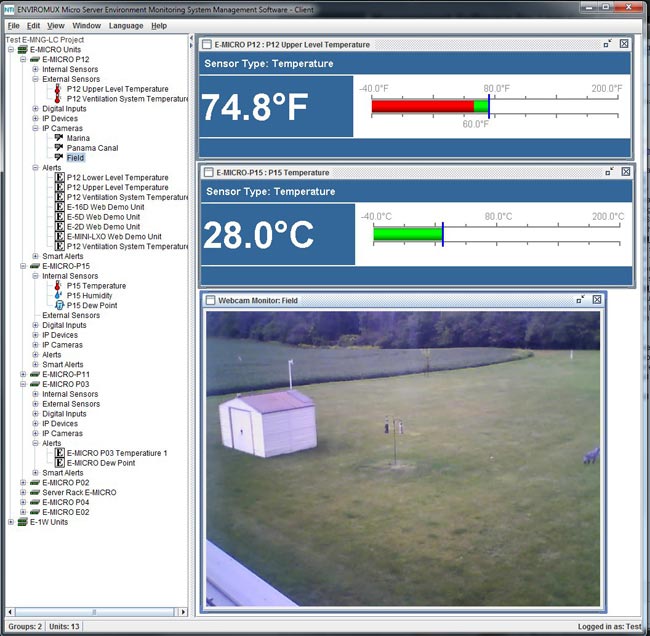

  • ENVIROMUX-MNG-LC: Monitor multiple sensors and IP cameras
  • ENVIROMUX-MNG-LC: View real-time updates for sensor history graph and multiple sensor statuses

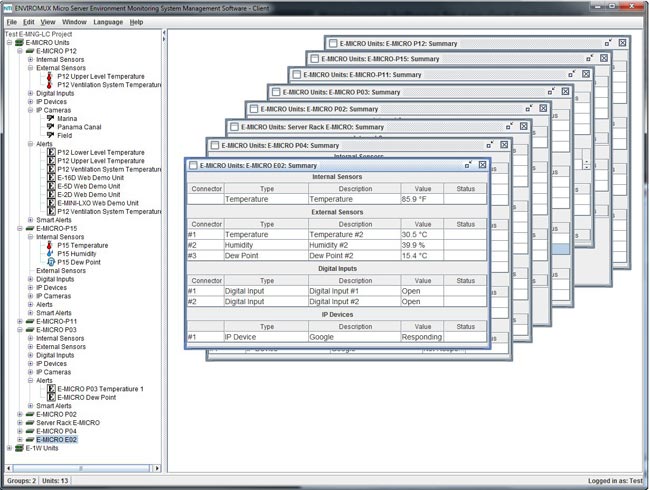

  • ENVIROMUX-MNG-LC: Open summary pages for many ENVIROMUX units at once

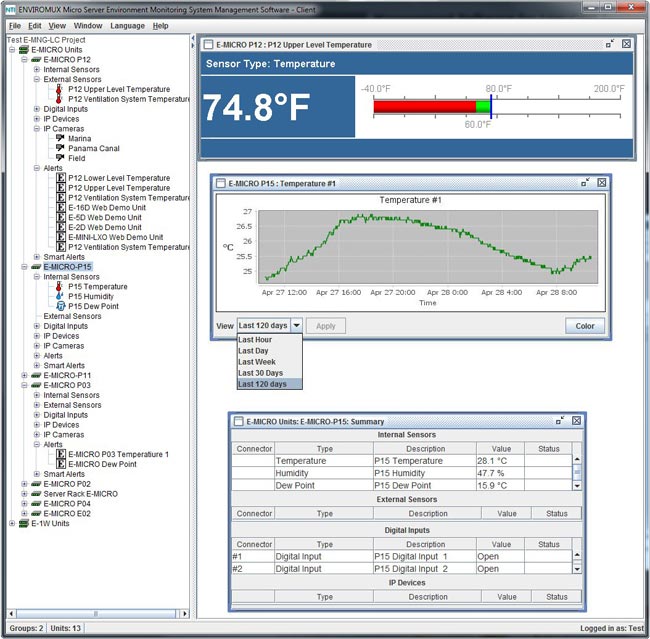

  • ENVIROMUX-MNG-LC: Sensor history graph shows readings from up to the last 120 days

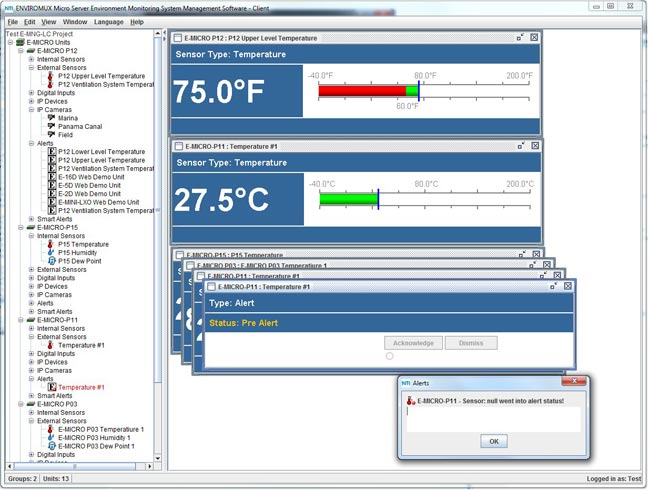

  • ENVIROMUX-MNG-LC: Sensor alerts pop-up even when working in a different program

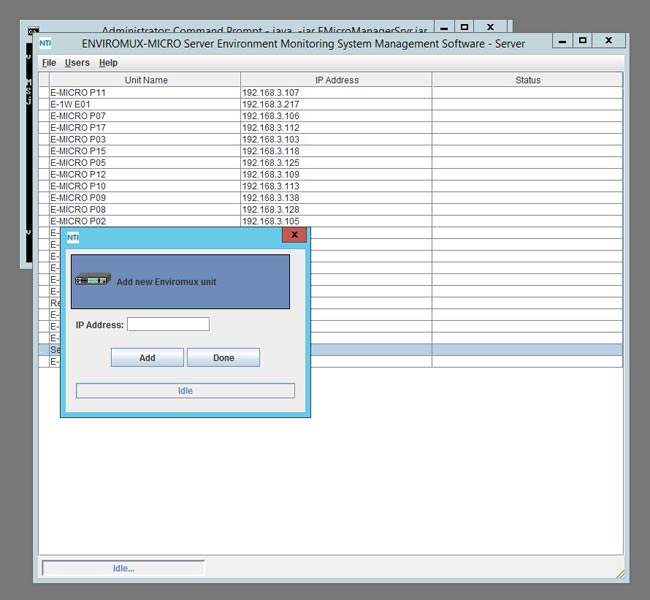

  • ENVIROMUX-MNG-LC: Add new ENVIROMUX units using server application

Optional Management Software for ENVIROMUX-MICRO-T, ENVIROMUX-MICRO-TRHP, and ENVIROMUX-1W (Coming Soon).

Optional Management Software for ENVIROMUX-MICRO-T, ENVIROMUX-MICRO-TRHP, and ENVIROMUX-1W (Coming Soon).


  • Intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX-MICRO-T, ENVIROMUX-MICRO-TRHP, and ENVIROMUX-1W (Coming Soon) units and all connected sensors via Ethernet.
  • Units may be monitored and configured individually or in a group.
    • Changes can be pushed to all units in a group at once.
      • E.g. new users, mail server, network settings, security settings, system settings, etc.
  • Display values and status for individual sensors or list of sensors.

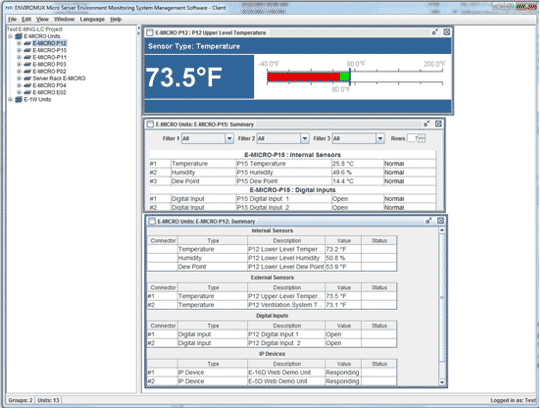

  • Scrolling sensor summary pages can include selected sensors from a specific unit, all units, or a pre-configured group of units.
    • Filter specific sensors from multiple units for close monitoring.
  • Sensor history graph shows readings from up to the last 120 days.
  • Client/server architecture
    • Server application actively polls all units for status information as well as listen for alerts from all units.
    • Client application communicates with the server to read statuses and to deploy configuration changes.
  • Multiplatform support: Windows XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Requires Java Runtime Environment 1.7 or later.
  • NTI will provide customer, without charge, copies of any appropriate updates/enhancements for 12 months. This software update service is optionally extendable every twelve months for 20% of list price.
Request Server/Client Software Evaluation
(Requires ENVIROMUX unit)

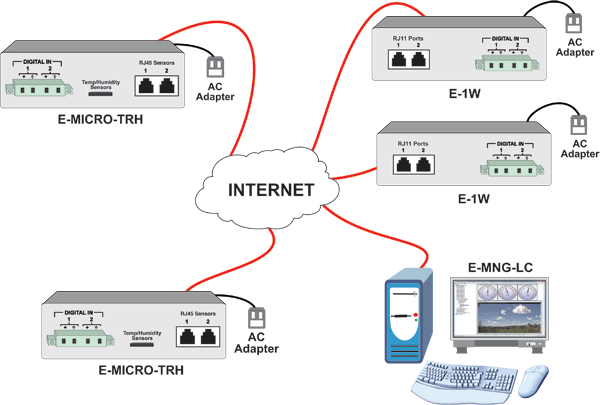

Application Drawings

  • Management Software for Low-Cost Environment Monitoring Systems
    Management Software for Low-Cost Environment Monitoring Systems
    How to monitor and configure up to 3,000 ENVIROMUX-MICRO-T, ENVIROMUX-MICRO-TRHP, and ENVIROMUX-1W (Coming Soon) units and all connected sensors.

Environment Monitoring System Management Software Supports ENVIROMUX-MICRO-T, ENVIROMUX-MICRO-TRHP, ENVIROMUX-1W (Coming Soon)

NTI Part # Description Price Quote Buy
ENVIROMUX-MNG-LC Manage 3000 ENVIROMUX-MICRO-T,
ENVIROMUX-MICRO-TRHP, ENVIROMUX-1W
(Coming Soon) units
$395.00
