HDMI Quad Screen Splitter/Multiviewer

Display real-time video from four HDMI/DVI sources simultaneously on a single display – supports 2K, 1080p and 1920x1200 resolutions

Also known as: 4-port HDMI multivierer, 1080p quad screen splitter, HDTV multi-window signal processor, multi-image presentations, four video sources displayed on one monitor, 4-channel video mixer.

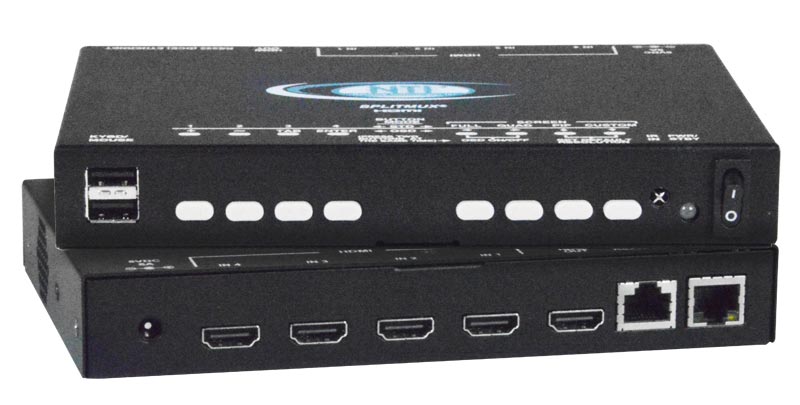

SPLITMUX-HD-4RT (Front & Back)

Product Highlights

  • HDMI & DVI
  • Supports 2K, 1080p & 1920x1200 input/output resolutions.
  • Quad, Picture in Picture, Full Screen, and Custom Display Modes.
  • The size, position & selection of any or all windows are customizable.
  • Zoom, Pan & Crop
  • HDMI - High-Definition Multimedia Interface
  • Designed and Manufactured in the U.S.A.

Additional Images/Videos

  • SPLITMUX HDMI Quad Screen Splitter/Multiviewer - Video
  • SPLITMUX-HD-4RT - HDMI Quad Screen Splitter/Multiviewer

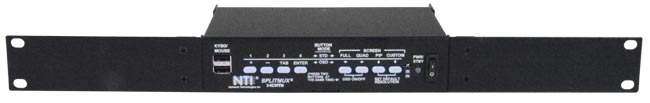

  • SPLITMUX-HD-4RT-R - 1RU Rackmount with the front panel buttons facing the front.

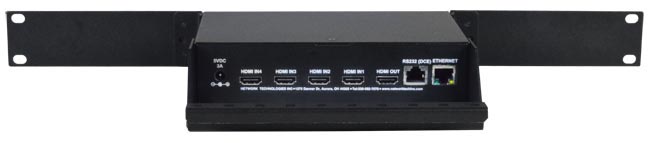

  • SPLITMUX-HD-4RT-R - 1RU Rackmount with cable management tray in the back.

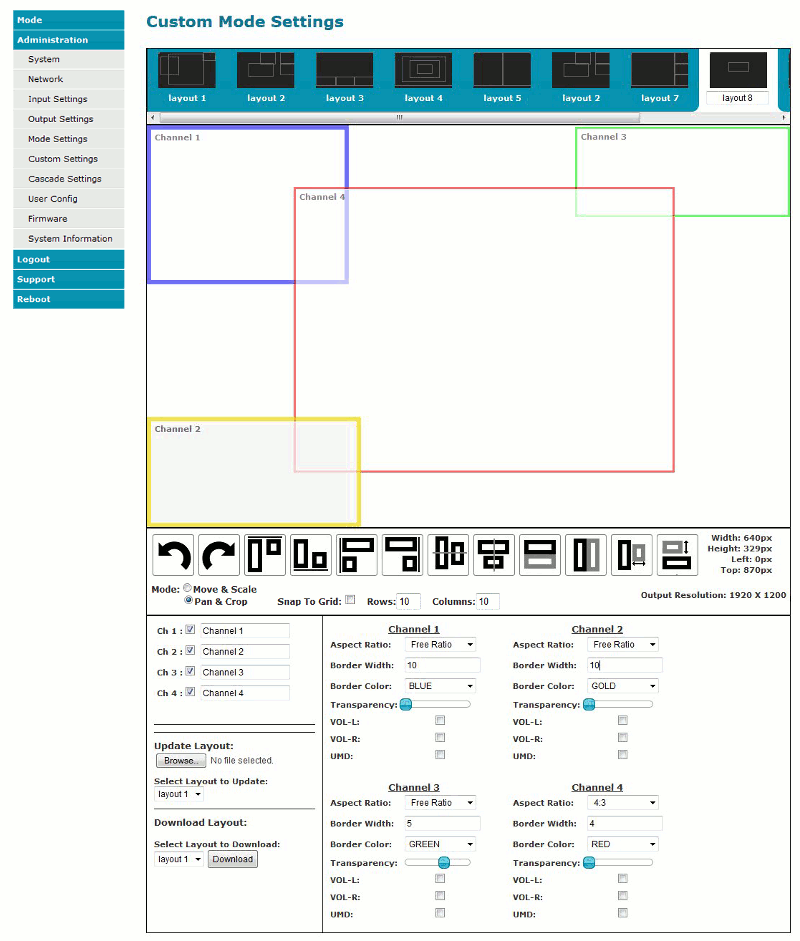

  • Web Interface: Custom Mode Settings – configure settings for each display window

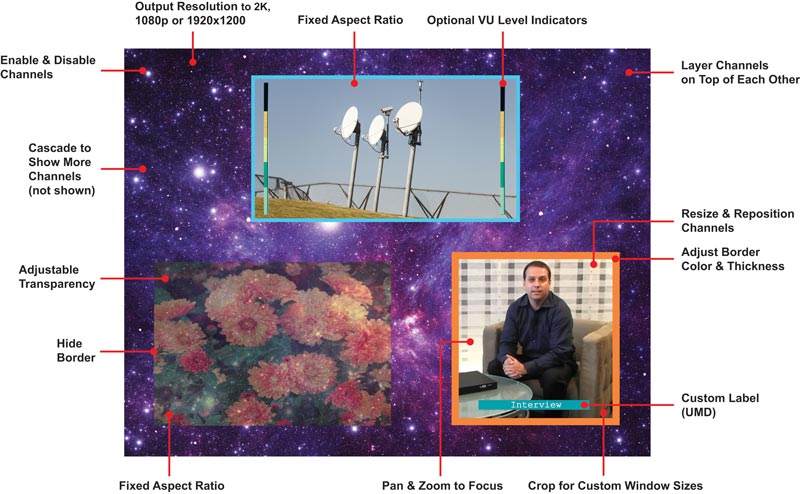

  • SPLITMUX-HD-4RT - Available features and configurations in custom display mode.

The SPLITMUX® HDMI Quad Screen Multiviewer allows you to simultaneously display real-time HDMI/DVI video from two, three, or four different sources on a single monitor. It is capable of displaying the video sources in quad, PiP, full, or custom mode. In custom display mode, each of the quadrants can be adjusted to any size and positioned to any location on the display.

The SPLITMUX® HDMI Quad Screen Multiviewer allows you to simultaneously display real-time HDMI/DVI video from two, three, or four different sources on a single monitor. It is capable of displaying the video sources in quad, PiP, full, or custom mode. In custom display mode, each of the quadrants can be adjusted to any size and positioned to any location on the display.

  • Quad, Picture in Picture, Full Screen, and Custom display modes.
    • Custom Display Mode: the size, position and selection of any or all windows are customizable.
      • 2- and 3-source viewing is possible with this method.
      • Maintain input aspect ratio if desired—no stretching necessary.
      • Layer display windows and adjust transparency of each video source display.
  • Independent video in to video out resolution.
  • Supports 2K resolution 2048x1080, HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
  • HDMI features supported:
    • Inputs: 24-, 30-, and 36-bit xvYCC, sRGB, and YCbCr.
    • Outputs: 24- and 30-bit sRGB.
    • Four-channel non-mixing or one channel mixing stereo with 16-, 20-, or 24-bit uncompressed PCM audio.
    • Bandwidth up to 165 MHz
      • Inputs: 2.25 Gbps
      • Output: 2.0625 Gbps
  • HDCP compliant.
  • Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants.
  • Zoom, pan, and crop the image from any source to focus on key areas.
  • Switch audio independently of video from connected HDMI sources (e.g. source 1 and source 2 video are active while only source 3 audio is active).
    • Multiple audio sources can be simultaneously active in any display mode or preset layout.
    • Adjustable audio gain with VU level indicators for each input channel.
  • A customized text label can be added for each video window to provide easy input identification (UMD).
  • Any DVI source or display can be connected by using the DVI-HD-xx-MM cable (not included).
    • Use DVI-HD-CNVTR DVI + Audio to HDMI Converters to pass and independently switch audio signals to the multiviewer.
  • Control the multiviewer through Ethernet, RS232 serial port, keyboard/mouse commands, on screen display (OSD), front panel buttons, or optional IR remote.
  • Cascade multiviewers to display video from any number of video sources on one screen.
    • Each video source in the cascade can be controlled directly from the Web Server graphical user interface under Custom Mode Settings.
  • Backup and restore multiviewer configurations.
  • Supported output resolutions can be selected or set to auto detect optimal resolution from the monitor's EDID.
  • Available options: desktop unit, 1RU rackmount unit
    • Rackmount units can be mounted so that the front panel buttons are facing the front or back of the rack.
    • Rackmount units include cable management shelf.
Video Input
  • Four female HDMI connectors.
  • Supported video input resolutions:
    • 2K Cinema (2048x1080 @ 60Hz)
    • HDTV resolutions to 1080p
    • Up to 1920x1200 (WUXGA)
  • Supports digital HDMI devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners.
  • Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11.
  • A DVI source can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the multiviewer.
    • Use a video + audio to HDMI video converter to pass embedded HDMI audio into the multiviewer (see Compatible NTI Products below).
  • Supports HDCP 1.2
Video Output
  • One female HDMI connector.
  • Supported video output resolutions:
    • 2K Cinema (2048x1080 @ 60Hz)
    • HDTV resolutions to 1080p
    • Up to 1920x1200 (WUXGA)
  • HDMI-embedded audio switching (four-channel stereo, non-mixing or one-channel stereo, mixing).
  • A DVI display can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the display.
    • Use a video + audio to HDMI video converter to pass embedded HDMI audio into the multiviewer (see Compatible NTI Products below).
  • Supports HDCP 1.2
  • Latency:
    • 50mS at 60Hz
    • 60mS at 50Hz
    • 100mS at 30Hz
    • 120mS at 25Hz
    • 125mS at 24Hz
Devices
  • Two female USB Type A connectors for keyboard and mouse.
  • Keyboard and mouse are hot-pluggable.
Protocols
Power
  • 100 to 240 VAC at 50 or 60Hz via country-specific AC adapter.
  • Power consumption: 10W
Dimensions
  • SPLITMUX-HD-4RT (desktop)
    • WxDxH (in): 7.35x4.98x1.09 (187x126x28 mm)
  • SPLITMUX-HD-4RT-R (1RU rackmount) WxDxH (in):
    • Without rackmount kit: 7.35x4.98x1.75 (187x126x45 mm)
    • With rackmount kit: 19x4.98x1.75 (483x126x45 mm) (excludes cable tray)
  • Can be mounted so that the front panel buttons are facing the front or back of the rack.
  • Includes cable management tray.
    • Adds 3.37" to the depth.
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and storage relative humidity: 5 to 90% non-condensing RH.
Regulatory Approval
  • CE, RoHS.
  • TAA compliant
Compatible NTI Products
  • Combine NTI's video converters, splitters, and extenders for complex applications
    • DVI-D to HDMI Single Link Interface Cable (DVI-HD-xx-MM).
      • The cable does not pass audio to the multiviewer.
    • DisplayPort to HDMI Interface Cables, Male to Male (DP-HD-xx-MM)
    • DVI Matrix Switch (SM-nXm-DVI-LCD)
    • DVI + Digital Audio to HDMI Converter
      (DVI-HD-CNVTR)
    • Composite Video + Audio to HDMI Converter
      (CVA-HD-LC)
    • VGA + Audio to HDMI Converter Cable
      (VGAA-HD-ULC)
    • Low-Cost HDMI Extender via One CAT5e/6
      (ST-C6HD-150-LC)
    • Low-Cost HDMI Over Gigabit IP Extender (ST-IPHD-LC)
    • HDMI HDBase-T Extender via One CAT5e/6 (ST-C6HD-HDBT)
Quad Mode
  • In quad mode, the screen is split into four fields of equal size each displaying the entire contents of four different video sources.
    • Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants.
  • Borders can be set for each image input.
Picture in Picture (PIP) Mode
  • In PIP mode, the full screen display of one of the four video sources is accompanied by one, two, or three small images (thumbnails) of the three other video sources on the right hand margin of the screen allowing simultaneous monitoring.
  • Size, position and selection of the thumbnails are customizable.
  • Scan mode: choose between Off, PiP Scan, or Active Scan.
    • PiP Scan: select "Single", "Double" or "Triple"
      • Single: scans through the non-active channels in a single thumbnail. The channel set as full screen does not change.
      • Double: scans through the non-active channels between two thumbnails. The channel set as full screen does not change.
      • Triple: the full screen image and each of the three thumbnails alternate active channels.
    • Active Scan: the full screen image and each of the three thumbnails alternate active channels.
      • Manual Active Scan: Scanning will be in the order of inputs manually selected for PIP1, PIP2 and PIP3.
      • Auto Active Scan: Scanning will be in consecutive order of HDMI inputs 1 through 4.
  • Borders can be set for each image input.
  • Aspect ratio can be maintained for all outputs.
Full Screen Mode
  • In full screen mode, one of the four video sources is displayed in full screen size and maximum resolution.
  • Scan feature: cycle through four different sources at set intervals.
Custom Mode
  • In Custom mode, each video source is displayed in its own separate, detached window.
  • Size, position and selection of the windows are customizable.
  • Use web server graphical user interface to configure settings for each window.
  • Zoom, pan, and crop the image from any source to focus on key areas.
  • Presets of the window positioning can be saved.
  • Borders can be set for each image input.
  • Display optional Left/Right VU level indicators for each corresponding display window.
  • Chroma Key Setting provides the ability to superimpose elements from one video feed onto another video feed.
  • Configure up to 10 preset layouts that can be switched live at any time.
Front Panel Interface
  • Use front panel buttons to locally change ports or to select a display mode.
Ethernet Control
  • Configuration can be done over the Internet/LAN via Web page or Telnet.
  • Supports Internet Explorer 6.0 or higher, Firefox 2.0 or higher, Opera 9.0, Google Chrome, Safari 4.0 or higher for MAC and PC.
  • Configure and control the settings for the system, network, input, output, and modes.
  • Female RJ45 connector.
  • 10/100 BaseT Ethernet interface.
    • Use NTI's Discovery Tool on a PC or MAC with Java Runtime Environment (version 6 or higher) installed to detect the IP address of a SPLITMUX unit.
    • Web Server (view product demo)
      • Security is ensured by password and user configurable timeout.
      • Up to 16 users can access the web page at one time.
      • The user with administrative privileges can access the following pages:
        • System page: allows configuration of unit, serial port, and OSD settings.
        • Network pages: configure IP and server settings.
        • Inputs page: allows configuration of the four video inputs.
        • Output page: configure the video and audio output parameters.
        • Modes page: allows selection and configuration of the output display mode.
        • Custom page: graphical user interface allows simple configuration of all display windows.
          • Control each video source in a cascade by double clicking on the corresponding video source window.
        • User Config page: add, configure, and view all users.
        • Firmware page: update firmware for the SPLITMUX.
    • Telnet
      • Security is ensured by password.
      • Menu commands are similar to RS232 commands.
      • The telnet server listens on port 2000.
        • Port 2000 is for an operator telnet session.
On Screen Display (OSD)
  • Select display modes and computers with On Screen Display (OSD).
  • Use the front panel buttons or keyboard commands to operate the OSD.
  • Use the front panel buttons to operate the OSD.
  • OSD controls for configuration and control of the system, network, input, output, and display modes.
  • Access to OSD Mode can be limited by an administrator-assigned PIN number.
RS232
  • Configuration and control can be done through the serial port.
    • Female RJ45 connector.
  • Control the multiviewer using the Text Menu via RS232.
  • Selectable baud rate: 1200 to 115,200 bps.
    • Baud rate is set via the front panel interface, serial command, OSD, or web interface.
Infrared Remote Control (Optional)
  • Optional control method.
    • IRT-UNV is sold separately.
  • Routes video and audio signals together or independently.
  • A single IR remote can control up to 15 units (individual or cascaded).
    • Use the "sys" button on the remote followed by the user-configured address of the unit to switch between the units controlled.
  • Transmitter can be up to 30 feet (9.1 meters) away.
  • Power: two AAA batteries (included).
Keyboard/Mouse
  • Use keyboard or mouse commands to select display mode and to select port.

Application Drawings

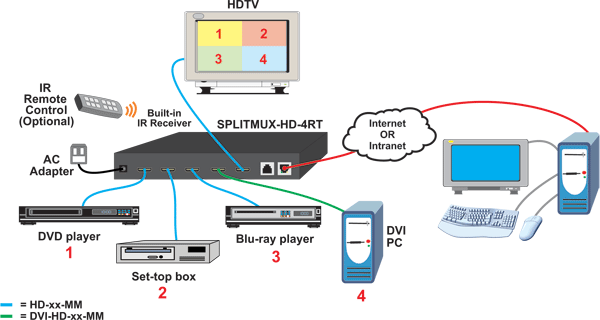

  •  How to Display real-time 1080p video from four HDMI/DVI sources simultaneously on a single display
    How to Display real-time 1080p video from four HDMI/DVI sources simultaneously on a single display

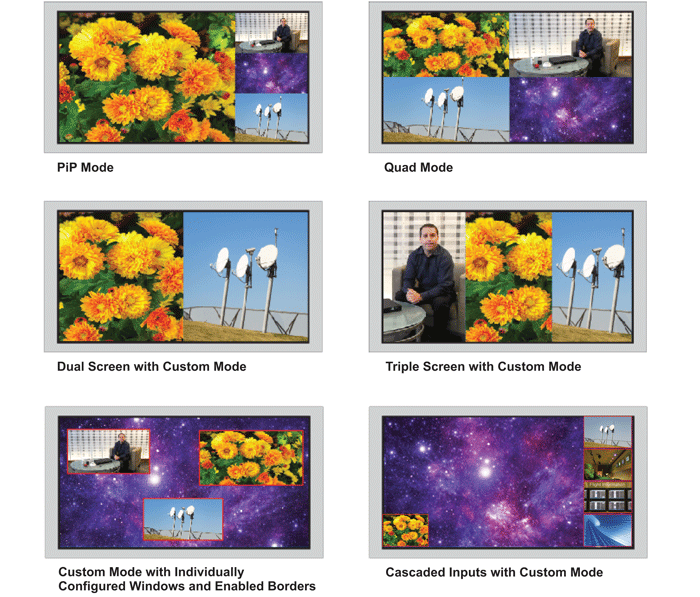

  •  Display Mode Examples
    Display Mode Examples

Application Notes

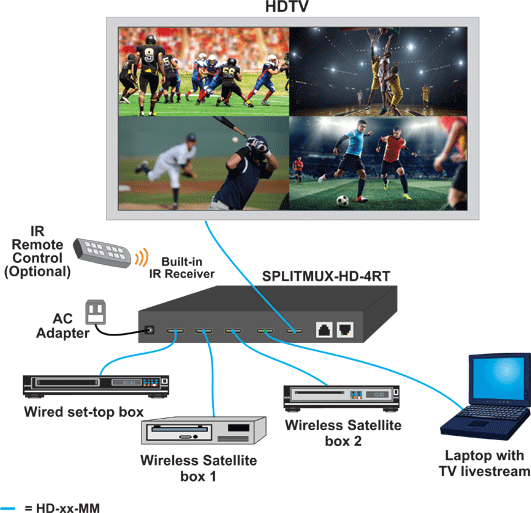

  •   How to Watch 4 Television Programs on a Single TV Screen
    How to Watch 4 Television Programs on a Single TV Screen
    The SPLITMUX-HD-4RT can be used with multiple satellite boxes and computer live streams to allow up to 4 television programs to be displayed on a single television screen. In this example, the four connected sources are a wired set-top box, a laptop with a live streaming TV channel, and two wireless satellite boxes. Audio channels from each source can be independently switched or mixed, i.e. only one audio source or up to four sources can be playing at once. With this configuration, the user can display up to four television programs on one display and selectively choose which audio channels to listen to at any time. To quickly switch between the four audio channels in Quad mode, use the optional IR remote control or the SPLITMUX's front panel buttons.

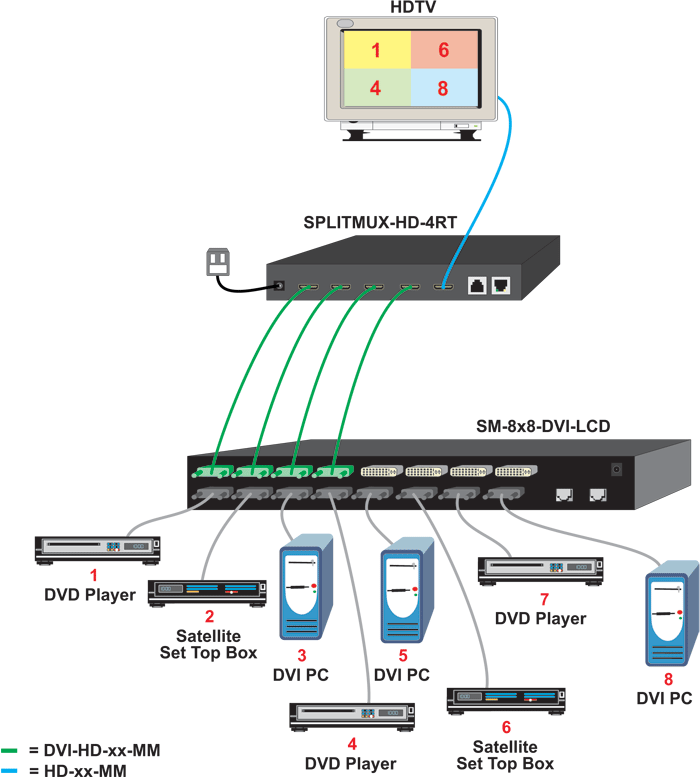

  •   How to Switch up to 32 Inputs into 1 HDMI Multiviewer Output
    Simultaneously Display the Video from the HDMI Multiviewer on 8 Monitors Up to 230ft Away
    The SPLITMUX-HD-4RT can be used with the DVI Matrix Switch (SM-nXm-DVI-LCD) to allow a selection of 4 sources out of up to 32 inputs to be displayed on the multiviewer output. Multiple DVI sources are connected to the input of the DVI Matrix Switch. A DVI to HDMI cable (DVI-HD-xx-MM) cable is required to connect four DVI Matrix Switch outputs to the Multiviewer inputs, and the Multiviewer output is connected to a single display.

    With this configuration, up to 32 DVI sources can be switched to the four Multiviewer inputs that will be displayed on a single monitor. In the diagram example, source 1, 4, 6, and 8 have been switched to feed to DVI Matrix Switch outputs 1-4, and they are displayed in quadrants on the single display.

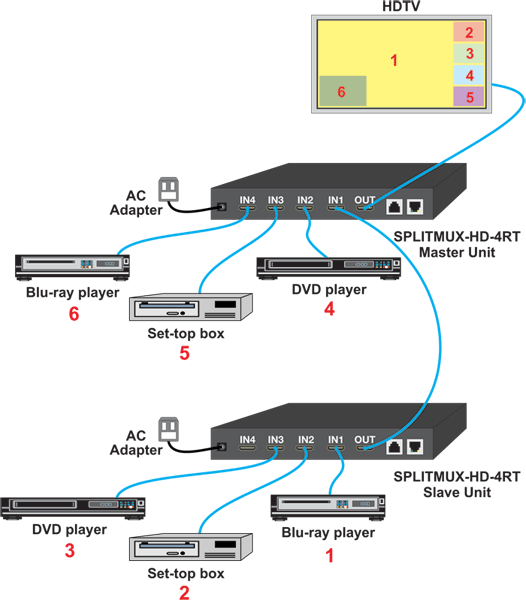

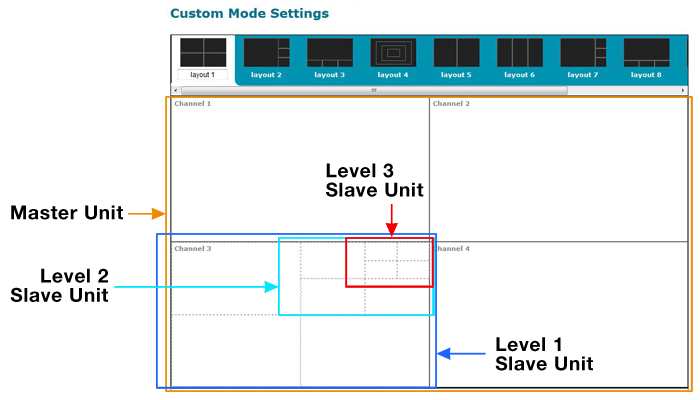

  •   How to Cascade SPLITMUX-HD-4RT and SPLITMUX-C5HDR-4LC
    How to Cascade SPLITMUX-HD-4RT and SPLITMUX-C5HDR-4LC
    The SPLITMUX-HD-4RT and SPLITMUX-C5HDR-4LC can be cascaded together in any combination, with either model as the master and/or slaves in any combination and any number of slave levels. The SPLITMUX-HD-4RT supports Full Screen, PiP, Quad, and Custom modes. The SPLITMUX-C5HDR-4LC supports Full Screen PiP, and Quad modes. Keep both limitations in mind when configuring the desired cascade effect. Cascaded outputs for the SPLITMUX-C5HDR-4LC can be extended using the remote unit as long as the combined CAT6/6a/7 cable length between all levels of the cascade does not exceed 250 feet.

    In this example, the SPLITMUX-HD-4RT is the master unit, and the four slaves are SPLITMUX-C5HDR-4LC units. Slave 1 and 2 are configured as Full Screen mode, Slave 3 as PiP mode, and Slave 4 as Quad mode. Input/Slave 1 is also extended up to 250 feet using a single CAT6/6a/7 cable. Using Custom Mode on the master unit, the following inputs are configured as below:

    Input/Slave 1:
      - Background image
      - Red border

    Input/Slave 2:
      - Vertical image using adjusted aspect ratio
      - Blue border

    Input/Slave 3:
      - Windowed image (Quad image)
      - Green border

    Input/Slave 4:
      - Overlapping windowed image (PiP image)
      - Yellow border

    Note: SPLITMUX-C5HDR-4LC is not TAA or HDCP compliant.

    Below are the configuration limitations for a cascade set-up

    Master Slaves How to Configure
    SPLITMUX-HD-4RTSPLITMUX-C5HDR-4LC Individually
    SPLITMUX-C5HDR-4LCSPLITMUX-HD-4RT Individually
    SPLITMUX-HD-4RTSPLITMUX-HD-4RT,
    SPLITMUX-C5HDR-4LC
    All connected SPLITMUX-HD-4RT can be adjusted via the master's Custom Mode in Web Interface as long as there is a chain link; all connected SPLITMUX-C5HDR-4LC must be configured individually
    SPLITMUX-C5HDR-4LCSPLITMUX-HD-4RT,
    SPLITMUX-C5HDR-4LC
    Individually
  •  How to Zoom, Pan, & Crop the Image from Any Video Source
    How to Zoom, Pan, & Crop the Image from Any Video Source
    The SPLITMUX-HD-4RT can zoom, pan and crop each individual video input in Custom Mode. Users can choose between the 'Move & Scale' or 'Pan & Crop' editing modes.

    In the 'Move & Scale' mode, the display position can be dragged, and the image can be scaled or stretched. If the aspect ratio is set to 'Fixed Ratio,' the aspect ratio of the input is preserved to prevent distortion when scaling. Each channel also has a zoom bar that can be dragged to the right to focus on the selected area.

    In the 'Pan & Crop' mode, the actual image area can be cropped to a custom window size while maintaining the image aspect ratio, and its position can be panned within the cropped area.

    Note: the Pan feature can only be used when an input source is connected and the image is cropped or zoomed. Each image can only be panned to the border of the full scaled image.

    Zoom: enlarge the view of the source within the window frame
    Pan: click and drag the image to bring the preferred area of focus into view after zooming or cropping
    Crop: bring in the window border to hide unwanted sections of the image
    Scale with Fixed Aspect Ratio: enlarge or shrink image size while retaining source image aspect ratio
    Scale with Free Ratio: enlarge or shrink image size with no image proportion restrictions
  •  How to Cascade Units & Freely Display More than 4 Sources on 1 Screen
    How to Cascade Units & Freely Display More than 4 Sources on 1 Screen
    Cascade any number of SPLITMUX units, with one as the master unit and the others as slaves. A slave can also have slaves, and the SPLITMUX supports any number of slave levels. After connecting the slave to the master unit, configure the cascade using the Cascade Settings page on the Web Interface. Then, once connection has been established, use Custom Mode to configure the master and slave inputs as desired. Simply double click on a slave window display to access the video configuration for the slave unit. If a source image is desired as a background image, it is recommended to connect the source to the lowest level slave unit.

    In this example, two units are configured in a master and slave cascade. We have source 1 as the background image, and source 2-3 as overlaying windowed displays in Custom mode for the slave unit. The remaining sources 4-6 are connected to the master unit, using Custom mode to configure each display window. To have the slave input as a background image, configure the corresponding video input as a full screen image in Custom mode, and sources 4-6 as windowed displays.

    Notes:
    1. If there is no input for a channel, its window will be white.
    2. If no layering is required, the order of inputs is inconsequential.
    3. If layering is pertinent to the display desired, it is recommended to connect the back layers to a slave unit and the front layers to a master unit.
  •  How to Configure and Access Slave Units in a Cascade Setup
    How to Configure and Access Slave Units in a Cascade Setup
    Any number of SPLITMUX units can be cascaded, and it supports any number of slave levels. After connecting the slaves to the master unit or slave levels, establish the cascade connection using the Cascade Settings page on the Web Interface. Then, once connection has been established, when viewing Custom Mode from the Master unit, all slave display windows will be shown. Simply double click on the corresponding slave display window to access a slave unit's settings and configure any changes in display settings.
  • "We are using the SPLITMUX-HD-4RT device for 2 cropped video streams for patient feedback. It works well for our needs and we will purchase more."

    Brian M.
    Banner Health
    Tuscon, AZ

  • "We are using the SPLITMUX-HD-4RT-M to view HDMI inputs from a surgical operating microscope. I like that it is small, user friendly, and also the added feature of custom mode that allows us to freely position any of the video sources on our display."

    Bobby N.
    Kingston Endodontics
    Ontario, Canada

  • "We like the ability to adjust the output size of the video signal to accurately fit required dimensions. This allows us to overlay live TV to our customer ticket call screens. I would recommend the SPLITMUX-HD-4RT multiviewer to others that need a similar solution."

    Chris M.
    CXM Solutions
    Old Fort, NC

HDMI Quad Screen Splitter/Multiviewer

NTI Part # Description Price Quote Buy
SPLITMUX-HD-4RT HDMI Quad Screen Multiviewer, Desktop $1,740.00
SPLITMUX-HD-4RT-R HDMI Quad Screen Multiviewer, 1RU Rackmount $1,760.00

Infrared Remote Control

NTI Part # Description Price Quote Buy
IRT-UNV Infrared Remote Control $25.00

HDMI Male-Male Cables

NTI Part # Length Price Quote Buy
HD-3-MM 3 feet $4.50
HD-6-MM 6 feet $6.00
HD-10-MM 10 feet $7.10
HD-15-MM 15 feet $10.50
HD-25-MM 25 feet $16.50
HD-30-MM 30 feet $31.50
HD-50-MM 50 feet $51.00

DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Price Quote Buy
DVI-HD-1M-MM 1 meter $4.30
DVI-HD-2M-MM 2 meter $8.00
DVI-HD-3M-MM 3 meter $10.00
DVI-HD-5M-MM 5 meter $11.00

DisplayPort to HDMI Interface Cables, Male to Male

NTI Part # Length Price Quote Buy
DP-HD-3-MM 3 feet $14.25
DP-HD-6-MM 6 feet $15.45
DP-HD-10-MM 10 feet $18.00
DP-HD-15-MM15 feet $20.10

Video Converters

NTI Part # Description Price Quote Buy
DVI-HD-CNVTR DVI to HDMI Converter $225.00
CVA-HD-LC Low-Cost Composite Video + Audio to HDMI Converter $35.00
VGAA-HD-ULC VGA + Audio to HDMI Converter Cable $34.00
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
