Rackmount DVI USB + PS/2 KVM Drawer, up to 1920x1200 Resolution

DVI USB + PS/2 KVM Drawer provides space-saving convenient control

Also known as: dvi kvm drawer, rack mount USB PS/2 keyboard drawer, rack mount kvm drawer, DVI console drawer, keyboard monitor touchpad mouse drawer, KVM drawers, keyboard LCD drawer, folding monitor.

Rackmount DVI USB + PS/2 KVM Drawer with numeric keypad

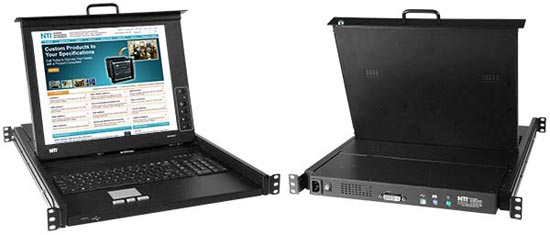

RACKMUX-D17-N (Front & Back)

Additional Images

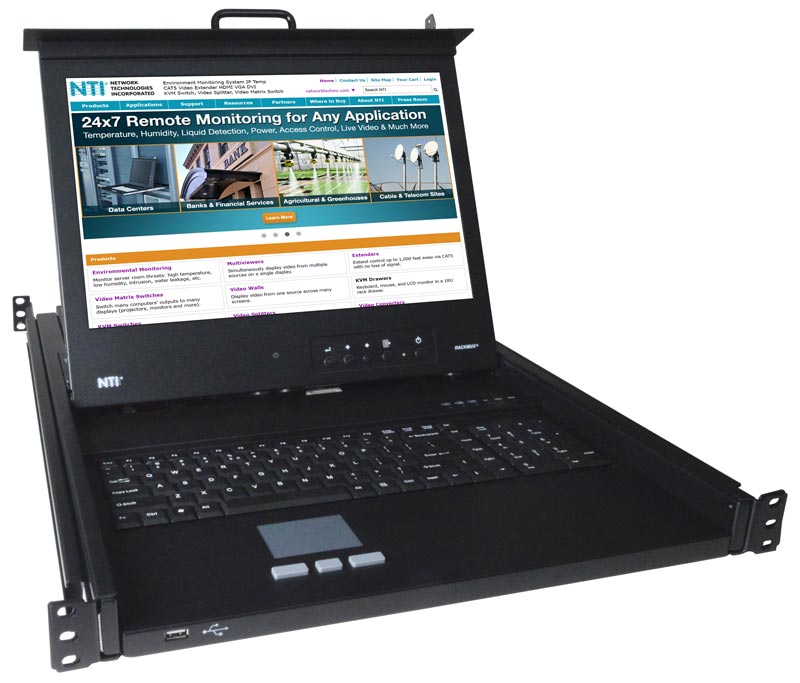

  • RACKMUX-D17HR-N - Optional Hi-Res Rackmount DVI USB + PS/2 KVM Drawer

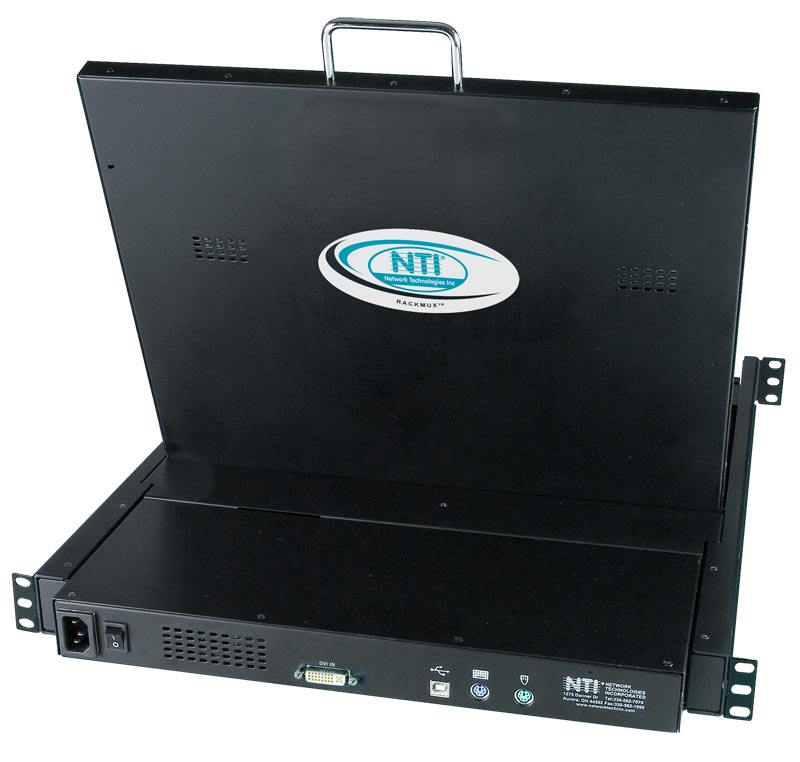

  • RACKMUX-D17HR-N (back) - Rackmount DVI USB + PS/2 KVM Drawer

Product Highlights

  • Single-Person Installation
  • Optional Hi-Res 1920x1200 17.1" LCD
  • Designed and Manufactured in the U.S.A.

The RACKMUX® DVI USB + PS/2 KVM Drawer combines a rackmount LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial strength drawer.

The RACKMUX® DVI USB + PS/2 KVM Drawer combines a rackmount LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial strength drawer.

  • Available with 17" Active Matrix LCD DVI flat panel monitor.
    • Optional hi-res 1920x1200 17.1" monitor available
    • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
  • Compatible with DVI-enabled USB and PS/2 computers.
  • Torque-friction hinges-monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • Three-button touchpad mouse supports single-finger gestures.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Available with optional mounting bracket for two-post style telco rack.
  • Rugged steel construction with durable powder coat finish.
  • LCD auto-shutoff in closed position.
  • Internal cable arm provides proper cable management for sliding the drawer open and closed.
  • Equipped with On Screen Display (OSD).
  • Designed to be a one-person job when installing the drawer.
  • Front panel security lock.
  • Front panel USB port to connect an external USB device, such as a flash drive.
  • Available with optional 24VDC power.
Host Interface
  • Compatible with PS/2, UNIX and USB-enabled computers.
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12.
  • One female DVI-D, one female USB Type B, and two female 6-pin minDIN connectors.
  • Use with NTI Multi-Platform KVM Switches to control multiple PC, SUN and MAC computers.
Monitor
  • Forward-folding 17" (432 mm) Active Matrix LCD DVI flat panel monitor.
  • Resolution:
    • RACKMUX-D17-N: 1280x1024
    • RACKMUX-D17HR-N(-24V): 1920x1200
  • Tilt: up to 120°.
  • Frequency:
    • RACKMUX-D17-N:
      • Horzontal: 31 to 80 KHz
      • Vertical: 55 to 76 Hz.
    • RACKMUX-D17HR-N(-24V)
      • Horizontal: 30 to 80 KHz
      • Vertical: 56 to 75 KHz
  • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
  • Brightness:
    • RACKMUX-D17-N: 300 nits
    • RACKMUX-D17HR-N(-24V): 275 nits
  • Contrast Ratio:
    • RACKMUX-D17-N: 500: 1
    • RACKMUX-D17HR-N(-24V): 800: 1
  • Supports DDC1 and DDC2B protocols.
Devices
  • Keyboard available in: English (US).
    • RACKMUX-D17-N, RACKMUX-D17HR-N(-24V): 100-key (US) with numeric keypad
  • Three button touchpad mouse.
    • Supports single-finger gestures.
  • Front panel USB 1.1 port to connect external USB devices.
    • Female USB Type A connector.
    • KVM drawer must be connected to a USB-enabled computer.
Cables
  • 6.5 foot (2 meters) DVI-D male to male single link cable.
  • 6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
  • 6-foot (1.8-meter) power supply cable included.
Power
  • RACKMUX-D17-N, RACKMUX-D17HR-N
    • 100 to 240 VAC at 50 or 60 Hz via IEC connector.
    • Power Consumption: 30 W
    • Maximum Inrush Current: 30A
  • RACKMUX-D17HR-N-24V
    • 3-pin terminal block for 24V power source.
    • Accepts 18~36VDC (24VDC nominal).
    • For installation in a 24V Telecom environment.
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Dimensions
  • WxDxH: 19x23.9x1.75 Inches. (483x607x44 millimeters)
    • Handle adds an additional 1.5" to the depth when monitor is in closed position.
  • Weight: 30.2 lbs. (14 kg)
  • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Package Includes
  • KVM Drawer
  • 2 keys for lock
  • IEC Power Cord, country-specific (excluded in 24V model)
  • 6-ft USB Type A male to USB Type B male cable
  • 6-ft PS/2 male to male mouse and keyboard cable
  • 2-meter DVI-D male to male video cable
  • CD with manual and drawer installation manual
  • Single-person installation mounting kit

Application Drawings

  • Rackmount VGA USB + PS/2 KVM Drawer
    Rackmount DVI USB + PS/2 KVM Drawer

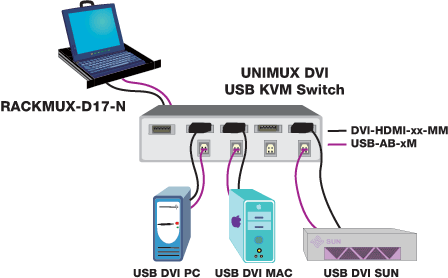

    Configuration and cable illustration of DVI USB + PS/2 KVM Drawer provides space-saving convenient control.

CAD Drawings

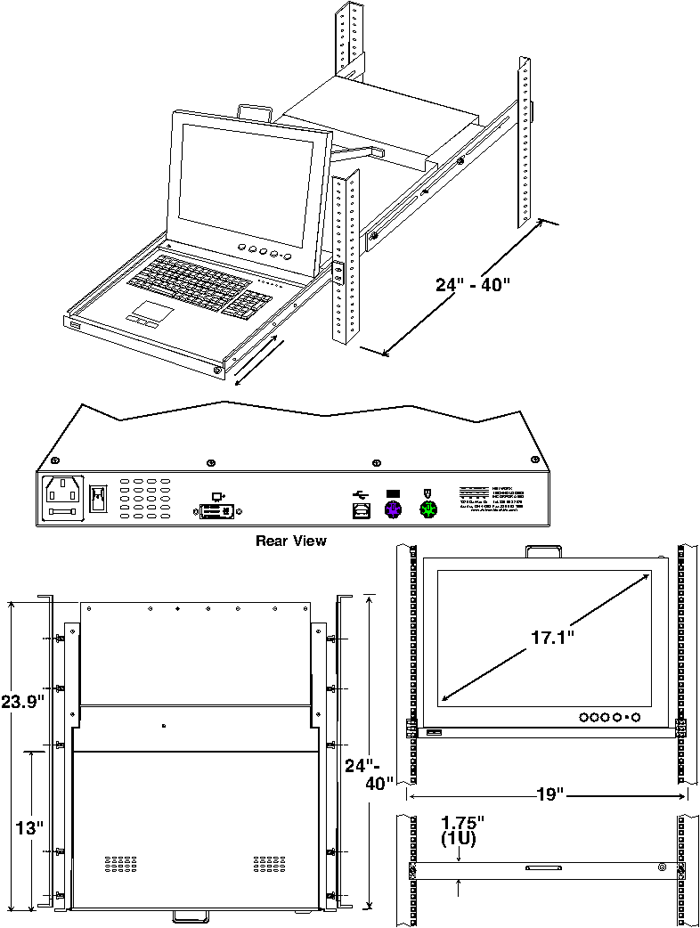

  • RACKMUX-D17HR-N
    Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers

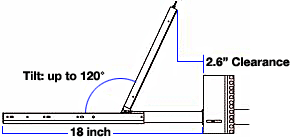

  • Maximum Tilt Angle Diagram
    Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
    Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers

Keyboard Layouts

  • RACKMUX-D17-N

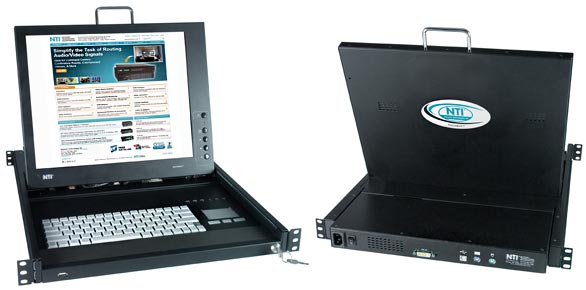

    Rackmount DVI USB + PS/2 KVM Drawer
    Rackmount DVI USB + PS/2 KVM Drawer

USB + PS/2 KVM Drawers with DVI Monitor

NTI Part # Description Screen Size Video Resolution Price Quote Buy
RACKMUX-D17-N DVI LCD, USB & PS/2 Keyboard Mouse, Numeric Pad 17" 1280x1024 $1,525.00
RACKMUX-D17HR-N DVI LCD, USB & PS/2 Keyboard Mouse, Numeric Pad 17.1" 1920x1200 $1,630.00
RACKMUX-D17HR-N-24V DVI LCD, USB & PS/2 Keyboard Mouse, Numeric Pad, 24V Power 17.1" 1920x1200 $1,865.00

Mounting Bracket for Two-Post Style Telco Rack

NTI Part # Description Price Quote Buy
RL-T15-TEL Mounting Bracket for Two-Post Style Telco Rack $25.00
