USB 2.0 Active Extension Cable

Extend USB 2.0 devices up to 50 meters; Cascade cables to extend multiple lengths

Also known as: USB 2.0 repeater cable, extend USB 2.0 device up to 50 meters, USB 2.0 extender booster.

USB 2.0 Active Extension Cable: PC, MAC, and SUN Support
USB2-AA-10M

Additional Images

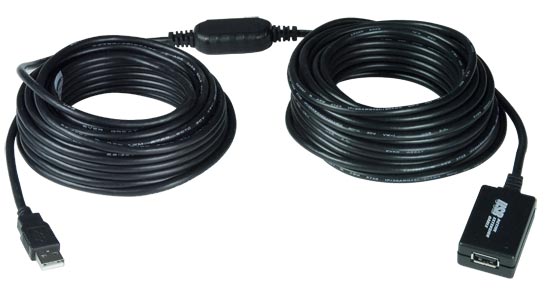

  • USB2-AA-10M - USB 2.0 Active Extension Cable: PC, MAC, and SUN Support

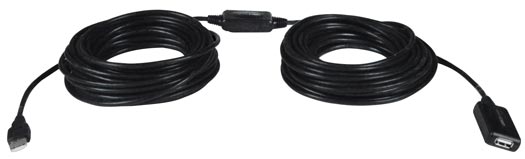

  • USB2-AA-20M - USB 2.0 Active Extension Cable: PC, and MAC Support

The USB 2.0 Active Extension Cable extends USB 2.0 devices up to fifty meters from a USB-enabled PC, MAC or SUN computer. Connect multiple cable lengths together to extend a USB device multiple distances.

The USB 2.0 Active Extension Cable extends USB 2.0 devices up to fifty meters from a USB-enabled PC, MAC or SUN computer. Connect multiple cable lengths together to extend a USB device multiple distances.

  • Available lengths: 5/10/20/50 meters
  • Connect up to four USB2-AA-5M cables plus a five-meter USB cable to extend one USB device up to 25 meters.
    • USB devices that draw 2W or more can only be extended to 20m due to voltage drop.
  • Connect up to four USB2-AA-10M cables to extend one USB device up to 40 meters.
  • Connect up to two USB2-AA-20M cables to extend one USB device up to 40 meters
    • May not support USB devices that draw 2W or more
  • Use just one USB2-AA-50M cable to extend one USB device up to 50 meters.
  • Compatible USB-enabled computers:
    • USB2-AA-5M and USB2-AA-20M: PC and MAC.
    • USB2-AA-10M and USB2-AA-50M: PC, MAC, and SUN
  • USB Video Cameras Supported: Clearlinks CL-UWC-P and FV Touchcam L2 (all lengths).
  • One male USB Type A connector for host connection.
  • One female USB Type A connector for USB device connection.
  • Compliant with USB 2.0 and 1.1 specifications.
  • Supports Plug-n-Play specification.
  • Operating Temperature (USB2-AA-5/10/20M): 32 to 140°F (0 to 60°C)
  • Regulatory Approvals: RoHS.
CAD Drawing:
  • "I was looking for a USB cable to connect a printer that was about 50 feet away, and the USB2-AA-20M cable was perfect for the job!"

    Ricoh USA Inc.
    Norcross, GA

USB 2.0 Active Extension Cable

NTI Part # Length Price Quote Buy
USB2-AA-5M 5 meters (16.4 feet) $6.55
USB2-AA-10M 10 meters (32.8 feet) $10.60
USB2-AA-20M 20 meters (65.6 feet) $39.00
USB2-AA-50M 50 meters (164 feet) $146.00
