USB Extender via CAT5: Extend to 200 Feet
Extend four USB devices up to 200 feet
Also known as: USB extender, USB CAT5 UTP cable extension, USB booster, USB peripheral extender, USB active extension cable, extend USB device 200 feet via CAT5/5e/6/7 network cable, 4-port USB hub extender system, USB balun, USB range extender.
(Remote & Local Unit)
The XTENDEX® USB Extender extends four USB devices up to 200 feet using CAT5/5e/6/7 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to four USB devices. The local and remote units are interconnected via CAT5/5e/6/7 cable.
The XTENDEX® USB Extender extends four USB devices up to 200 feet using CAT5/5e/6/7 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to four USB devices. The local and remote units are interconnected via CAT5/5e/6/7 cable.
- Extend self-powered and/or bus-powered USB peripheral devices (security cameras, printers, scanners, keyboards, etc.).
- Using CAT5e/6 cable, extend USB 1.1/1.0 devices to 180 feet and USB 2.0 devices to 150 feet.
- Using CAT6a/7 cable, extend USB 1.1/1.0 devices to 200 feet and USB 2.0 devices to 180 feet.
- Transparent data extension.
- Compatible with USB computers (PC, SUN, MAC).
- Compliant with USB 1.1 (low/full speed) specifications.
- Supports Plug-n-Play specification.
- High quality, rugged steel construction with durable powder coat finish.
- Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2.
- Mounting brackets included for easy surface/wall mounting.
- Optional industrial USB extender for high temperature environments. This industrial system has the ability to operate and monitor in harsh environments at high temperatures up to 158°F (70°C).
Local Unit
- One female USB Type B connector.
- Supports a USB computer (PC, SUN, MAC).
- Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12.
Remote Unit
- Four female USB Type A connectors.
- Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.
- Supports self-powered and/or bus-powered USB devices.
- Compatible with USB touch screen monitors, including HP Compaq L2105tm.
Power
- Local unit: powered from attached computer.
- Remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
- The combined current consumption of the connected devices cannot exceed 1.5A
Environmental
- Operating temperature:
- USB-C5-200: 32 to 100°F (0 to 38°C).
- USB-C5-200-IND: 32 to 158°F (0 to 70°C).
- Storage temperature:
- USB-C5-200: -22 to 140°F (-30 to 60°C).
- USB-C5-200-IND: -22 to 158°F (-30 to 70°C).
- Operating and storage relative humidity: 17 to 90% non-condensing RH.
Dimensions
- WxDxH: 5.14x3.07x1.09 in (131x78x28 mm)
Regulatory Approvals:
- CE, RoHS
- TAA compliant
Warranty
- Two years
Cables
- One-meter male USB Type A to male USB Type B interface cable included.
- Use CAT5/5e/6/7 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
| Cable | USB Device Type | Distance (ft) |
|---|---|---|
| CAT5e Solid or Stranded, UTP or STP |
USB 1.1/1.0 | 180 |
| USB 2.0 | 150 | |
| CAT6 Solid or Stranded, UTP or STP |
USB 1.1/1.0 | 180 |
| USB 2.0 | 150 | |
| CAT6a Solid UTP | USB 1.1/1.0 | 200 |
| USB 2.0 | 180 | |
| CAT7 Solid SSTP | USB 1.1/1.0 | 200 |
| USB 2.0 | 180 |
Compatible NTI Products
- Use NTI's USB adapters to connect non-USB devices to the extender.
- USB to Audio Adapter (USB-AUDIO)
User Manual:
Data Sheet:
Knowledge Base:
3D Model:
- USB-C5-L-200.step – 3D image file
- USB-C5-R-200.step – 3D image file

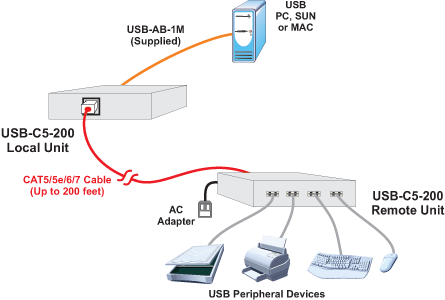

Application Drawings
-
USB Extender via CAT5/5e/6/7, extend four USB devices up to 200 feet
How to connect USB devices using the USB-C5-200 USB extender via CAT5/5e/6/7
-
"We're using the USB-C5-200-IND in our production machines and our engineers love them. We took advantage of NTI's 30 day no charge evaluation program, which allowed us to try them in our own environment. From there, we have placed several orders."
Jeff J.Emhart Glass Inc.St Petersburg, FL
