1-Port USB 2.0 Extender via CAT5 up to 164 Feet (50 meter) – No Drivers Required – Compatible with Windows OS

Extend one USB 2.0 device up to 164 feet (50 meter)

1-Port USB 2.0 Extender via CAT5 up to 164 Feet (50 meter) – No Drivers Required – Compatible with Windows OS

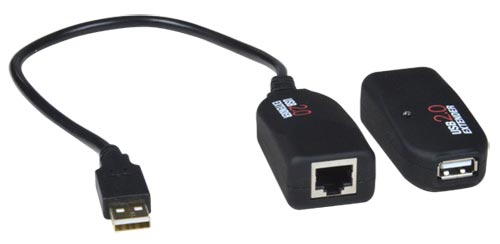

XTENDEX® USB2-C5-LCND
(Local & Remote Unit)

Product Highlights

  • Extend one USB device up to 164 Feet.
  • No drivers required.
  • Compatible with Windows XP/Vista/7/8/8.1/10

The XTENDEX® 1-Port USB 2.0 Extender extends one USB device up to 164 feet (50 meters) using a single CAT5e/6/6a/7 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a USB device. The local and remote units are interconnected via CAT5e/6/6a/7 cable.

The XTENDEX® 1-Port USB 2.0 Extender extends one USB device up to 164 feet (50 meters) using a single CAT5e/6/6a/7 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a USB device. The local and remote units are interconnected via CAT5e/6/6a/7 cable.

  • Extend self-powered and/or bus-powered USB peripheral devices (security camera, printer, scanner, keyboard, etc).
  • Extend up to 164 feet (50 meters) using one CAT5e/6/6a/7 cable.
  • Transparent data extension.
  • Compatible with a USB computer with Windows OS.
  • Supports high-speed (480 Mbps), full speed (12 Mbps), or low speed (1.5 Mbps) USB devices.
  • Compliant with USB 2.0 specifications.
  • Supports Plug-n-Play specification.
  • No drivers required.
Local Unit
  • One male USB Type A connector on attached 14.17 inch (360 mm) cable.
  • One female RJ45 connector.
  • Compatible with PCs or laptops with Windows XP/Vista/7/8/8.1/10
Remote Unit
  • One female USB Type A connector.
  • One female RJ45 connector.
  • Supports high-speed (480 Mbps), full speed (12 Mbps), or low speed (1.5 Mbps) USB devices.
  • Supports self-powered and/or bus-powered USB devices.
Power
  • Local unit: powered from attached computer.
  • Remote unit:
    • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (included).
    • Output: 5VDC, 2A
    • USB port supports full 500mA current.
Dimensions
  • Local and Remote unit WxDxH: 1.22x2.45x0.83 in (31x62.3x21 mm)
Environmental
  • Operating temperature: 32 to 185°F (0 to 85°C)
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years
Max Distance
  • 164 feet (50 meters) over one CAT5e/6/6a/7 cable.
Cables
  • Existing device cable with male Type A connector required.
  • Use CAT5e/6/6a/7 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included) to extend up to 164 feet (50 meters).
Compatible NTI Products
  • Combine NTI's extenders, switches, splitters and cables for complex applications

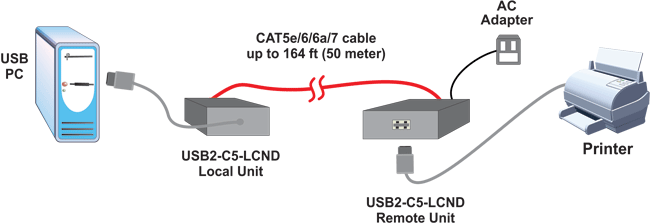

Application Drawings

  • 1-Port USB 2.0 Extender via CAT5 up to 164 Feet (50 meter) – No Drivers Required – Compatible with Windows OS
    1-Port USB 2.0 Extender via CAT5 up to 164 Feet (50 meter) – No Drivers Required – Compatible with Windows OS

1-Port USB 2.0 Extender

NTI Part # Description Price Quote Buy
USB2-C5-LCND 1-Port USB 2.0 Extender via CAT5 up to 164 Feet, No Drivers Required, For Windows OS $84.00
