Low-Cost 4-Port USB 2.0 Extender via CAT5 up to 165 Feet – No Drivers Required

Extend four USB devices up to 165 feet

Also known as: USB extender, USB CAT5 UTP cable extension, USB booster, USB peripheral extender, USB active extension cable, extend USB device 165 feet via CAT5/5e/6/6a/7 network cable, 4-port USB hub extender system, USB balun, USB range extender.

XTENDEX® USB2-C5-4LC
(Remote & Local Unit)

The XTENDEX® Low-Cost 4-Port USB 2.0 Extender extends four USB devices up to 165 feet (50 meters) using CAT5/5e/6/6a/7 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to four USB devices. The local and remote units are interconnected via CAT5/5e/6/6a/7 cable.

The XTENDEX® Low-Cost 4-Port USB 2.0 Extender extends four USB devices up to 165 feet (50 meters) using CAT5/5e/6/6a/7 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to four USB devices. The local and remote units are interconnected via CAT5/5e/6/6a/7 cable.

  • Extend self-powered and/or bus-powered USB peripheral devices (security cameras, printers, scanners, keyboards, etc.).
  • Extend up to 165 feet (50 meters) via a single CAT5/5e/6/6a/7 cable.
  • Transparent data extension.
  • Compatible with USB computers (PC, SUN, MAC).
  • Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • Compliant with USB 2.0 specifications.
  • Supports Plug-n-Play specification.
  • No drivers required.
Local Unit
  • One female USB Type B connector.
  • One female RJ45 connector.
  • Supports a USB computer (PC, SUN, MAC).
  • Multiplatform support: Windows XP/7/Vista/8, Mac OS
Remote Unit
  • Four female USB Type A connectors.
  • One female RJ45 connector.
  • Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • Supports self-powered and/or bus-powered USB devices.
  • Compatible with USB touch screen monitors, including HP Compaq L2105tm.
Power
  • Local unit: powered from attached computer.
  • Remote unit: 100 or 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapter included.)
    • Optional universal power plug adapters available (not included).
  • The combined current consumption of the connected devices cannot exceed 1.5A.
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
Dimensions
  • WxDxH: 3.75x2.68x0.92 in (95x68x23 mm).
Regulatory Approvals
  • CE, FCC, RoHS.
Max Distance
  • 165 feet (50 meters) over CAT5/5e/6/6a/7 cable.
Cables
  • 0.5-meter male USB Type A to male USB Type B interface cable included.
  • Use CAT5/5e/6/6a/7 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Package Includes
  • USB Extender (local and remote unit)
  • USB Type A to Type B male-to-male cable
  • User manual
  • US AC adapter

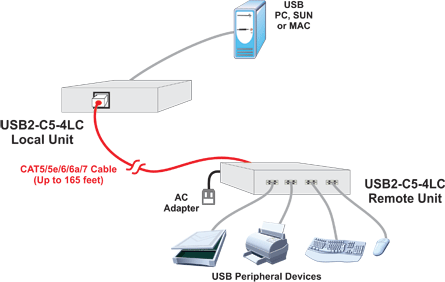

Application Drawings

  •  Low-Cost 4-Port USB 2.0 Extender via CAT5 up to 165 Feet
    Low-Cost 4-Port USB 2.0 Extender via CAT5 up to 165 Feet

USB 2.0 Extender, 4-Port

NTI Part # Description Price Quote Buy
USB2-C5-4LC Low-Cost 4-Port USB 2.0 Extender $132.00

Universal Power Plug Adapters

NTI Part # Description Price Quote Buy
PWR-UNVAS3112 Universal AS/NZS 3112 Power Adapter for Australia, New Zealand, China $5.00
PWR-UNVBS1363 Universal BS 1363 Power Adapter for UK, Iraq $5.00
PWR-UNVBS546-D Universal BS 546 Type D Power Adapter for India, Parts of Africa $6.00
PWR-UNVBS546-M Universal BS 546 Type M Power Adapter for South Africa $6.00
PWR-UNVCEI2350 Universal CEI 23-50 Power Adapter for Italy, Uruguay $4.60
PWR-UNVCEE716 Universal Europlug CEE 7/16 Power Adapter for Europe, Russia, UAE $5.00
PWR-UNVCEE77 Universal Schuko CEE 7/7 Power Adapter for Europe $5.50
PWR-UNVSEV1011 Universal SEV 1011 Power Adapter for Switzerland $6.00
PWR-UNVSI32 Universal SI 32 Power Adapter for Israel, Palestine $5.00
