Clearance: 1-Port USB 2.0 Extender via CAT5 up to 492 Feet – No Drivers Required – Multiplatform Support
Extend one USB 2.0 device up to 492 feet (150 meter)
Limited stock. All sales final on clearance items.

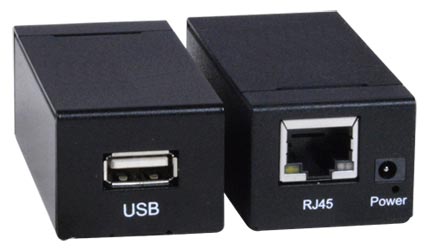

(Remote & Local Unit)
Product Highlights
- Extend one USB device up to 492 Feet.
- No drivers required.
- Multiplatform support: Windows XP/Vista/7/8/8.1/10, Mac OS, Linux.
The XTENDEX® 1-Port USB 2.0 Extender extends one USB device up to 492 feet (150 meter) using CAT5e/6/6a/7 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a USB device. The local and remote units are interconnected via CAT5e/6/6a/7 cable.
The XTENDEX® 1-Port USB 2.0 Extender extends one USB device up to 492 feet (150 meter) using CAT5e/6/6a/7 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a USB device. The local and remote units are interconnected via CAT5e/6/6a/7 cable.
- Extend self-powered and/or bus-powered USB peripheral device (security camera, printer, scanner, keyboard, mouse, flash drive, touchscreen, etc.).
- Extend up to 492 feet (150 meter) using one CAT5e/6/6a/7 cable.
- Transparent data extension.
- Compatible with a USB computer with Windows XP/Vista/7/8/8.1/10, Mac OS, or Linux.
- Supports high-speed (100 Mbps), full speed (12 Mbps), or low speed (1.5 Mbps) USB devices.
- Compliant with USB 2.0 specifications.
- Supports plug-and-play functionality.
- No drivers required.
- Powder-coated metal enclosure.

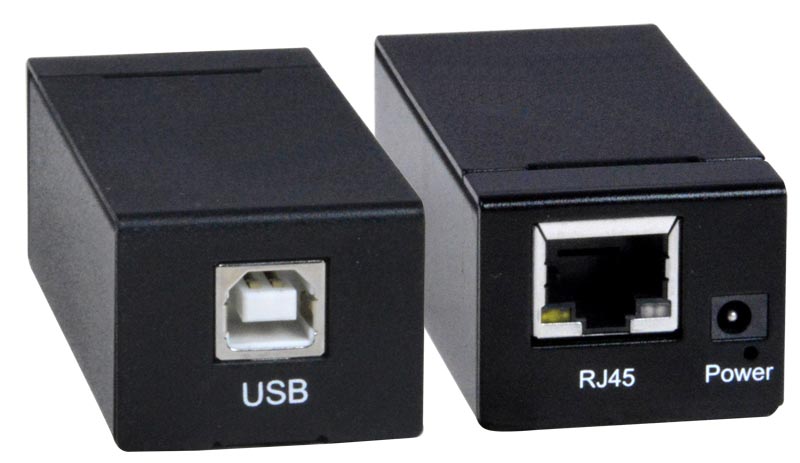

Local Unit
- One female USB Type B connector.
- One female RJ45 connector.
- Supports a USB computer (PC or MAC).
- Multiplatform support: Windows XP/Vista/7/8/8.1/10, Mac OS, Linux.

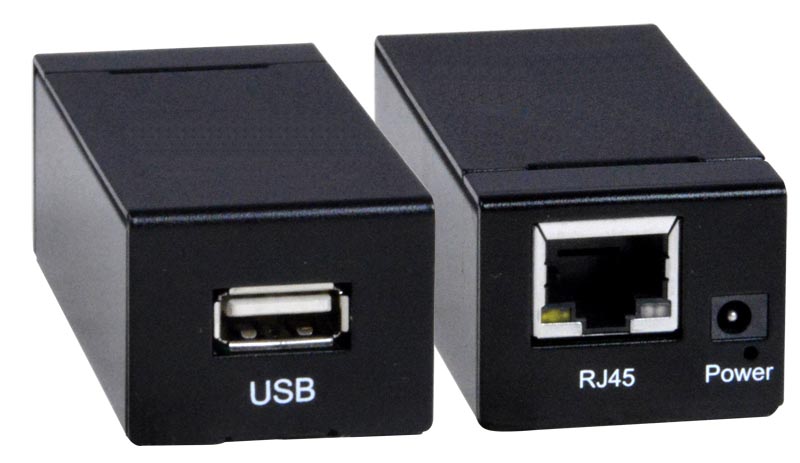

Remote Unit
- One female USB Type A connector.
- One female RJ45 connector.
- Supports high-speed (100 Mbps), full speed (12 Mbps), or low speed (1.5 Mbps) USB devices.
- Supports self-powered and/or bus-powered USB devices.
Power
- Local unit: powered from attached computer.
- Remote unit:
- Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (included).
- Output: 5VDC, 3A
- USB port supports full 500mA current.
Dimensions
- Local and remote unit WxDxH: 1.27x2.65x1 in (32x67x25 mm)
Environmental
- Operating temperature: 32 to 122°F (0 to 50°C)
- Storage temperature: -4 to 167°F (-20 to 75°C)
Regulatory Approvals
- CE, RoHS, FCC
Warranty
- Two years
Max Distance
- 492 feet (150 meters) over one CAT5e/6/6a/7 cable.
Cables
- 2.13 ft (650 mm) male USB Type A to male USB Type B interface cable included.
- Existing device cable with male Type A connector required (not included).
- Use CAT5e/6/6a/7 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included) to extend up to 492 feet (150 meter).
Compatible NTI Products
- Combine NTI's extenders, switches, splitters and cables for complex applications
- Industrial 7-Port USB 2.0 Bus-Powered Hub
(USB2-HUB-IND-7)
- Industrial 7-Port USB 2.0 Bus-Powered Hub
User Manual:
Data Sheet:
3D Model:
- USB2-C5-LCND492-LOCAL.STEP – 3D image file
- USB2-C5-LCND492-REMOTE.STEP – 3D image file

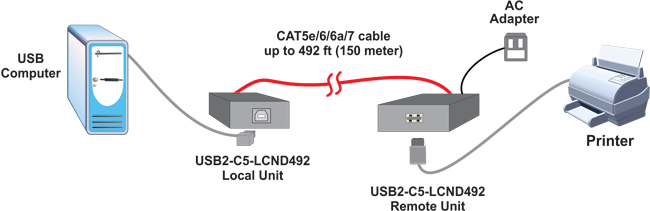

Application Drawings
-
1-Port USB 2.0 Extender via CAT5 up to 492 Feet (150 meter) – No Drivers Required – Multiplatform Support
