Hi-Res VGA USB KVM Extender via CAT5

Extend USB keyboard, USB mouse and VGA monitor up to 1,000 feet

Also known as: CAT5 USB KVM extender, remote keyboard mouse monitor, usb kvm extension 1000 feet long, kvm balun, kvm range extender.

Extend USB keyboard, USB mouse and VGA monitor up to 1,000 feet

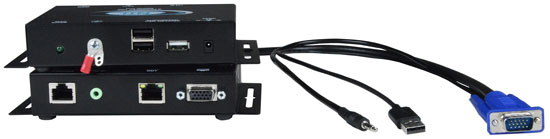

XTENDEX® ST-C5USBVUA-1000S (Remote & Local Units)

Product Highlights

Available Options:
  • Audio
  • USB connector for USB printer, touch screen monitor, CAC card reader, or interactive whiteboard
  • Designed and Manufactured in the U.S.A.

The XTENDEX® VGA USB KVM Extender provides local and remote KVM (USB keyboard, USB mouse and VGA monitor) access to a USB computer or NTI KVM switch up to 1,000 feet using CAT5/5e/6 UTP cable. Each ST-C5USBV-1000S consists of a local unit that connects to a computer and provides local keyboard, monitor and mouse connections, and a remote unit that connects to a keyboard, monitor and mouse. The local and remote units are interconnected via CAT5/5e/6 cable.

The XTENDEX® VGA USB KVM Extender provides local and remote KVM (USB keyboard, USB mouse and VGA monitor) access to a USB computer or NTI KVM switch up to 1,000 feet using CAT5/5e/6 UTP cable. Each ST-C5USBV-1000S consists of a local unit that connects to a computer and provides local keyboard, monitor and mouse connections, and a remote unit that connects to a keyboard, monitor and mouse. The local and remote units are interconnected via CAT5/5e/6 cable.

  • Industry-leading ultra high resolutions up to 2048x1536.
  • High quality, rugged steel construction with durable powdercoat finish.
  • Automatically adjust video quality and color skew for crystal clear video with longer cables.
  • DDC2B emulation support for remote monitor.
  • Built-in surge protection.
  • Available with optional stereo audio and additional USB 2.0 (low/full speed) port for local and remote user.
    • For the additional USB port on the local unit, connect any type of USB device (fully transparent USB connection).
    • For the additional USB port on the remote unit, use to connect a USB printer, touch screen monitor, interactive whiteboard, or CAC card reader.
  • Integrated mounting brackets for easy surface/wall mounting.
Local Unit
  • Host Connection
    • Supports a USB computer (PC, SUN, MAC).
    • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12/13.
    • One male 15-pin HD connector.
    • One male USB Type A connector.
    • Audio option (ST-C5USBVUA-1000S): one 3.5 mm stereo plug (audio in).
  • Local Access
    • Crisp and clear 2048x1536 video resolution.
    • One female 15-pin HD connector.
    • Two female USB Type A connectors.
    • Available with optional stereo audio and additional USB port for local and remote user (ST-C5USBVUA-1000S).
      • One 3.5 mm stereo plug (audio out).
      • One female USB Type A connector for an additional USB device.
        • Connect any type of USB device – fully transparent USB connection.
        • USB maximum data rate: 12 Mbps
Remote Unit
  • Supports resolutions up to 2048x1536; refer to the resolution chart below for resolutions at different lengths.
  • One female 15-pin HD connector.
  • Two female USB Type A connectors.
  • Available with optional stereo audio and additional USB port for local and remote user (ST-C5USBVUA-1000S).
    • One 3.5 mm stereo plug (audio out).
    • One female USB Type A connector for an USB (low/full speed) device – USB printer, touch screen monitor, CAC card reader, interactive whiteboard, or barcode scanner.
      • USB maximum data rate: 12 Mbps.
      • When using a USB printer connected from the remote unit, it is recommended to only print three pages at a time.
      • Supported touch screen monitors: Microtouch 3M, Elo 1529L 3000 Series, ELO 3202L, Elo 1515L, Dell S2240T, Smart Podium ID422w, Hope Industrial HIS-RL17, NEC MultiSync E222W, Industrial Electronic Devices Inc IWS-240t-G3, Zytronics CML-170, Pulse IR TSV4001/DT40, HP Compaq, Sharp Aquos Board, Advantech FPM-2150, Touch Screens Inc TWAP-1150ADP/1154ADP-USB and similar monitors that use PenMount 5000/6000/9000 driver.
      • Supported interactive whiteboards: SMART Board™ SB640
      • Supported card readers: Athena, Cherry, Gemalto, Generic USB, and Dell smart card/keyboard combo.
Video Quality Adjustment
  • Automatically adjusts the video quality and color skew to compensate for varying lengths of CAT5/5e/6 cable.
    • Maximum delay: 62 ns in 2 ns steps.
  • Manual fine adjustments are made via keyboard commands.
  • Settings are automatically stored in the unit. The next time the unit is powered on, the adjustment will be recalled.
Distances and Resolutions for CAT5/CAT5e and CAT6 Cables
Cable Distance Maximum Resolution
CAT5/5e (UTP) 1000 feet (305 meters) 1920x1200 at
60 Hz
800 feet (244 meters) 1920x1440 at
60 Hz
600 feet (183 meters) 2048x1536 at
60 Hz
CAT6 (UTP) 800 feet (244 meters) 1920x1440 at
60 Hz
600 feet (183 meters) 2048x1536 at
60 Hz
CAT5/5e (STP) 800 feet (244 meters) 1920x1200 at
60 Hz
600 feet (183 meters) 1920x1440 at
60 Hz
400 feet (122 meters) 2048x1536 at
60 Hz
CAT6 (STP) 400 feet (122 meters) 1280x1024 at
60 Hz
300 feet (91 meters) 1600x1200 at
60 Hz
200 feet (61 meters) 2048x1536 at
60 Hz
Power
  • Local and remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US, EURO, UK or AUS AC adapter included.)

MTBF
NTI Part # MTBF (hrs)
ST-C5USBV-L-1000S (local) 38,570
ST-C5USBV-R-1000S (remote) 43,429
ST-C5USBVUA-L-1000S (local) 37,838
ST-C5USBVUA-R-1000S (remote) 42,606

Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Dimensions
  • WxDxH: 5.1x3.1x1.2 in (130x79x30 mm)
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Caution
  • Not an Ethernet device. Do not connect to an Ethernet device (card, router, switch, bridge). Permanent damage to the product or Ethernet device may result.
Stereo Audio
  • Stereo audio can be heard both locally and remotely.
  • Frequency response: 20 Hz to 20 kHz, ±1 dB.
  • Signal-to-Noise Ratio (SNR): >76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): <0.1%.
  • Stereo crosstalk: -70 dB.
  • Input impedance: 10k Ohms.
  • Line level output; supports multimedia speakers.
  • Maximum I/O levels: 3.1Vp-p (line level).
  • CD quality audio output.
Additional USB Port
  • Additional USB 2.0 port for local and remote user.
    • For the additional USB port on the local unit, connect any type of USB device (fully transparent USB connection).
    • For the additional USB port on the remote unit, use to connect a USB printer, touch screen monitor, CAC card reader, interactive whiteboard, or barcode scanner.
      • USB maximum data rate: 12 Mbps.
      • When using a USB printer connected from the remote unit, it is recommended to only print three pages at a time.
      • Supported touch screen monitors: Microtouch 3M, Elo 1529L 3000 Series, ELO 3202L, Elo 1515L, Dell S2240T, Smart Podium ID422w, Hope Industrial HIS-RL17, NEC MultiSync E222W, Industrial Electronic Devices Inc IWS-240t-G3, Zytronics CML-170, Pulse IR TSV4001/DT40, HP Compaq, Sharp Aquos Board, Advantech FPM-2150, Touch Screens Inc TWAP-1150ADP/1154ADP-USB and similar monitors that use PenMount 5000/6000/9000 driver.
      • Supported interactive whiteboards: SMART Board™ SB640
      • Supported card readers: Athena, Cherry, Gemalto, Generic USB, Dell smart card/keyboard combo, and SCM Microsystems.

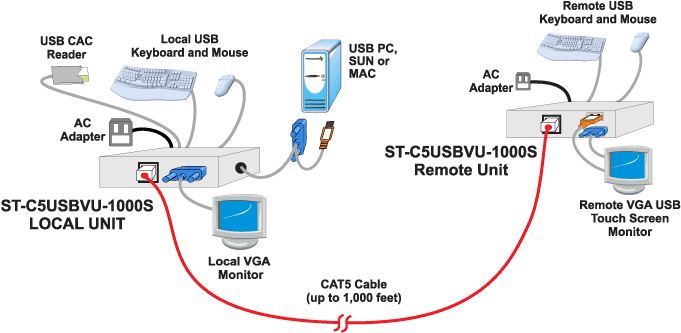

Application Drawings

  • Hi-Res VGA USB KVM Extender via CAT5: Extend to 1,000 Feet
    How to extend a USB keyboard, USB mouse and VGA monitor up to 1,000 feet using the XTENDEX VGA USB KVM Extender
    How to extend a USB keyboard, USB mouse and VGA monitor up to 1,000 feet using the XTENDEX VGA USB KVM Extender.
