Hall Effect Liquid Water Flow Sensor Switch

G3/4 Hall Effect Liquid Water Flow Sensor Switch
E-WFS-GE

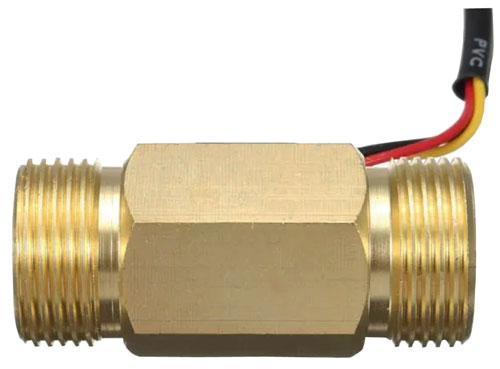

  • E-WFS-GE G3/4 Hall Effect Liquid Water Flow Sensor Switch

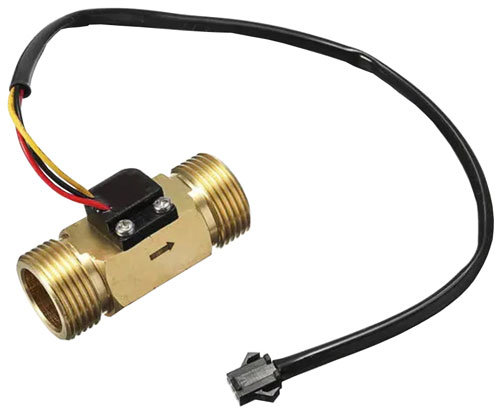

  • E-WFS-GE G3/4 Hall Effect Liquid Water Flow Sensor Switch

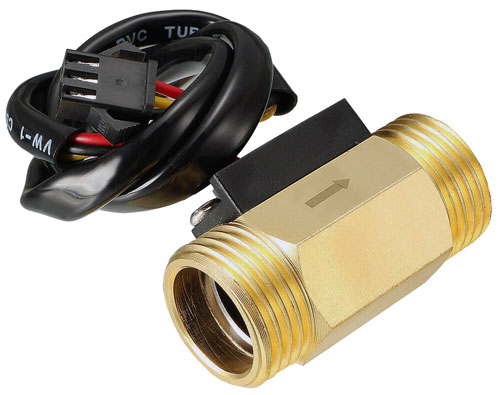

  • E-WFS-GD44 G1/2 Hall Effect Liquid Water Flow Sensor Switch
  • Use to monitor water usage and to detect leaks/stoppages.
  • Pulse frequency output is linearly related to flow rate.
    • Note: This is not a precision sensor – the pulse rate varies some depending on the flow rate, fluid pressure, and sensor orientation.
  • Rugged brass construction.
  • Sensor Type: Hall effect
  • Working Voltage: 4.5 to 18V DC
  • Max Current Draw: 10mA at 5VDC
  • Available with G1/2 or G3/4 external thread diameter.
    • E-WFS-GD44
      • Working Flow Rate: 1 to 30 L/min
        • When used with E-xD, the flow rate is 1 to 26.18 L/min
      • Flow Rate Pulse Characteristics: Frequency (Hz) = 11 x Flow Rate (L/min) - 3
      • Accuracy: ±10%
      • Thread Type: BSPP 1/2" G (Male-to-Male)
      • Dimensions (Outer) WxDxH(in): 1.07x0.95x1.73 (27x24x44 mm)
    • E-WFS-GE
      • Working Flow Rate: 2 to 45 L/min
        • When used with E-xD, the flow rate is 2 to 31.85 L/min
      • Flow Rate Pulse Characteristics: Frequency (Hz) = 8.1 x Flow Rate (L/min) - 3
      • Accuracy: ±10%
      • Thread Type: BSPP 3/4" G (Male-to-Male)
      • Dimensions (Outer) WxDxH(in): 1.26x1.05x2.36 (32x27x60 mm)
  • Maximum Water Pressure: 1.75 MPa (253 PSI)
  • Output Duty Cycle: 50%
  • Liquid Temperature: ≤60°C
  • Cable Length: 5.12 in (130 mm)
  • Pinout:
    • Black: 0V / Ground
    • Yellow: Pulse / Frequency flow rate output
    • Red: VCC Power 5V ~ 18V
  • Compatible with E-2D/5D/16D.
    • Interfaces with the E-2D/5D/16D via the Tach screw terminals.
  • Contact an NTI product consultant for water flow sensors with different specifications.
