Mini 4K 60Hz HDMI Video Test Pattern Generator/Analyzer/Emulator

Generates four video patterns for setup, calibration, and testing 4Kx2K 60Hz 4:4:4 HDMI displays/components. Simulates the presence of an attached display to a video source.

DisplayPort 1.2 EDID Emulator
MONTEST-HD4K-PTBLC

Also Available:

Test Pattern Generators

Additional Images

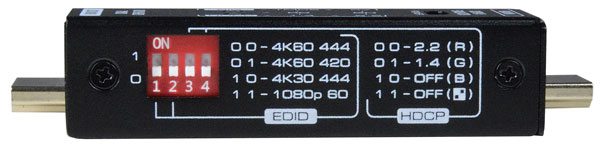

  • MONTEST-HD4K-PTBLC – Side

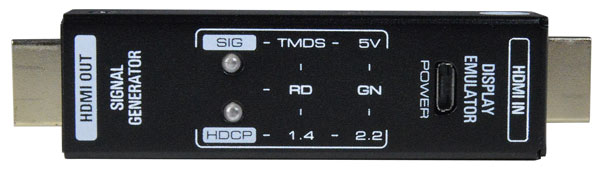

  • MONTEST-HD4K-PTBLC – Top

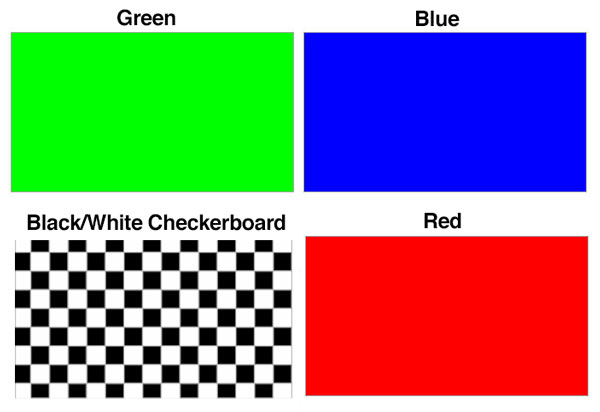

  • MONTEST-HD4K-PTBLC Test Patterns

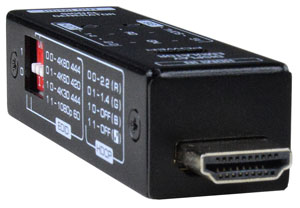

The MONTEST-HD4K-PTBLC Mini 4K Ultra-HD Video Test Pattern Generator/Analyzer/Emulator generates video test patterns for evaluating and testing HDMI displays and components up to 4Kx2K @60Hz (4:4:4). HDMI signal status (TMDS/5V) and HDCP analysis are supported, along with EDID emulation.


The MONTEST-HD4K-PTBLC Mini 4K Ultra-HD Video Test Pattern Generator/Analyzer/Emulator generates video test patterns for evaluating and testing HDMI displays and components up to 4Kx2K @60Hz (4:4:4). HDMI signal status (TMDS/5V) and HDCP analysis are supported, along with EDID emulation.

  • Two modes of operation – HDMI signal generator or display emulator (signal analyzer)
    • Generates four test patterns and features four built-in resolutions.
      • Resolutions supported: 3840x2160 @60Hz 4:4:4; 3840x2160 @60Hz 4:2:0; 3840x2160 @30Hz 4:4:4; 1920x1080p @60Hz
    • Emulation mode provides EDID to the HDMI source device from the emulator's internal memory.
      • Supports headless operation – no monitor attached to source.
      • Use to analyze the HDCP version and signal status (TMDS, 5V) of the video input.
      • Supports resolutions up to 4Kx2K (4096×2160 and 3840x2160) @60Hz 4:4:4.
  • HDCP v1.4 and v2.2 analysis.
  • 4-pin DIP switch for setting video resolution and HDCP version.
  • LED indicators provide TMDS/5V signal and HDCP status information.
  • Portable, compact design.
  • Ideal for many applications, including: installer/integrator diagnostic test tool; HDMI source and sink testing; third-party equipment setup; HDCP compliance verification; production testing; R&D design and testing; and remote desktop access to a headless computer.

Video/Audio
  • Male HDMI connectors for input and output.
  • HDMI 2.0 (up to 4K@60Hz 4:4:4) compliant.
  • HDCP 1.4 and 2.2 compliant.
  • Resolutions supported:
    • Signal generator mode: 3840x2160 @60Hz 4:4:4; 3840x2160 @60Hz 4:2:0; 3840x2160 @30Hz 4:4:4; 1920x1080p @60Hz
    • Emulation mode: 4Kx2K resolutions up to 4096×2160 and 3840x2160 @60Hz 4:4:4, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 @60Hz (WUXGA).
  • Video bandwidth: 600MHz (18 Gbps)
  • Supports embedded digital audio.
Power
  • Signal generator mode: USB powered using micro USB port (5V/1A).
    • 3.4-ft USB Type A to USB Micro-B male-to-male cable included.
  • Display emulation mode: Powered by HDMI source.
Environmental
  • Operating temperature: 23 to 131°F (-5 to 55°C).
  • Storage temperature: -13 to 158°F (-25 to 70°C).
  • Operating and storage relative humidity: 10 to 90% non-condensing RH.
Dimensions
  • WxDxH (in): 2.95x0.87x0.75 (75x22x19 mm)
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years

Mini 4K 60Hz HDMI Video Test Pattern Generator/Analyzer/Emulator

NTI Part # Description Price Quote Buy
MONTEST-HD4K-PTBLC Mini 4K 60Hz HDMI Video Test Pattern Generator/Analyzer/Emulator $170.00
