4K 10.2Gbps HDMI USB KVM Extender Over IP via CATx Cable with POE & Video Wall Support

Extend 4Kx2K 30Hz HDMI monitor, USB keyboard, USB mouse, and IR up to 394 feet using Gigabit Ethernet. Create video walls up to 8x16 – 128 screens.

4K 10.2Gbps HDMI USB KVM Extender Over IP via CATx Cable with POE & Video Wall Support
XTENDEX® ST-IPC6FOUSB4K-POE (Local & Remote Unit)

Additional Images

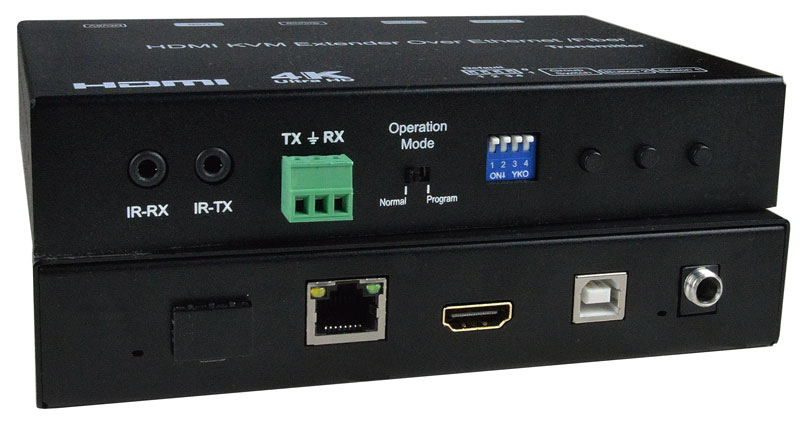

  • ST-IPC6FOUSB4K-L-POE – Local Unit

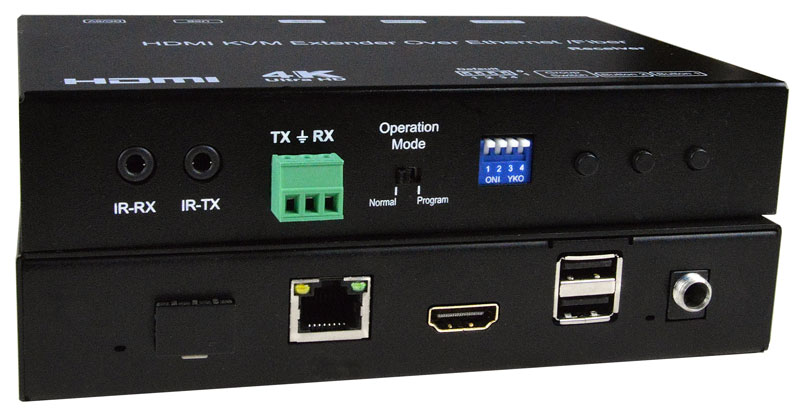

  • ST-IPC6FOUSB4K-R-POE – Remote Unit

Product Highlights

  • Supports Point-to-Point, Point-to-Many, & Many-to-Many Connections.
  • Supports Video Wall Installations from 1x2 to 8x16 Screens.
  • Power over Ethernet (POE) – No Power Supply Required.

The XTENDEX® 4K HDMI USB KVM Over IP Extender provides remote KVM (USB keyboard, USB mouse, and 4Kx2K HDMI monitor) access to a USB computer up to 394 feet (120 meters) over a Gigabit network using a single CAT5e/6/6a/7 cable. The extender consists of the ST-IPC6FOUSB4K-L-POE local unit that connects to a computer and the ST-IPC6FOUSB4K-R-POE remote unit that connects to an HDMI monitor, USB keyboard, and USB mouse.


The local and remote units can be connected together for a Point-to-Point connection via CATx cable, or a Point-to-Many or Many-to-Many connection via a Gigabit network switch.

The XTENDEX® 4K HDMI USB KVM Over IP Extender provides remote KVM (USB keyboard, USB mouse, and 4Kx2K HDMI monitor) access to a USB computer up to 394 feet (120 meters) over a Gigabit network using a single CAT5e/6/6a/7 cable. The extender consists of the ST-IPC6FOUSB4K-L-POE local unit that connects to a computer and the ST-IPC6FOUSB4K-R-POE remote unit that connects to an HDMI monitor, USB keyboard, and USB mouse.


The local and remote units can be connected together for a Point-to-Point connection via CATx cable, or a Point-to-Many or Many-to-Many connection via a Gigabit network switch.


  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @30Hz, HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
  • Cascade network switches to extend the length long distances.
  • HDMI features supported:
    • HDMI 1.4
    • RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
    • LPCM 5.1/7.1, Dolby Digital, and DTS
    • Bandwidth up to 340 MHz (10.2 Gbps)
  • HDCP 1.4 compliant.
  • Two USB 2.0 ports for keyboard, mouse, flash drive, or touchscreen display.
    • Keyboard and mouse are hot-pluggable.
  • Power over Ethernet (PoE) – power supply not required at the local or remote unit when used with a switch that supports PoE.
  • Supports video wall installations from 1x2 to 8x16 screens.
    • Displays can be rotated 90, 180 and 270°.
  • Plug-and-Play installation allows receivers to find the transmitter automatically on the same network. (Network configuration may be required if using a managed network switch.)
  • Bi-directional IR control from input and output locations.
  • Manage transmitter/receiver connections and video wall configuration with built-in software or DIP switches.
  • Supports full-duplex RS232 up to 115200 baud.
  • Customizable EDID table.
  • Easily expandable – add receivers as you add control stations.
  • Mounting brackets included for easy surface/wall mounting.
Local Unit
  • Compatible with a USB computer with Ultra-HD HDMI output.
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Linux, FreeBSD, and MAC OS 10/11/12/13.
  • One female HDMI connector.
  • One female USB Type B connector.
  • Two female 3.5mm ports for connecting an IR emitter and receiver (included).
    • IR frequency: 38kHz to 56kHz.
  • 3-pin screw terminal for RS232.
    • Supports full-duplex RS232 up to 115200 baud.
  • One female RJ45 port for sending/receiving high definition video/audio, USB, RS232, and IR signals.
  • One SFP receptacle – fiber extension not supported at this time
  • DIP switch for specifying unit ID.
Remote Unit
  • One female HDMI connector.
    • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @30Hz, HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
    • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
  • Two female USB 2.0 Type A connectors for keyboard, mouse, flash drive, or touchscreen display.
    • Keyboard and mouse are hot-pluggable.
  • Two female 3.5mm ports for connecting an IR emitter and receiver (included).
    • IR frequency: 38kHz to 56kHz
  • 3-pin screw terminal for RS232.
    • Supports full-duplex RS232 up to 115200 baud.
  • One female RJ45 port for sending/receiving high definition video/audio, USB, RS232, and IR signals.
  • One SFP receptacle – fiber extension not supported at this time.
  • DIP switch for specifying unit ID.
Power
  • Power over Ethernet: With a switch that supports PoE, a power supply is not required at the local or remote unit.
    • Compliant with IEEE 802.3af, class 0 standards.
  • Local and remote unit:
    • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (included).
    • Output: 5VDC, 2A
Dimensions
  • Local and remote unit WxDxH (in): 6.30x4.06x1.18 (160x103x30 mm).
Environmental
  • Operating temperature: 23 to 95°F (-5 to 35°C).
  • Storage temperature: 14 to 140°F (-10 to 60°C).
  • Operating relative humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years
Max Distance
  • 394 feet over CAT5e/6/6a/7 cable.
  • Cascade network switches to extend the length long distances.
Cables
  • Interface cables between the computer/display and the transmitter/receiver are required for proper operation.
    • Supports cable lengths to 20 feet for 4K resolutions and lengths to 50 feet for 1080p@60Hz using passive HDMI cables.
  • Use HD-xx-MM cable to connect an HDMI source or display (not included).
  • Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display up to 100 feet (not included).
  • Use DP-HD-xx-MM cables to connect a DisplayPort computer or display up to 15 feet (not included).
  • Use USB3C-HD4K-xx-MM to connect a 4K@30Hz computer with USB Type C connector up to 10 feet (not included).
  • Use DVI-HD-xM-MM to connect a DVI computer up to 5 meters (not included).
    • Supports resolutions to 1080p.
  • Use CAT5e/6/6a/7 solid straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
  • One 5.92 ft (1.8 m) male USB Type A to male USB Type B cable included with the transmitter.

Application Drawings

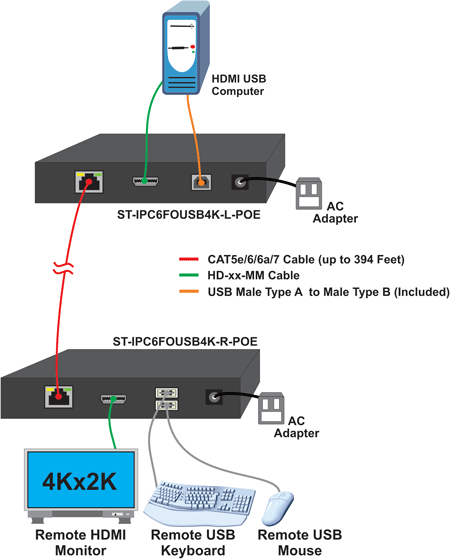

  • Point-to-Point Connection
    Point-to-Point Connection

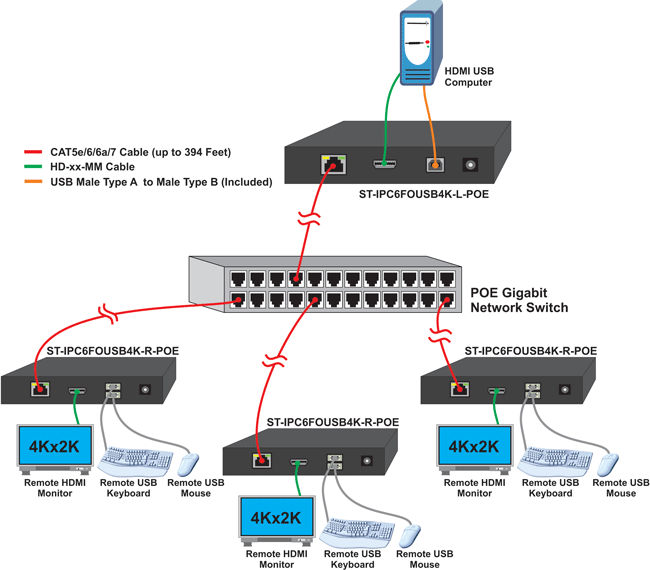

  • Point-to-Many Connection
    Point-to-Many Connection

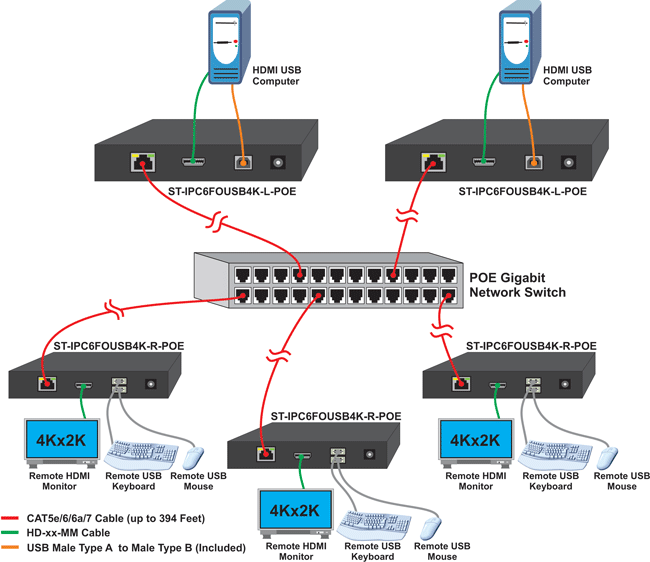

  • Many-to-Many Connection
    Many-to-Many Connection

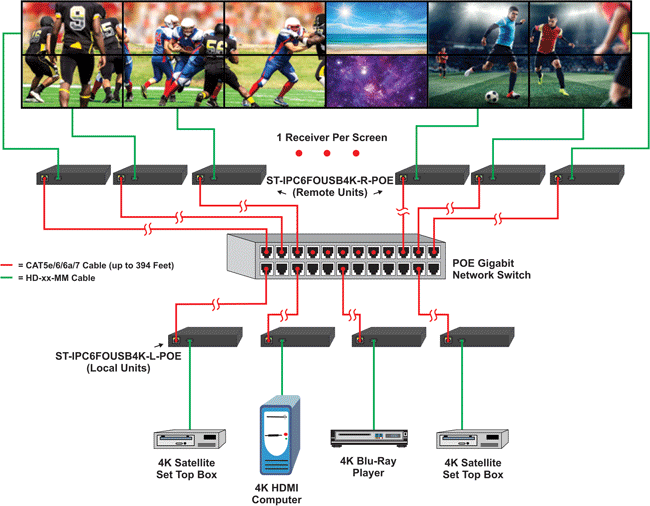

  • Video Wall Configuration
    Video Wall Configuration
    The XTENDEX® 4K 10.2Gbps HDMI USB KVM POE Extender Over IP supports video wall installations from 1x2 to 8x16 screens. For this 2x6 video wall example, 12 ST-IPC6FOUSB4K-R-POE remote units (receivers) and four ST-IPC6FOUSB4K-L-POE local units (transmitters) are required.

4K 10.2Gbps HDMI USB KVM Extender Over IP via CATx Cable with POE & Video Wall Support

NTI Part # Local or Remote Unit Price Quote Buy
ST-IPC6FOUSB4K-L-POE Local $675.00
ST-IPC6FOUSB4K-R-POE Remote $675.00

HDMI Male-Male Cables

NTI Part # Length Price Quote Buy
HD-3-MM 3 feet $4.50
HD-6-MM 6 feet $6.00
HD-10-MM 10 feet $7.10
HD-15-MM 15 feet $10.50
HD-25-MM 25 feet $16.50
HD-30-MM 30 feet $31.50
HD-50-MM 50 feet $51.00

4K HDMI Active Cable, Male to Male, Built-In Signal Booster

NTI Part # Length Price Quote Buy
HD-ACT-20-MM 20 feet $47.00
HD-ACT-25-MM 25 feet $57.00
HD-ACT-30-MM 30 feet $67.00
HD-ACT-40-MM 40 feet $78.00
HD-ACT-50-MM 50 feet $103.00
HD-ACT-60-MM 60 feet $110.50
HD-ACT-75-MM 75 feet $134.00
HD-ACT-100-MM 100 feet $159.00

DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Price Quote Buy
DVI-HD-1M-MM 1 meter $4.30
DVI-HD-2M-MM 2 meter $8.00
DVI-HD-3M-MM 3 meter $10.00
DVI-HD-5M-MM 5 meters $11.00

DisplayPort to HDMI Interface Cables, Male to Male, 4K

NTI Part # Length Price Quote Buy
DP-HD-3-MM 3 feet $14.25
DP-HD-6-MM 6 feet $15.45
DP-HD-10-MM 10 feet $18.00

USB 3.0 Type C Male to 4K HDMI Type A Male Adapter Cables

NTI Part # Length Price Quote Buy
USB3C-HD4K-3-MM 3 ft $19.95
USB3C-HD4K-6-MM 6 ft $21.40
USB3C-HD4K-10-MM 10 ft $29.95
