Door Contact, Vibration, & Glass Break Sensors
Door Contact Sensor
E-M-DCS3
- Monitors access with a magnetic bridge sensor, which responds to any magnetic material (no special inserts necessary).
- Can also be used for monitoring side wall and covers.
- Includes mounting hardware.
- For normally closed circuit connection.
- Screw terminal.
- Connect to digital input on an E-MINI-LXO, E-MICRO, or PWR-RMT-RBT-C13.
- To connect to the digital inputs, use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
- Connect to digital input on an E-MINI-LXO, E-MICRO, or PWR-RMT-RBT-C13.
- Wide actuating gap, approximately 1.2".
- Dimensions WxDxH (in): 0.6x0.7x2.5 (switch), 0.6x0.5x2.5 (magnet).
- Life cycle: 100,000 cycles
- Operating temperature: 32 to 158°F (0 to 70°C).
- Regulatory approvals: CE, UL, RoHS
Downloads & References
Door Contact Sensor, TAA Compliant
E-M-DCS5-TAA
- Monitors access with a magnetic bridge sensor, which responds to any magnetic material (no special inserts necessary).
- Can also be used for monitoring side wall and covers.
- Includes mounting hardware.
- For normally closed circuit connection.
- Screw terminal.
- Connect to digital input or RJ45 sensor port on an E-MINI-LXO, E-MICRO, or
PWR-RMT-RBT-C13.- To connect to the digital inputs, use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
- Connect to digital input or RJ45 sensor port on an E-MINI-LXO, E-MICRO, or
- Actuating gap: up to 1 inch (25 mm).
- Dimensions WxDxH (in):
- Switch: 0.34x0.38x2.00 in (9x10x51 mm).
- Magnet: 0.34x0.38x2.00 in (9x10x51 mm).
- Life cycle: 10,000,000 cycles
- Operating temperature: -67 to 158°F (-55 to 70°C).
- Regulatory approvals: UL
- TAA Compliant.
Downloads & References
Plunger-Style Door Contact Sensor
E-DCS-PS2
- Use to monitor access from sliding doors and windows.
- A captive magnet within the plunger activates a reed switch when the plunger is depressed.
- Plunger travel: 0.25" (6mm)
- Includes mounting hardware.
- For normally closed circuit connection.
- Screw terminal.
- Connect to digital input on an E-MINI-LXO, E-MICRO, or PWR-RMT-RBT-C13.
- To connect to the digital inputs, use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
- Connect to digital input on an E-MINI-LXO, E-MICRO, or PWR-RMT-RBT-C13.
- Maximum cable length: 1,000 ft
- Dimensions: 1.00x1.41x1.75
- Operating temperature: -13 to 158°F (-25° to 70°C)
- Regulatory approvals: UL
Downloads & References
Rugged Door Contact Sensor
E-DCSR-V2
- Monitors access with a magnetic bridge sensor (no special inserts necessary).
- Ideal for commercial and industrial installations in harsh environments.
- E-DCSR-V2: industrial-grade floor-mount switch that is primarily used for the protection of overhead doors where there is operation of heavy motorized traffic.

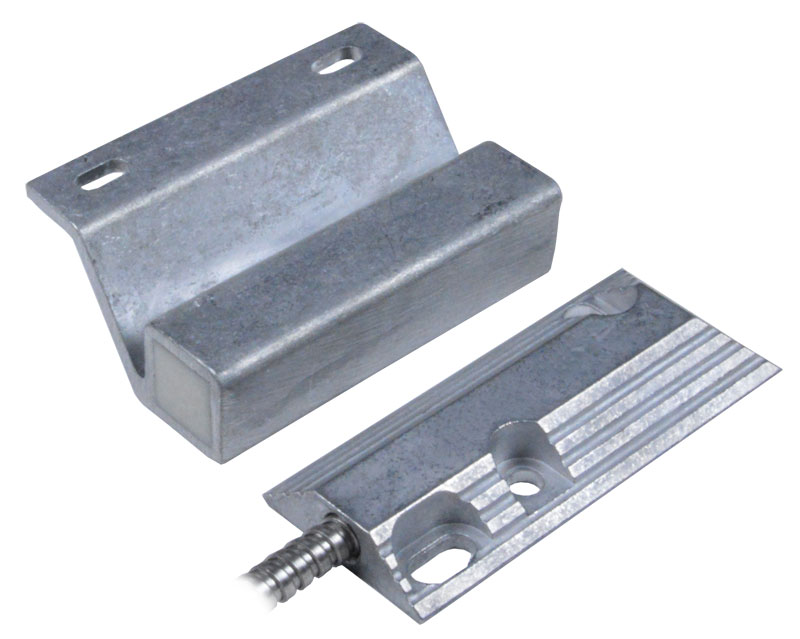

- E-DCSR-UV2: Rugged Door Contact Sensor with Universal Style Magnet can be mounted at various angles for difficult installations.
- Heavy-cast metal housing with 3.06-feet armored cable.
- Floor-mounting hardware included.
- For normally open or normally closed circuit connected.
- Wide actuating gap up to 2.5 inches (63 mm).
- Helps prevent false alarms caused by door movement or damaged and loose fitting doors.
- Connect to digital input on an E-MICRO or PWR-RMT-RBT-C13.
- Operating temperature
- E-DCSR-V2: -67 to 158°F (-55 to 70°C)
- E-DCSR-UV2: -4 to 140°F (-20 to 60°C).
- Dimensions WxDxH (in):
- E-DCSR-V2
- Magnet: 3.86x1.13x0.52 in (98x29x13 mm)
- Switch: 3.5x1.5x0.44 in (89x38x11 mm)
- E-DCSR-UV2
- Magnet: 3.1x1.15x2.14 (79x29x54 mm)
- Switch: 3.5x1.5x0.44 (89x38x11 mm)
- Regulatory approvals: UL
Downloads & References
Vibration Sensor – Registers Movement & Shocks
E-VSSBD
- For registering movement and shocks – sensed through surface to which it is mounted.
- Trigger duration: 3.1 to 4.1 seconds
- 2-wire interface.
- Screw terminal.
- Operating temperature: 32 to 104°F (0 to 60°C)
- Storage temperature: -22 to 140°F (-30 to 60°C)
- Relative Humidity: 17 to 90% non-condensing RH.
- Includes 5V/1A power supply.
- Compatible with E-MINI-LXO, E-MICRO, and PWR-RMT-RBT-C13.
- Mounting bracket included.
- Dimensions without bracket WxDxH: 2x2.5x1.28 in (51x64x33 mm)
- Dimensions without bracket WxDxH: 3.75x2.5x1.34 in (95x64x34 mm)
- Regulatory approvals: CE, RoHS
Downloads & References
Glass Break Detection Sensor
E-GBS-P
- Acoustically detects the cracking of common framed glass types such as plate, tempered, wired and laminate.
- Adjustable sensitivity and digital signal processing for greater detection sensitivity and improved false alarm immunity.
- Includes mounting hardware for wall and ceiling.
- Detection range: 25 feet.
- Reduced by drapes and/or blinds.
- Connect to RJ45 (E-MINI-LXO only) or digital input sensor ports (E-MINI-LXO,
E-MICRO, or PWR-RMT-RBT-C13). - Supports CAT5/5e/6 UTP or STP cables.
- Screw terminal
- To connect to the RJ45 inputs (E-MINI-LXO only), use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the unterminated end to the sensor screw terminal.
- To connect to the digital inputs (E-MINI-LXO, E-MICRO, or PWR-RMT-RBT-C13), use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
- Maximum cable length: 1,000 ft (305 m)
- Compatible with E-MINI-LXO and E-MICRO.
- Includes 12V/1A power supply.
Downloads & References
